Using Calipers for Accurate Measurements
Learn how to use a caliper effectively for measuring external and internal dimensions, depths, and more. Explore the main and Vernier scales for precise readings and enhance your measurement skills.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

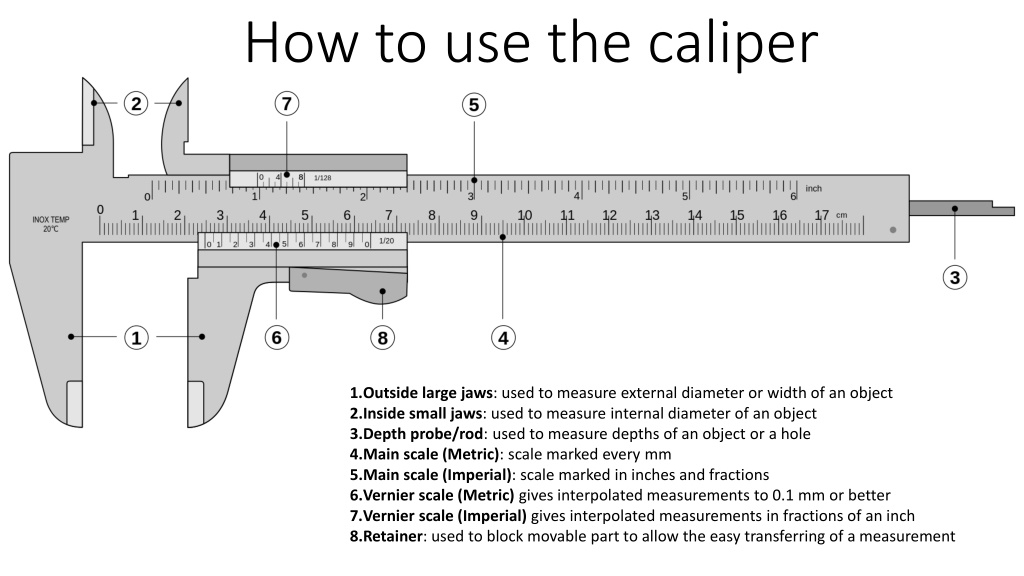

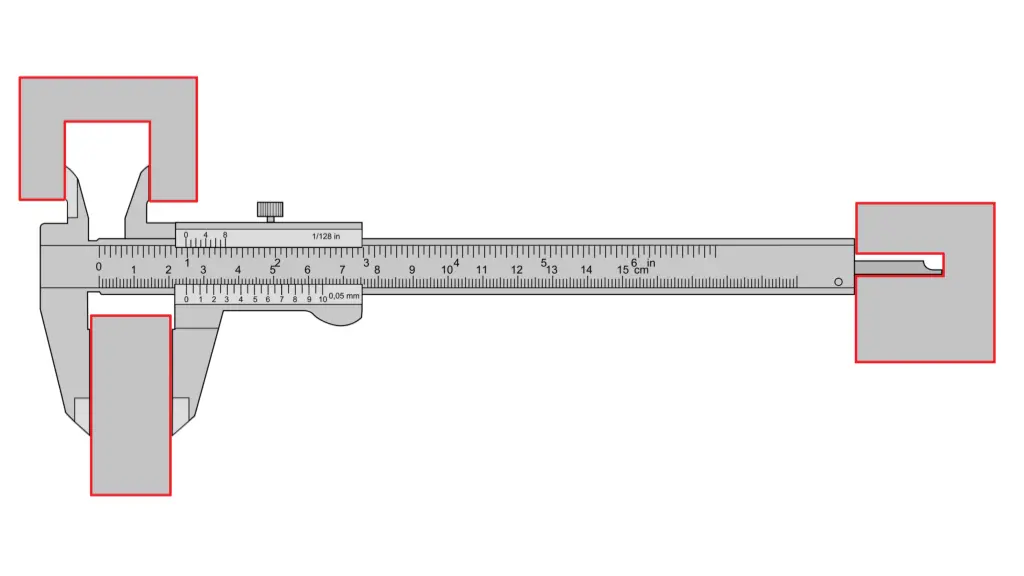

How to use the caliper 1.Outside large jaws: used to measure external diameter or width of an object 2.Inside small jaws: used to measure internal diameter of an object 3.Depth probe/rod: used to measure depths of an object or a hole 4.Main scale (Metric): scale marked every mm 5.Main scale (Imperial): scale marked in inches and fractions 6.Vernier scale (Metric) gives interpolated measurements to 0.1 mm or better 7.Vernier scale (Imperial) gives interpolated measurements in fractions of an inch 8.Retainer: used to block movable part to allow the easy transferring of a measurement

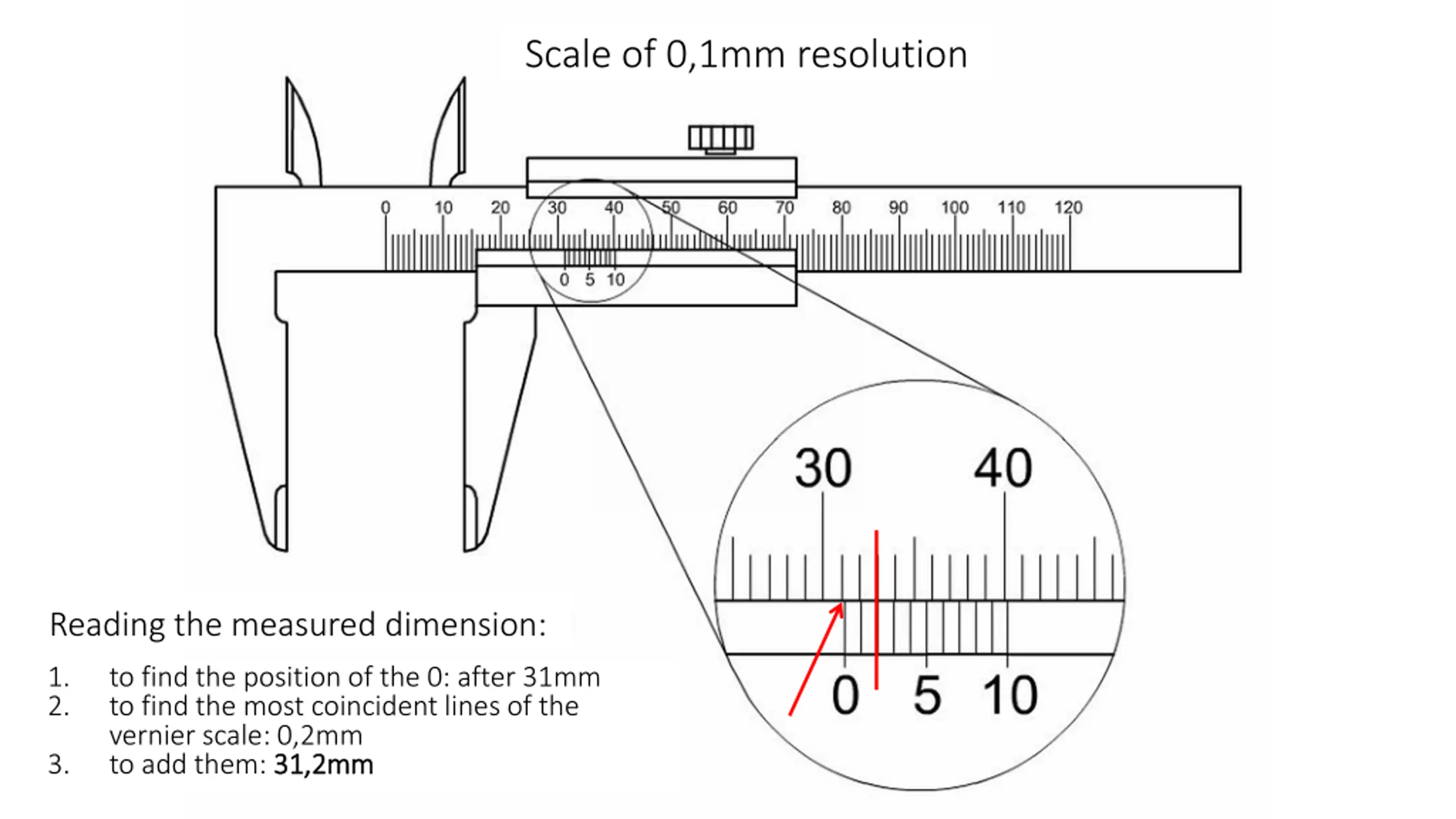

Scale of 0,1mm resolution Reading the measured dimension: 1. 2. to find the position of the 0: after 31mm to find the most coincident lines of the vernier scale: 0,2mm to add them: 31,2mm 31,2mm 3.

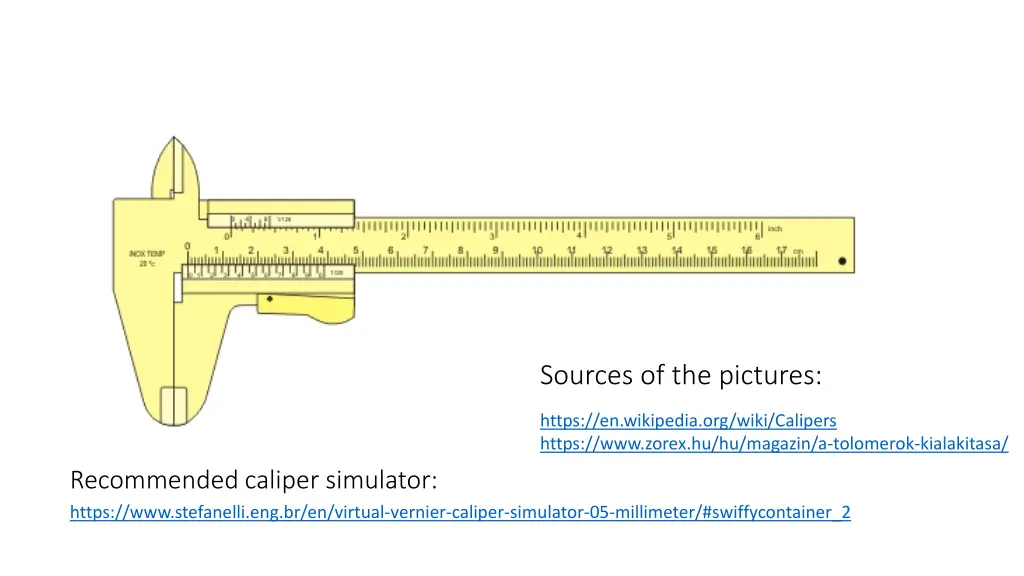

Sources of the pictures: https://en.wikipedia.org/wiki/Calipers https://www.zorex.hu/hu/magazin/a-tolomerok-kialakitasa/ Recommended caliper simulator: https://www.stefanelli.eng.br/en/virtual-vernier-caliper-simulator-05-millimeter/#swiffycontainer_2
