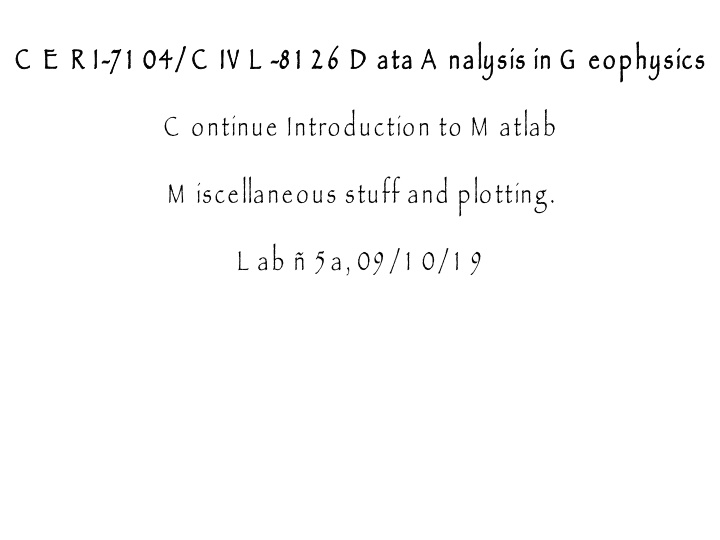

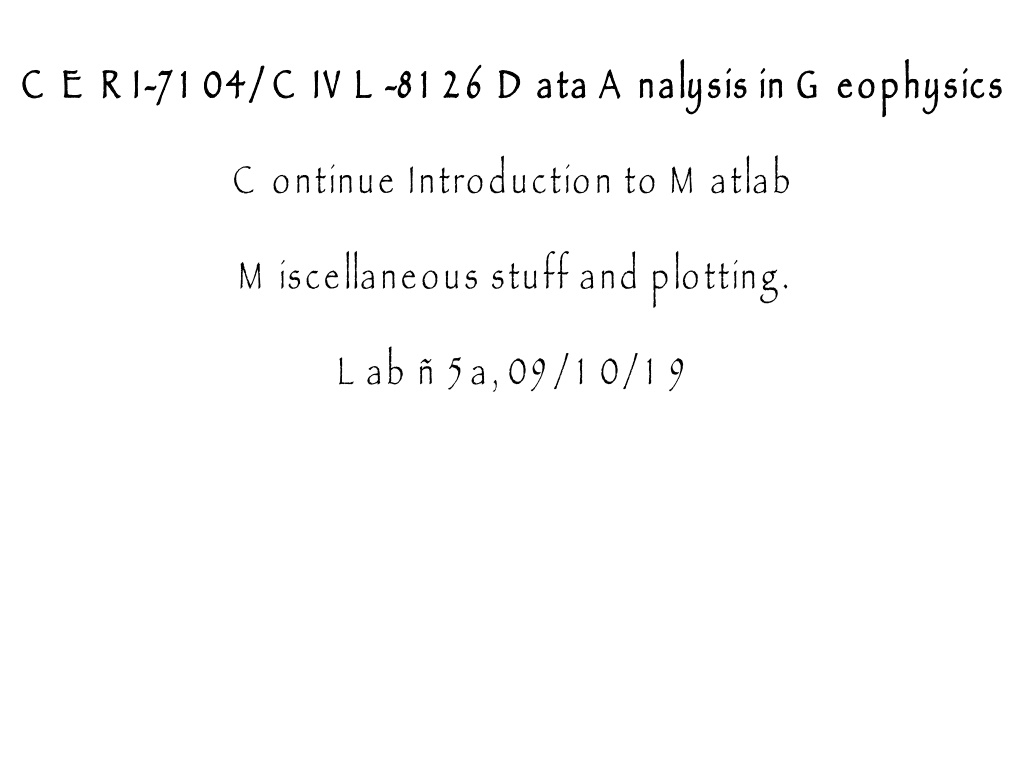

1. C E R I C E R I- -7 1 04/ C IV L 7 1 04/ C IV L - -8 1 2 6 D ata A nalysis in G eophysics 8 1 2 6 D ata A nalysis in G eophysics C ontinue Introduction to M atlab M iscellaneous stuff and plotting. L ab 5 a, 09 / 1 0/ 1 9

2. S ome unix commands (pwd, ls, ???) work in matlab (they are actually matlab commands) a=pwd; b=ls; S ome M atlab commands have the same names as U N IX commands, but are not the same B ut cat is a M atlab matrices (not files) M atlab does not pass things it does not understand to the O S to see if they are O S commands. M atlab command that concatenates

3. help B uilt into matlab help command T o get help on the command command

4. P roblem when you dont know the name of the command J ust type help >> help HELP topics: Documents/MATLAB - (No table of contents file) matlab/general - General purpose commands. matlab/ops - Operators and special characters. matlab/lang - Programming language constructs. matlab/elmat - Elementary matrices and matrix matlab/randfun - Random matrices and random streams. manipulation. L ists topics of help available

5. T hen to get contents of topics type help topic >> help elmat Elementary matrices and matrix manipulation. Elementary matrices. zeros - Zeros array. ones - Ones array. eye - Identity matrix. repmat - Replicate and tile array. linspace - Linearly spaced vector. logspace - Logarithmically spaced vector. freqspace - Frequency spacing for frequency response. meshgrid - X and Y arrays for 3-D plots. accumarray - Construct an array with accumulation. : - Regularly spaced vector and index into matrix. Basic array information. size - Size of array.

6. H elp on individual command >> help zeros ZEROS Zeros array. ZEROS(N) is an N-by-N matrix of zeros. ZEROS(M,N) or ZEROS([M,N]) is an M-by-N matrix of zeros. ZEROS(M,N,P,...) or ZEROS([M N P ...]) is an M-by-N-by-P-by- ... array of zeros. ZEROS(SIZE(A)) is the same size as A and all zeros. ZEROS with no arguments is the scalar 0. ZEROS(M,N,...,CLASSNAME) or ZEROS([M,N,...],CLASSNAME) is an M-by-N-by-... array of zeros of class CLASSNAME. Note: The size inputs M, N, and P... should be nonnegative integers. Negative integers are treated as 0. Example: x = zeros(2,3,'int8'); See also eye, ones. Reference page in Help browser doc zeros

7. C reate constant matrix T his is something that shows up a lot. >> val=pi val = 3.1416 >> siz=[2 2 2] siz = 2 2 2 >> x=repmat(val,siz) x(:,:,1) = 3.1416 3.1416 3.1416 3.1416 x(:,:,2) = 3.1416 3.1416 3.1416 3.1416 >>

8. O ther ways (seems more roundabout, showing for completeness) >> xx(prod(siz))=val xx = 0 0 0 0 0 0 0 3.1416 >> xx(:)=xx(end) xx = 3.1416 3.1416 3.1416 3.1416 3.1416 3.1416 3.1416 3.1416 >> xx=reshape(xx,siz) xx(:,:,1) = 3.1416 3.1416 3.1416 3.1416 xx(:,:,2) = 3.1416 3.1416 3.1416 3.1416 very obscure, weird way but works

9. A nother way (m, n and o have to be scalar variables, again for completeness) >> m=2 m = 2 >> n=2 n = 2 >> o=2 o = 2 >> x(1:m,1:n,1:o)=val x(:,:,1) = 3.1416 3.1416 3.1416 3.1416 x(:,:,2) = 3.1416 3.1416 3.1416 3.1416 >> x(1:m*n*o)=val A lso works using single dimension addressing

10. A nother way (actually the most popular, this is T ony's trick!)(val has to be a scalar variable, this syntax populates the array with val) >> x=val(ones(siz)) x(:,:,1) = 3.1416 3.1416 3.1416 3.1416 x(:,:,2) = 3.1416 3.1416 3.1416 3.1416 >> A void using X = val * ones(siz); since it does unnecessary multiplications (versus just storing, above) and only works for classes for which the multiplication operator is defined.

11. H ow T ony's trick works W hat does this do? H ow does it work? >> x=val([1 1 1; 1 1 1]) W e know what x=val(1) does. W e know what x=val(1,1) does. W e know (or can find out) that x=val(1,2) does not work. W hat about x=val([1])? F rom there easy to generalize a matrix as index. W hat about x=val([1 1])?

12. H ow T ony's trick works W hat does this do? H ow does it work? >> x=val([1 1 1; 1 1 1]) x = 3.141592653589793 3.141592653589793 3.141592653589793 3.141592653589793 3.141592653589793 3.141592653589793 T ony's trick just replaces the matrix definition [1 1 1; 1 1 1] above with ones(2,3) >> x=val(ones(2,3)) x = 3.141592653589793 3.141592653589793 3.141592653589793 3.141592653589793 3.141592653589793 3.141592653589793

13. N ames A few things to remember: - C annot use spaces in names of matrices (variables, everything in matlab is a matrix) or filenames cool x = [1 2 3 4 5] - C annot use the dash sign (-) because it represents a subtraction. cool-x = [1 2 3 4 5] - D on t use a period (.) unless you want to create something called a structure. cool.x = [1 2 3 4 5]

14. A few things to remember: - Y our best option, is to use the underscore ( _ ) if you need to assign a long name to a matrix my_cool_x = [1 2 3 4 5]

15. O perators review and completeness A rithmetic operators. plus - P lus uplus - U nary plus minus - M inus uminus - U nary minus mtimes - M atrix multiply times - A rray (element by element) multiply ) mpower - M atrix power power - A rray (element by element) power mldivide - B ackslash or left matrix divide mrdivide - S lash or right matrix divide ldivide - L eft array (element by element)divide .\ rdivide - R ight array (element by element) divide ./ kron - K ronecker tensor product + + - - * .* .^ \ ^ / kron

16. O perators review and completeness R elational operators. eq - E qual ne lt - L ess than gt - G reater than le - Less than or equal ge - G reater than or equal L ogical operators. and - L ogical A N D or - L ogical O R not - L ogical N O T xor - L ogical E X C L U S IV E O R any - T rue if any element is nonzero all - T rue if all elements are nonzero == < > - N ot equal ~= <= >= & | ~ any(A) all(A) xor(A,B)

17. S ome useful relational operators for whole matrices include the following commands: isequal : tests for equality isempty: tests if an array is empty T hese return 1 if true and 0 if false

18. C hecking for special elements (NaN, Inf) isnan(a) R eturns 1 for every NaN in array a. isinf(a) R eturns 1 for every Inf in array a. isfinite(a)Returns1 for every finite number (not a (Nan or Inf)) in array a. isreal(a) R eturns 1 for every non-complex number array a.

19. U sing special elements to your advantage. S ince NaNs propagate through calculations (answer is NaN if there is a NaN somewhere in the calculation), it is sometimes useful to throw NaNs out of operations like taking the mean. (A handy trick to ignore stuff you don t want while you continue calculating.)

20. E xample of NaNs propagating through calculation (answer is NaN if there is a NaN somewhere in the calculation) >> a=1:4 a = 1 2 3 4 >> b=10:-1:7 b = 10 9 8 7 >> a(2)=NaN a = 1 NaN 3 4 >> a+b ans = 11 NaN 11 11 >>

21. It is sometimes useful to be able to throw NaNs out of operations like taking the mean. (A handy trick to ignore stuff you don t want while you continue calculating.) S o the function that identifies NaNs can be very useful: >> a a = 1 NaN 3 4 >> ix=find(~isnan(a)) ix = 1 3 4 >> m=mean(a(ix)) m = 2.6667 >> finds all values of a that are not NaNs and averages them (denominator is number of elements averaged, not total number of elements).

22. T he load function reads binary files containing matrices (generated by earlier M A T L A B sessions), or text files containing numeric data. T he text file should be organized as a rectangular table of numbers, separated by blanks, with one row per line, and an equal number of elements in each row. N O A L P H A C H A R A C T E R S ! T he text file should be organized as a rectangular table of numbers, separated by blanks, with one row per line, and an equal number of elements in each row. N O A L P H A C H A R A C T E R S ! >> cat magik.dat 16.0 3.0 5.0 10.0 9.0 6.0 4.0 15.0 >> A=load( magik.dat ) #places matrix in variable A >> load magik.dat #places matrix in variable magik 2.0 11.0 7.0 14.0 13.0 8.0 12.0 1.0

23. T he save function W rites files containing matrices (from memory). D efault format matlab binary file. >> save >> myfile='my_file.mat >> save(myfile) >> save('my_file.mat','a','b )saves vari a & b to my_file.mat >> save(myfile,'a', '-ascii') saves vari a & b to ascii file "matlab.mat" saves workspace to my_file.mat saves workspace to default name save(FILENAME,VARIABLES) save(FILENAME, , ...,FORMAT) save(FILENAME, ..., '-append') '-mat' Binary MAT-file format (default). '-ascii' 8-digit ASCII format. '-ascii', '-tabs' Tab-delimited 8-digit ASCII format. '-ascii', '-double' 16-digit ASCII format. '-ascii', '-double', '-tabs' Tab-delimited 16-digit ASCII format

24. M atlab is particularly difficult to use if data files do not fit this format (varying number columns for example). M atlab is also particularly difficult to use for processing character data. W ill return to this later.

25. W e already know about m-files T ext files with M A T L A B code (instructions). U se M A T L A B E ditor (or any text editor) to create files containing the same statements you would type at the M A T L A B command line. S ave the file with a name that ends in .m % vim magik.m i A = [ 16.0 3.0 2.0 13.0 5.0 10.0 11.0 8.0 9.0 6.0 7.0 12.0 4.0 15.0 14.0 1.0 ]; (esc)wq in matlab, execute the m file magik.m >> magik #places matrix in A don t need the .m

26. F unctions A re also stored in m-files. T he file name should be the name of the function. F unction stored in file readsac.m function [t,a,p]=readsac(sacfile,varargin) C all with [t,a,p]=readsac(sacfilename)

27. F lipping vectors or matrices (not the same as the transpose). >> a=[1 2;3 4] a = 1 2 3 4 >> fliplr(a) ans = 2 1 4 3 >> flipud(a) ans = 3 4 1 2 >> a=[1:3;4:6] a = 1 2 3 4 5 6 >> rot90(a) ans = 3 6 2 5 1 4 >> a ans = 1 4 2 5 3 6 >> flipdim(a,1) ans = 4 5 6 1 2 3

28. H ow to represent nothing E mpty array or string A rray = [] S tring = U seful for defining a name to be used on L H S . S ize and length are zero.
