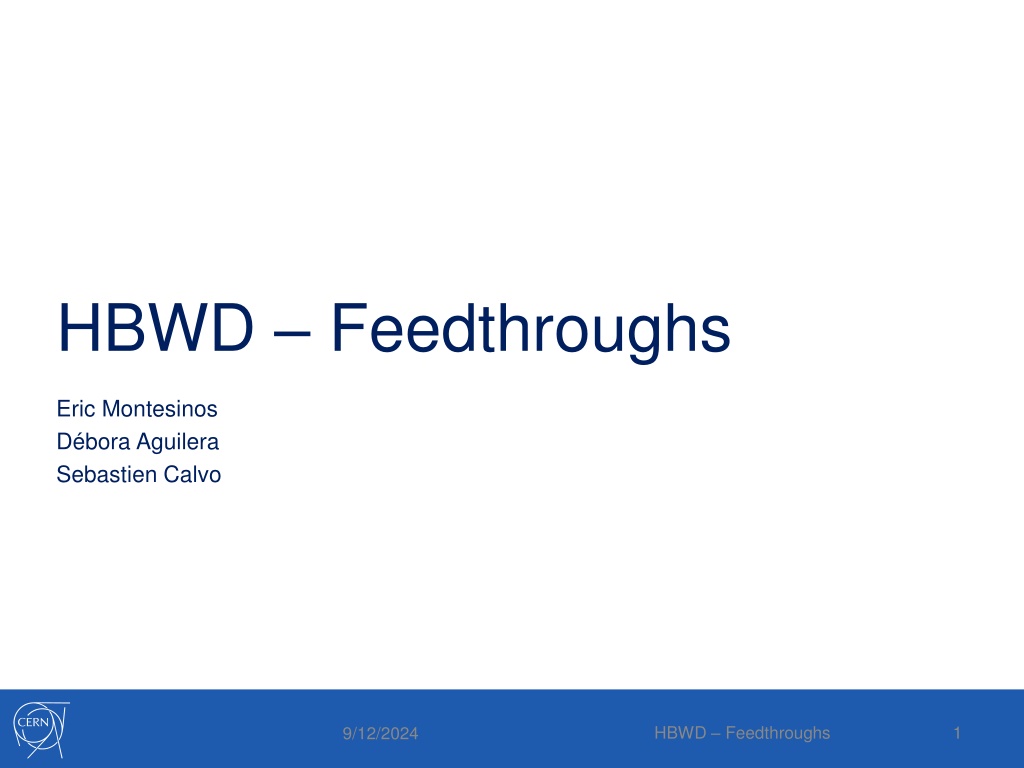

HBWD Feedthroughs Eric Montesinos D bora Aguilera Sebastien Calvo HBWD Feedthroughs 1 9/12/2024
Contents Specifications Contacted suppliers Proposals MWS simulations Accepted offers Conclusions HBWD Feedthroughs 2 9/12/2024
Feedthrough specifications 7/16 DIN connector (preferred) 50 0 1 GHz 5 kW DN 40 CF flange Conical shape Final diameter 5 mm HBWD Feedthroughs 3 9/12/2024
Suppliers Five suppliers were contacted Kyocera SST MDC vacuum products Neyco SCT Offer was rejected by the companies due to an inability to reach the initial requirements HBWD Feedthroughs 4 9/12/2024
Kyocera proposal HBWD Feedthroughs 5 9/12/2024
SST proposal HBWD Feedthroughs 6 9/12/2024
MDC proposal HBWD Feedthroughs 7 9/12/2024
Accepted offers Offers from three suppliers Kyocera Compliant with required specifications Six units have been ordered SST Compliant with required specifications Six units have been ordered ~ MDC Initial offer non-compliant with required specifications Updated offer is being assessed HBWD Feedthroughs 8 9/12/2024
MWS simulations HBWD Feedthroughs 9 9/12/2024
Conclusions Kyocera MWS simulations confirm that the proposal is valid SST MWS simulations of an approximated model indicate that although not optimal, the design is almost compliant with the set requirements ~ MDC Updated offer is being assessed HBWD Feedthroughs 10 9/12/2024
HBWD Feedthroughs 11 9/12/2024
