Comprehensive Site Analysis for Commercial Building Construction Project in Gisenyi
Site analysis for a commercial building project in Gisenyi, including details on project location, project owner, neighboring plots, hydrology, soils, land cover, access to infrastructures, and more. The project involves constructing a commercial building with apartment units and parking facilities, situated in an area with new developments and established buildings. Details on water supply, sanitation, power supply, access roads, and surrounding features like nearby wetlands and lakes are provided.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript

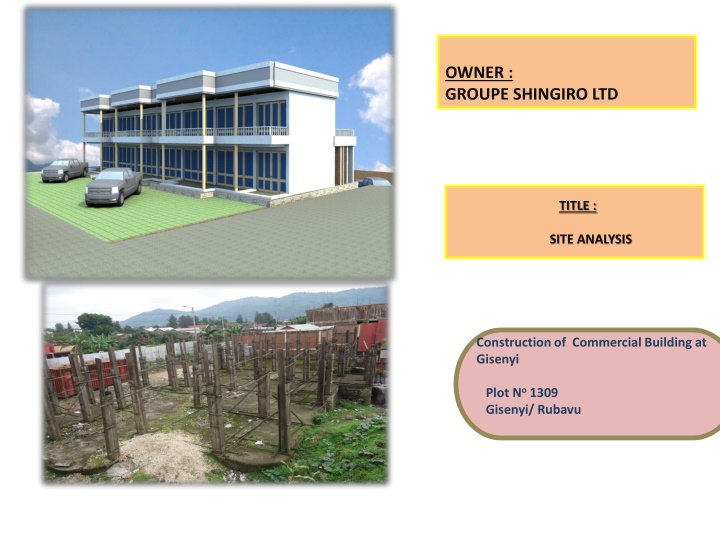

OWNER : GROUPE SHINGIRO LTD TITLE : SITE ANALYSIS Construction of Commercial Building at Gisenyi Plot No1309 Gisenyi/ Rubavu
Project analysis Level Usage Area (m2) Ground floor area- basement Apartment unit 290 First floor area Apartment units 270 TOTAL AREA 560 At maximum Capacity, the Project shall hold 18 Couple Number floors: 2FLOORS+basement (G+1) Plot area : 1,206 sqm Total floor area :1,206 sqm Number of parking : 5
Project Location The project will be located in Gisenyi -Rubavu Neighbourhood context Western Province District : Rubavu Sector : Gisenyi Cell : Rubavu Plot No : 1309 The project is located in an area with new developments as well as others that have been there for long time ago. Direct limit to Small border road. The plot neighbors also the ancient commercial buildings in the West and Est. , and the Road to the North and South . Project owner The project is owned by GROUPE SHINGIRO LTD NEIGBHOURING PLOTS - South : Road - North : Road - East : Plot No 81 - West :Plot 1310 The plot measures about 1206 m2 and it is bordered by only one asphalt road on one of its four sides And one marrum road. .
SITE ANALYSIS Hydrology, Soils and land cover and land tenure The elevation of the site is about 1400 above sea level. The plot is found between two new commercial buildings; and limited two roads on Northern and Southern. The soils of the site are composed of volcano rock with small volcano stones in some places. There is no more natural vegetation on the plot . The surrounding area is comprised of buildings and roads for four sides. On the hydrological point of view , the nearby wetland is located to the South of the plot in around 1500m away. There is lake of in the south of the project site..
ACCESS TO INFRASTRUCTURES Water Supply / Sanitation The main water supply in settlements surrounding the study area is from the network managed by EUCL. Like the most of RUBAVU, the project area does not have a centralized sewerage network. The secondary water supply will be from the RC under ground water tank and plastic tank on area slab. Power Supply Like the existing houses the project has a direct connection to the national electricity grid managed by REG. It will be supported by a owner s standby generator in case of power cut off. Access road The project has a direct access to the asphalt road and secondary road and enough parking space for customers and reserves.
