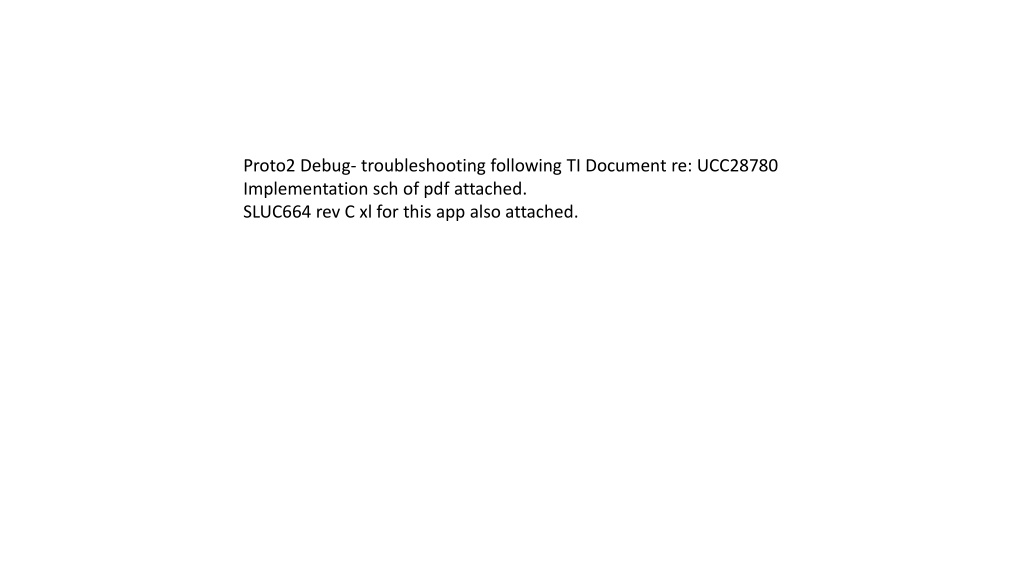

Proto2 Debug- troubleshooting following TI Document re: UCC28780 Implementation sch of pdf attached. SLUC664 rev C xl for this app also attached.

PROTO2 DEBUG-TROUBLESHOOTING STEPS TROUBLE: 0 PWML Why does Vdd discharge fast & no step transition on Vhvg? - - - CALCULATIONS PER XL REV , DC INPUT No parts missing or broken Soldering ok, no parts backwards - - No short. Can apply HVBULK TO 380V for testing. - - - Vdd to 17.5 No shorts on VDD, SWS,HVG, REF, RUN BAS126 OK BECAUSE IT does change state - - - - - - No shorts on VDD, SWS,HVG, REF, RUN No pulse even at 180v vbulk -CS PULL UP TO REF PRODUCES .3V. Xmfr pri reduced to 400uH & then to 200 uH Turn ratio on AUX lowered to 28:4 from 28 : 3 REF does not go up to 5V and its duration =fall time of VDD - Circuit uses NV6117,. External PWM on PWML applied thru ISO7710FD will switch NV6117 lower and then upper verified before installing UCC28780 - Isol7710FDs are powered separately thru bias using SN6505 xmfr. System has 5.2V input supplied.

SLUUBV6-AUG 2018 Eval kit measurement on start up VDD & HVG waveforms- low Vbulk applied Blue: Vdd Red: Vhvg Vdd fall slowly & Vhvg controlled down to 11V after vdd rises to 17.5v as expected 50ms per div

PROTO2 measurement on start up VDD & HVG waveforms- low Vbulk applied Trouble: 0 PWML Vdd & Vhvg coinciding for same value? Blue: Vdd Red: Vhvg Identical to VDD Vdd falls rapidly at the same rate as Vhvg from 17.5V to 10 V PWML pule count =0 No RUN step to hi. 50ms per div

PROTO2 measurement on start up VDD & HVG waveforms- low Vbulk applied Trouble: 0 PWML Blue: Vdd Red: Vref- does not go to 5v Vdd falls rapidly at the same rate as Vhvg from 17.5V to 10 V PWML pule count =0 No RUN step to hi. 50ms per div
