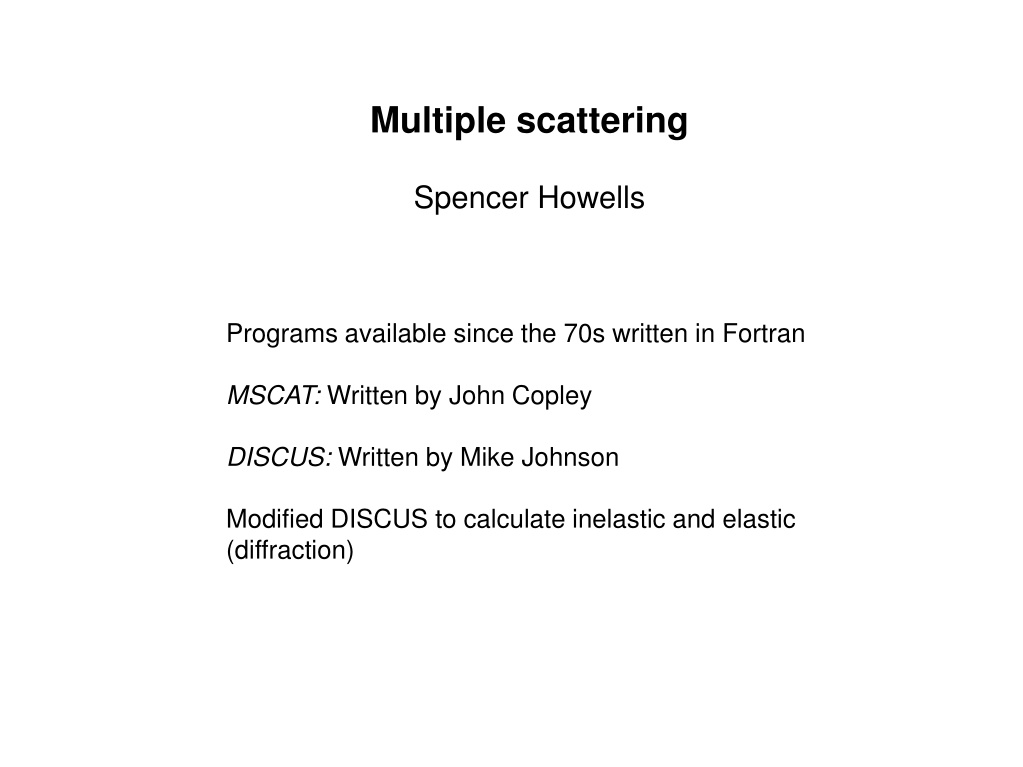

Multiple Scattering Programs in Fortran for Neutron Diffraction and Inelastic Analysis
M
u
l
t
i
p
l
e
s
c
a
t
t
e
r
i
n
g
Spencer Howells
Programs available since the 70s written in Fortran
MSCAT:
Written by John Copley
DISCUS:
Written by Mike Johnson
Modified DISCUS to calculate inelastic and elastic
(diffraction)
I
n
p
u
t
S(Q) for diffractions or S(Q,w) for inelastic
Neutron cross-sections
Sample geometry & density
Number of scatterings
Number of neutrons
Scattering angles
Experience suggests 3 scatterings is sufficient
E
l
a
s
t
i
c
r
e
s
u
l
t
s
D
i
f
f
r
a
c
t
i
o
n
Useful for the low Q region where you can have double back-
scattering.
First scattering approaching 2theta=180deg goes to the main peak of
S(Q) and the second scattering is also 180deg leading to increased
MS at low Q.
The MS increases with decreasing Q and could be confused with real
small angle scattering.
Would be used as part of an iterative procedure
Fortran version has been tried by Disordered group as part of Gudrun
package.
Found to be not useful.
A version with a container was attempted but was unsucessfull due
problems in the geometry routines.
I
n
e
l
a
s
t
i
c
r
e
s
u
l
t
s
Single scattered S(Q,w) – contour & spectrum at Q=1.0
Second scattering – contour & spectrum at Q=1.0
I
n
e
l
a
s
t
i
c
Problems
Energy range – twice scattered event could have an
energy twice the input maximum and there is no S(Q,w)
value available. This would be particularly bad for a wide
peak at large Q.
Measured data has been resolution broadened from the
true S(Q,w). This will be a problem for sharp features.
Inelastic peaks. Does it introduce extra peaks in the
measured data due to the MS – double scattering, for
example, could give a peak at twice the energy.
Applying the corrections must be thought through
properly.
For example, almost all QENS data analysis
involves fitting peaks using convolution fitting.
For this the peak(s) in the fitting routine have to
be scaled by the MS ratio before fitting.
QENS also has a double back-scattering effect at
low Q.
Should also include container
