Semiconductor Conductivity and Scattering Mechanisms

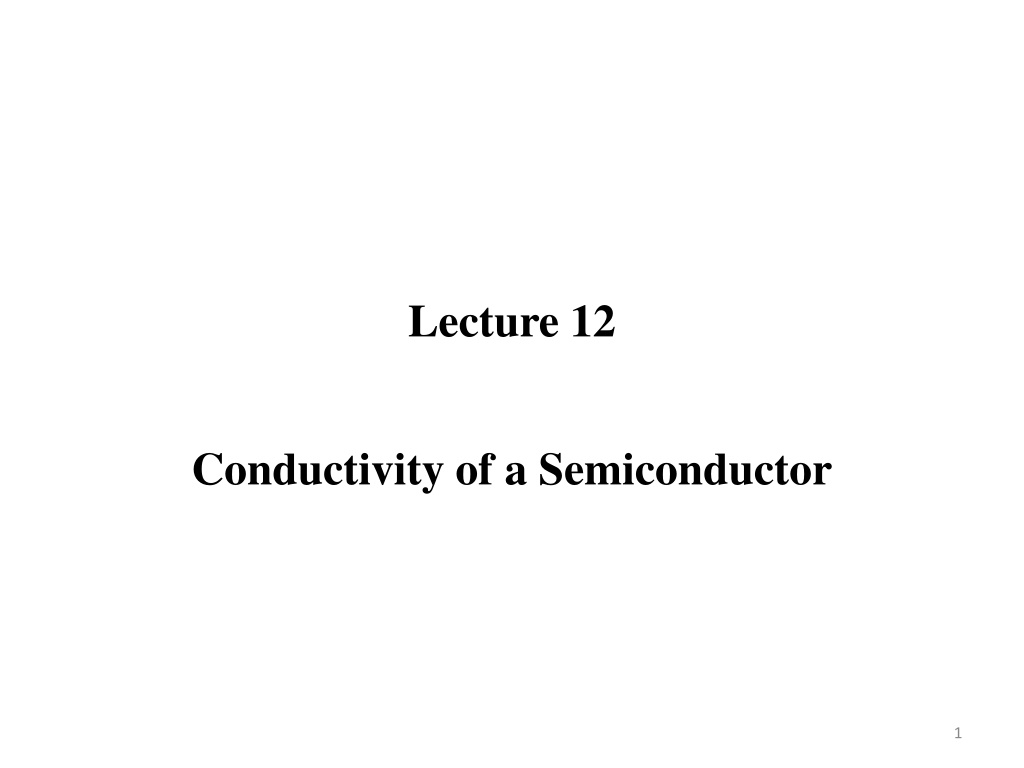

Lecture 12
Conductivity of a Semiconductor
1
Recap
A
degenerate semiconductor
is a
with such a high level of
that the material starts to act more like a
than as a semiconductor.metaldopingsemiconductor
If we add dopants at much higher concentrations, dopant atoms come much
closer to each other and it is no longer valid to assume the donor levels as atom
like. If the inter-atomic distance is closer (typically < 10nm) then the atomic
levels turn into bands. This leads to significant changes in the crystal structure as
well as the physical properties.
It is also to be noted that the donors (or acceptors) energy levels are assumed
as atom like. Such assumptions are limited up to a certain level of dopant
concentration and such extrinsic semiconductors are called
non-degenerate
semiconductors.
2
Conductivity of a semiconductor
σ
= q ( μ
n
n + μ
p
p ) -------------------------------------------------( 1 )
Where, μ
n
and μ
p
refer to the mobilities of the electrons and holes, and n
and p refer to the density of electrons and holes, respectively.
σ
= q μ
n
n, For n- type
σ
= q μ
p
p, For p-type
μ
n
=
e
τ
n
/ m
n
⁎
μ
p
=
e
τ
p
/ m
n
⁎
τ
n
and τ
p
are scattering time
3
Conductivity of a semiconductor
T
he scattering time is in terms of a scattering cross section (S)
is
given by
τ =1 / S V
th
N
s
------------------------------------------------------(4)
Where
V
th
is the mean speed of the electrons (thermal velocity) and N
s
is the
number of scatters per unit volume.
In a semiconductor, both mobility and carrier concentration are temperature dependent. Thus, it is important
to view the conductivity as a function of temperature which is expressed by
σ
= q [μ
n
(T) n ( T) + μ
h
( T ) p ( T) ]
4
Types of scattering mechanisms
Scattering is what determines how responsive carriers are in a semiconductor.
A scattering event is when an electron (or a hole, but let’s just mention the
electrons for now and keep in mind that everything we say for electrons is valid for
holes) bumps into something such that it changes its direction, momentum, and/or
energy.
An electron can bump into other electrons, holes, ionized impurities, and into
phonons—lattice vibrations. Obviously, the more of those things there are around,
the more frequent the scattering events.
5
Types of scattering mechanisms
1.
Lattice scattering :
Lattice scattering
is the
scattering
of
ions by interaction with atoms in a
lattice
. This effect can
be qualitatively understood as phonons colliding with
charge carriers.
2.
Impurity Scattering :
Impurity scattering becomes
important for doped semiconductors. The mobility of the
carriers in a semiconductor is also influenced by the
presence of charged impurities. Impurity scattering is
caused by crystal defects such as ionized impurities.
6
Lattice scattering
In an intrinsic semiconductor the carrier scattering is mainly due to thermal vibrations of
the lattice (Si atoms). In metals, electron-electron scattering is also important and affects
the conductivity, but electron concentration in semiconductors are low so that electron-
electron scattering can be ignored.
For lattice scattering, if a is the amplitude of the lattice vibrations for a simple two
dimensional scattering, S is just πa
2
. As temperature increases, a increases and hence S
increases.
τ =1 / S V
th
N
s
------------------------------------------------------(4)
The second term in equation 4 is the thermal velocity (V
th
). This is typically given by
3/2k
B
T. For an electron in the conduction band this is equal to its kinetic energy so that
so that
1/2m
∗
eV
th
2
= 3/2 k
B
T
⇒
V
th
∝
√T-
------------------------------------------------(5)
S= πa
2
∝
T
7
Lattice scattering
S= πa
2
∝
T
The concentration of scatters, N
s
, is a constant and is independent of temperature.
So the dependence of lattice scattering time (
τ
L
) on temperature can be given
by :
L
= 1/ (πa
2
) V
th
N
s
τ
∝
1/(T)(T
1/2
)
∝
T(
−3/2
)
Since the scattering time is directly proportional to the mobility, this means
that μe is also proportional to T
-3/2
8
Lattice scattering
Thus, the effect of lattice scattering is to reduce the mobility with
increase in temperature.
This can be understood qualitatively by seeing that as the temperature
increases the atomic vibrations increase and at the same time the
electrons also travel faster.
Both these effects combine to reduce the mobility. A similar argument
is valid for hole scattering in intrinsic semiconductors.
Despite this decrease in mobility, conductivity increases with
temperature because carrier concentration increases exponentially with
temperature
9
Impurity scattering
Impurity scattering is caused by crystal defects such as ionized impurities.
At lower temperatures, carriers move more slowly, so there is more time
for them to interact with charged impurities.
As a result, as the temperature decreases, impurity scattering increases,
and the mobility decreases.
This is just the opposite of the effect of lattice scattering.
10
Impurity scattering
At room temperature the impurities are ionized,
so that there is an electrostatic attraction
between the electrons traveling in the lattice and
the impurity, as shown in figure 1 for As doped
in Si (donor).
To find the scattering cross section due to the ionized impurities we can equate the
kinetic energy (KE) of the electrons to the potential energy (PE) due. From figure 1
the electron will not be scattered if KE dominates while scattering occurs if PE
dominates. The scattering radius, r
c
, is the distance at which both effects are equal
11
Impurity scattering
3/2 k
B
T=e
2
/ 4πϵ
0
ϵ
r
r
c
S= πr
2
c
∝
T
−2
So the scattering time due to impurities, τ
I
, is given by equation
τ
I
= 1 / (πr
2
c
) V
th
N
I
∝
1/ (T
−2
T
1/2
)
∝
T
3/2
-----------------( 7 )
12
Impurity scattering
The total mobility then is the sum of the lattice-scattering mobility and the
impurity-scattering mobility.
Figure 2 shows how the total mobility has a temperature at which it is a
maximum.
The approximate temperature dependence of mobility due to lattice scattering
is T
-3/2
, while the temperature dependence of mobility due to impurity
scattering is T
+3/2
(see Figure 2).
In practice, impurity scattering is typically only seen at very low
temperatures. In the temperature range we will measure, only the influence of
lattice scattering will be expected.
13
Impurity scattering
Figure 2 Approximate temperature
dependence of mobility with both
lattice and Impurity Scattering
Thus
lattice scattering
lowers the
carrier mobility more and more at
higher temperature. ...
At lower temperatures, ionized
impurity scattering
dominates, while
at higher temperatures, phonon
scattering
dominates, and the actual
mobility reaches a maximum at an
intermediate temperature.
14
Scattering
Both increasing temperature and increasing doping levels
have the tendency to reduce electron and hole mobility.
For temperature, the increased temperature increases the
number of phonons, which increases the probability that an
electron will be scattered by a phonon.
For doping levels, each dopant atom is a defect site that an
electron can scatter from.
15
Temperature Dependence of Conductivity for a
Semiconductor
At fairly low temperatures (less than 200K), the dominant scattering
mechanism might be impurity scattering (
T
3/2
) while the carrier
concentration is determined by extrinsic doping (n= ND+), therefore,
conductivity would be seen to increase with temperature (
T
3/2
).
If it occurs at high temperatures (above 400K or higher) when carrier
concentration is intrinsic (Equation 6) and mobility is dominated by lattice
scattering (
T
-3/2
).
In such cases, the conductivity can easily be shown to vary with temperature as:
exp
E
g
/ 2kT------------------------------------------------------
(8)
In this case, conductivity depends only on the semiconductor band gap
and the temperature. In this temperature range, measured conductivity
data can be used to determine the semiconductor band gap energy, E
g .
16
Summary
Mobility is a measure of the ability of an electron or a hole to get
around inside a semiconductor. Scattering events lower mobility. As
the temperature of a semiconductor increases, there will be more and
more lattice vibrations.
Lattice vibrations create localized, microscopic potentials that can
change the direction of an electron. They create scattering events.
They lower mobility. Raising the temperature of a semiconductor
decreases the mobility.
At low temperatures dominant scattering mechanism is impurity
scattering and at high temperature dominant scattering mechanism is
lattice scattering.
17
