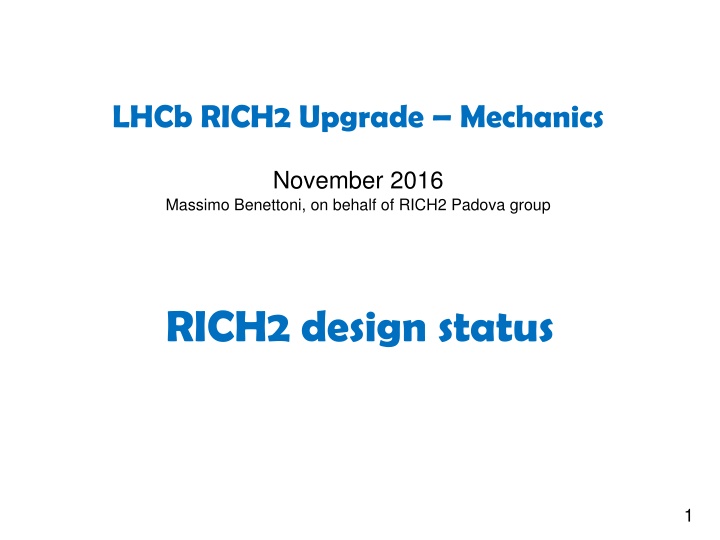

  1. LHCb RICH2 Upgrade Mechanics November 2016 Massimo Benettoni, on behalf of RICH2 Padova group RICH2 design status 1

  2. T-bar and Cooling T-bar construction: prototypes in two pieces received, likely made of laminated plates AW6083 vs cast plate => out of planarity up to ~1 mm Requiring careful assembly to optimize streightness (RICH2 bars could be one single piece) Cable tray Dimensions and design depending on services DEBs: thermal coupling for DEBs dissipating components Services: From T- bar to gas patch panel without patch panels? Connections on board T-bar: PDM HV patch panel Fibers splicers Cooling: Two ducts, go and return Drop of pressure compatible wrt available Dp ~ 0.7 bar Optimized ECs and DEBs cooling 2

  3. Cooling geometry Found deep-drilling feasible as small as 5 mm Calculations of heat exchange and pressure drop, range 5 to 10 mm diam. (flow to get Dt out-in of 5^C => water: ~ 1 l/1 , C6F14 Qe =1 lw/1 ~ 2.4 l/1 ) Small diameters (<7 mm) are more efficient than 10 mm with 8 mm cyl inserts 5 mm diameter pressure drop seems to high wrt overall 0.7 bar available 6 mm diameter seems best choice (one duct, 1.4 m long) 4 Condotto cilindrico 3.5x 10 ACQUA C6F14 NOVEC 649 NOVEC 7100 LIMITE 3 2.5 Caduta di pressione [Pa] 2 1.5 1 0.5 0 5 6 7 8 9 10 11 12 -3 Diametro [m] x 10 3

  4. Cooling geometry No more need of inserts or baffles => simpler production Expected pressure drop with 6 mm duct diameter < 0.3 bar (ducts only) Expected heat exchange coefficient with 6 mm duct diameter: 2.3x wrt 10mm circular duct (1stprototype) 1.4x wrt 10mm duct with 8 mm cyl insert (hydraulic diameter ~ 3.6 mm) 5 C6F14 6x 10 D = 5 [mm] D = 6 [mm] D = 8 [mm] D = 10 [mm] Condotto anulare LIMITE 5 Caduta di pressione [Pa] 4 3 2 1 0 0.8 1 1.2 Portata equivalente Qe [l/m] 1.4 1.6 1.8 2 4

  5. Cooling geometry Test of T-bar with single 10 mm duct: baffles wrt to no baffles Water, Tin = ~ 21 C , Tout ~= 26 C, Q~ 1 l/1 , P~350 W NO BAFFLES Average bar temp 28.8 C T min face EC ~ 25 C T max face EC ~ 28 C Max bar temperature ~ 31.5 C BAFFLES Average bar temp 26.4 C T min face EC ~ 22.5 C T max face EC ~ 26.5 C Max bar temperature ~ 29.5 C Fine! but Dprex (water) @1 l/m: 0.21-0.27 bar/m => C6F14 likely not acceptable 5

  6. Prototypes Prototypes built in 2 pieces: Flange to ECs 12x55 mm plate deep-drilled blade, 15x90 plate, duct diameters: 5, 6, 8, 10 mm Prototypes received on Nov. 4, quick check on granite table Planarity of blades from very good (<0.2 mm) to bad (~ 0.8 1 mm) under cleaning at LNL, then assembly and measuring 4+4 pcs to be returned to company for shipping to Cern Prototypes available: - 2 blades w/o ducts (gift) sent to Trevor @ Imperial - 2 blades 10 mm duct - 2 blades 8 mm duct - 1 blade 6 mm duct - 1 blade 5 mm duct - 6 flange plates (facing Ecs) - 2 additional base plates (gift) sent to Trevor @ Imperial 6

  7. T-bar endblocks design Cooling circuit sealing vs C6F14 NBR and PUR seem ok... https://detector-cooling.web.cern.ch/detector- cooling/data/Fluoro_Compatibility.htm Increasing prototype bearing dimensions and pitch to reduce preload HV-pp preliminary design (Flavio F.) 7

  8. DEBs thermal interface Updated design, proposing e.g. 0.5 mm copper sheets to reach bottom of DCDC

  9. PDA: rack, rails, maintenance Review design of rack maintenance scenario: move back rack mount rails extensions extract column rotate column Bar rotation: cable chains vs bundled services Services extralenght to allow rack and column retraction and access without disconnection Services cross section vs cable chain (~ 10 cm2) 9
