Introduction to Independent Component Analysis Math 285 project Fall 2015 Jingmei Lu Xixi Lu 12/10/2015

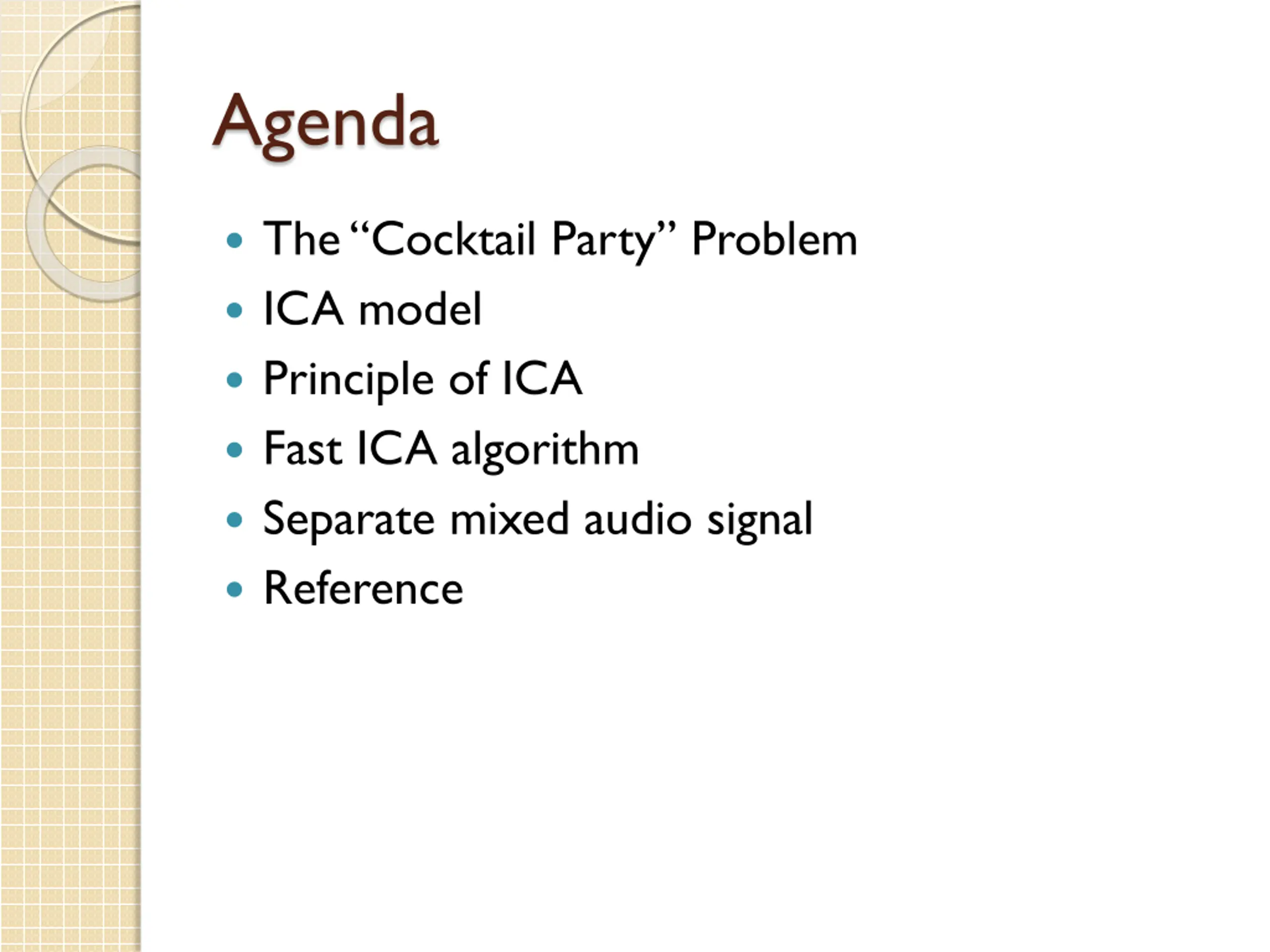

Agenda The Cocktail Party Problem ICA model Principle of ICA Fast ICA algorithm Separate mixed audio signal Reference

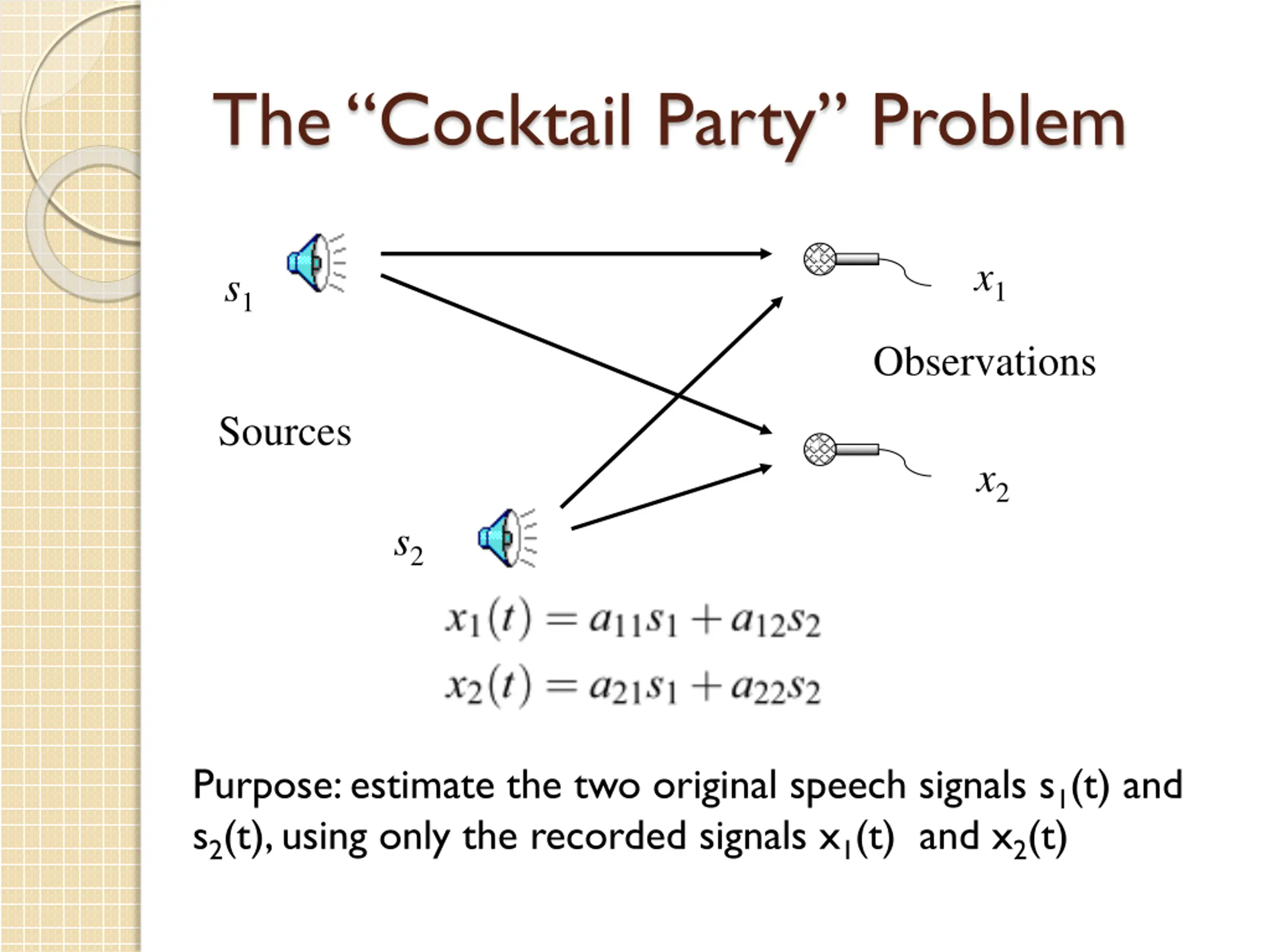

The Cocktail Party Problem x1 s1 Observations Sources x2 s2 Purpose: estimate the two original speech signals s1(t) and s2(t), using only the recorded signals x1(t) and x2(t)

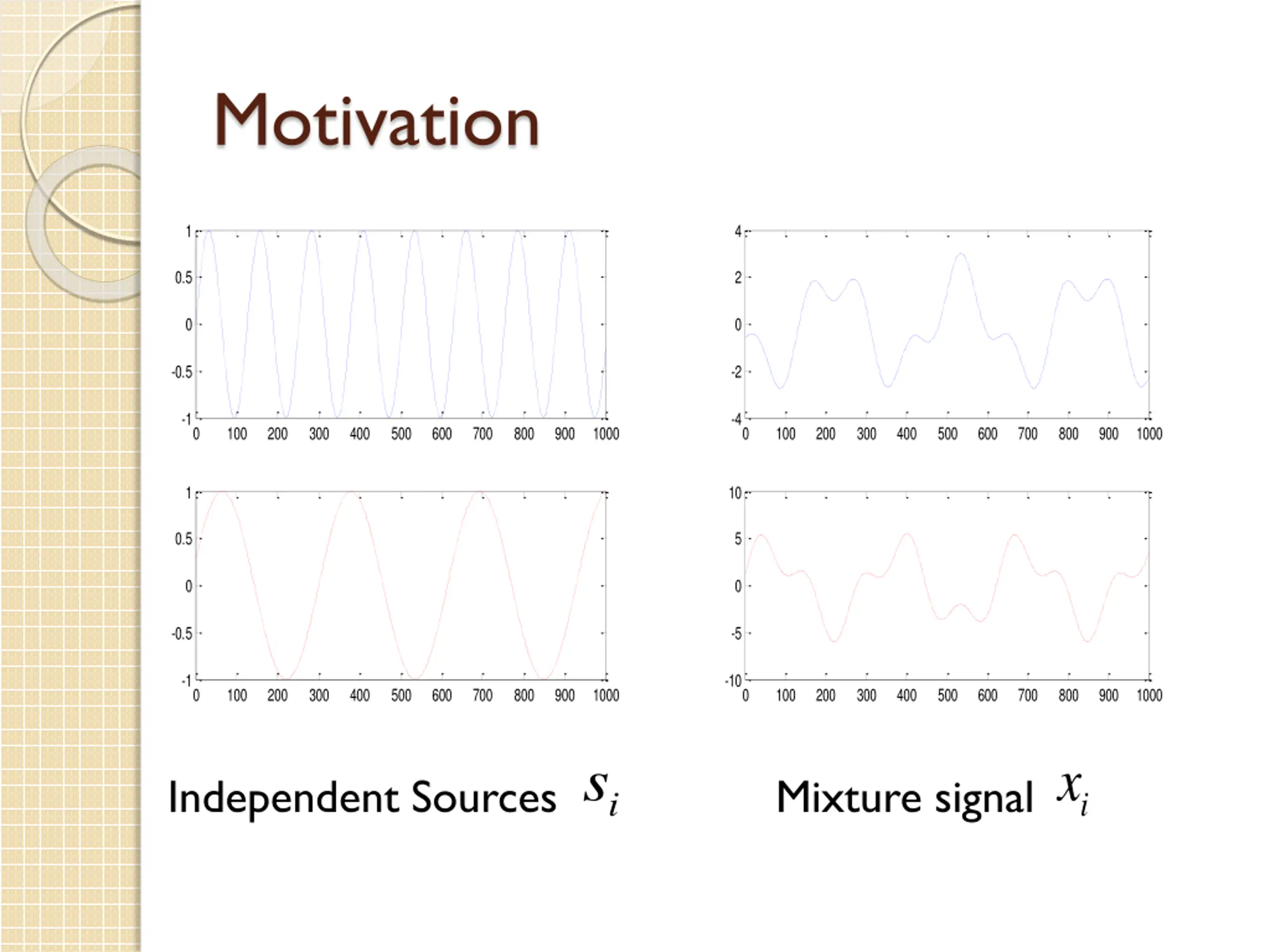

Motivation 1 4 0.5 2 0 0 -0.5 -2 -1 -4 0 100 200 300 400 500 600 700 800 900 1000 0 100 200 300 400 500 600 700 800 900 1000 1 10 0.5 5 0 0 -0.5 -5 -1 -10 0 100 200 300 400 500 600 700 800 900 1000 0 100 200 300 400 500 600 700 800 900 1000 is ix Independent Sources Mixture signal

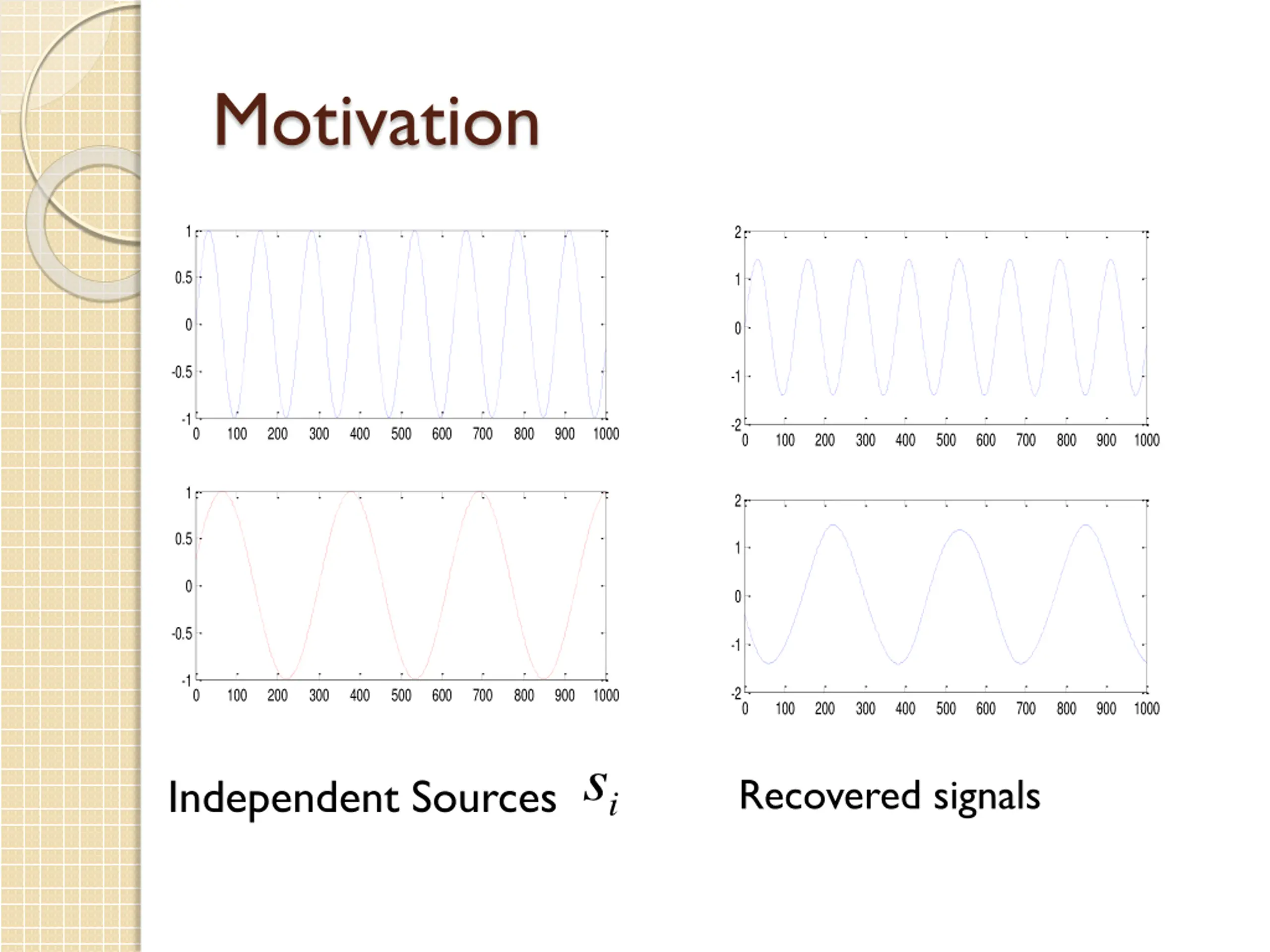

Motivation 1 2 0.5 1 0 0 -0.5 -1 -1 -2 0 100 200 300 400 500 600 700 800 900 1000 0 100 200 300 400 500 600 700 800 900 1000 1 2 0.5 1 0 0 -0.5 -1 -1 -2 0 100 200 300 400 500 600 700 800 900 1000 0 100 200 300 400 500 600 700 800 900 1000 is Recovered signals Independent Sources

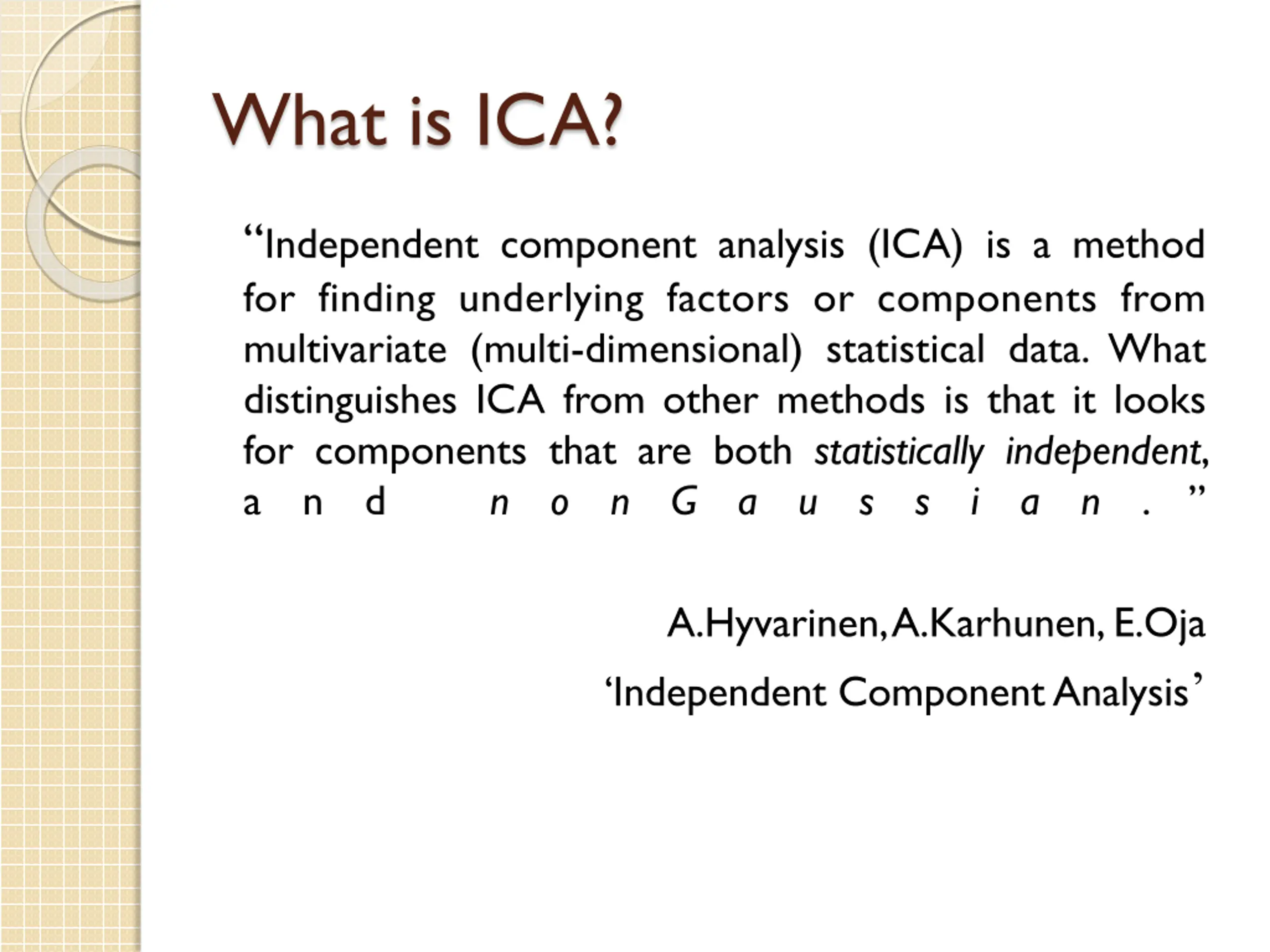

What is ICA? Independent component analysis (ICA) is a method for finding underlying factors or components from multivariate (multi-dimensional) statistical data. What distinguishes ICA from other methods is that it looks for components that are both statistically independent, a n d n o n G a u s s i a n . A.Hyvarinen, A.Karhunen, E.Oja Independent Component Analysis

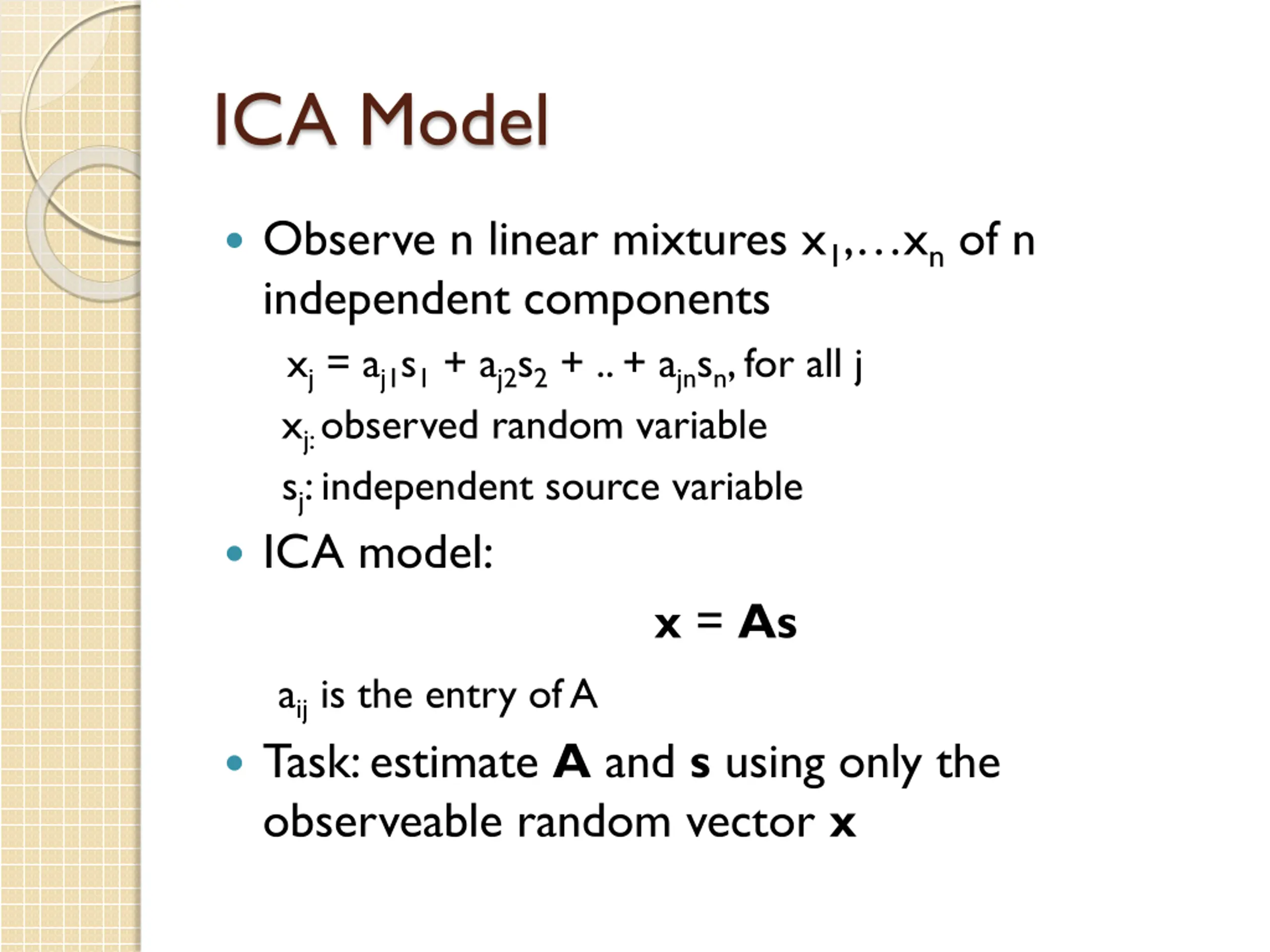

ICA Model Observe n linear mixtures x1, xn of n independent components xj= aj1s1+ aj2s2+ .. + ajnsn, for all j xj: observed random variable sj: independent source variable ICA model: x = As aijis the entry of A Task: estimate A and s using only the observeable random vector x

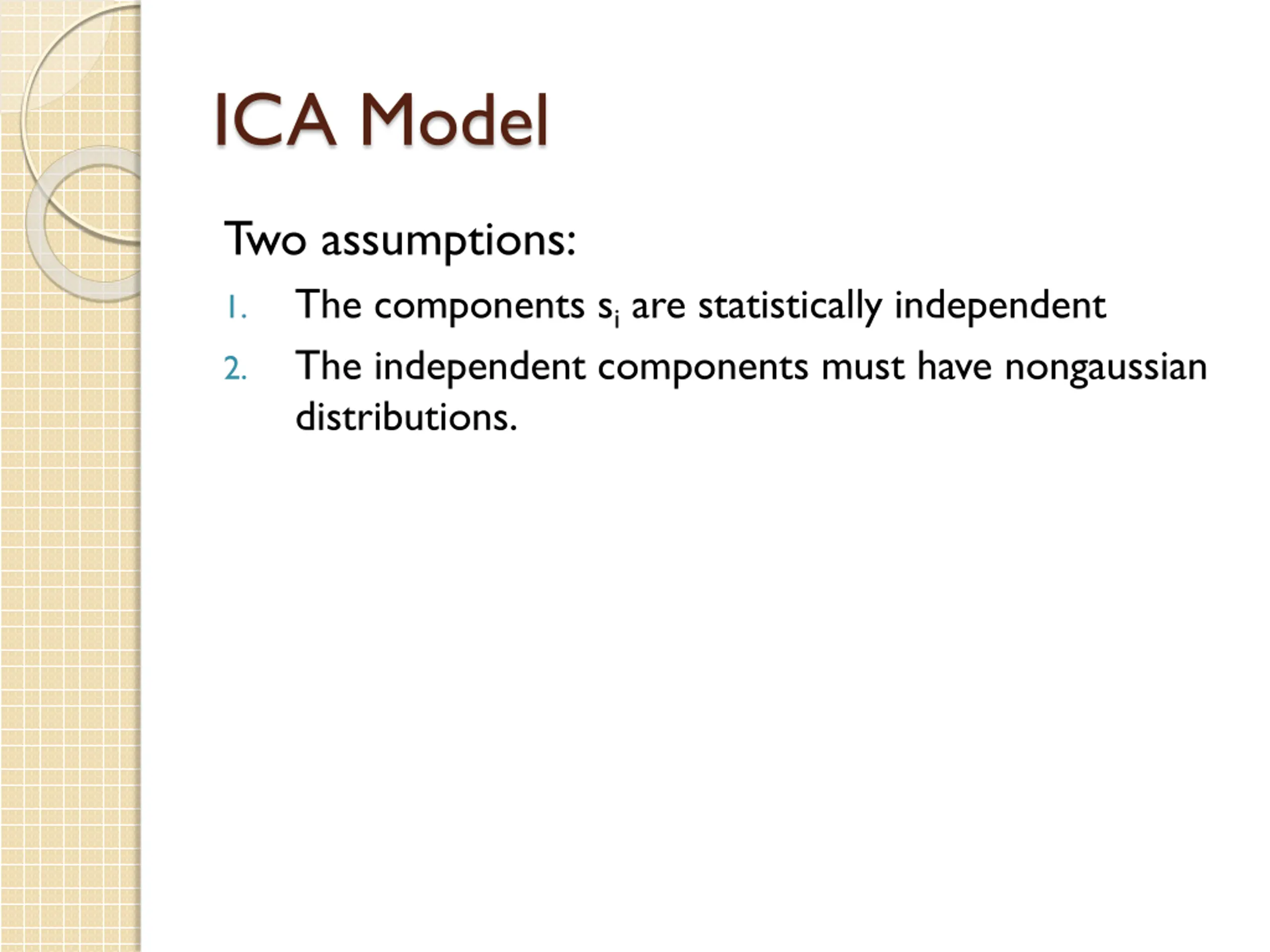

ICA Model Two assumptions: The components si are statistically independent 2. The independent components must have nongaussian distributions. 1.

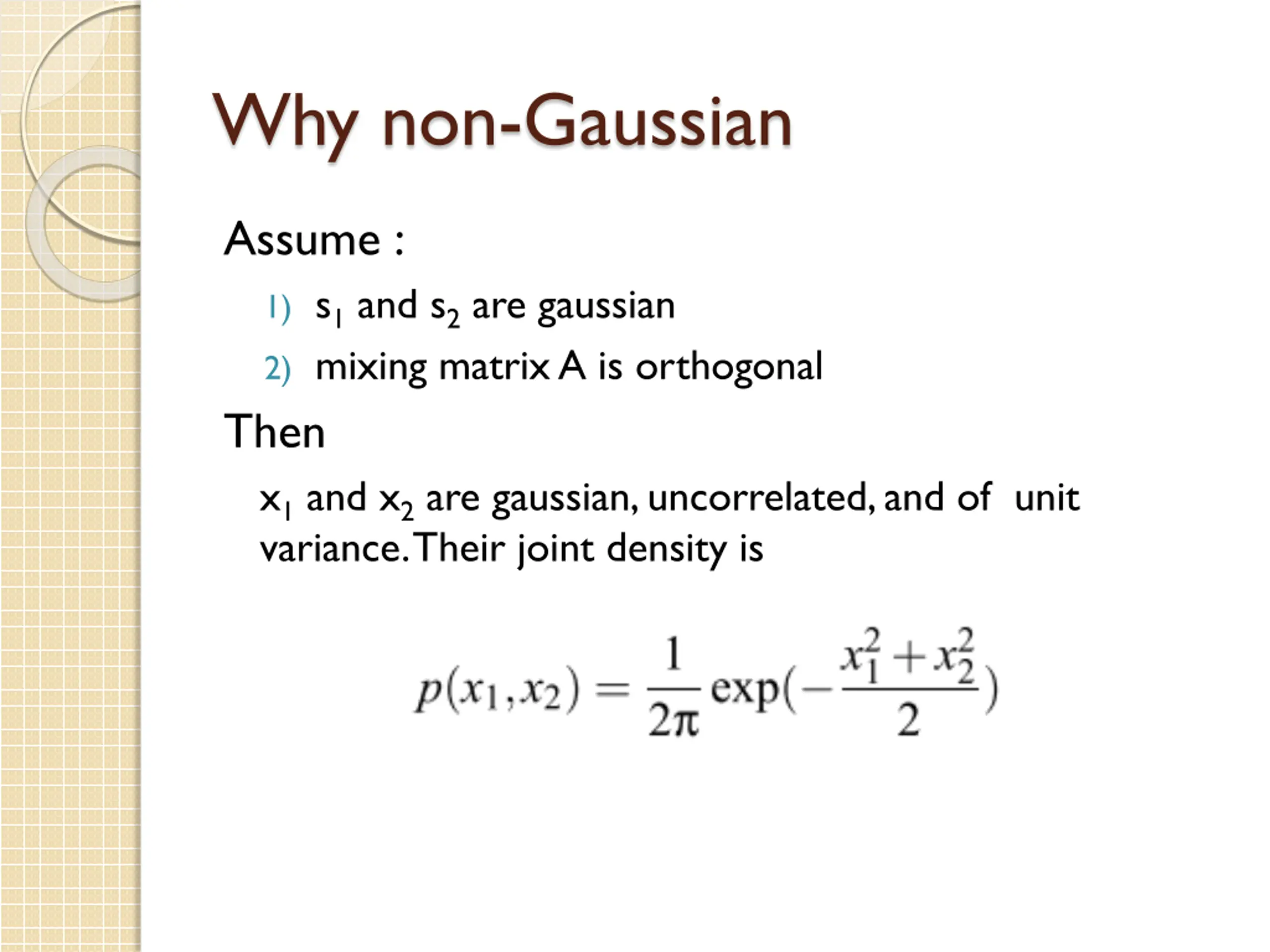

Why non-Gaussian Assume : 1) s1 and s2 are gaussian 2) mixing matrix A is orthogonal Then x1 and x2 are gaussian, uncorrelated, and of unit variance. Their joint density is

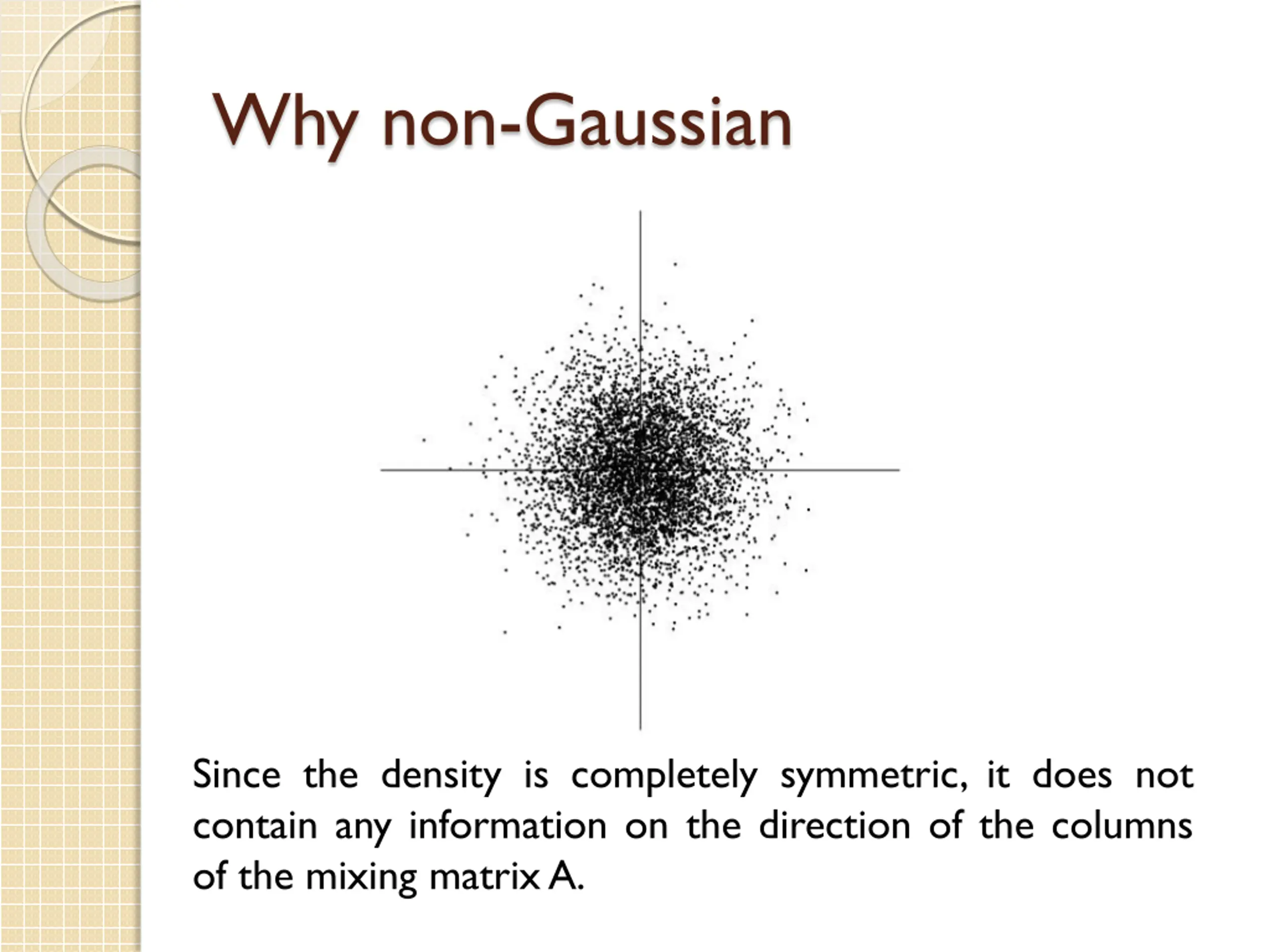

Why non-Gaussian Since the density is completely symmetric, it does not contain any information on the direction of the columns of the mixing matrix A.

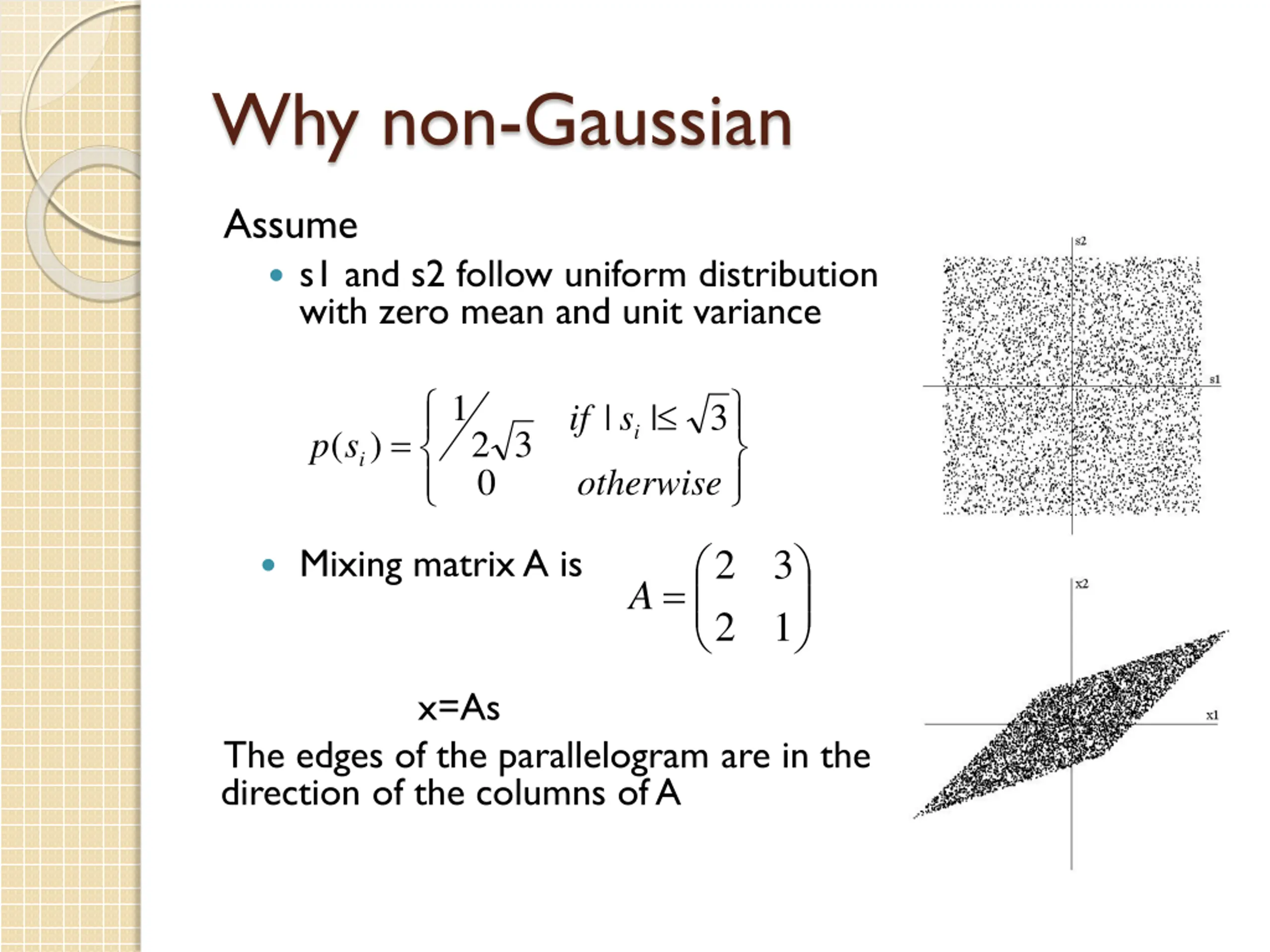

Why non-Gaussian Assume s1 and s2 follow uniform distribution with zero mean and unit variance 1 | | 3 if s i = 2 3 ( ) p s i 0 otherwise 2 3 Mixing matrix A is = A 2 1 x=As The edges of the parallelogram are in the direction of the columns of A

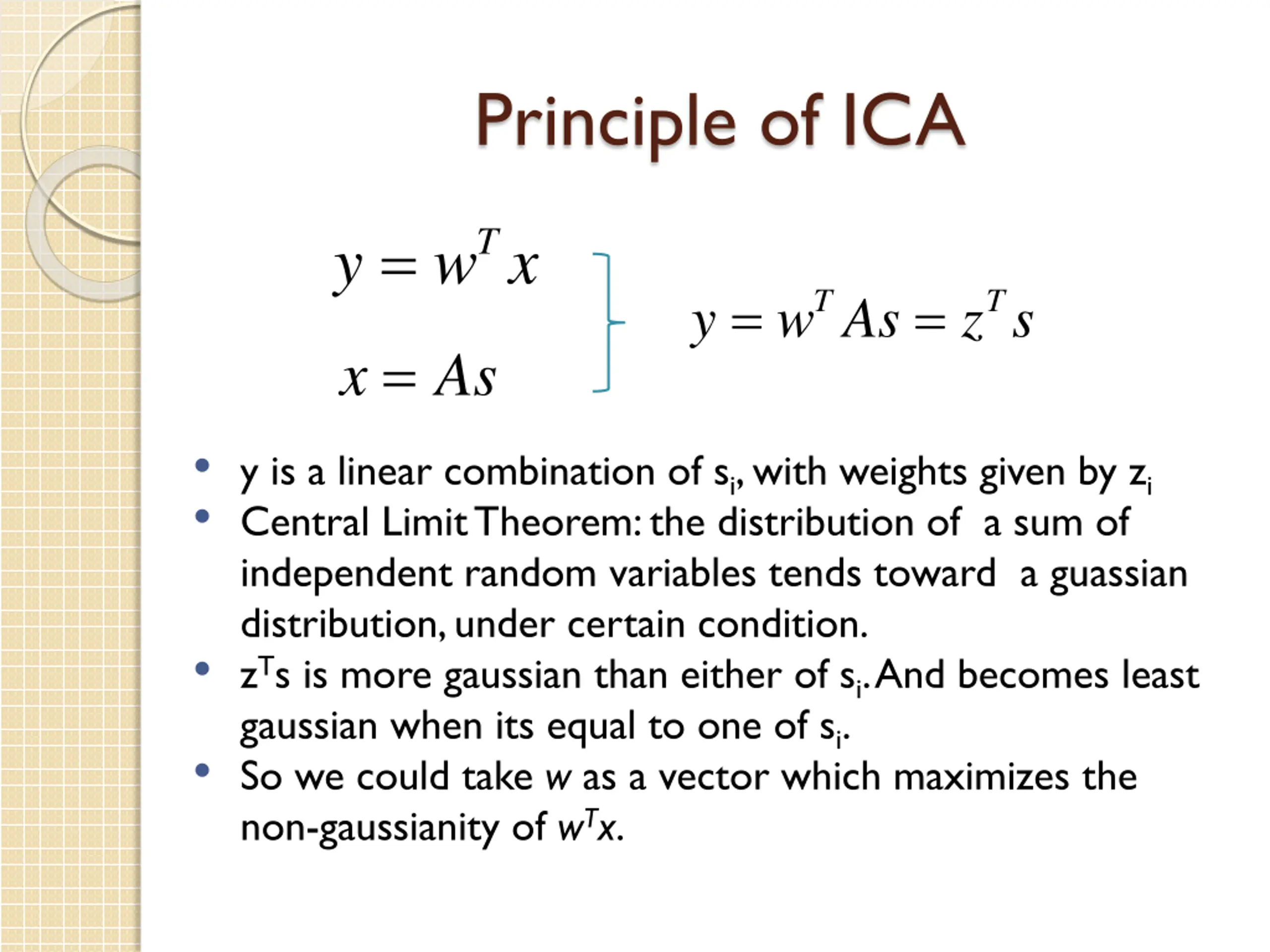

Principle of ICA = T y w x = = T T y w As z s = x As y is a linear combination of si, with weights given by zi Central Limit Theorem: the distribution of a sum of independent random variables tends toward a guassian distribution, under certain condition. zTs is more gaussian than either of si. And becomes least gaussian when its equal to one of si. So we could take w as a vector which maximizes the non-gaussianity of wTx.

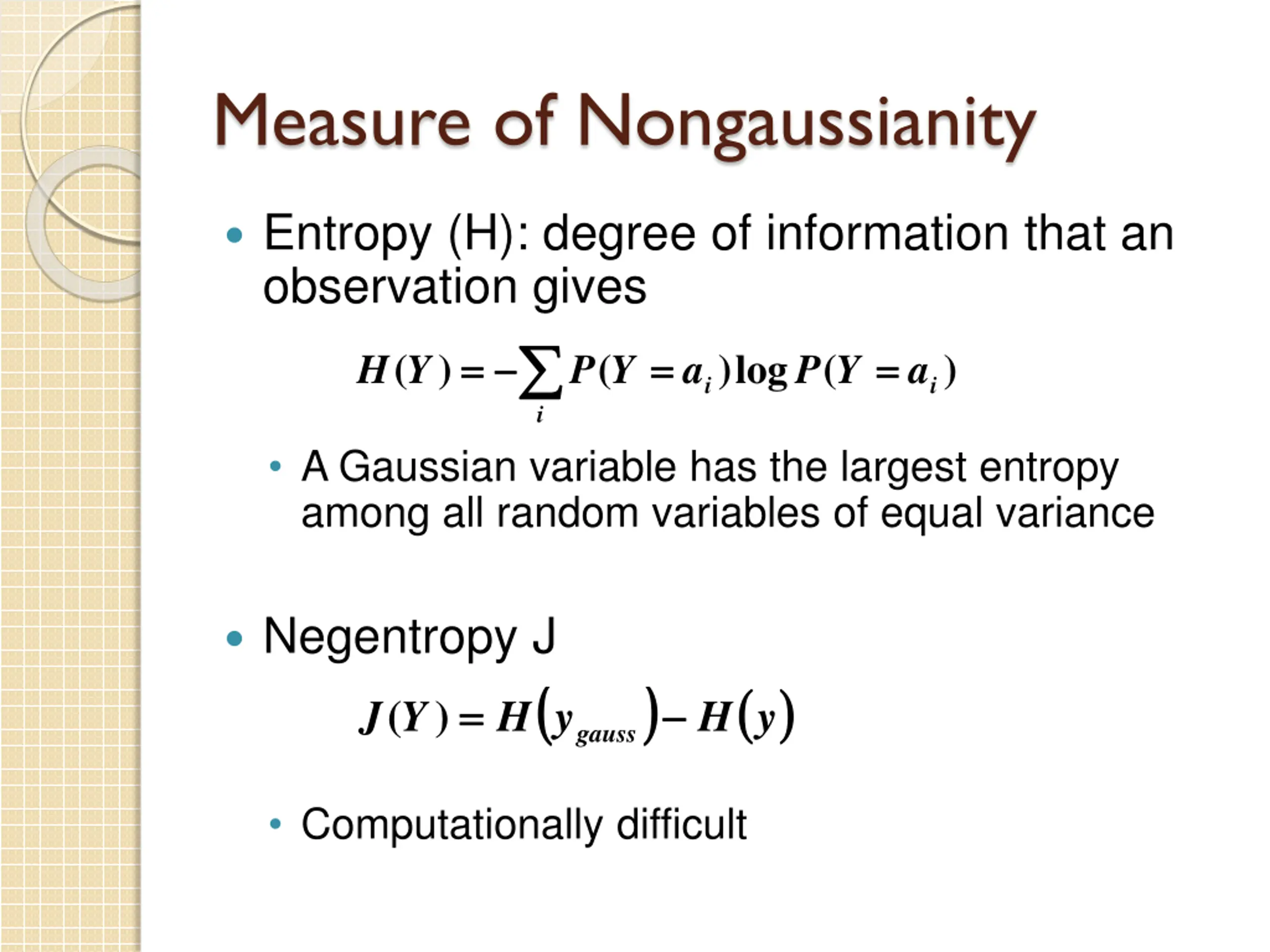

Measure of Nongaussianity Entropy (H): degree of information that an observation gives i = = = = = = H Y ( P Y ( a P Y ( a ) ) log ) i i A Gaussian variable has the largest entropy among all random variables of equal variance Negentropy J ( ( ) ) ( ( ) ) y H = = gauss J Y ( H y ) Computationally difficult

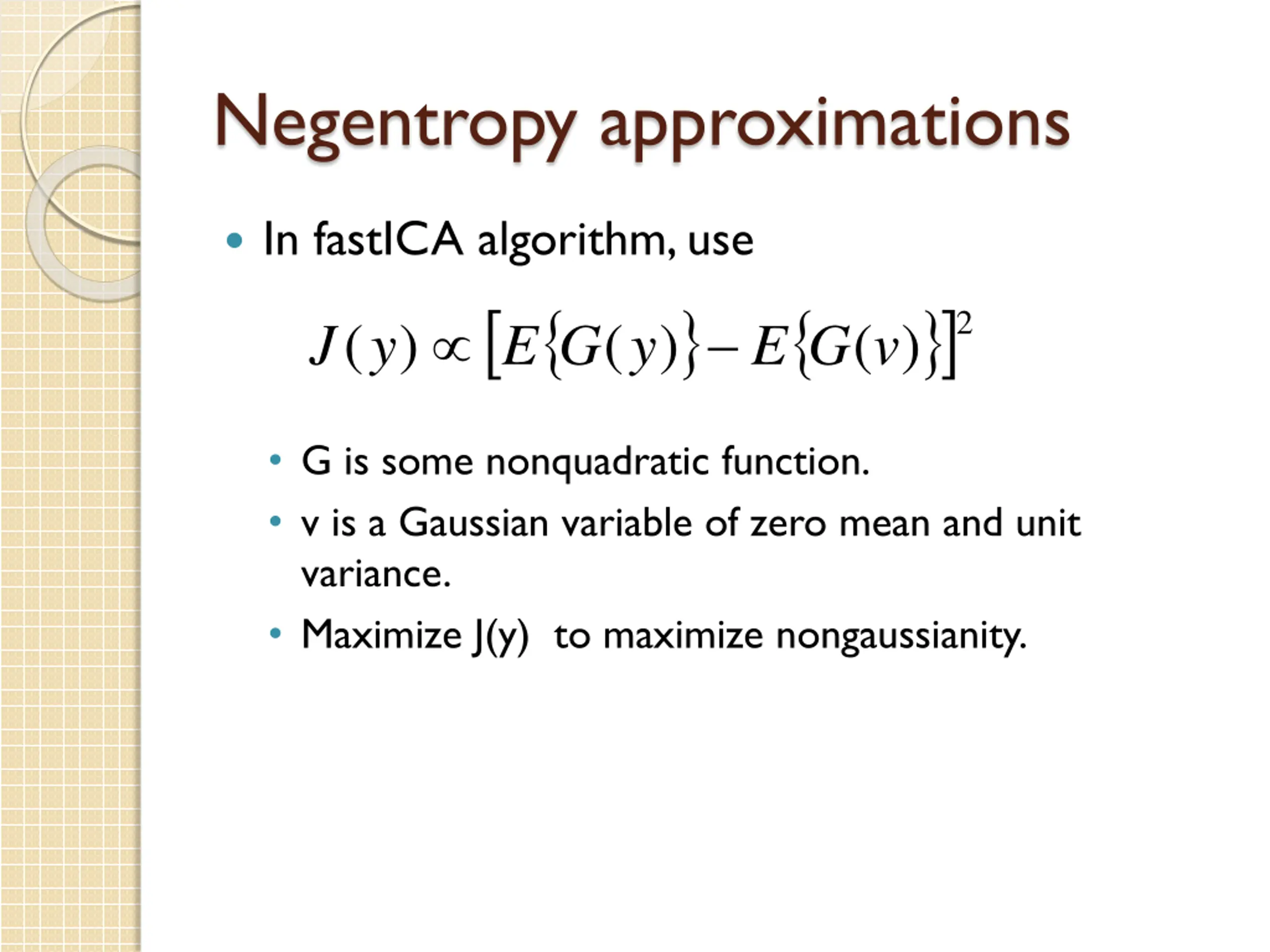

Negentropy approximations In fastICA algorithm, use ) ( y J 2 ( ) ( ) E G y E G v G is some nonquadratic function. v is a Gaussian variable of zero mean and unit variance. Maximize J(y) to maximize nongaussianity.

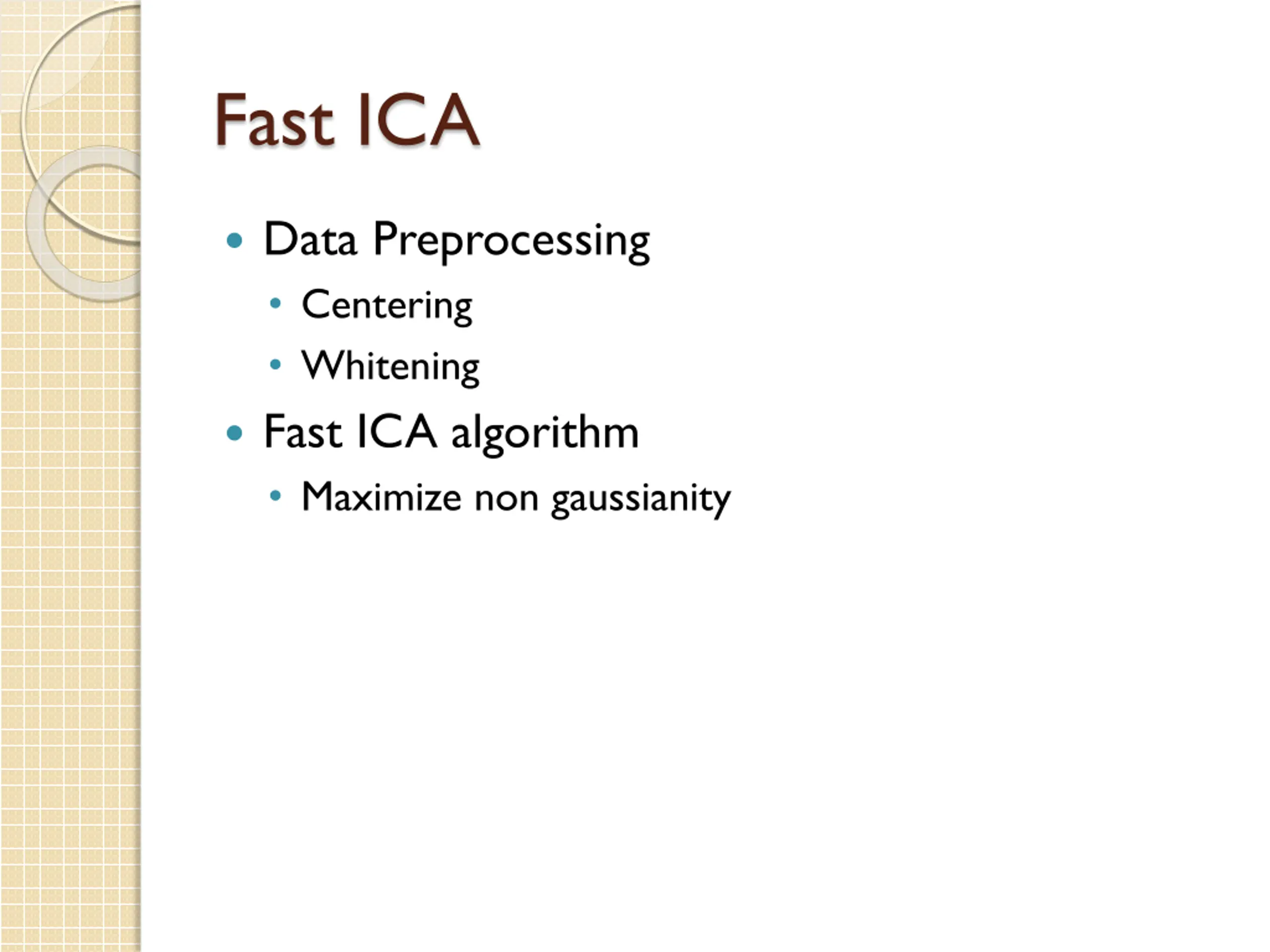

Fast ICA Data Preprocessing Centering Whitening Fast ICA algorithm Maximize non gaussianity

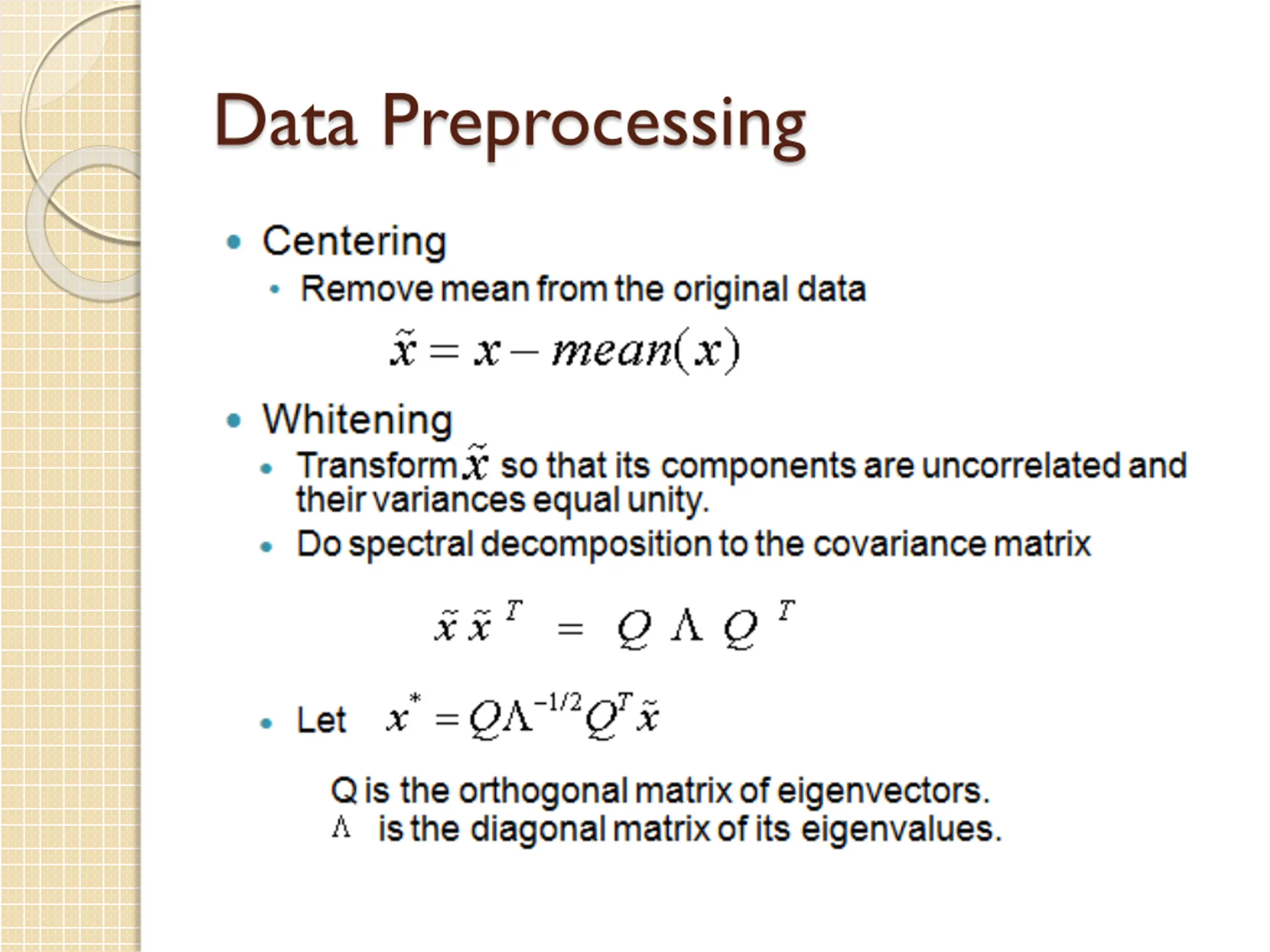

Data Preprocessing

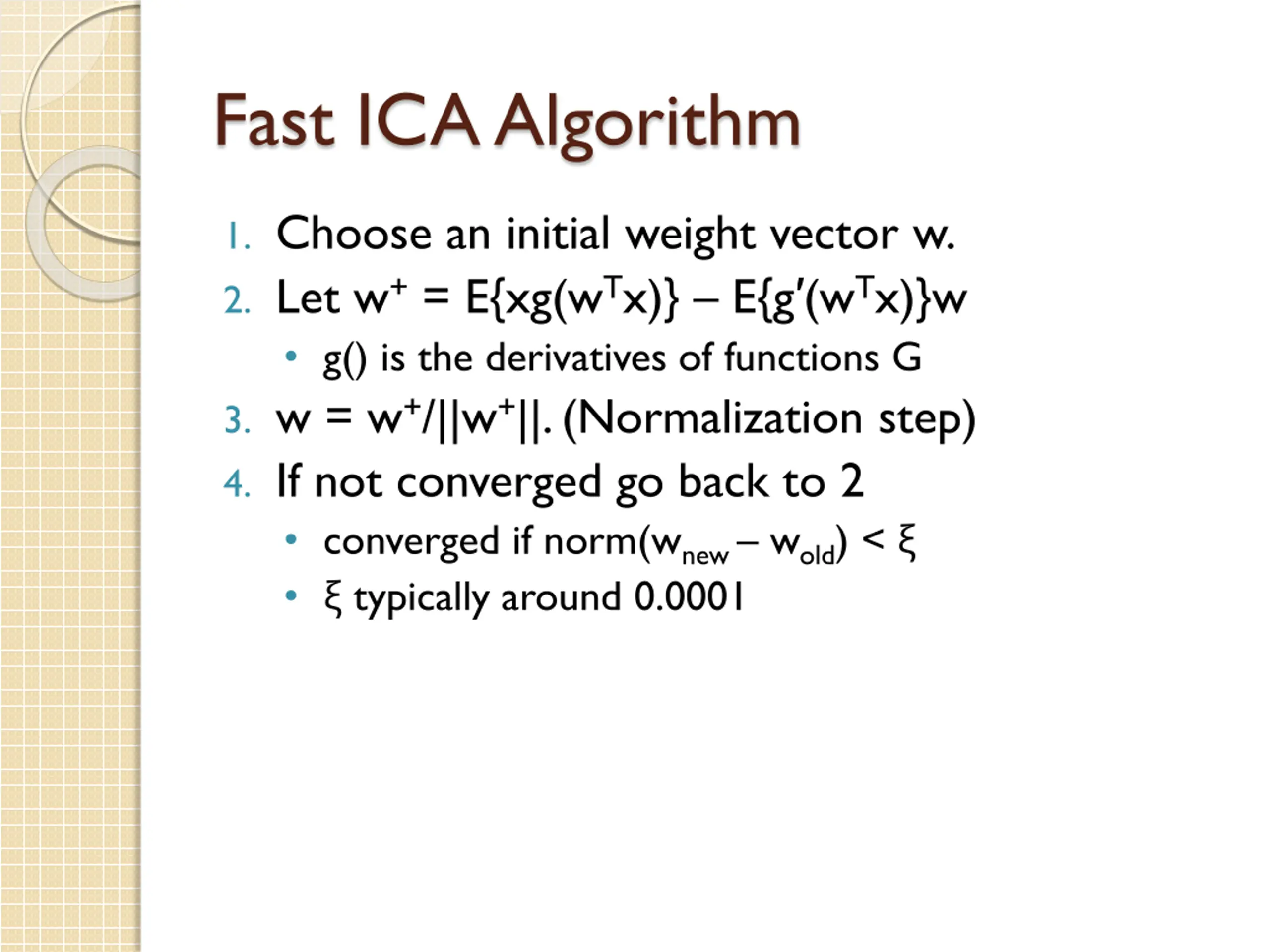

Fast ICA Algorithm 1. Choose an initial weight vector w. 2. Let w+ = E{xg(wTx)} E{g (wTx)}w g() is the derivatives of functions G 3. w = w+/||w+||. (Normalization step) 4. If not converged go back to 2 converged if norm(wnew wold) < typically around 0.0001

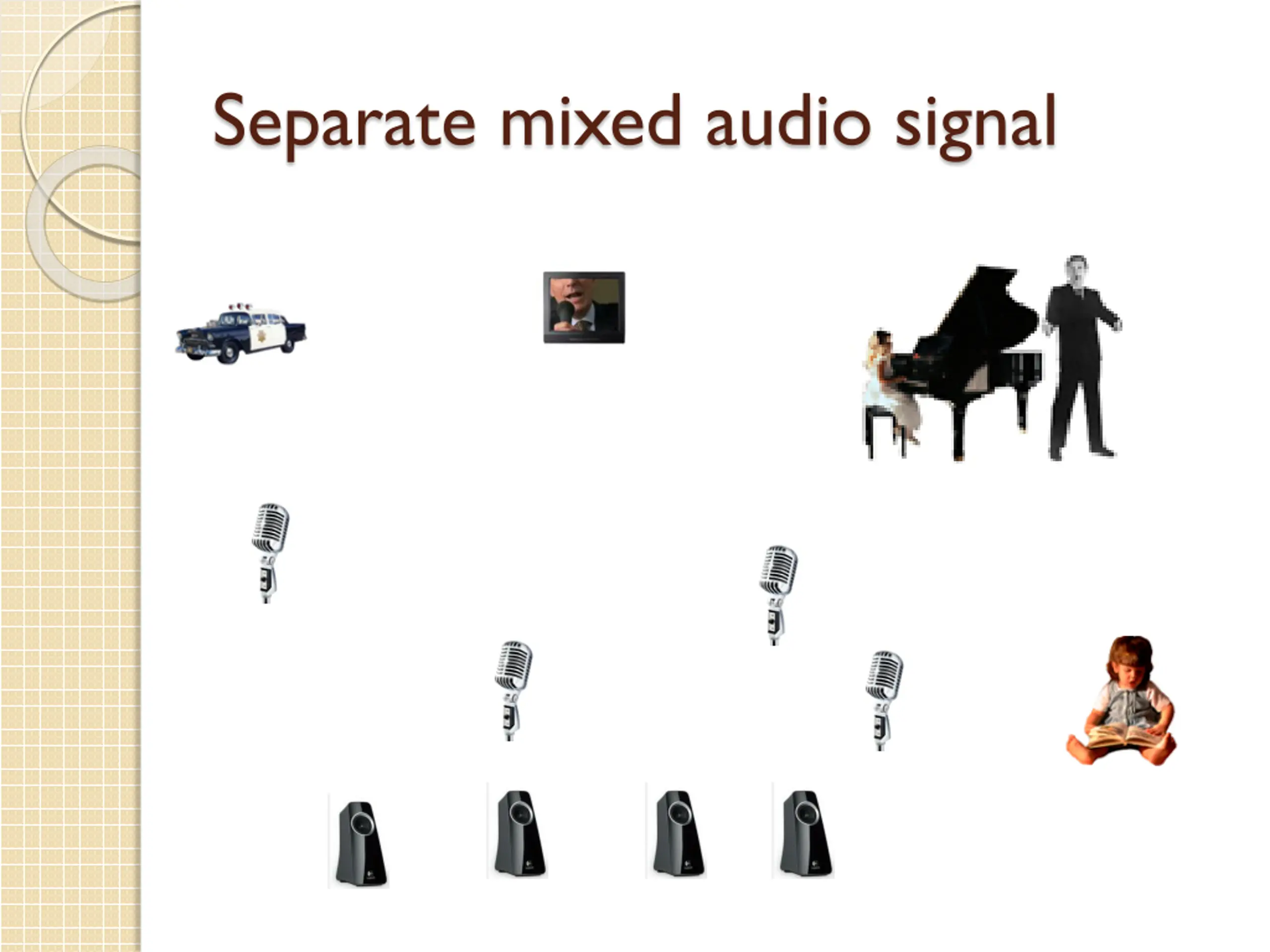

Separate mixed audio signal

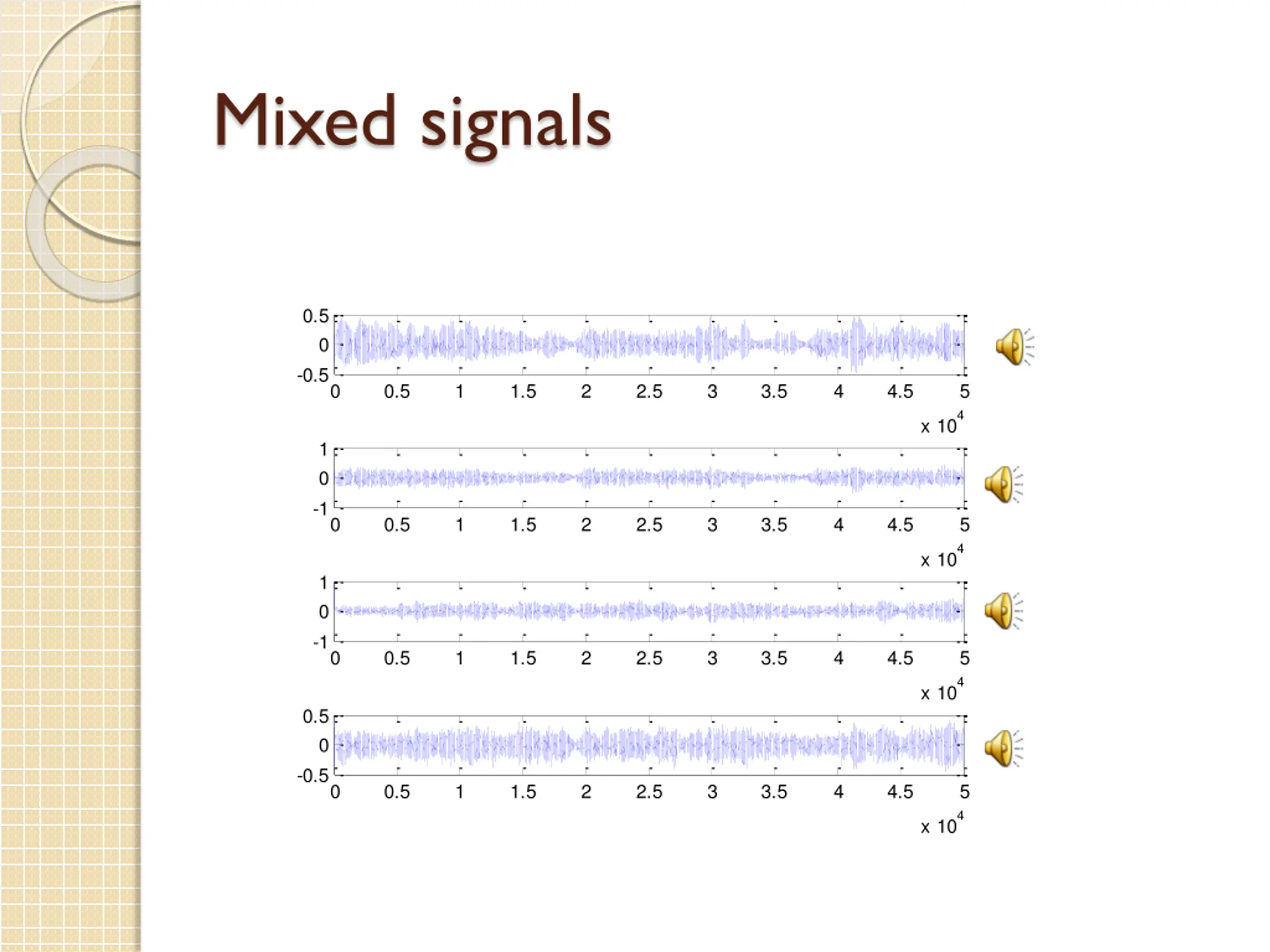

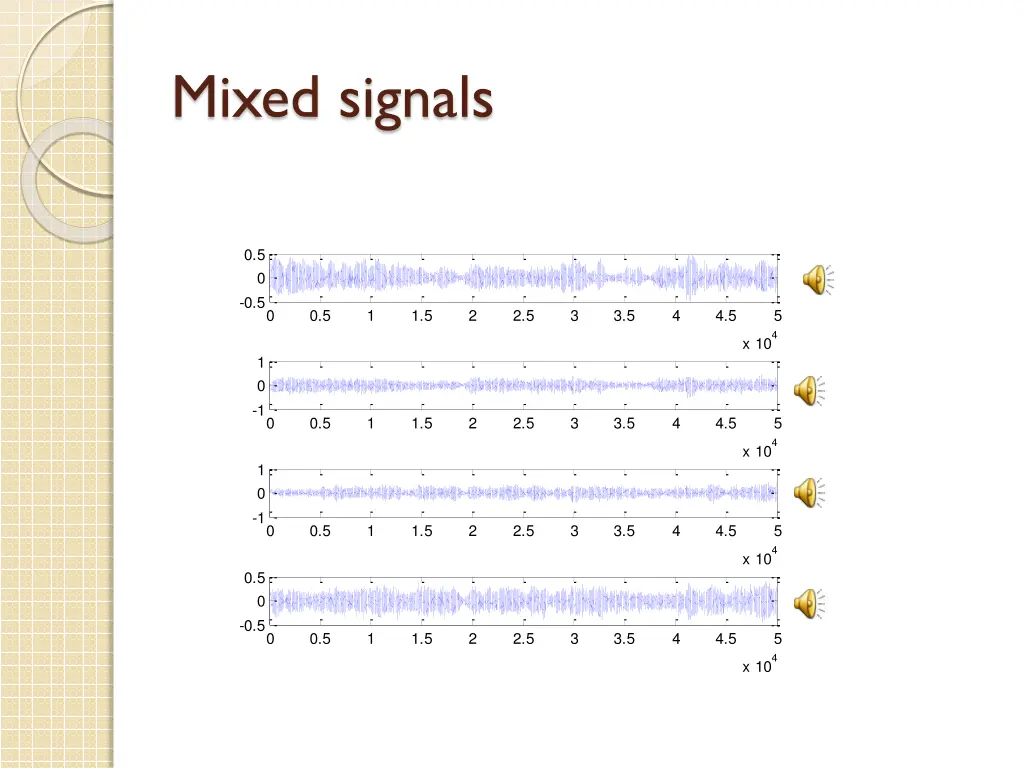

Mixed signals 0.5 0 -0.5 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 4 x 10 1 0 -1 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 4 x 10 1 0 -1 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 4 x 10 0.5 0 -0.5 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 4 x 10

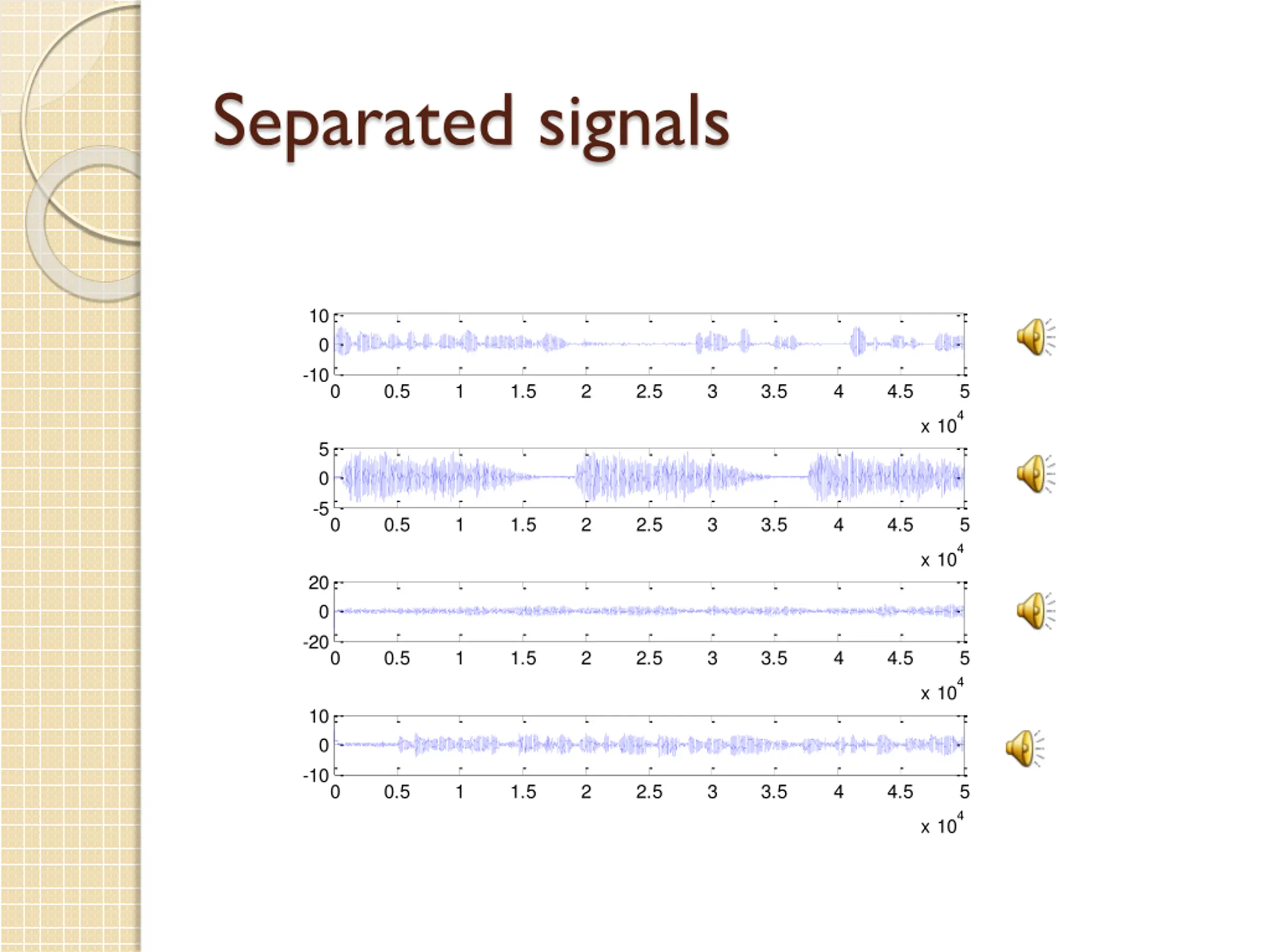

Separated signals 10 0 -10 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 4 x 10 5 0 -5 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 4 x 10 20 0 -20 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 4 x 10 10 0 -10 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 4 x 10

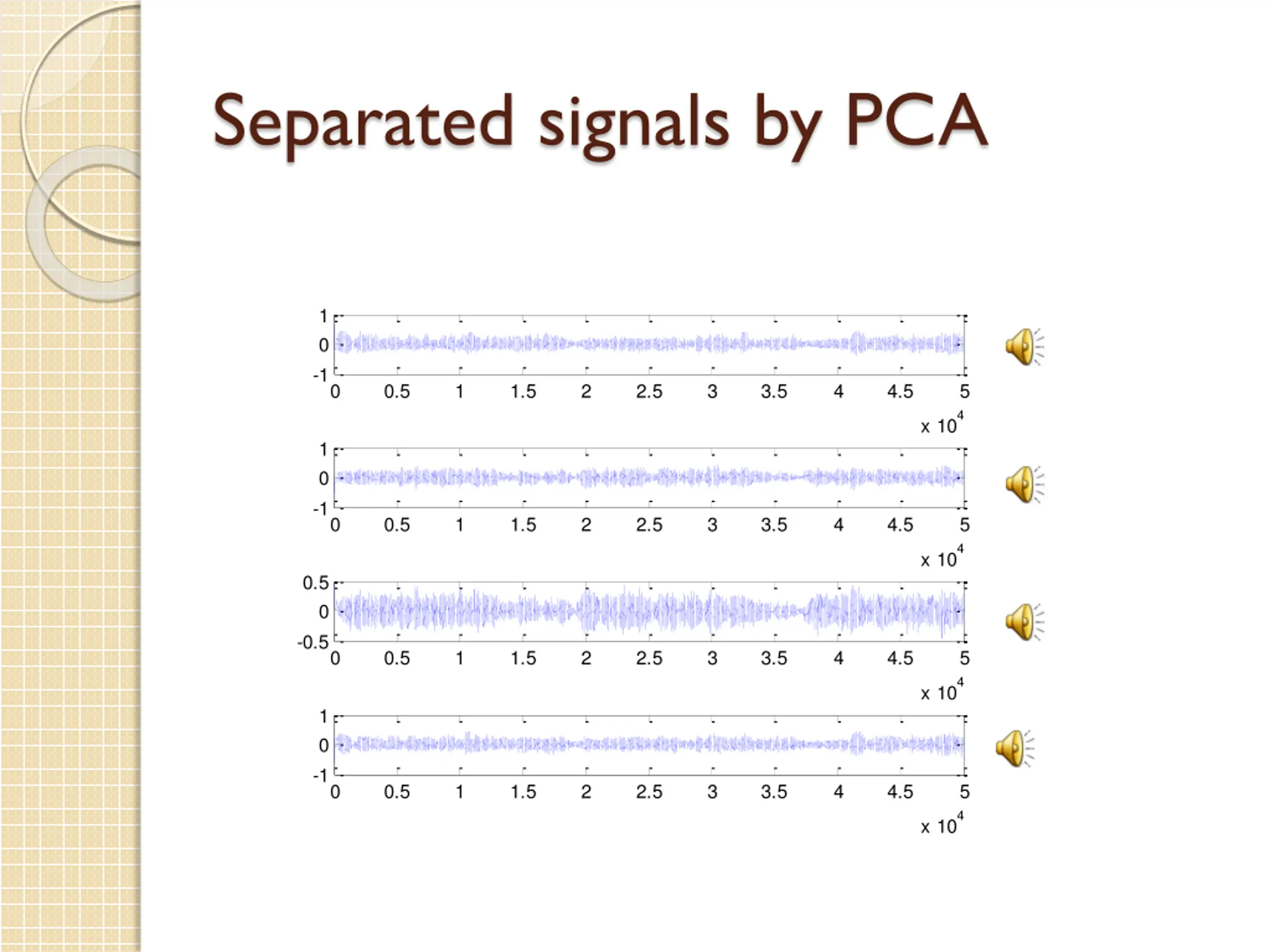

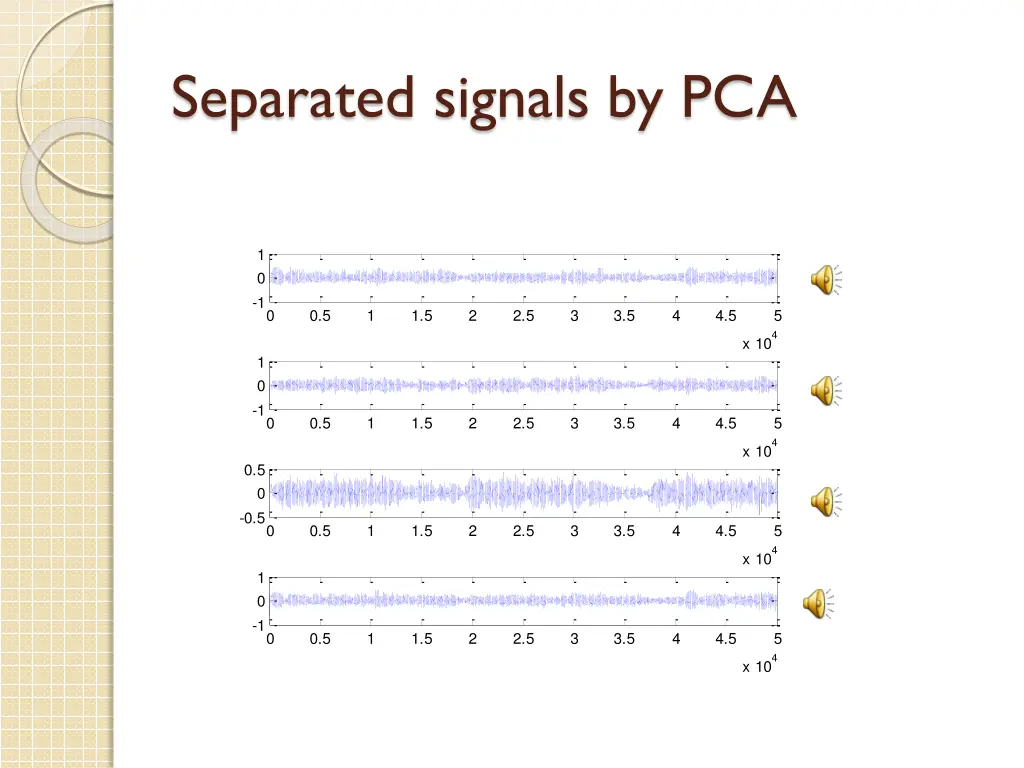

Separated signals by PCA 1 0 -1 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 4 x 10 1 0 -1 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 4 x 10 0.5 0 -0.5 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 4 x 10 1 0 -1 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 4 x 10

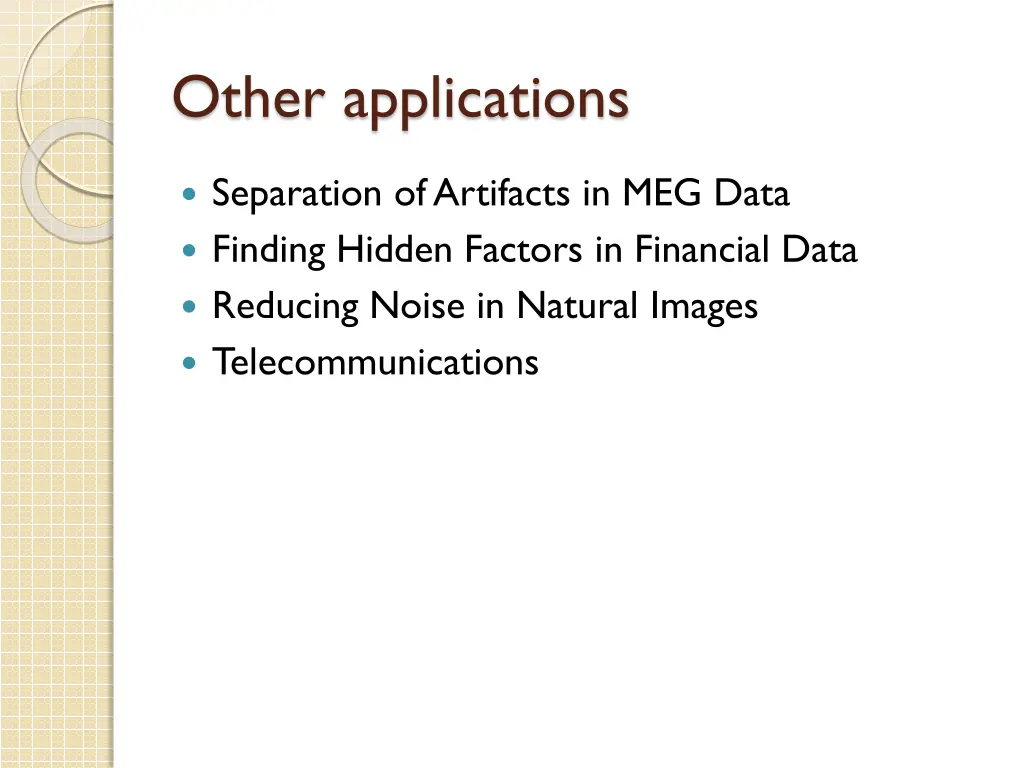

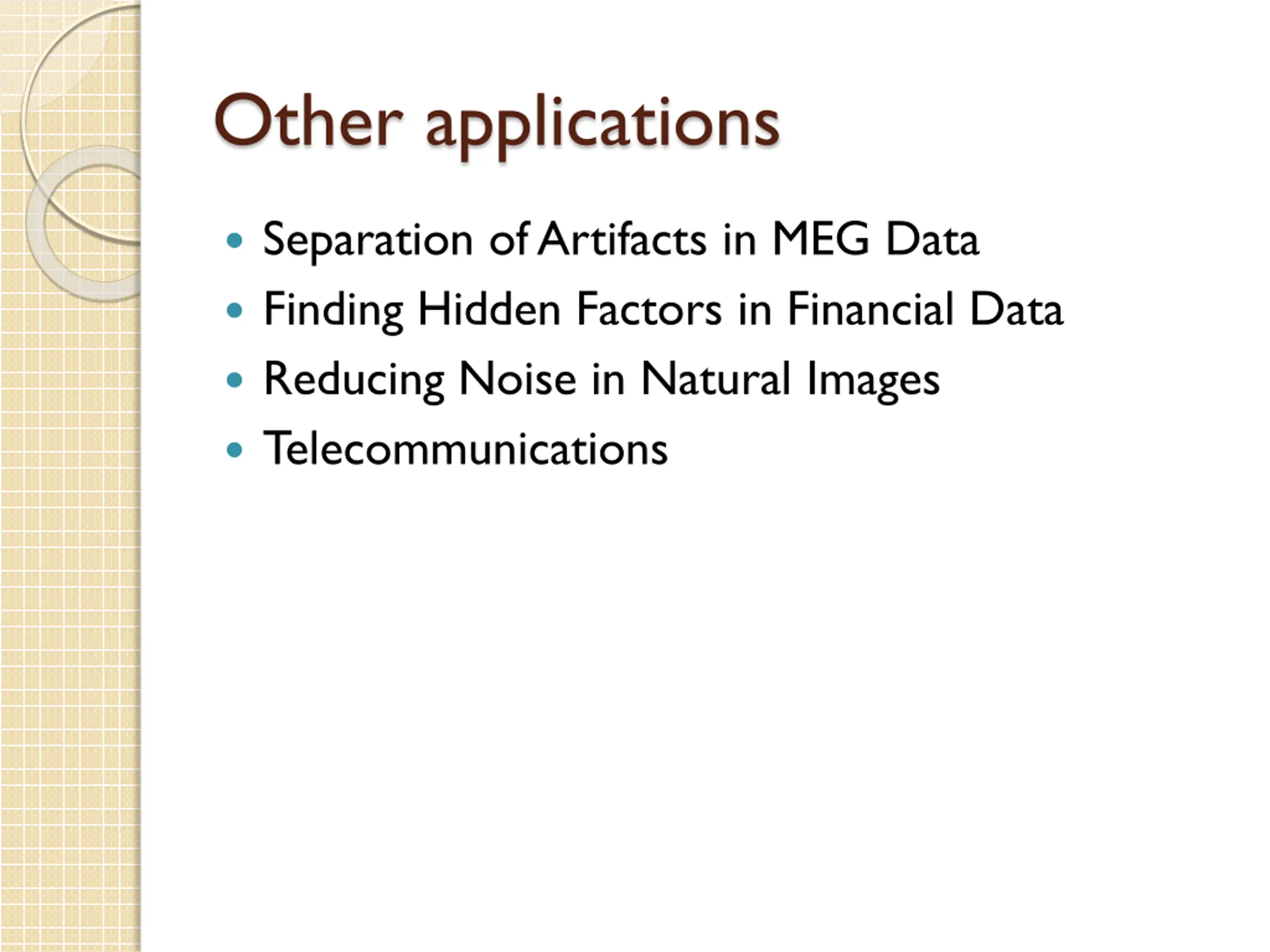

Other applications Separation of Artifacts in MEG Data Finding Hidden Factors in Financial Data Reducing Noise in Natural Images Telecommunications

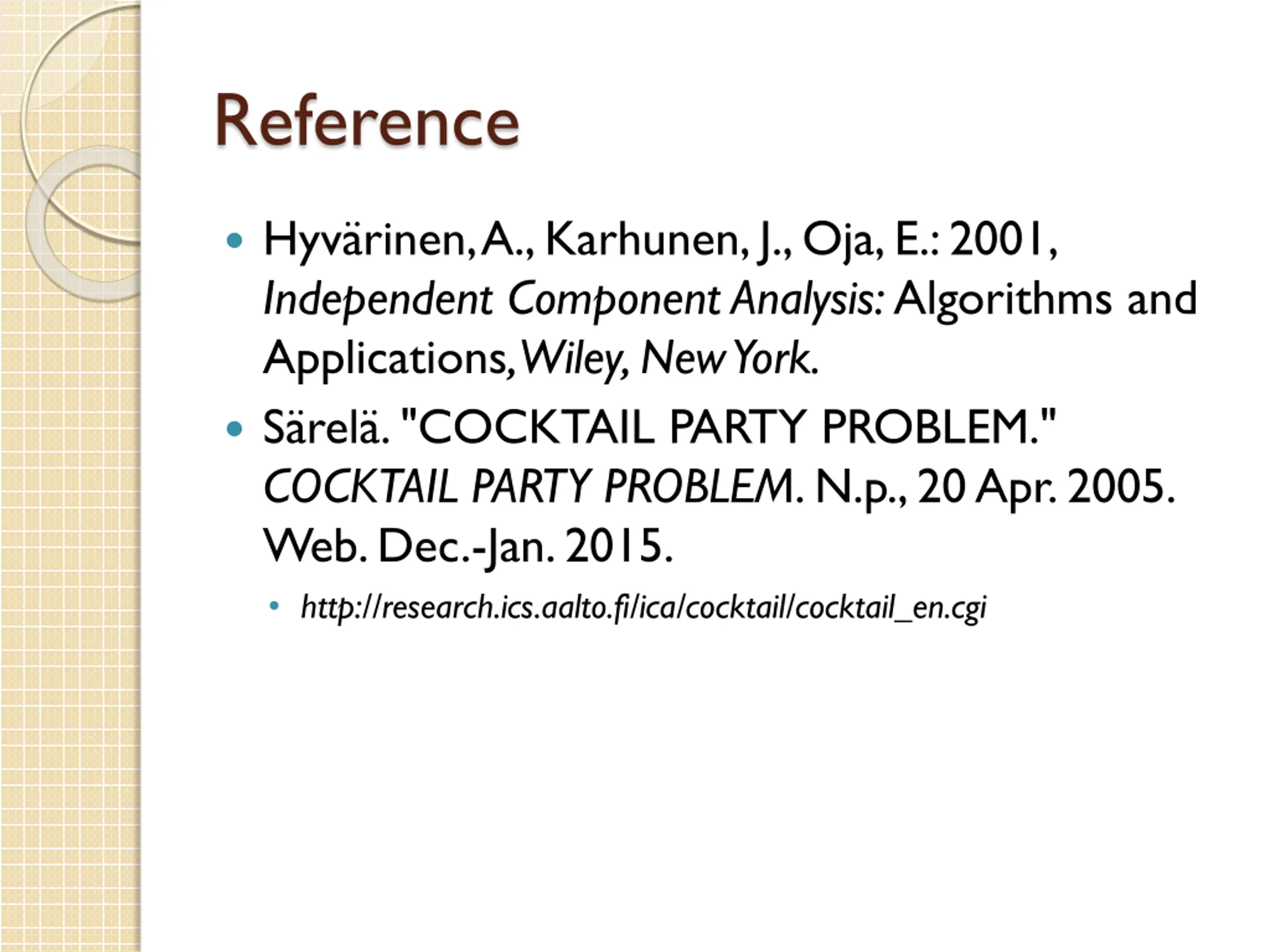

Reference Hyv rinen, A., Karhunen, J., Oja, E.: 2001, Independent Component Analysis: Algorithms and Applications, Wiley, New York. S rel . "COCKTAIL PARTY PROBLEM." COCKTAIL PARTY PROBLEM. N.p., 20 Apr. 2005. Web. Dec.-Jan. 2015. http://research.ics.aalto.fi/ica/cocktail/cocktail_en.cgi
