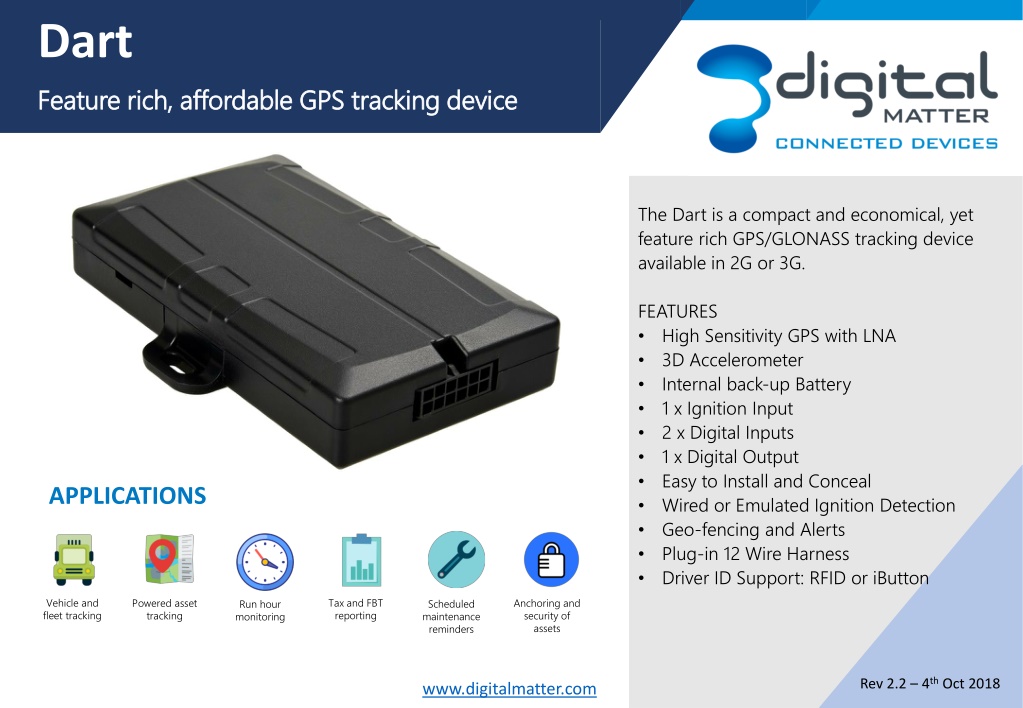

Dart Feature rich, affordable GPS tracking device Feature rich, affordable GPS tracking device The Dart is a compact and economical, yet feature rich GPS/GLONASS tracking device available in 2G or 3G. FEATURES High Sensitivity GPS with LNA 3D Accelerometer Internal back-up Battery 1 x Ignition Input 2 x Digital Inputs 1 x Digital Output Easy to Install and Conceal Wired or Emulated Ignition Detection Geo-fencing and Alerts Plug-in 12 Wire Harness Driver ID Support: RFID or iButton APPLICATIONS Vehicle and fleet tracking Tax and FBT reporting Powered asset tracking Anchoring and security of assets Scheduled maintenance reminders Run hour monitoring Rev 2.2 4th Oct 2018 www.digitalmatter.com www.digitalmatter.com
MECHANICAL SPECIFICATIONS OTHER Compact Housing The ABS plastic housing clips together to make provisioning devices simple and efficient Internal Memory Sufficient memory to store over 50,000 records. Normally data is sent to the server immediately but if the device is out of range there is space to ensure no data is lost for many weeks of driving! Dimensions L 95 x W 55 x H 17mm -20 C to +60 C1 Operating Temperature 3-axis accelerometer Allows the Dart to detect harsh driving events, and to go to sleep when not moving, resulting in extremely low standby current 1) Below 0 C and above +40 C the internal backup battery will not be charged as a safety precaution due to the dangers associated with charging batteries at extreme temperatures. On external power CONNECTIVITY Harness 12 Pin Wiring Harness (included) OBDII Harness (optional) Cigarette Lighter Harness (optional) SIM Size Standard (2FF) size cellular SIM card 2G, 3G or 4G The Dart can be manufactured for specific markets around the world with cellular modem modules approved by all the major networks. POWER Input Voltage 8V to 36V DC (max) 2G Modem Quad Band GSM/GPRS Class 10 850/900/1800/1900 MHz Operating Current 10mA avg. (battery fully charged) 145mA avg. (battery charging) 3G Modem - EU 850/900/2100 EMEA/APAC/Latin America Sleep Current <1mA 3G Modem - NA 850/1900/AWS - North America Back-up Battery 200mAh LiPo internal backup battery pack 3G Modem (Global Option) 800/850/900/AWS/1900/2100 Global coverage at a higher cost Self-resetting fuse The Dart passes stringent automotive power load dump tests to ensure that it will continue to operate in the harshest electrical systems. A built-in self- resetting fuse makes installation easy and safe. Enquire for other bands and 4G/LTED options 4G LTE-CatM1/Nb-IoT model currently in development www.digitalmatter.com www.digitalmatter.com
Switched Power Out The Dart can provide power to external sensors and devices via this power line, allowing for easy installation and doing away with the need for additional external power supplies. Voltage: 3.5V to 4.5V Maximum current: 200mA GPS TRACKING GPS and Cellular Antenna Internal GPS and cellular antennas tuned by RF laboratories for optimal performance. Having the antennas inside the housing makes for very simple and quick installation. Driver Identification Driver ID via RFID reader or iButton The Dart can be update from the server with lists of Drivers that are allowed to drive the vehicle. The Dart can be installed to immobilise a vehicle and only allow authorised drivers/operators to drive it. GPS/GLONASS tracking Concurrent GPS and GLONASS tracking 72 channel high sensitivity receiver -169dBM industry leading tracking performance AssistNow Offline AssistNow Offline aiding data or extremely fast time- to-first-fix and performance in urban canyon environments FIRMWARE SMARTS Auto-APN Auto-APN allows the Dart to analyse the SIM card and select the correct APN details from a list that is pre- loaded in the device s firmware. Low Noise GPS Amplifier (LNA) GPS signals are boosted by a special low-noise amplifier (LNA). This allows operation where normal units will fail to receive GPS signal Multi-APN The Dart can be configured to roam across multiple networks and automatically use the different APN details for the roaming networks INPUTS AND OUTPUTS Ignition Ignition digital input 0-48V DC 5V on/off threshold Text Message Setup The Dart can be sent text messages to set the APN, server and other details 2 x Digital Inputs 2 x digital inputs with configurable pull-up/down 0-48V DC input range On/Off thresholds: Pull-up enabled: low at 0.8V, high at 1.0V Pull-down enabled: low at 2.0V, high at 2.4V Fleixible Logging Parameters The Dart trip logging is flexible and can be configured to log based on a variety of parameters including: Elapsed time, Distance travelled, Change in heading, Change in speed, On Stationary, Accelerometer events (harsh driving) 1 x Digital output 1 x switched ground digital output, easily wired up to switch external lights, relays, buzzers etc. Can be used to immobilize a vehicle Accident and Rollover Detection The Dart uses the built-in accelerometer to detect high G impacts such as accidents and rollovers and reports these events to the server for emergency alerting. www.digitalmatter.com www.digitalmatter.com
Harsh Driving The Dart automatically calibrates its built-in 3 axis accelerometer and uses this to detect harsh driving events: Excessive acceleration Harsh braking Cornering at speed These events are logged in the Dart along with additional event statistics that allow back-end server platforms to perform sophisticated driver profiling and scoring. CERTIFICATIONS Certifications CE, RCM, ICASA Accident Data The Dart keeps a second-by-second black box recording of valuable GPS and accelerometer data for a two hour window. This data can be automatically uploaded to the server when an accident is detected, or it can be requested manually. Geo-Fences The Dart has the capacity to hold hundreds of geo- fences. A future firmware update will enabled the Dart to download geo-fences from the server. The Dart could use this geo-fence information to: Implement arrival and departure alerts Implement speeding zones with audible warning alerts Implement No-go and Keep-out areas Automatically control outputs, e.g. to switch on warning lights when inside a special area. Ignition Detection The Dart can determine a trip has started based upon: Wired Ignition input (voltage on/off) Emulated Ignition (GPS movement) Run Detect (Voltage Increases) www.digitalmatter.com www.digitalmatter.com
