Electron Configuration and Lewis Dot Structures
1

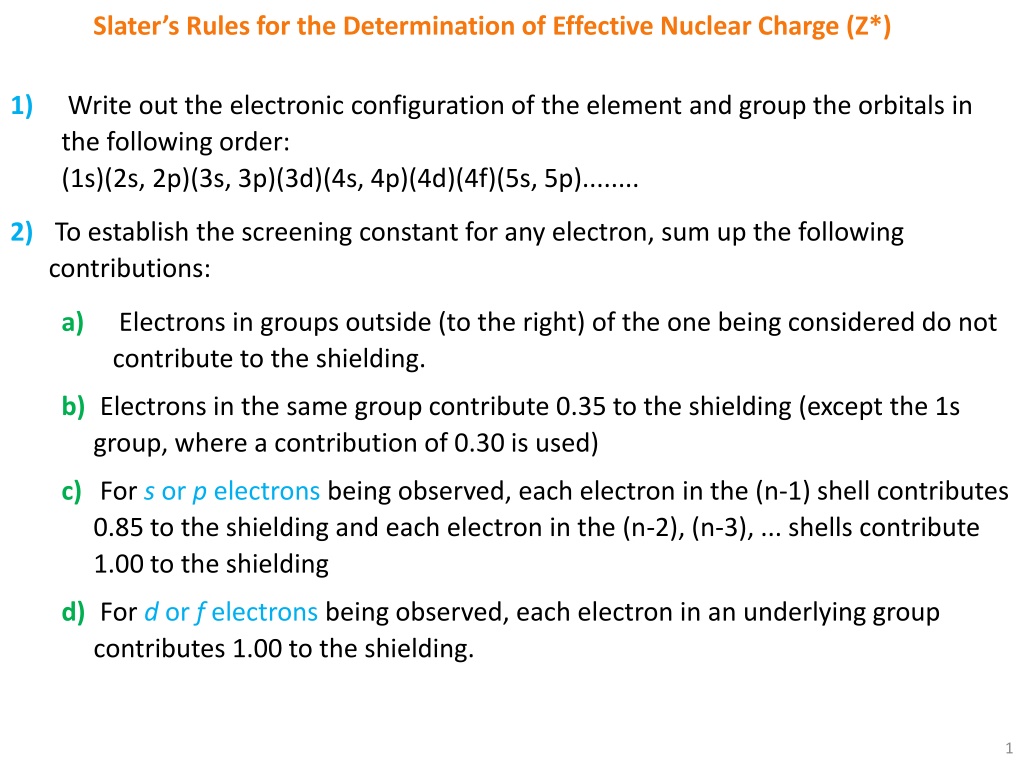

Slater’s Rules for the Determination of Effective Nuclear Charge (Z*)
1)
Write out the electronic configuration of the element and group the orbitals in
the following order:
(
1s)(2s, 2p)(3s, 3p)(3d)(4s, 4p)(4d)(4f)(5s, 5p)........
2)
To establish the screening constant for any electron, sum up the following
contributions:
a)
Electrons in groups outside (to the right) of the one being considered do not
contribute to the shielding.
b)
Electrons in the same group contribute 0.35 to the shielding (except the 1s
group, where a contribution of 0.30 is used)
c)
For
s
or
p
electrons
being observed, each electron in the (n-1) shell contributes
0.85 to the shielding and each electron in the (n-2), (n-3), ... shells contribute
1.00 to the shielding
d)
For
d
or
f
electrons
being observed, each electron in an underlying group
contributes 1.00 to the shielding.
2
Lewis Dot Structures
▪
Each dot represents a valence electron.
▪
Lewis Symbol for Period 2 elements:
▪
Ne with 8 valence electrons is particularly stable because it has a full outer level,
i.e. 8 dots, an
octet
.
▪
Helium is somewhat of an exception. It has only two dots (a
duet
).
For He, a duet represents a stable electron configuration.
▪
Ionic Bond:
If electrons are transferred, as occurs between a metal and a nonmetal
▪
Covalent Bond:
If the electrons are shared, as occurs between two nonmetals
electron configuration of O is:
Lewis symbol is:
3
▪
Octet Rule:
In either ionic or covalent bonding, the bonding atoms obtain stable
electron configurations; since the stable configuration is usually 8 electrons in the
outermost shell, this is known as the octet rule.
▪
Steps for Writing Lewis Structures:
1) Write the correct skeletal structure for the molecule.
•
H atoms are always terminal.
•
Put the more electronegative elements in terminal positions and the less
electronegative elements (other than H) in the central position.
2) Calculate the total number of electrons for the Lewis structure by summing the
valence electrons of each atom in the molecule.
•
For ions, add one electron for each negative charge and subtract one electron for
each positive charge.
Lewis Dot Structures
4
Lewis Dot Structures
3) Distribute the electrons among the atoms, giving octets (or duets in the case of
hydrogen) to as many atoms as possible.
•
Begin by placing 2 electrons between every 2 atoms. Then distribute the remaining
electrons as lone pairs, first to terminal atoms, and then to the central atom, giving
octets (or duets for H) to as many atoms as possible.
4) If any atoms lack an octet, form double or triple bonds as necessary to give them
octets.
•
Do this by moving lone electron pairs from terminal atoms into the bonding region
with the central atom.
5
▪
Writing Lewis Structure for CO
2
:
▪
Step 1:
Because carbon is the less electronegative atom, put it in the central position.
▪
Step 2:
Total number of electrons for Lewis structure =
no. of valence e
-
for C + 2 x (no. of valence e
-
for O)
=
4 + 2 x 6 = 16
▪
Step 3:
Bonding electrons are first.
(4 of 16 electrons used)
Lone pairs on terminal atoms are next.
(16 of 16 electrons used)
▪
Step 4:
Since carbon lacks an octet, move lone pairs from the O atoms to bonding
regions to form double bonds.
Lewis Dot Structures
6
Resonance
▪
This concept is used when two or more valid Lewis structures can be drawn for the
same compound.
▪
Example:
The following two Lewis structures of O
3
are equally correct:
▪
Experimentally, the bonds in the O
3
molecule are equivalent and each is intermediate
in strength and length between a double bond and single bond.
▪
Therefore,
the molecule is represented with both structures, called
resonance
structures
, with a
double-headed arrow
between them:
▪
Resonance Structure:
It is one of two or more Lewis structures that have the same
skeletal formula, but different electron arrangements.
7
Resonance
▪
Resonance Hybrid:
The actual structure of the molecule is intermediate between
the two (or more) resonance structures and is called a resonance hybrid.
▪
Resonance Stabilization:
In the resonance hybrid structure, the electrons are more
spread out (or delocalized) than in any of the resonance structures. The resulting
stabilization of the electrons (that is, the
lowering of their potential energy due to
delocalization
) is called resonance stabilization.
▪
It
is a fictitious charge assigned to each atom in a Lewis structure that helps us to
distinguish among competing Lewis structures.
▪
Definition:
It is the charge it would have if all bonding electrons were shared equally
between the bonded atoms.
▪
The formal charges
of H and F in HF (the calculated charges if we
ignore their
differences in electronegativity
) are both zero.
Formal Charge
8
Formal Charge
▪
Calculation of Formal Charge:
It can be calculated as the difference between the
number of valence electrons in the atom and the number of electrons that it “owns”
in a Lewis structure.
▪
Formal charge = no. of valence electrons -
(no. of nonbonding electrons + ½ no. of bonding electrons)
▪
Formal charge of H in HF = 1 − [0 + ½ (2)] = 0
▪
Formal charge of F in HF = 7 − [6 + ½ (2)] = 0
▪
Rules for Formal Charge:
1)
The sum of all formal charges in a neutral molecule must be zero. In an ion, the sum
of all formal charges must equal the charge of the ion.
3)
Small (or zero) formal charges on individual atoms are better than large ones.
4)
Formal charges of same sign on adjacent atoms make an unfavorable structure.
5)
For better stability, more negative atoms should bear negative formal charge.
9
Formal Charge
▪
Question:
Assign formal charges to each atom in the resonance forms of the cyanate
ion (OCN
-
). Which resonance form is likely to contribute most to the correct structure
of OCN
-
?
▪
Solution:
▪
Structures A and B have the least amount of formal charge and are therefore to be
preferred over structure C.
▪
Structure A is preferred to B because it has negative formal charge on the more
electronegative atom. So,
structure A
contributes most to correct structure of OCN
-
.
10
Exceptions of Octet Rule
1) Odd-Electron Species:
Molecules or ions with an odd number of electrons are called
free radicals.
▪
Examples:
If we try to write a Lewis structure for nitrogen monoxide (having 11 e
-
),
we can’t achieve octets for both atoms:
▪
NO reacts with O
2
in the air to form NO
2
, another odd-electron molecule (17 e
-
).
2) Incomplete Octets:
Electron deficient molecules tend to form incomplete octets.
▪
Examples:
Boron forms compounds with only 6 electrons around B, rather than 8:
▪
Other molecules having incomplete octets:
11
Exceptions of Octet Rule
▪
BF
3
can complete its octet via a chemical reaction with NH
3
:
3) Expanded Octets:
Elements in the third row of the periodic table and beyond often
exhibit expanded octets
of up to 12 (and occasionally 14) electrons.
▪
Examples:
In AsF
5
arsenic has an expanded octet of 10 electrons, and in SF
6
sulfur
has an expanded octet of 12 electrons.
▪
In
3
rd
period
elements and beyond,
d
orbitals are energetically accessible
(they are
not much higher in energy than the orbitals occupied by valence electrons) and can
accommodate extra electrons. Expanded octets
never
occur in 2
nd
period
elements.
