Free Electron and Nearly Free Electron Models in Solid State Physics
Solid state physics
•

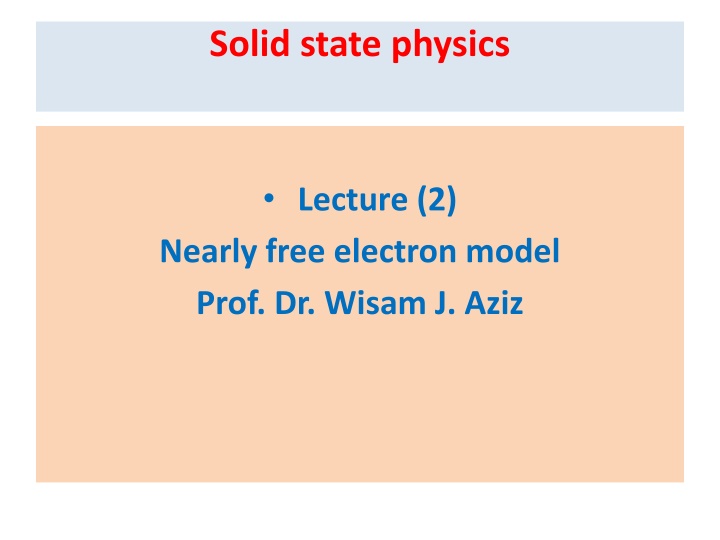

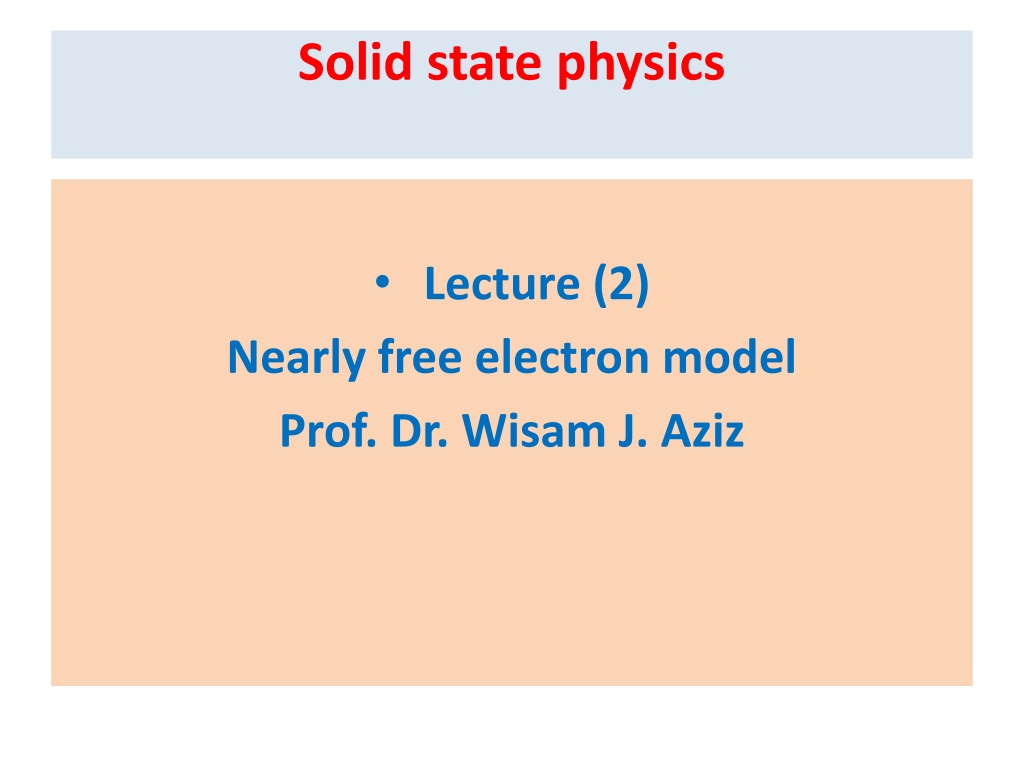

Lecture (2)
Nearly free electron model
Prof. Dr. Wisam J. Aziz
Contents
•
Free electron model.
•
Nearly free electron.
•
Kronig - Penney model.
•
Tight-binding models.
•
Band theory.
Free electron model
•
The free electrons model is assumes that the
electrons are weakly bonded to their atoms
and move within the metal freely without
being affected by the presence of atoms of
matter and not interact with crystal ions. In
another expression the free electron model is
a simple model for the behavior of valence
electrons in a metallic solid.
•
Free electron model was developed by Arnold
Sommerfeld who combined the classical Drude
model with quantum mechanical Fermi - Dirac
statistics and hence it is also known as the
Drude-Sommerfeld model.
•
In the free electron model, there is
neither lattice,
nor electron-electron interaction
,
but it gives
good result on
electron specific heat
,
electric
and thermal conductivities
•
Free electron model is most accurate for alkali
metals
Free Electron Model
Successes of Free Electron Model
•
Temperature dependence of Heat Capacity
• paramagnetic (Pauli) susceptibility
• Ratio of thermal and electrical conductivities (Lorentz
number)
• Magnitudes of heat capacities and Hall effect in simple
metals
Failures of free electron model
• Heat capacities and Hall effect of many metals are wrong
• Hall effect can be positive
• Does not explain why mean free paths can be so long
• Does not explain why some materials are metals, some
insulators and some are semiconductors
N
e
a
r
l
y
f
r
e
e
e
l
e
c
t
r
o
n
m
o
d
e
l
In solid state physics, the nearly free electron
model (or NFE model) is a quantum
mechanical model of physical properties
of electron that can move almost freely through the
crystal lattice of a solid. The model is closely
related to the more conceptual empty lattice
approximation.
• Simple
approximation: treat electrons as free to move
within the crystal
• Atomic s-electrons are delocalized due to overlap of outer
orbits.
• Crystal looks like positive ion cores of charge + e
embedded in a sea of conduction electrons
• Conduction electrons can interact with each other and ion
cores but these interactions are weak
Nearly free electron
Nearly free electron
The electron constriction for standing waves 𝜓(+) and 𝜓(−) and of traveling waves.
T
h
e
d
i
f
f
e
r
e
n
t
b
e
t
w
e
e
n
F
r
e
e
e
l
e
c
t
r
o
n
a
n
d
n
e
a
r
l
y
f
r
e
e
e
l
e
c
t
r
o
n
Comparison
T
i
g
h
t
-
b
i
n
d
i
n
g
.
e
-
’
s
t
i
g
h
t
l
y
b
o
u
n
d
t
o
n
u
c
l
e
i
•
Linear combination of atomic
wave functions
•
Valence electrons are
concentrated mainly in the
bonds and so they retain more
of their atomic character.
N
e
a
r
l
y
f
r
e
e
e
-
’
s
+
p
s
e
u
d
o
p
o
t
e
n
t
i
a
l
•
Electrons nearly free
•
Wave functions approximated by
plane waves
•
Electrons in conduction band are
delocalized, so can be
approximated well by nearly free
electrons
Nearly free electron
Kronig - Penney model
Tight-binding models
•
Tight-binding models are effective tools to
describe the motion of electrons in solids.
Here, we assume that the system is a discrete
lattice and electrons can only stay on the
lattice site. The kinetic energy is included by
allowing electrons to hop from one site to
another.
Band theory
•
Band theory suppose the crystal of matter have two
bands:-
(1)
Valance band: contain valance electrons, and it
never be empty.
(2)
Conduction band: contain conduction electrons.
And between them hole or gap called:
*Forbidden energy gap. “Its size depends on the type of
material conductive, semiconductor or insulating”
Band theory
•
Valance band:- Is the last envelope of the
atom, which contains the electrons called
valence electrons.
•
Conduction band:- It is located above the
Valance band and separated by the Forbidden
energy gap, which contains the electrons
called conduction electrons.
Band Diagram
Conduction
band
Valence
band
Band theory
Band theory
•
Band theory classified the matter the types:
•
1. insulator, forbidden gap ≥ 6 eV
•
2. semiconductor, forbidden gap (0.1-6 eV)
•
3. conductor, forbidden gap≤ 0.1 eV
The Free Electron Model postulates that electrons in metals move freely without interacting with crystal ions, yielding insights on conductivities. Developed by Arnold Sommerfeld, it combines the Drude model with quantum mechanics. Conversely, the Nearly Free Electron Model leans on quantum mechanics to describe electron behavior within a solid's crystal lattice.
