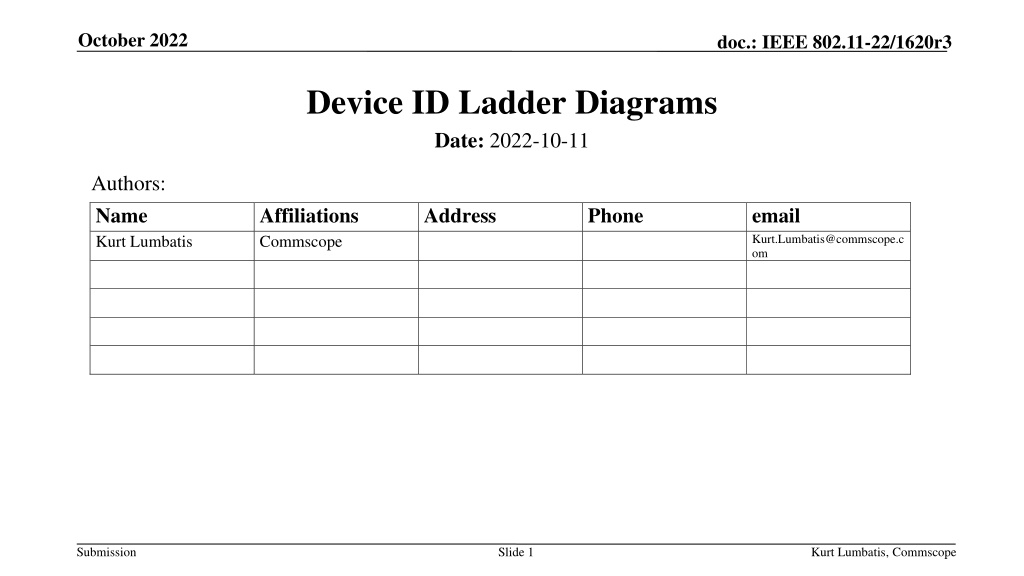

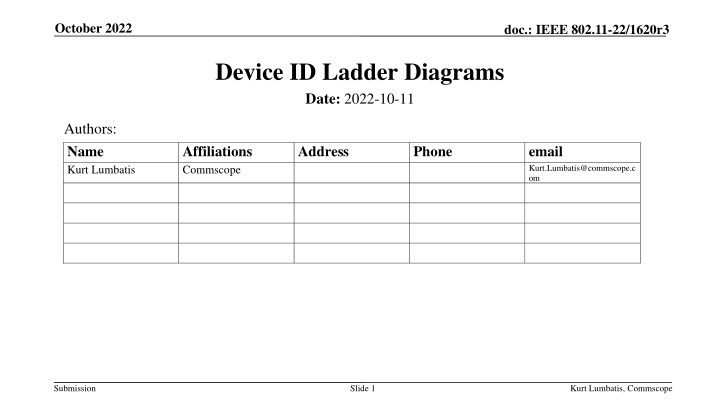

1. October 2022 doc.: IEEE 802.11-22/1620r3 Device ID Ladder Diagrams Date: 2022-10-11 Authors: Name Kurt Lumbatis Affiliations Commscope Address Phone email Kurt.Lumbatis@commscope.c om Submission Slide 1 Kurt Lumbatis, Commscope

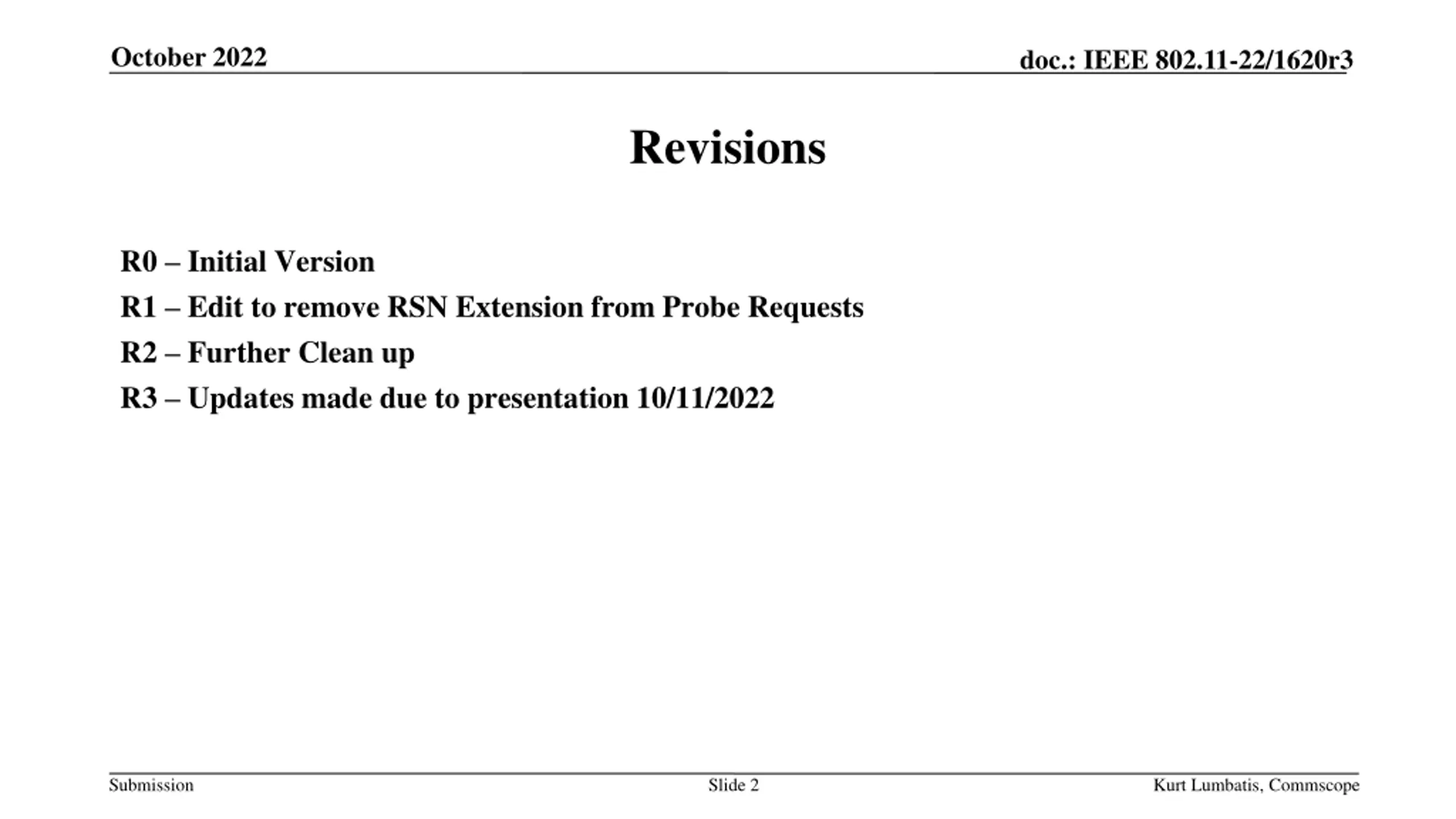

2. October 2022 doc.: IEEE 802.11-22/1620r3 Revisions R0 Initial Version R1 Edit to remove RSN Extension from Probe Requests R2 Further Clean up R3 Updates made due to presentation 10/11/2022 Submission Slide 2 Kurt Lumbatis, Commscope

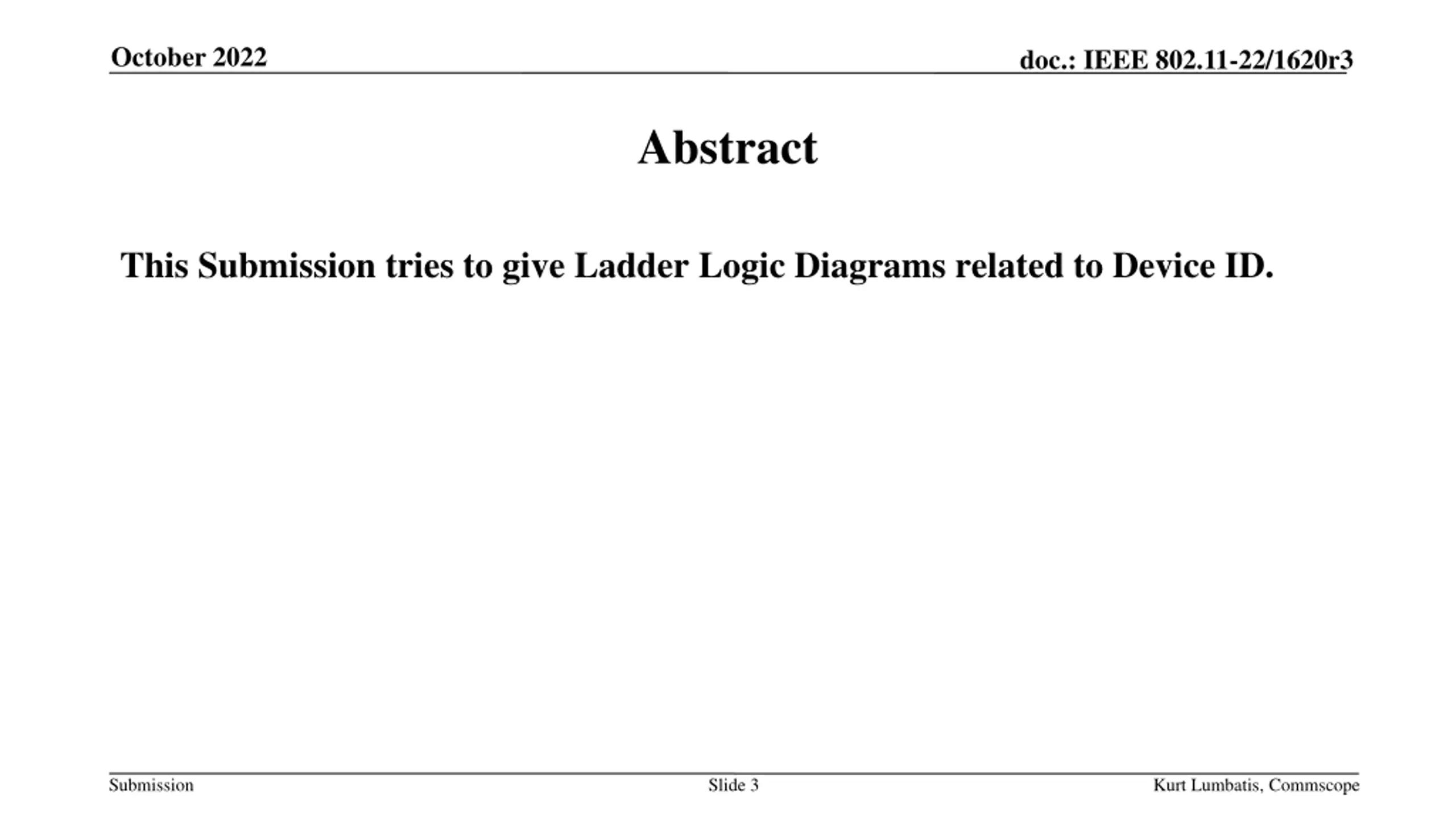

3. October 2022 doc.: IEEE 802.11-22/1620r3 Abstract This Submission tries to give Ladder Logic Diagrams related to Device ID. Submission Slide 3 Kurt Lumbatis, Commscope

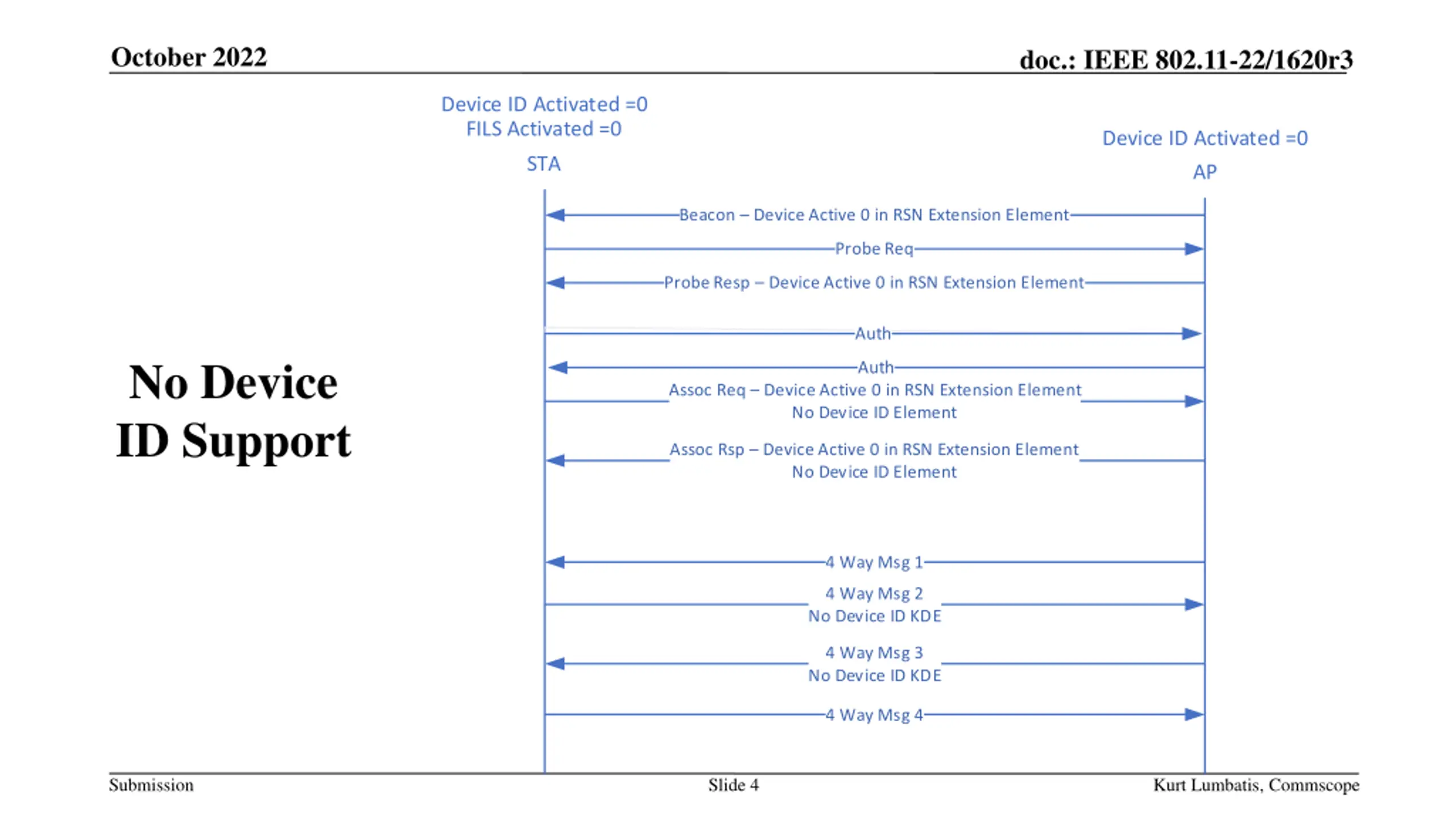

4. October 2022 doc.: IEEE 802.11-22/1620r3 Device ID Activated =0 FILS Activated =0 Device ID Activated =0 STA AP Beacon Device Active 0 in RSN Extension Element Probe Req Probe Resp Device Active 0 in RSN Extension Element No Device ID Support Assoc Req Device Active 0 in RSN Extension Element No Device ID Element Assoc Rsp Device Active 0 in RSN Extension Element No Device ID Element 4 Way Msg 1 4 Way Msg 2 No Device ID KDE 4 Way Msg 3 No Device ID KDE 4 Way Msg 4 Submission Slide 4 Kurt Lumbatis, Commscope

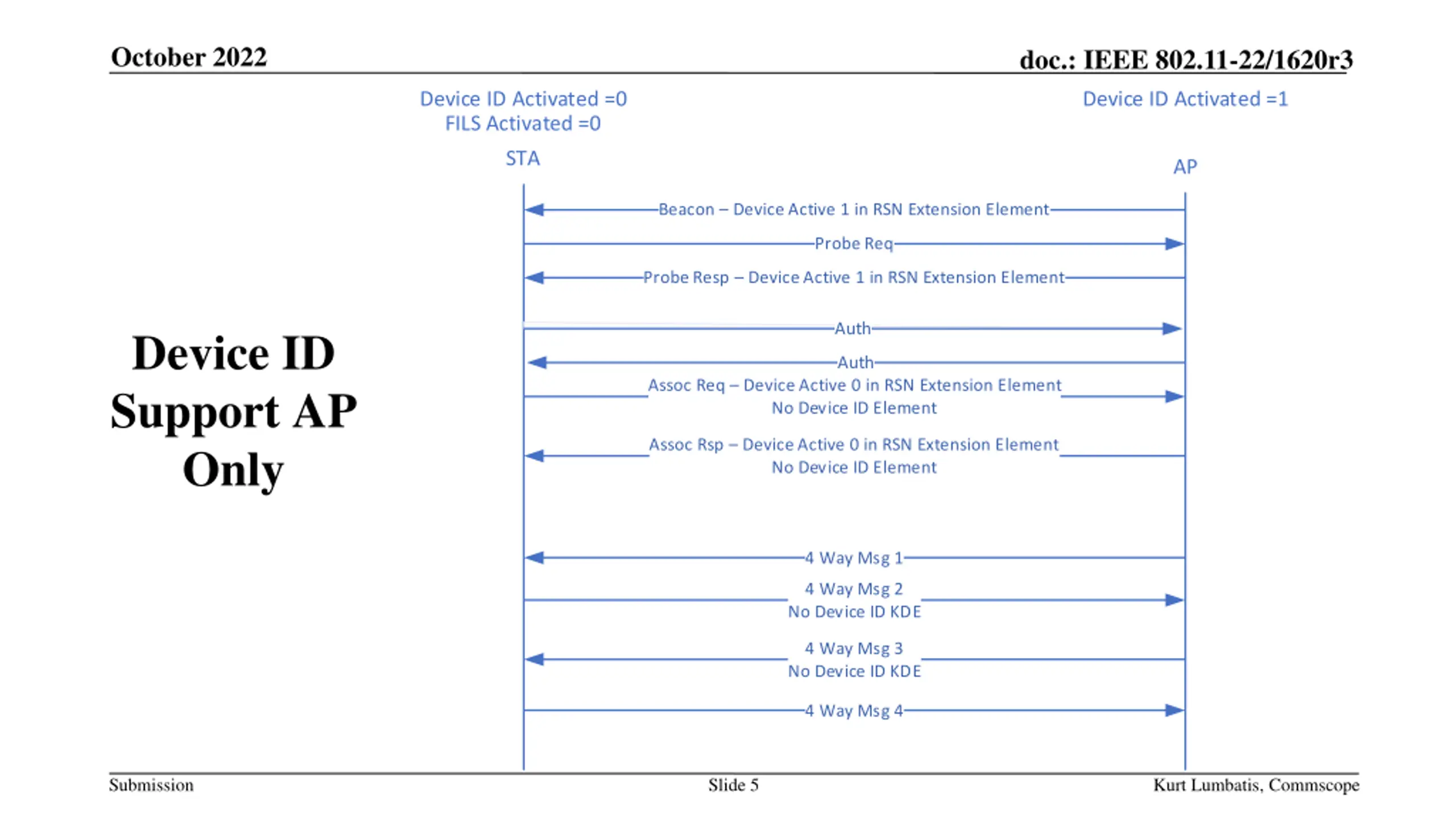

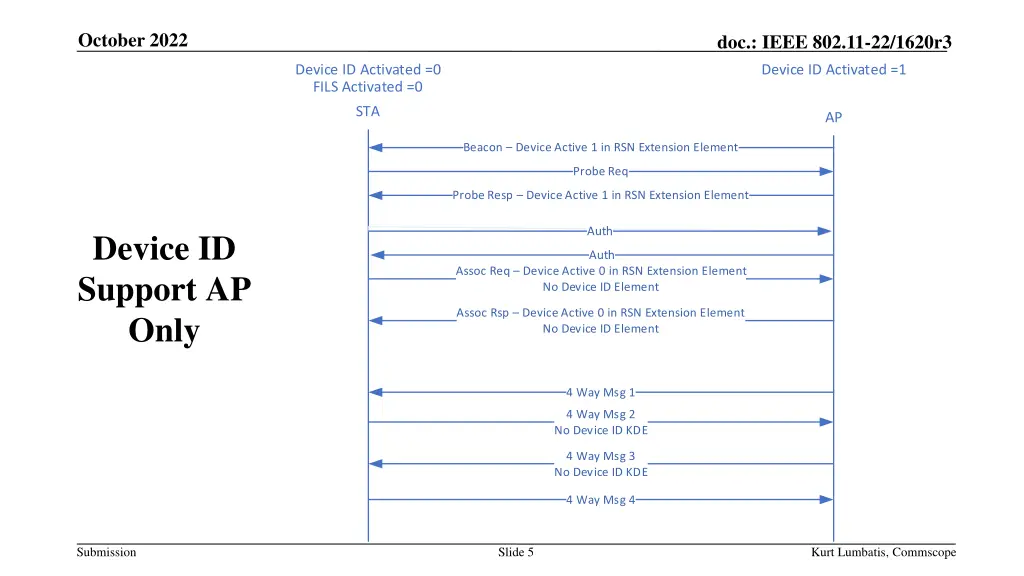

5. October 2022 doc.: IEEE 802.11-22/1620r3 Device ID Activated =0 FILS Activated =0 Device ID Activated =1 STA AP Beacon Device Active 1 in RSN Extension Element Probe Req Probe Resp Device Active 1 in RSN Extension Element Device ID Support AP Only Assoc Req Device Active 0 in RSN Extension Element No Device ID Element Assoc Rsp Device Active 0 in RSN Extension Element No Device ID Element 4 Way Msg 1 4 Way Msg 2 No Device ID KDE 4 Way Msg 3 No Device ID KDE 4 Way Msg 4 Submission Slide 5 Kurt Lumbatis, Commscope

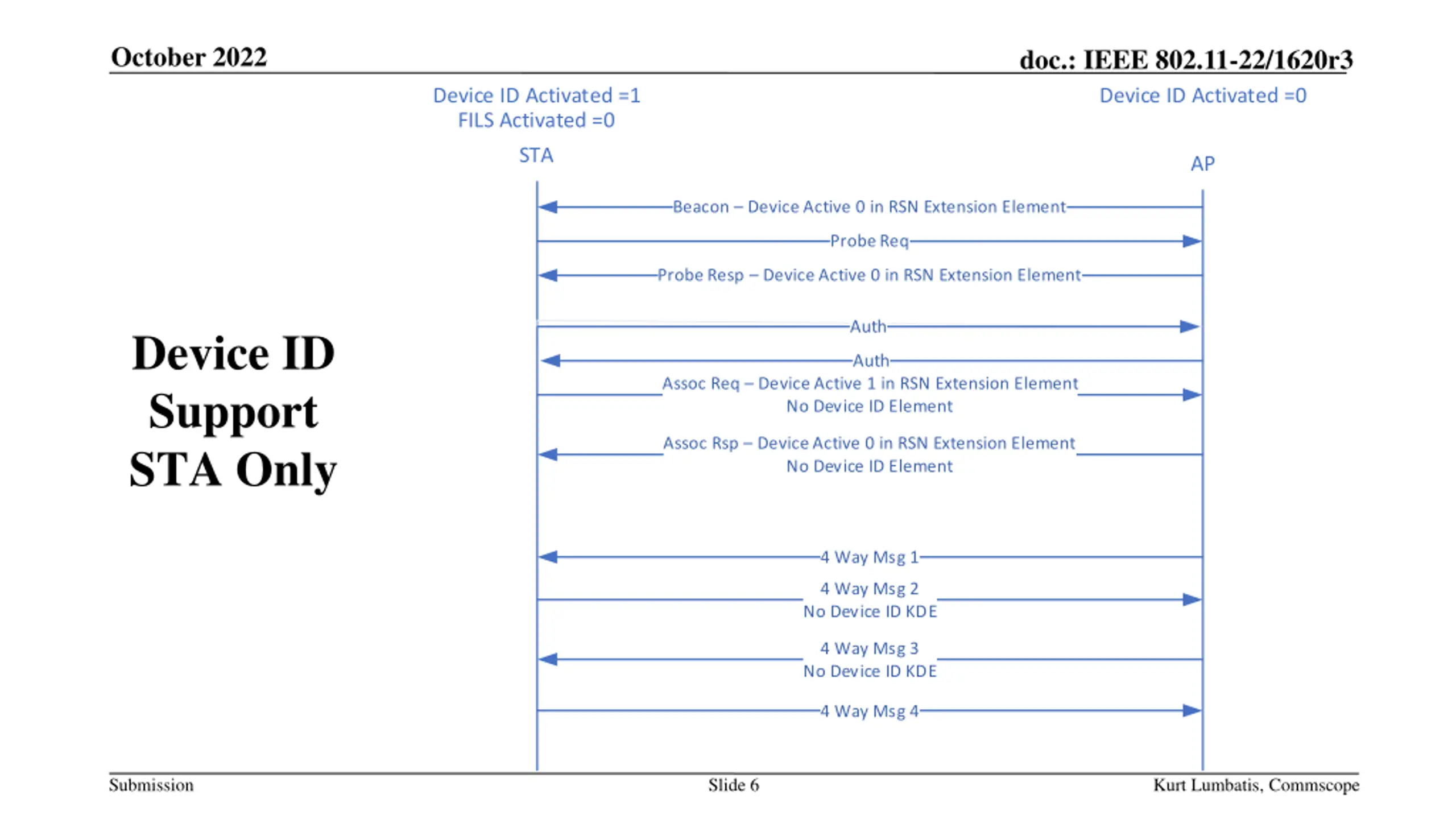

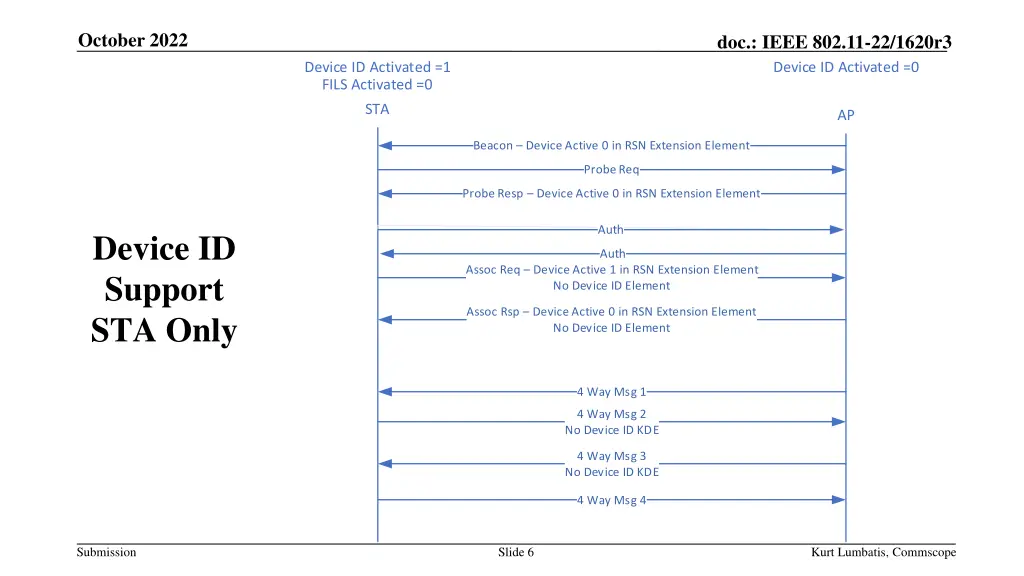

6. October 2022 doc.: IEEE 802.11-22/1620r3 Device ID Activated =0 Device ID Activated =1 FILS Activated =0 STA AP Beacon Device Active 0 in RSN Extension Element Probe Req Probe Resp Device Active 0 in RSN Extension Element Device ID Support STA Only Assoc Req Device Active 1 in RSN Extension Element No Device ID Element Assoc Rsp Device Active 0 in RSN Extension Element No Device ID Element 4 Way Msg 1 4 Way Msg 2 No Device ID KDE 4 Way Msg 3 No Device ID KDE 4 Way Msg 4 Submission Slide 6 Kurt Lumbatis, Commscope

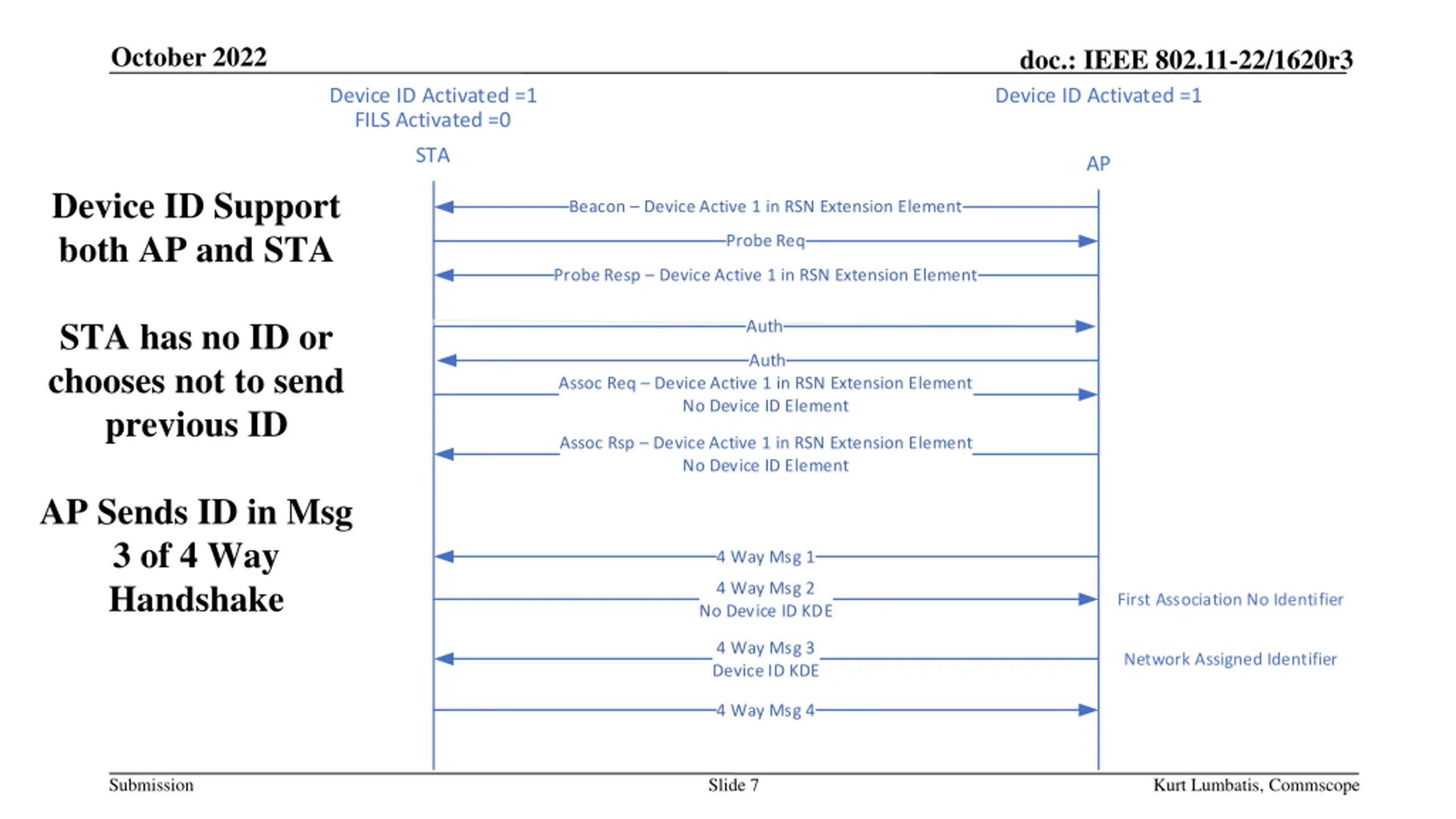

7. October 2022 doc.: IEEE 802.11-22/1620r3 Device ID Activated =1 Device ID Activated =1 FILS Activated =0 STA AP Device ID Support both AP and STA Beacon Device Active 1 in RSN Extension Element Probe Req Probe Resp Device Active 1 in RSN Extension Element STA has no ID or chooses not to send previous ID Assoc Req Device Active 1 in RSN Extension Element No Device ID Element Assoc Rsp Device Active 1 in RSN Extension Element No Device ID Element AP Sends ID in Msg 3 of 4 Way Handshake 4 Way Msg 1 4 Way Msg 2 No Device ID KDE First Association No Identifier 4 Way Msg 3 Device ID KDE Network Assigned Identifier 4 Way Msg 4 Submission Slide 7 Kurt Lumbatis, Commscope

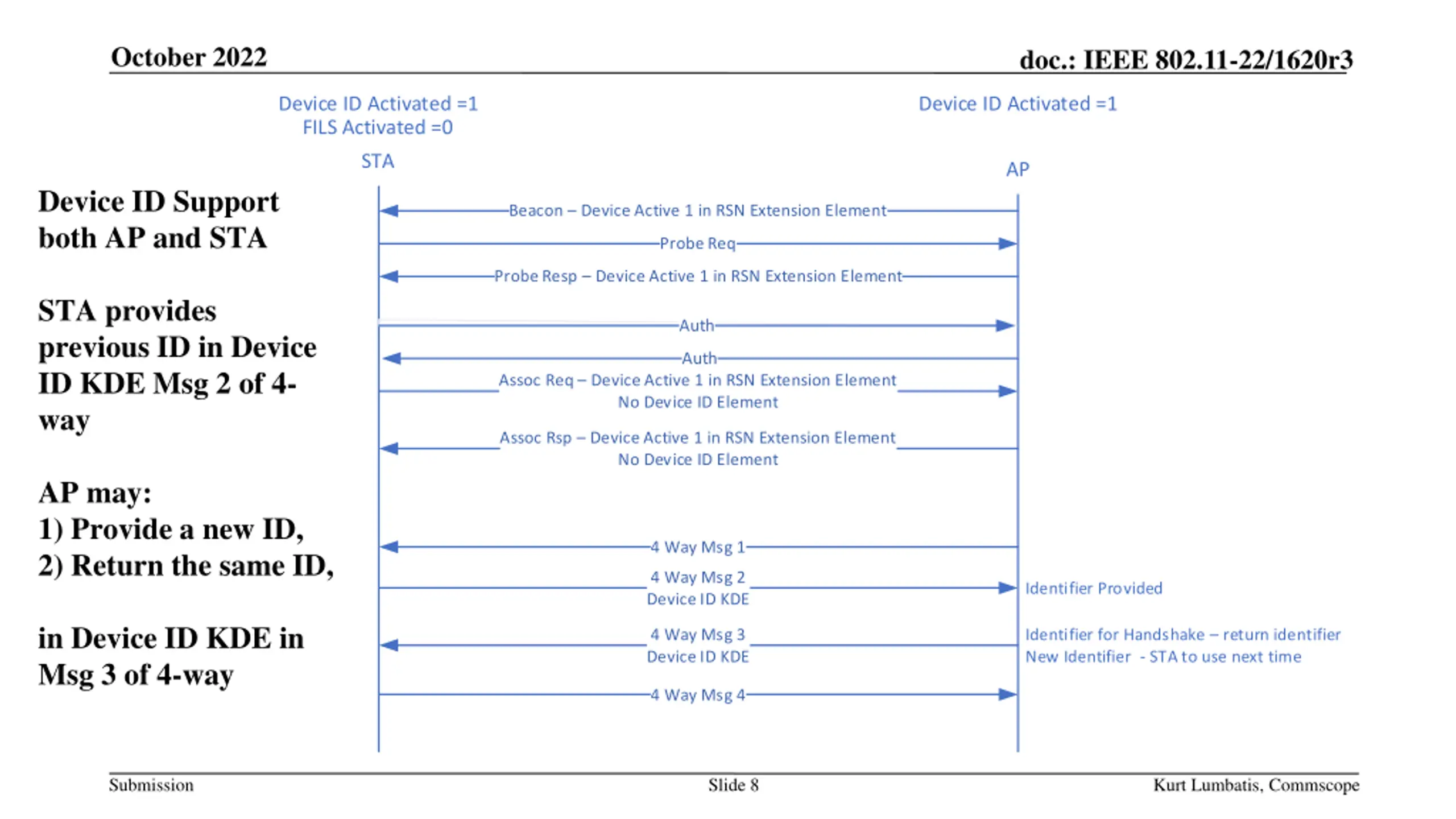

8. October 2022 doc.: IEEE 802.11-22/1620r3 Device ID Activated =1 FILS Activated =0 Device ID Activated =1 STA AP Device ID Support both AP and STA Beacon Device Active 1 in RSN Extension Element Probe Req Probe Resp Device Active 1 in RSN Extension Element STA provides previous ID in Device ID KDE Msg 2 of 4- way Assoc Req Device Active 1 in RSN Extension Element No Device ID Element Assoc Rsp Device Active 1 in RSN Extension Element No Device ID Element AP may: 1) Provide a new ID, 2) Return the same ID, 4 Way Msg 1 4 Way Msg 2 Device ID KDE Identifier Provided in Device ID KDE in Msg 3 of 4-way 4 Way Msg 3 Device ID KDE Identifier for Handshake return identifier New Identifier - STA to use next time 4 Way Msg 4 Submission Slide 8 Kurt Lumbatis, Commscope

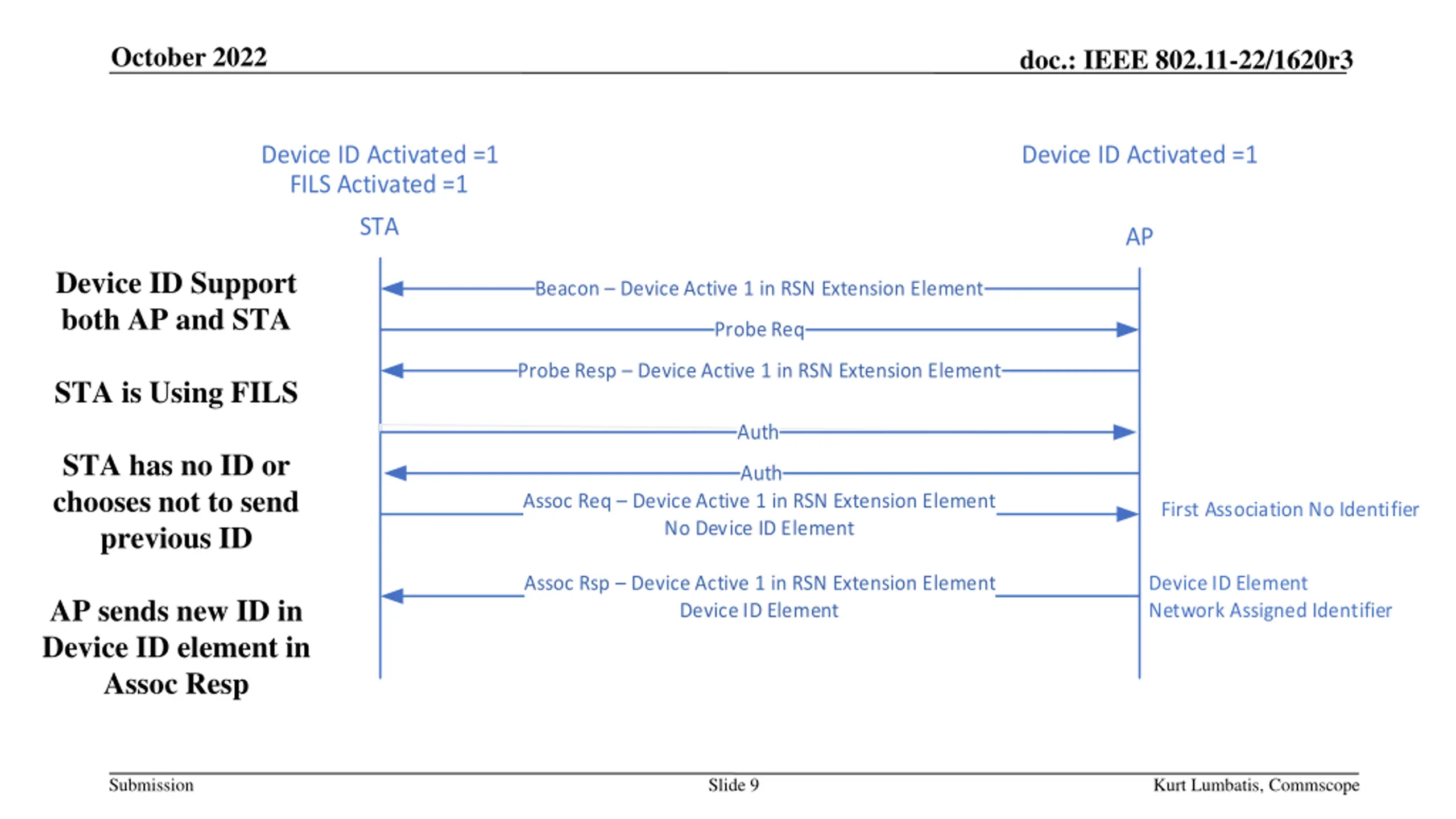

9. October 2022 doc.: IEEE 802.11-22/1620r3 Device ID Activated =1 FILS Activated =1 Device ID Activated =1 STA AP Device ID Support both AP and STA Beacon Device Active 1 in RSN Extension Element Probe Req Probe Resp Device Active 1 in RSN Extension Element STA is Using FILS STA has no ID or chooses not to send previous ID Assoc Req Device Active 1 in RSN Extension Element No Device ID Element First Association No Identifier Assoc Rsp Device Active 1 in RSN Extension Element Device ID Element Device ID Element Network Assigned Identifier AP sends new ID in Device ID element in Assoc Resp Submission Slide 9 Kurt Lumbatis, Commscope

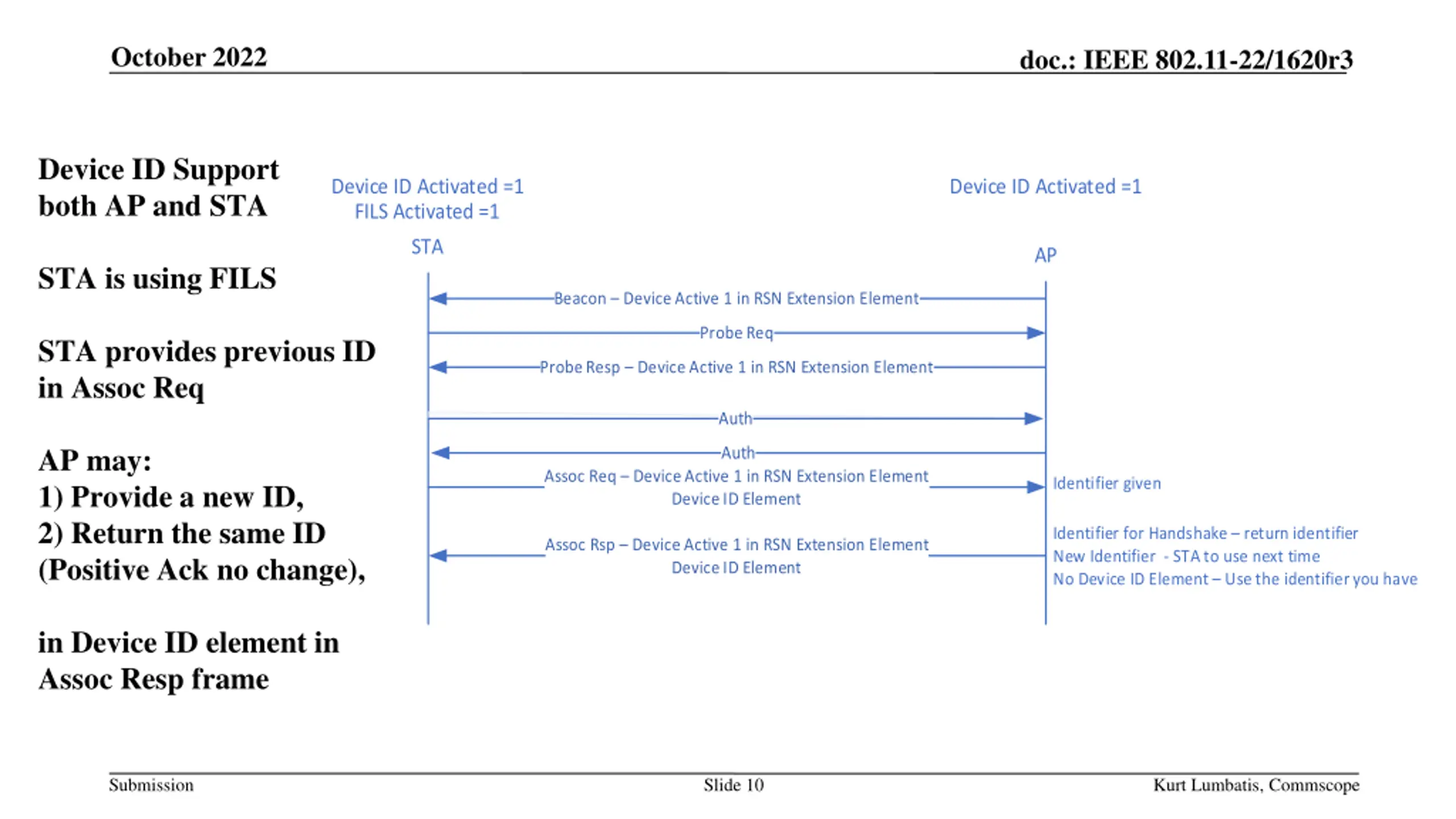

10. October 2022 doc.: IEEE 802.11-22/1620r3 Device ID Support both AP and STA Device ID Activated =1 FILS Activated =1 Device ID Activated =1 STA AP STA is using FILS Beacon Device Active 1 in RSN Extension Element Probe Req STA provides previous ID in Assoc Req Probe Resp Device Active 1 in RSN Extension Element AP may: 1) Provide a new ID, 2) Return the same ID (Positive Ack no change), Assoc Req Device Active 1 in RSN Extension Element Device ID Element Identifier given Identifier for Handshake return identifier New Identifier - STA to use next time No Device ID Element Use the identifier you have Assoc Rsp Device Active 1 in RSN Extension Element Device ID Element in Device ID element in Assoc Resp frame Submission Slide 10 Kurt Lumbatis, Commscope

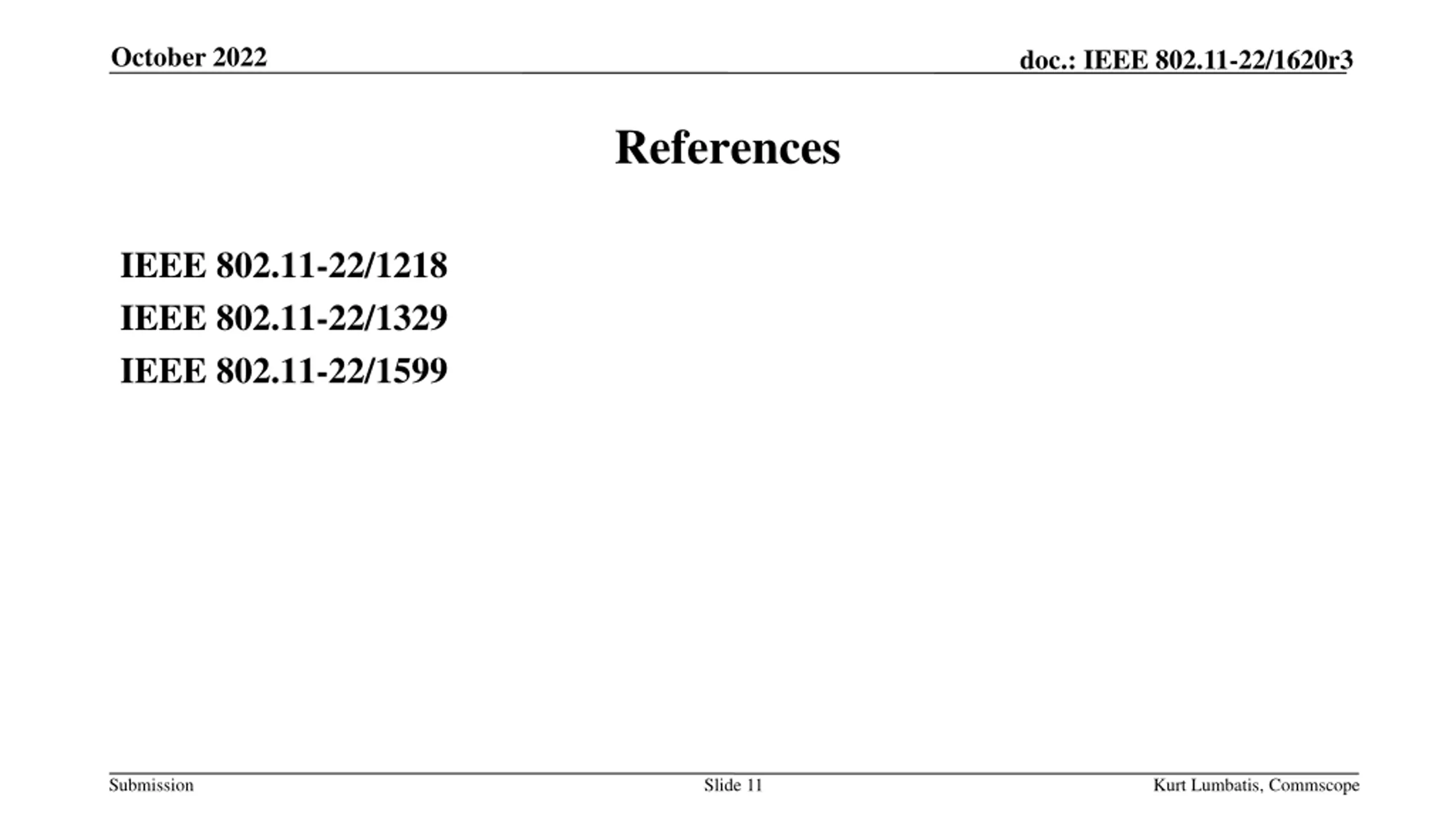

11. October 2022 doc.: IEEE 802.11-22/1620r3 References IEEE 802.11-22/1218 IEEE 802.11-22/1329 IEEE 802.11-22/1599 Submission Slide 11 Kurt Lumbatis, Commscope
