Development of dRICH Prototype and Photosensor Program
Detailed tasks include the design, simulation, and implementation of optical components for the basic dRICH prototype, as well as the development of a SiPM program focusing on radiation tolerance and custom sensor solutions. The timeline spans from 2021 to 2025, with key milestones such as beam tests, refinement of components, and engineering of cooling systems. The readout timeline involves maintaining reference readout systems, updating readout chains, and integrating SiPM readouts with sensor cooling. Consortium meetings are scheduled to discuss progress and future plans.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

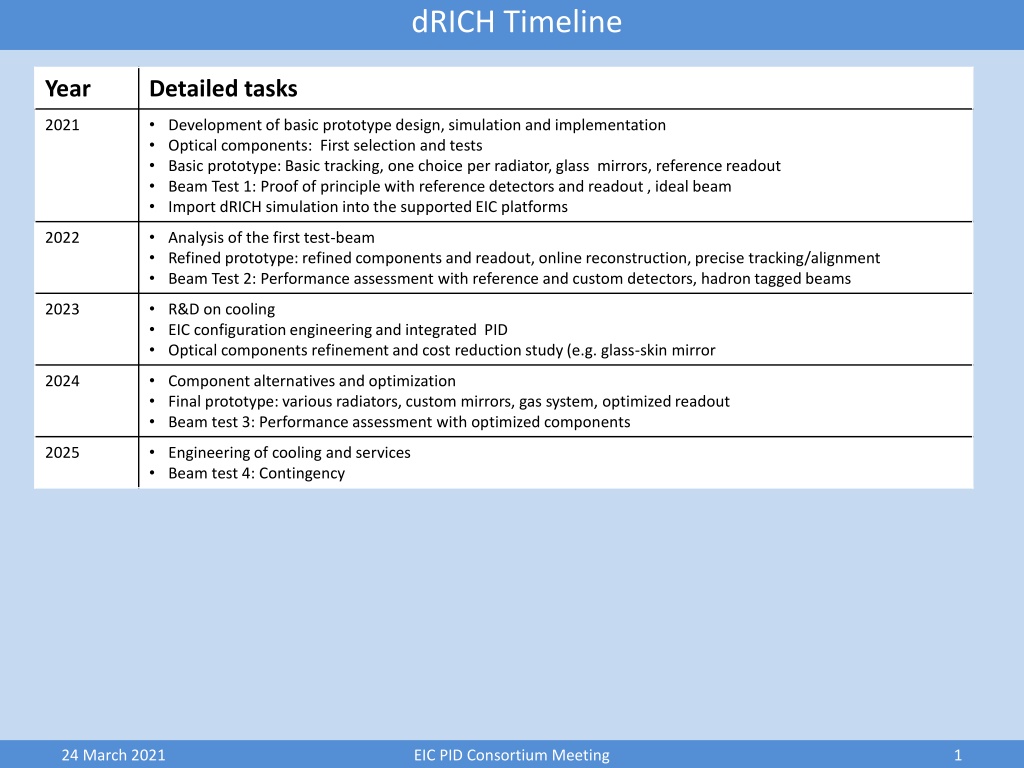

dRICH Timeline Year Detailed tasks Development of basic prototype design, simulation and implementation Optical components: First selection and tests Basic prototype: Basic tracking, one choice per radiator, glass mirrors, reference readout Beam Test 1: Proof of principle with reference detectors and readout , ideal beam Import dRICH simulation into the supported EIC platforms 2021 Analysis of the first test-beam Refined prototype: refined components and readout, online reconstruction, precise tracking/alignment Beam Test 2: Performance assessment with reference and custom detectors, hadron tagged beams 2022 R&D on cooling EIC configuration engineering and integrated PID Optical components refinement and cost reduction study (e.g. glass-skin mirror 2023 Component alternatives and optimization Final prototype: various radiators, custom mirrors, gas system, optimized readout Beam test 3: Performance assessment with optimized components 2024 Engineering of cooling and services Beam test 4: Contingency 2025 24 March 2021 EIC PID Consortium Meeting 1

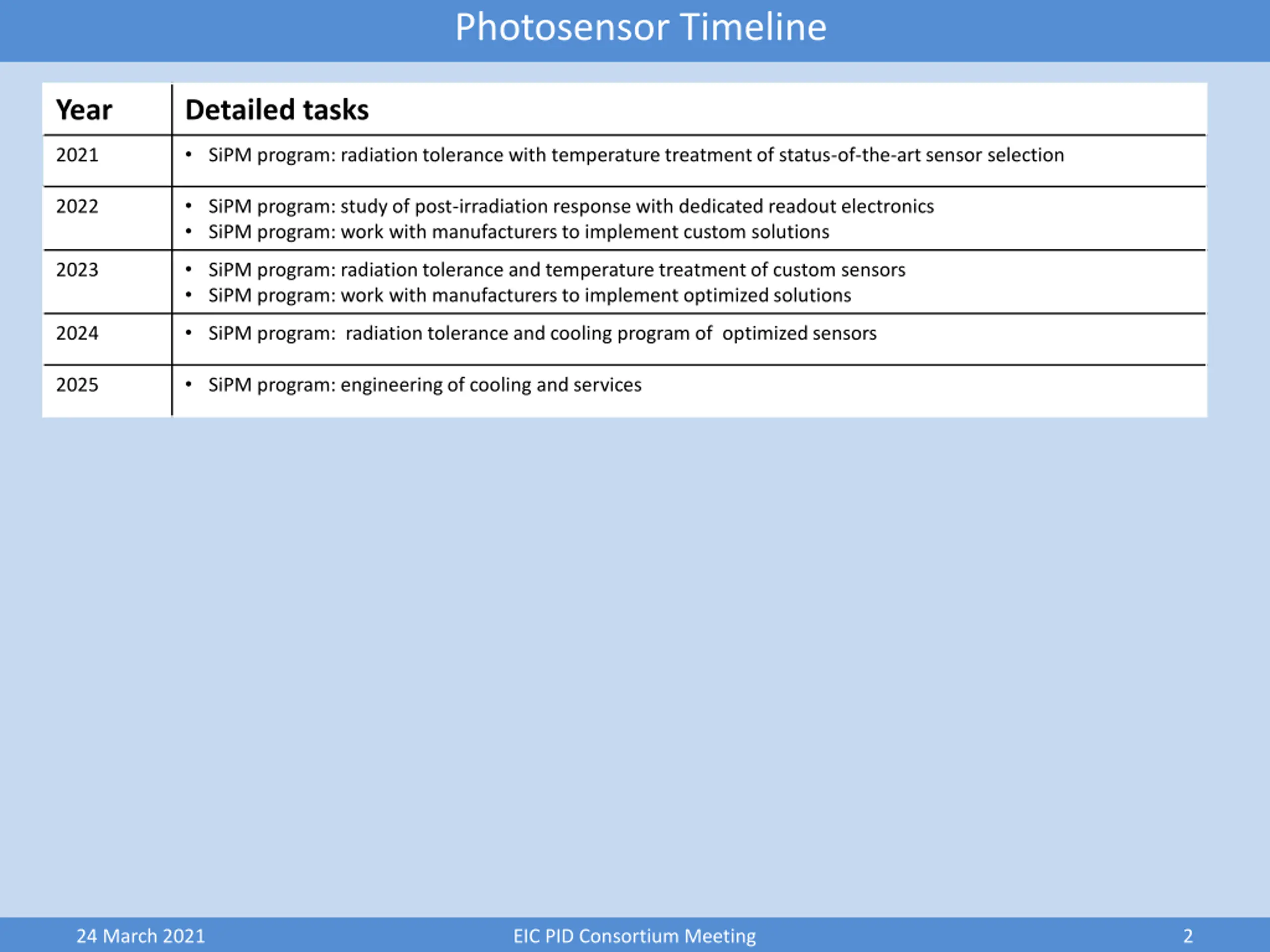

Photosensor Timeline Year Detailed tasks SiPM program: radiation tolerance with temperature treatment of status-of-the-art sensor selection 2021 SiPM program: study of post-irradiation response with dedicated readout electronics SiPM program: work with manufacturers to implement custom solutions 2022 SiPM program: radiation tolerance and temperature treatment of custom sensors SiPM program: work with manufacturers to implement optimized solutions 2023 SiPM program: radiation tolerance and cooling program of optimized sensors 2024 SiPM program: engineering of cooling and services 2025 24 March 2021 EIC PID Consortium Meeting 2

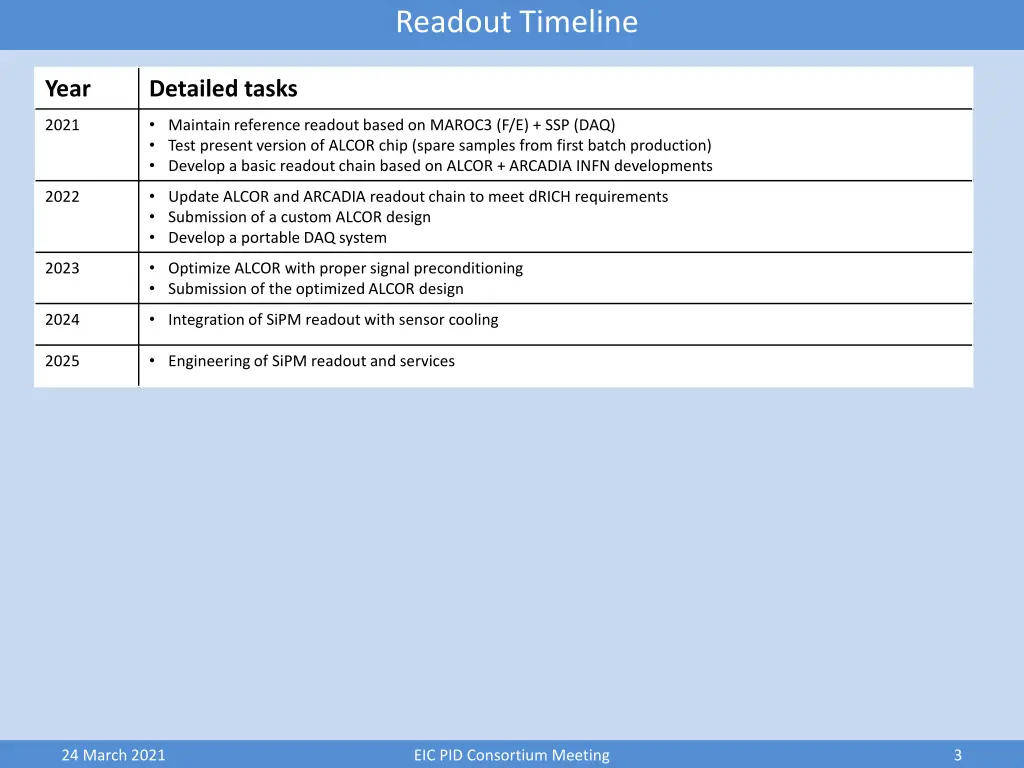

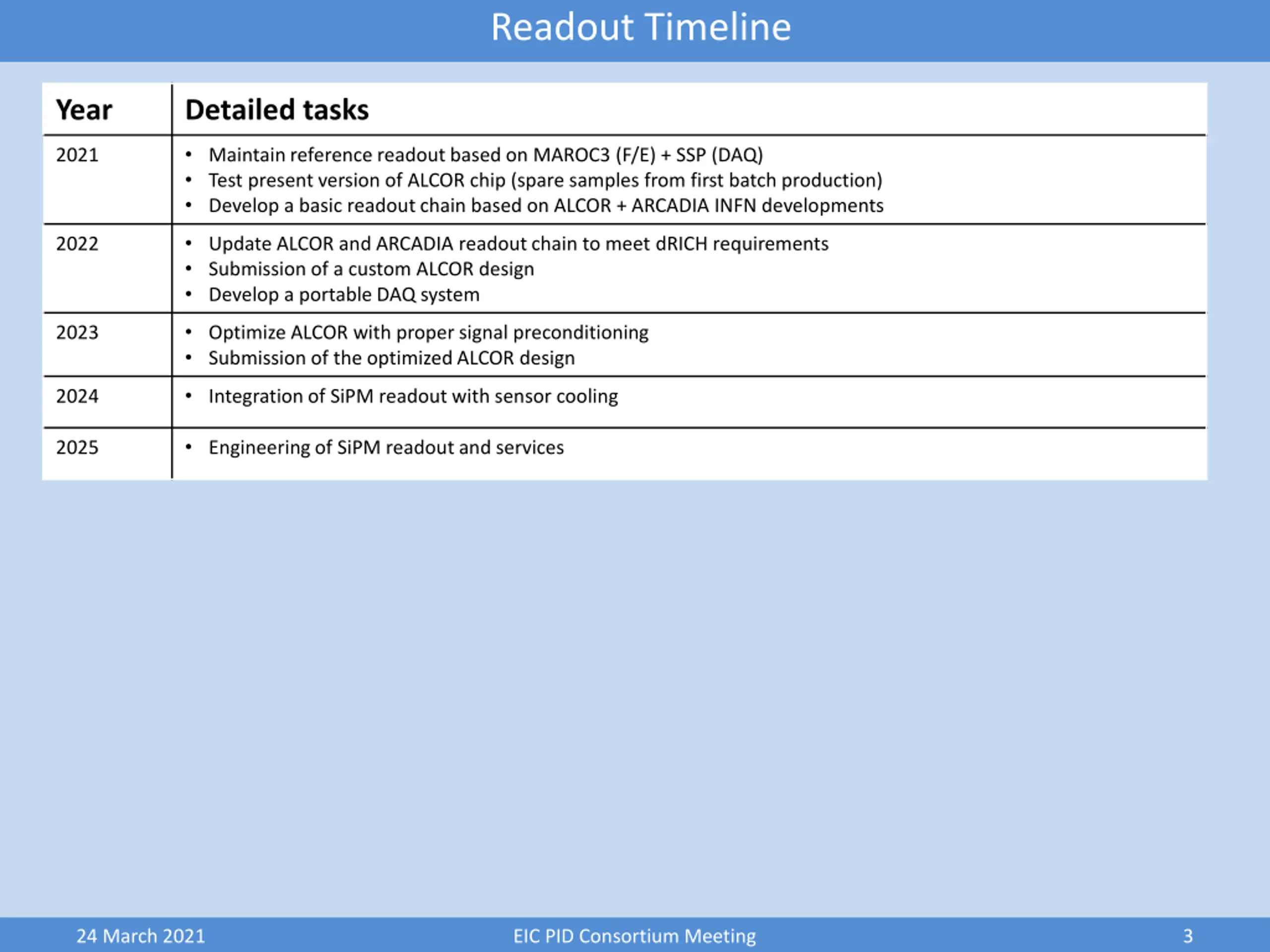

Readout Timeline Year Detailed tasks Maintain reference readout based on MAROC3 (F/E) + SSP (DAQ) Test present version of ALCOR chip (spare samples from first batch production) Develop a basic readout chain based on ALCOR + ARCADIA INFN developments 2021 Update ALCOR and ARCADIA readout chain to meet dRICH requirements Submission of a custom ALCOR design Develop a portable DAQ system 2022 Optimize ALCOR with proper signal preconditioning Submission of the optimized ALCOR design 2023 Integration of SiPM readout with sensor cooling 2024 Engineering of SiPM readout and services 2025 24 March 2021 EIC PID Consortium Meeting 3

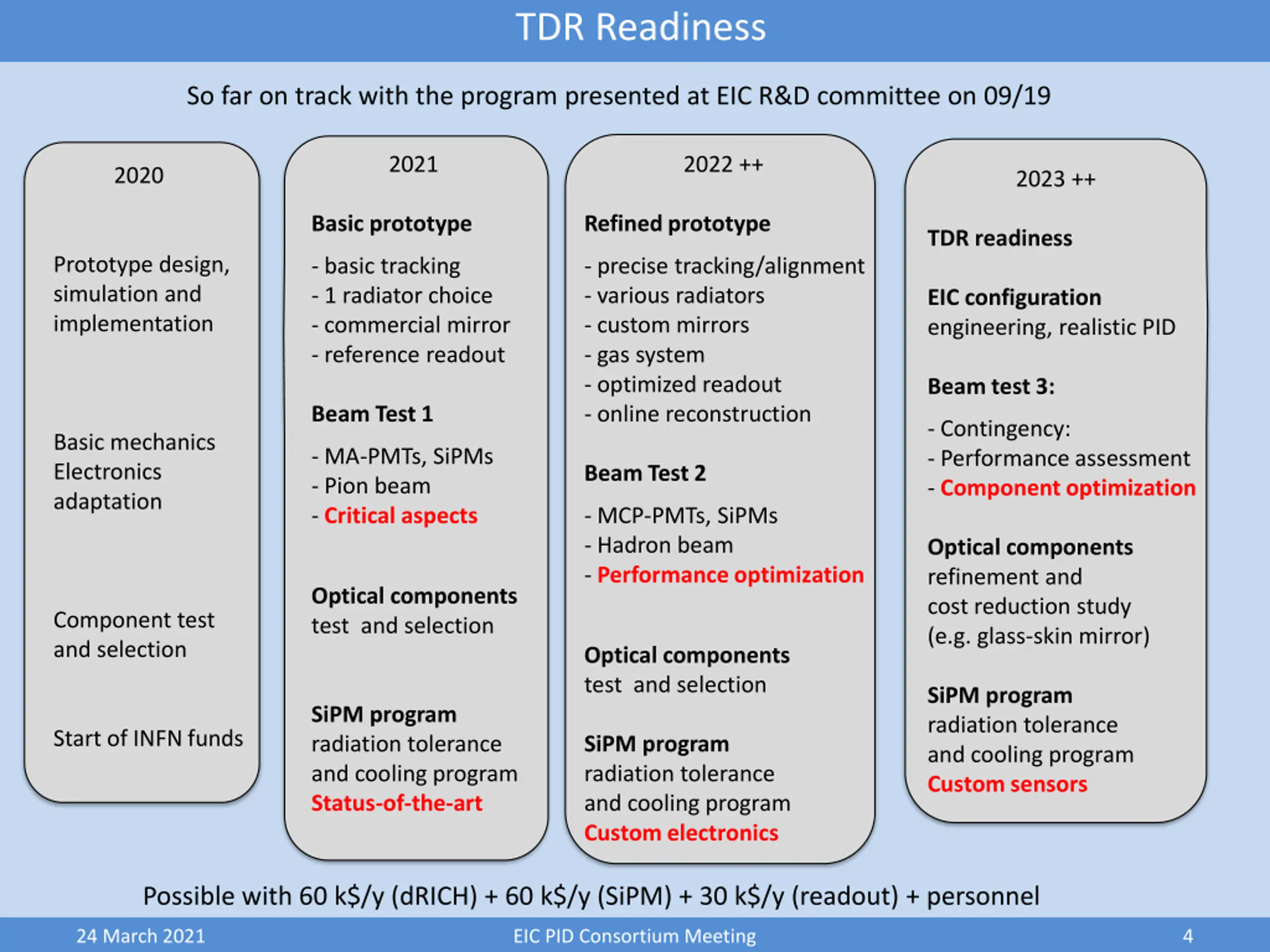

TDR Readiness So far on track with the program presented at EIC R&D committee on 09/19 2021 2022 ++ 2020 2023 ++ Basic prototype Refined prototype TDR readiness Prototype design, simulation and implementation - basic tracking - 1 radiator choice - commercial mirror - reference readout - precise tracking/alignment - various radiators - custom mirrors - gas system - optimized readout - online reconstruction EIC configuration engineering, realistic PID Beam test 3: Beam Test 1 - Contingency: - Performance assessment - Component optimization Basic mechanics Electronics adaptation - MA-PMTs, SiPMs - Pion beam - Critical aspects Beam Test 2 - MCP-PMTs, SiPMs - Hadron beam - Performance optimization Optical components refinement and cost reduction study (e.g. glass-skin mirror) Optical components test and selection Component test and selection Optical components test and selection SiPM program radiation tolerance and cooling program Custom sensors SiPM program radiation tolerance and cooling program Status-of-the-art Start of INFN funds SiPM program radiation tolerance and cooling program Custom electronics Possible with 60 k$/y (dRICH) + 60 k$/y (SiPM) + 30 k$/y (readout) + personnel 24 March 2021 EIC PID Consortium Meeting 4
