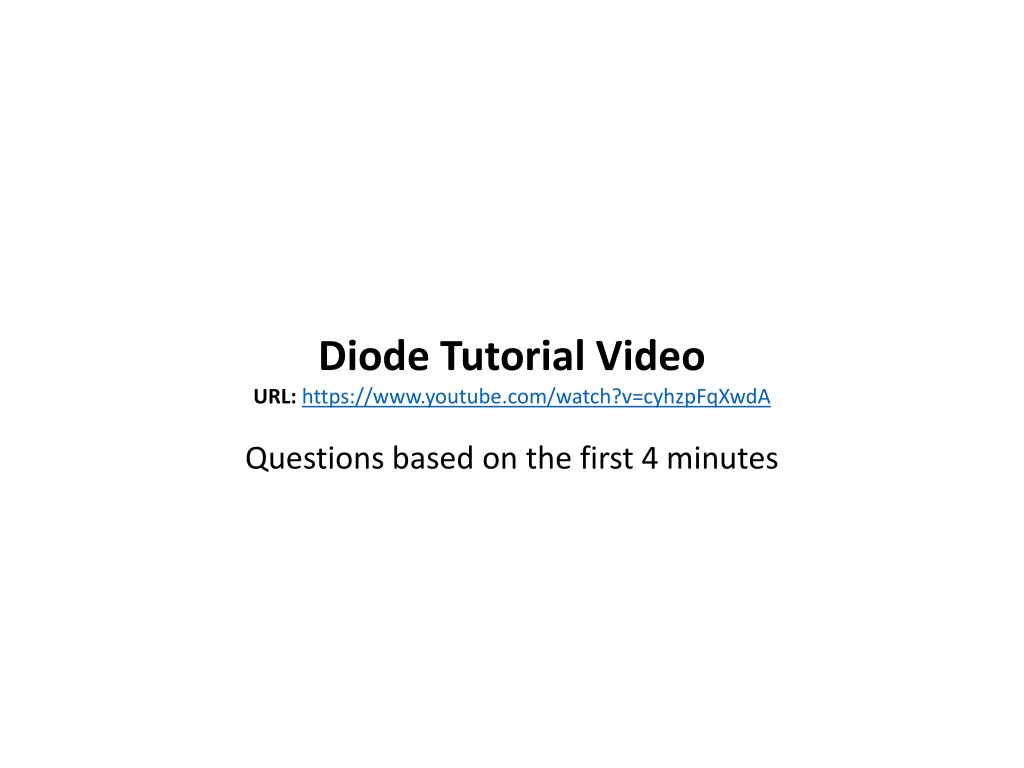

Diode Tutorial Video URL: https://www.youtube.com/watch?v=cyhzpFqXwdA Questions based on the first 4 minutes

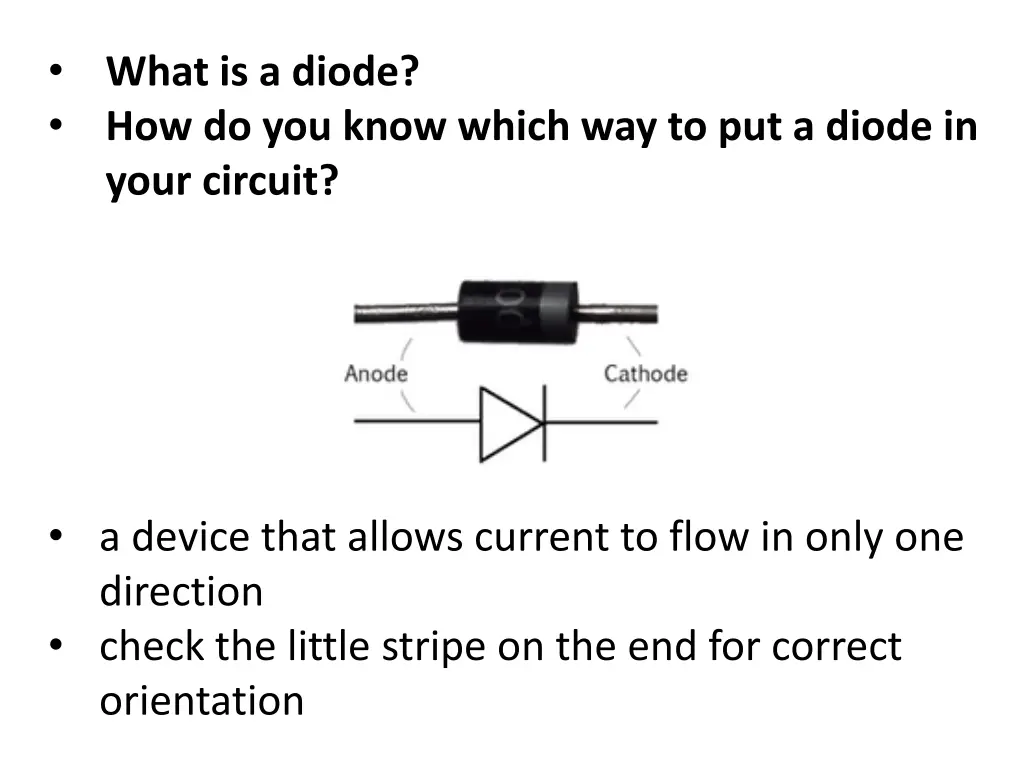

What is a diode? How do you know which way to put a diode in your circuit? a device that allows current to flow in only one direction check the little stripe on the end for correct orientation
What happens when you feed an AC voltage or current through a diode? half-wave rectification
Why is there a missing voltage in the second picture? There is no such thing as a perfect diode!
What is the usual value of Vf? Which criteria will determine the exact value of Vf? Vf ~ 0.7V Exact value determined by: temperature current type of diode
Explain these four scenarios as presented in the video.
How can you predict whether a diode is going to melt on you? by calculating the power wasted in the diode Reading equations: The power wasted in a diode is given by Vf times the current flowing through it.
Compare these two scenarios and explain any potential issues and possible solutions. low current low heat OK to use an ordinary silicon diode higher current more heat better to use a bigger diode or a Schottky diode
What do these diagrams tell us about diodes? Placing diodes in parallel is not a reliable option.
Using these two diagrams, explain the term diode switching speed.
What are the four important things to keep in mind about a diode before using it? maximum rated voltage forward voltage current rating switching speed
