Thaiphoon (5 Church Street) Lighting Plan Details

The lighting plan for Thaiphoon at 5 Church Street includes various fixtures such as Gardco wall sconces and Hadco Independence street edge lights. The design adheres to the Town Center lighting requirements, with specific lights designated for different areas like the kitchen perimeter, loading dock, signage, and outdoor seating. Decorative, spot, and flood lights are used in alignment with the Town Center design theme. Details of materials and sources for specific lighting fixtures are provided for reference.

• Lighting plan
• Thaiphoon
• Town Center design
• Gardco
• Hadco

arauz_a Follow

Uploaded on Sep 18, 2024 | 0 Views

Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

Presentation Transcript

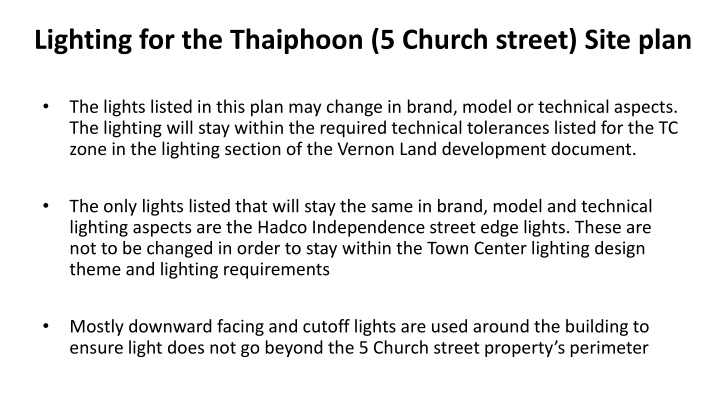

1. Lighting for the Thaiphoon (5 Church street) Site plan The lights listed in this plan may change in brand, model or technical aspects. The lighting will stay within the required technical tolerances listed for the TC zone in the lighting section of the Vernon Land development document. The only lights listed that will stay the same in brand, model and technical lighting aspects are the Hadco Independence street edge lights. These are not to be changed in order to stay within the Town Center lighting design theme and lighting requirements Mostly downward facing and cutoff lights are used around the building to ensure light does not go beyond the 5 Church street property s perimeter
