In this presentation, explore the cutting-edge SAGE Rio ATEX technology designed for explosive atmospheres. Discover equipment categories, gas protection levels, temperature codes, and gas zoning regulations. Learn about ATEX and Non-ATEX systems, communication protocols like HART and Modbus, and essential safety measures for working in hazardous environments.


Uploaded on Sep 12, 2024 | 0 Views


Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

E N D

Presentation Transcript

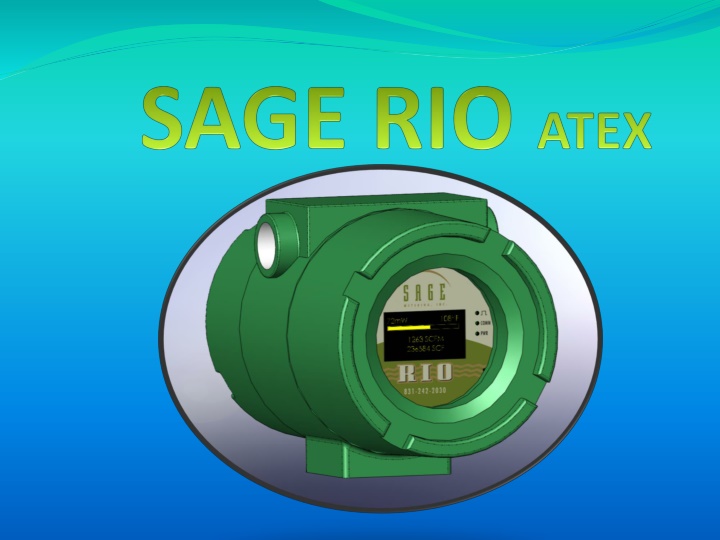

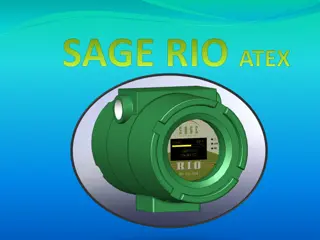

  1. SAGE RIOATEX ATMOSPHERES EXPLOSIBILES

  2. STATE OF THE ART

  3. EU Explosive Atmosphere Symbol

  4. II 2 G

  5. II 2 G EQUIPMENT CATEGORY 2 HIGH PROTECTION

  6. II 2 G GAS

  7. Ex d TYPE OF PROTECTION FLAMEPROOF

  8. IIB + H2 GAS GROUPS IIB = ETHYLENE + H2 = HYDROGEN

  9. T6 TEMPERATURE CODE MAXIMUM SURFACE TEMP IN ENCLOSURE 85OC (185OF)

  10. Gb GAS ZONE 1

  11. ATEX Non-ATEX HART Modbus
