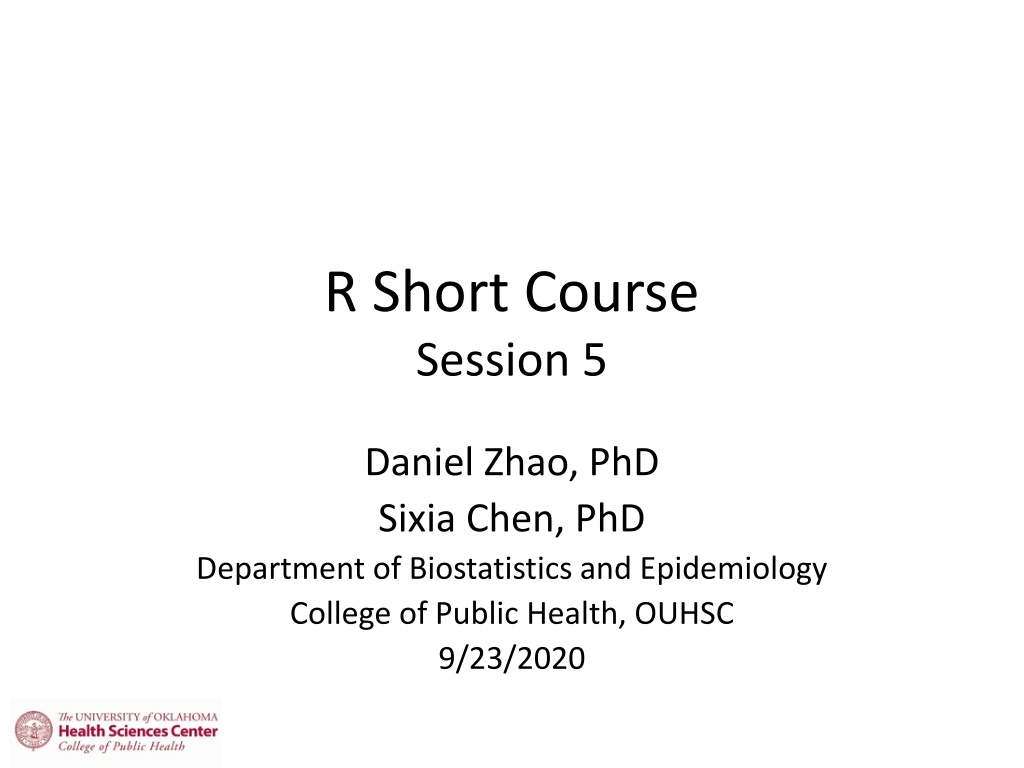

1. R Short Course Session 5 Daniel Zhao, PhD Sixia Chen, PhD Department of Biostatistics and Epidemiology College of Public Health, OUHSC 9/23/2020

2. Outline Linear Regression Fit linear regression and check results Examine normality, independence and heteroscedasticity Examine outliers and influence points Examine collinearity Model selection procedure Model comparisons

3. Outline (2) Logistic Regression Fit logistic model and check results Odds ratio and confidence intervals Model selection procedure Goodness of fit test

4. Linear Regression Fitting linear regression of y vs x: lm(y~x,data=,weights=,singular.ok=TRUE) Example: Input data is Prestige dataset in R package car Variables: education, income, women, prestige, census and type

5. Linear Regression (2) summary(Prestige)

6. Linear Regression (3) pairs(Prestige)

7. Fit linear regression reg1<- lm(prestige~education+log2(income)+women, data=Prestige)

8. Check the results summary(reg1)

9. Check the results (2) attributes(reg1)

10. Check the results (3) reg1$coefficients reg1$df.residual

11. Examine Normality QQ plot for studentized residuals: qqPlot(reg1, main="QQ Plot") Distribution of studentized residuals library(MASS) sresid <- studres(reg1) par(mfrow=c(1,2)) qqPlot(reg1, main="QQ Plot") hist(sresid, freq=FALSE,main="Distribution of Studentized Residuals") xfit<-seq(min(sresid),max(sresid),length=40) yfit<-dnorm(xfit) lines(xfit, yfit)

12. Examine Normality (2)

13. Examine Normality (3) shapiro.test(reg1$residuals) ad.test(reg1$residuals)

14. Examine Independence Plots:

15. Examine Independence (2) Durbin Watson Test: durbinWatsonTest(reg1)

16. Examine heteroscedasticity Plots:

17. Examine heteroscedasticity (2) Goldfeld-Quandt test: gqtest(reg1). Note that we need to install R package lmtest Non-constant error variance test: ncvTest(reg1)

18. Examine Outliers outlierTest(reg1) # Bonferonni p-value for most extreme obs lm.influence(reg1) # Calculate diagonal hat matrix and the influence of each point on regression coefficient and standard deviation estimation

19. Examine Outliers (2) lm.influence(reg1)$hat #calculate leverage lm.influence(reg1)$hat[lm.influence(reg1)$hat >3*(3+1)/102] #Identify high leverage cases

20. Examine influence points influence.measures(reg1) # calculate DFFITS, COOK S D, DFBETAS and Covariance ratios

21. Examine influence points (2) Cook s D plot (identify D values>4/(n-k-1)): cutoff<-4/((nrow(Prestige)- length(reg1$coefficients)-2)) plot(reg1, which=4, cook.levels=cutoff) Influence Plot: influencePlot(reg1, id.method="identify", main="Influence Plot", sub="Circle size is proportial to Cook's Distance" )

22. Cooks D plot

23. Influence Plot

24. Examine Colinearity Variance inflation factors: vif(reg1) Problem? sqrt(vif(reg1)) > 2

25. Examine Colinearity (2) Added variable plots: avPlots(reg1)

26. Model Selection Procedures step(object=,scope=list(lower=,upper=),directi on=c( both , backward , forward ), steps=1000,k=2, ) #object is an object representing a model #scope defines the range of models examined in the stepwise search #direction controls the mode of stepwise search

27. Model Selection Procedures (2) edu2<-education^2 loginc2<-log2(income)^2 edulogin<-education*log2(income) reg2<- lm(prestige~education+edu2+log2(income)+lo ginc2+edulogin+women,data=Prestige) step(reg2,direction='both')

28. Model Selection Procedures (3)

29. Model Comparisons anova(reg1,reg2)

30. Logistic Regression Input data: plasma in package HSAUR Variables: Fibrinogen: the fibrinogen level in the blood Globulin: the globulin level in the blood ESR: the erythrocyte sedimentation rate, either less or greater 20 mm /hour

31. Logistic Regression (2) plasma data: head(plasma) Objective: fit logistic regression by using ESR as dependent variable and other two as independent variables

32. Logistic Regression (3) glm(formula, data =,family=,weights=,intercept=, ) #formula is y~x type #data is the input dataset #family can be gussian, binomial or others #weights specifies weighted or unweighted analysis #intercept is logical (Do we need intercept or not?)

33. Fit logistic model fit<- glm(ESR~fibrinogen+globulin,data=plasma,fa mily=binomial('logit'))

34. Fit logistic model (2) summary(fit)

35. Fit logistic model (3) attributes(fit)

36. Logistic regression plot attach(plasma) ESR2<-rep(1,dim(plasma)[1]) ESR2[ESR=='ESR > 20']<-0 fit<- glm(ESR2~fibrinogen,data=plasma,family=binomi al('logit')) plot(fibrinogen, ESR2) lines(fibrinogen[order(fibrinogen)],fit$fitted.value s[order(fibrinogen)])

37. Logistic regression plot (2)

38. Odds ratio and confidence intervals Calculate Odds ratio: exp(coef(fit)) Calculate variance covariance for coefficients: vcov(fit)

39. Odds ratio and confidence intervals (2) Confidence interval for coefficient: confint.default(fit) Confidence interval for Odds ratio: exp(confint.default(fit))

40. Model selection fit2<- glm(ESR2~fibrinogen+globulin,data=plasma,fa mily=binomial('logit')) step(fit2) ###backward selection by default

41. Model selection (2)

42. Hosmer-Lemeshow goodness of fit test hoslem.test(x,y,g=10) in R package ResourceSelection #x is a numeric vector of observations, binary (0/1) #y is expected values #g is number of bins to use to calculate quantiles

43. Example hoslem.test(ESR2,fit2$fitted.values)

44. Questions Contact email: daniel-zhao@ouhsc.edu and Sixia-Chen@ouhsc.edu
