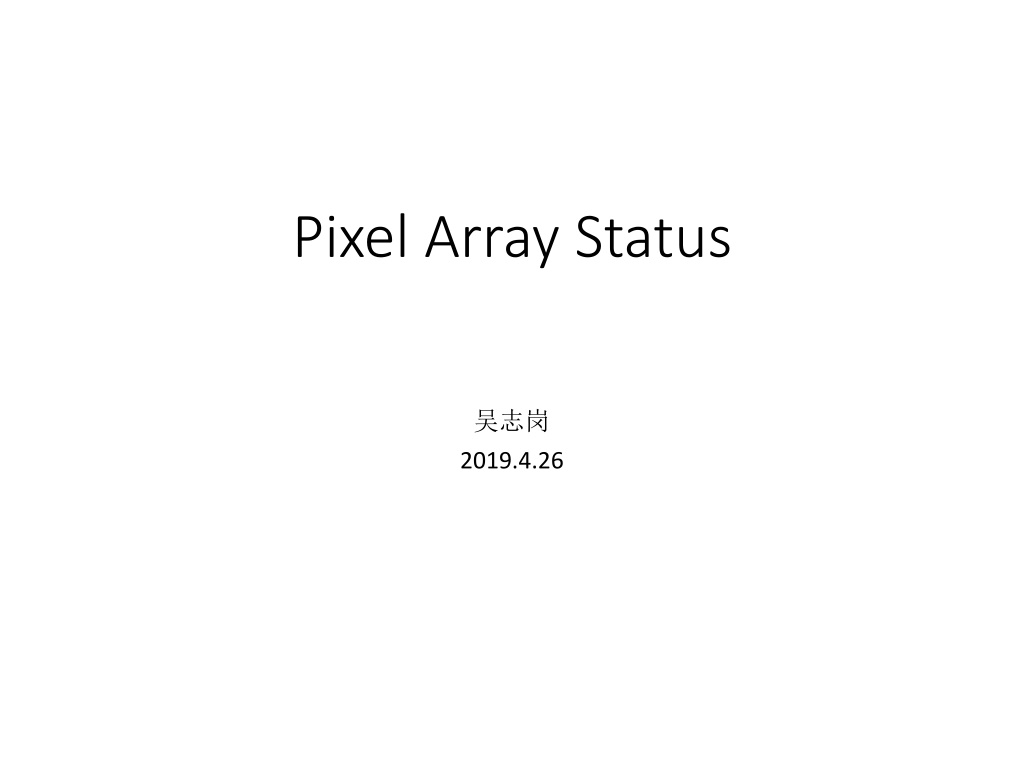

1. Pixel Array Status 2019.4.26

2. Pixel_S1 DRC LVS

3. Pixel_S3 DRC LVS

4. Pixel array DRC LVS 4*48*512 pixel Pitch 26,26,23.11,26um 26um Aout M3 sector M5&M4

6. Drawing rules DEV_AREA(hr) high-res Marking layer for High-Resistivity Epi design DEV_AREA(hr) marking layer must cover the entire chip area, including pads, seal ring, etc DEV_AREA(gg) Marking Layer for Pixel Array Guard Ring High-Resistivity EPI design must contain pixel array guard ring marking layer : DEV_AREA(gg) AREA10(cy) cis-array ARRAY_AREA=80dt72 layer is used to define the pixels area for DRC, LVS and MDP. Outside ARRAY_AREA, TS18SL rules are applicable.

7. Drawing rules WPD (Deep P-Well) must cover the whole CMOS Area, excluding: Deep N-Wells (WB) A fixed distance of 1 [um] between WPD to any WB must be kept Pixel ARRAY_AREA (80dt72) Pixel Array N-Well Guard Ring (77dt106)

8. Pixel array guard ring Triple Guard Ring Recommendation
