Resistivity measurements
•
Generally, for measuring the resistivities of the
subsurface formations, four electrodes namely
two current electrodes A and B and two
potential electrodes M and N are required.
•
There are different electrode arrangements for
measuring the potential difference, which are
uniquely used for different purposes in
exploration techniques.
•
The most popular among them are Wenner
(1915) and Schlumberger (1920).
General case
•
General case
The general case is considered, where the
current sink is a finite distance from the source.
Generalized form of electrode configuration in resistivity surveys.
A
M
N
B
Potential for general case
The potential V
M
at the internal electrode M is
the sum of the potential contributions V
A
and V
B
from the current source at A and the sink at B.
V
M
= V
A
+ V
B
The potentials at electrode M and N are:
The potential difference
a
n
d
w
e
g
e
n
e
r
a
l
l
y
j
u
s
t
w
r
i
t
e
t
h
e
p
o
t
e
n
t
i
a
l
d
i
f
f
e
r
e
n
c
e
a
s
:
o
r
This equation is easily solved for the resistivity
The term
Is referred to as a geometrical factor and the
apparent resistivity
a
is often written as:
Where G is
We can see that the geometrical factor contains
information about the positioning of the current
and potential electrodes in the survey and as you
have probably guessed there are several ways to
arrange the potential and current electrodes.
Types of electrodes configurations
Many electrode configurations are commonly
used for ground-surface surveys, such as
Schlumberger,
Wenner
and
Dipole-dipole
…etc,
where the electrode separations relate to the
investigation depth and the lateral resolution,
according to the sensitivity distribution of each
arrangement.
Electrode Spread (Array type)
Surface
C
1
C
2
P
1
P
2
C
1
C
2
P
1
P
2
C
1
C
2
P
1
P
2
1- Wenner Array
2- Schlumberger Array
3- Dipole-Dipole Array
4- Pole-Dipole Array
5- Pole-Pole Array
a
a
a
a
a
a
a
na
na
r
r
Surface
C
1
C
2
P
1
P
2
a
Surface
C
1
C
2
P
1
P
2
a
a
½ a
½ a
a
a
C
1
C
2
P
1
P
2
P
0
a
a
6- Gradient Array
7- Lee-partition Array
8- Square Array
Electrode configurations:
Choice of configuration to use
•
Type of structure to be imaged
Sensitivity of configuration to vertical and
lateral variations in resistivity
Depth of investigation required
Resolution required
•
Sensitivity and type of resistivity meter
Number of channels
•
Signal strength
Background noise level
1- Wenner array
•
In this type the two current electrodes
(AB)
and
the two potential electrodes
(MN)
are placed in
line with each other,
•
In this setup a constant spacing is maintained
between the electrodes in the array. That spacing
is usually referred to as
a
.
•
This array is sensitive to
horizontal variations.
•
Find the geometric
factor?
Advantages of the Wenner type are:
1-
Simplicity of the apparent resistivity formula.
2-
Relatively small current values are required to
produce measurable potential differences.
3-
Availability of a large album of theoretical
master curves for (two, three, and four) layers
earth models
Disadvantages:
•
All electrodes moved each sounding.
•
Sensitive to local shallow variations.
•
Long cables for large depths.
•
Interpretations are limited to simple,
horizontally layered structures
2- Schlumberger array
•
The four electrodes are positioned symmetrically
along a straight line in the same order AMNB ,
but with AB ≥ 5 MN .
•
To change the depth range of the measurements,
the current electrodes are displaced outwards
while the potential
electrodes in general,
are left at the same
position.
•
This array is sensitive
to vertical variations.
•
The current electrodes are then expanded,
and the resistivity can be given as,
•
Determine the geometrical factor of the
Schlumberger array?
Advantages of the Schlumberger array over the
Wenner array include the following:
1-
Need to move the two current electrodes only for
most readings. This can significantly decrease the
time required to acquire a sounding.
2-
Because the potential electrodes remain in fixed
locations, the effects of near-surface lateral
variations in resistivity are reduced.
3- Sounding curves provide slightly greater probing
depth and resolving power than Wenner soundings
for equal AB electrode spacing.
3- Dipole-Dipole array
The apparent resistivity is given by :
•
The use of the dipole-dipole arrays has become
common since the 1950‘s , Particularly in Russia.
•
This array type has a better horizontal resolution, but
shallower investigation depth than the Wenner array.
4- Pole-Pole array
If one of the potential electrodes , N is also at a
great distance.
5- Pole-Dipole array
If only one of the current electrodes is placed at
“infinity” the configuration and the apparent
resistivity are as shown:
Thank you
Explore the concept of resistivity measurements in geology, focusing on electrode configurations such as Wenner and Schlumberger arrays. Learn about the potential differences in electrode setups and how to calculate apparent resistivity through geometrical factors. Various electrode arrangements and their significance in subsurface exploration techniques are discussed in detail.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript

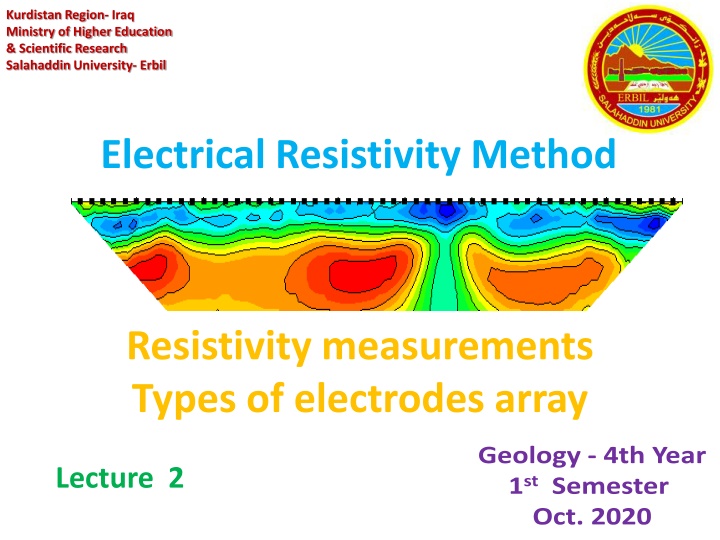

Kurdistan Region- Iraq Ministry of Higher Education & Scientific Research Salahaddin University- Erbil Electrical Resistivity Method Resistivity measurements Types of electrodes array Geology - 4th Year 1stSemester Oct. 2020 Lecture 2
