LED-ID-Based Shop VR Signage Detection for Vehicle Navigation
This document introduces a design concept utilizing HMD cameras for LED-ID-based shop signage detection on roads, enabling Vehicular Assistant Technology (VAT) for vehicle riders. The proposed solution aims to enhance navigation applications by leveraging Optical Wireless Communication (OWC) technology, facilitating services like Intelligent Transportation Systems (ITS) and Advanced Driver Assistance Systems (ADAS) for road safety. The focus is on creating location-specific navigator solutions for vehicles using image sensor communication.
- LED-ID-Based Navigation
- Shop Signage Detection
- Vehicle Navigation
- Optical Wireless Communication
- Vehicular Assistant Technology
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript

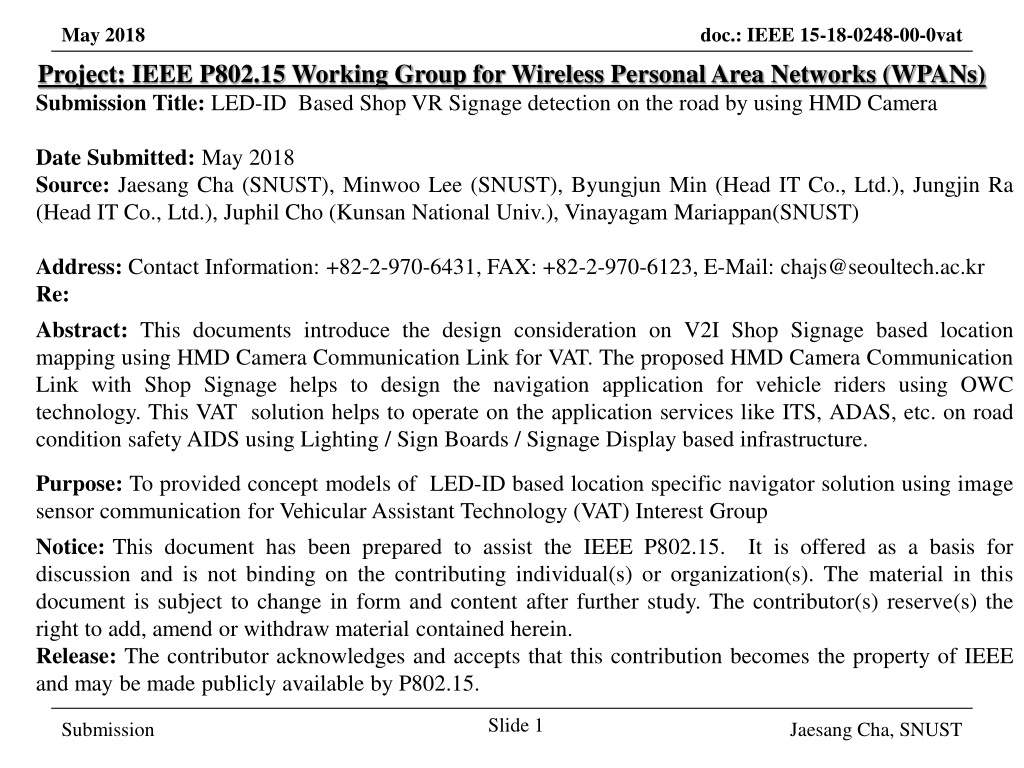

May 2018 Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title: LED-ID Based Shop VR Signage detection on the road by using HMD Camera doc.: IEEE 15-18-0248-00-0vat Date Submitted: May 2018 Source: Jaesang Cha (SNUST), Minwoo Lee (SNUST), Byungjun Min (Head IT Co., Ltd.), Jungjin Ra (Head IT Co., Ltd.), Juphil Cho (Kunsan National Univ.), Vinayagam Mariappan(SNUST) Address: Contact Information: +82-2-970-6431, FAX: +82-2-970-6123, E-Mail: chajs@seoultech.ac.kr Re: Abstract: This documents introduce the design consideration on V2I Shop Signage based location mapping using HMD Camera Communication Link for VAT. The proposed HMD Camera Communication Link with Shop Signage helps to design the navigation application for vehicle riders using OWC technology. This VAT solution helps to operate on the application services like ITS, ADAS, etc. on road condition safety AIDS using Lighting / Sign Boards / Signage Display based infrastructure. Purpose: To provided concept models of LED-ID based location specific navigator solution using image sensor communication for Vehicular Assistant Technology (VAT) Interest Group Notice: This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15. Slide 1 Submission Jaesang Cha, SNUST
May 2018 doc.: IEEE 15-18-0248-00-0vat Contents Needs for LED-ID Based Location Navigator Shop Signage - HMD Camera Link Conclusion Slide 2 Submission Jaesang Cha, SNUST
May 2018 doc.: IEEE 15-18-0248-00-0vat Needs for LED-ID Based Location Navigator Needs Required interactive path navigation guidance service on smart device for Relax and safety vehicle Riding To provide live riding path condition and nearby available services for health and food Need to find the emergency situation spot as quick as possible for AIDs Basic Idea To find the navigation information for particular shop service or location identification Navigation service designed using LED-ID on street and pathway shops signage and HMD Camera Provide nondestructive riding support for vehicle riders GOOGLE < Bicycle Riding Usage Scenario > Slide 3 Submission Jaesang Cha, SNUST
May 2018 doc.: IEEE 15-18-0248-00-0vat Shop Signage - HMD Camera Link Auto Navigation Function Shop Signage - HMD Camera Link Tx : Street / Pathway Shop Signage Rx : CMOS Image Sensor in HMD Various types of Signage Modulations : For Street Lights : OOK, VPPM, Offset-VPWM, Multilevel DSSS SIK PPM, HMD-AR For Signage : QR-Code, Color Code, VTASC, SS2DC Day-Night Communication Mode Data Rate : 1K ~ 1Mb/s Supported LoS(Line of Sight) Distance : 1m ~ 15m < Shop Signage - HMD Camera Link> To Get bicycle riding pathway information and safety information for smart bicycle riding guidance Slide 4 Submission Jaesang Cha, SNUST
May 2018 doc.: IEEE 15-18-0248-00-0vat Conclusion Proposed the LED-ID Based Shop VR Signage detection on the road by using HMD Camera. Uses the LED-ID technology on existing Street / Pathway signage as OWC Transmitter to provide location specific informations HMD Camera Link on vehicle riding time, helps to design the smart navigation function to find the riding pathway , restaurants, coffee shops, movie theaters, etc informations without stopping the riding. Slide 5 Submission Jaesang Cha, SNUST
