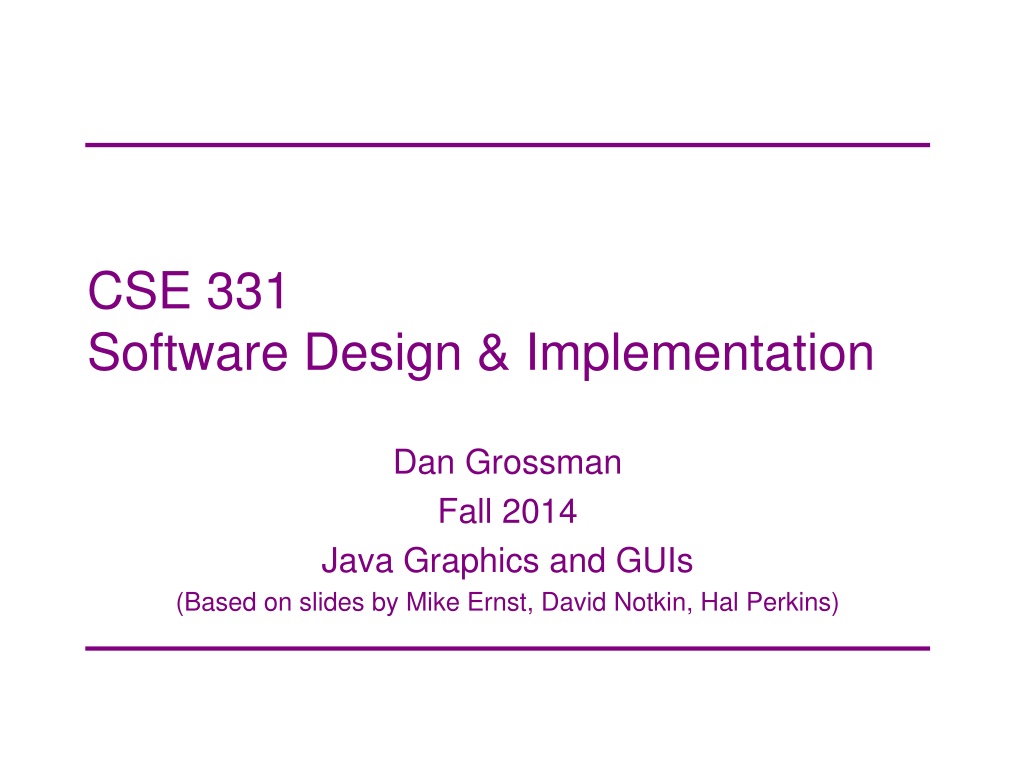

CSE 331 Software Design & Implementation Dan Grossman Fall 2014 Java Graphics and GUIs (Based on slides by Mike Ernst, David Notkin, Hal Perkins)
The plan Today: introduction to Java graphics and Swing/AWT libraries Then: event-driven programming and user interaction None of this is comprehensive only an overview and guide to what you should expect to be out there Some standard terminology and perspective Credits: material taken from many places; including slides and materials by Ernst, Hotan, Mercer, Notkin, Perkins, Stepp; Reges; Sun/Oracle docs & tutorial; Horstmann; Wikipedia; others, folklore, CSE331 Fall 2014 2
References Very useful start: Sun/Oracle Java tutorials http://docs.oracle.com/javase/tutorial/uiswing/index.html Mike Hoton s slides/sample code from CSE 331 Sp12 (lectures 23, 24 with more extensive widget examples) http://courses.cs.washington.edu/courses/cse331/12sp/lectures/lect23-GUI.pdf http://courses.cs.washington.edu/courses/cse331/12sp/lectures/lect24-Graphics.pdf http://courses.cs.washington.edu/courses/cse331/12sp/lectures/lect23-GUI-code.zip http://courses.cs.washington.edu/courses/cse331/12sp/lectures/lect24-Graphics-code.zip Good book that covers this (and much more): Core Java vol. I by Horstmann & Cornell And/but other books may be as good CSE331 Fall 2014 3
Why study GUIs? Er, because graphical user interfaces are pretty common (duh ) And it s fun! Classic example of using inheritance to organize large class libraries The best (?) example of OOP s strengths Work with a huge API and learn how (not) to deal with all of it Many core design patterns show up: callbacks, listeners, event- driven programs, decorators, fa ade CSE331 Fall 2014 4
What not to do Don t try to learn the whole library: There s way too much Don t memorize look things up as you need them Don t miss the main ideas, fundamental concepts Don t get bogged down implementing eye candy CSE331 Fall 2014 5
Main topics to learn Organization of the AWT/Swing library Names of essential widgets/components Graphics and drawing Repaint callbacks, layout managers, etc. Handling user events Building GUI applications MVC, user events, updates, CSE331 Fall 2014 6
A very short history (1) Java s standard libraries have supported GUIs from the beginning Original Java GUI: AWT (Abstract Window Toolkit) Limited set of user interface elements (widgets) Mapped Java UI to host system UI widgets Lowest common denominator Write once, debug everywhere CSE331 Fall 2014 7
A very short history (2) Swing: Newer GUI library, introduced with Java 2 (1998) Basic idea: underlying system provides only a blank window Swing draws all UI components directly Doesn t use underlying system widgets Not a total replacement for AWT: Swing is implemented on top of core AWT classes and both still coexist Use Swing, but deal with AWT when you must CSE331 Fall 2014 8
GUI terminology window: A first-class citizen of the graphical desktop Also called a top-level container Examples: frame, dialog box, applet component: A GUI widget that resides in a window Called controls in many other languages Examples: button, text box, label container: A component that hosts (holds) components Examples: frame, applet, panel, box CSE331 Fall 2014 9
Some components CSE331 Fall 2014 10
Component and container classes Every GUI-related class descends from Component, which contains dozens of basic methods and fields Examples: getBounds, isVisible, setForeground, Component Lots of AWT components Container Atomic components: labels, text fields, buttons, check boxes, icons, menu items Various AWT containers JComponent Many components are containers things like panels (JPanel) that can hold nested subcomponents Tons of JComponents JPanel JFileChooser CSE331 Fall 2014 11
Swing/AWT inheritance hierarchy Component (AWT) Window Frame JFrame(Swing) JDialog Container JComponent(Swing) JButton JColorChooser JFileChooser JComboBox JLabel JList JMenuBar JOptionPane JPanel JPopupMenu JProgressBar JScrollbar JScrollPane JSlider JSpinner JSplitPane JTabbedPane JTable JToolbar JTree JTextArea JTextField ... CSE331 Fall 2014 12
Component properties Zillions. Each has a get (or is) accessor and a set modifier. Ex: getColor,setFont,isVisible, name type background Color border Border enabled boolean focusable boolean font Font foreground Color height, width int visible boolean tooltip text String Dimension description background color behind component border line around component whether it can be interacted with whether key text can be typed on it font used for text in component foreground color of component component's current size in pixels whether component can be seen text shown when hovering mouse various sizes, size limits, or desired sizes that the component may take CSE331 Fall 2014 size, minimum / maximum / preferred size 13
Types of containers Top-level containers: JFrame, JDialog, Often correspond to OS windows Usually a host for other components Live at top of UI hierarchy, not nested in anything else Mid-level containers: panels, scroll panes, tool bars Sometimes contain other containers, sometimes not JPanel is a general-purpose component for drawing or hosting other UI elements (buttons, etc.) Specialized containers: menus, list boxes, Technically, all JComponents are containers CSE331 Fall 2014 14
JFrame top-level window Graphical window on the screen Typically holds (hosts) other components Common methods: JFrame(Stringtitle): constructor, title optional setDefaultCloseOperation(intwhat) What to do on window close JFrame.EXIT_ON_CLOSE terminates application setSize(intwidth, intheight): set size add(Componentc): add component to window setVisible(booleanb): make window visible or not CSE331 Fall 2014 15
Example SimpleFrameMain.java CSE331 Fall 2014 16
JPanel a general-purpose container Commonly used as a place for graphics, or to hold a collection of button, labels, etc. Needs to be added to a window or other container: frame.add(new JPanel( )) JPanels can be nested to any depth Many methods/fields in common with JFrame (since both inherit from Component) Advice: can t find a method/field? Check the superclasses A particularly useful method: setPreferredSize(Dimension d) CSE331 Fall 2014 17
Containers and layout What if we add several components to a container? How are they positioned relative to each other? Answer: each container has a layout manger CSE331 Fall 2014 18
Layout managers Kinds: FlowLayout (left to right [changeable], top to bottom) Default for JPanel Each row centered horizontally [changeable] BorderLayout( center , north , south , east , west ) Default for JFrame No more than one component in each of 5 regions (Of course, component can itself be a container) GridLayout (regular 2-D grid) Others... (some are incredibly complex) FlowLayout and BorderLayout should be good enough for now CSE331 Fall 2014 19
pack() Once all the components are added to their containers, do this to make the window visible: pack(); setVisible(true); pack() figures out the sizes of all components and calls the container s layout manager to set locations in the container (recursively as needed) If your window doesn t look right, you may have forgotten pack() CSE331 Fall 2014 20
Example SimpleLayoutMain.java CSE331 Fall 2014 21
Graphics and drawing So far so good and very boring What if we want to actually draw something? A map, an image, a path, ? Answer: Override method paintComponent Components like JLabel provide a suitable paintComponent that (in JLabel s case) draws the label text Other components like JPanel typically inherit an empty paintComponent and can override it to draw things Note: As we ll see, we override paintComponent but wedon t call it CSE331 Fall 2014 22
Example SimplePaintMain.java CSE331 Fall 2014 23
Graphics methods Many methods to draw various lines, shapes, etc., Can also draw images (pictures, etc.): In the program (notin paintComponent): Use AWT s Toolkit to load an image: Image pic = Toolkit.getDefaultToolkit() .getImage(file-name (with path)); Then in paintComponent: g.drawImage(pic, ); CSE331 Fall 2014 24
Graphics vs Graphics2D Class Graphics was part of the original Java AWT Has a procedural interface: g.drawRect( ), g.fillOval( ), Swing introduced Graphics2D Added an object interface create instances of Shape like Line2D, Rectangle2D, etc., and add these to the Graphics2D object Actual parameter to paintComponent is always a Graphics2D Can always cast this parameter from Graphics to Graphics2D Graphics2D supports both sets of graphics methods Use whichever you like for CSE 331 CSE331 Fall 2014 25
So who calls paintComponent? And when?? Answer: the window manager calls paintComponent wheneverit wants!!! (a callback!) When the window is first made visible, and whenever after that some or all of it needs to be repainted Corollary: paintComponent must always be ready to repaint regardless of what else is going on You have no control over when or how often You must store enough information to repaint on demand If you want to redraw a window, call repaint() from the program (not from paintComponent) Tells the window manager to schedule repainting Window manager will call paintComponent when it decides to redraw (soon, but maybe not right away) Window manager may combine several quick repaint() requests and call paintComponent() only once CSE331 Fall 2014 26
Example FaceMain.java CSE331 Fall 2014 27
How repainting happens program window manager (UI) repaint() It s worse than it looks! Your program and the window manager are running concurrently: Program thread paintComponent(g) User Interface thread Do not attempt to mess around follow the rules and nobody gets hurt! Asynchronous Callback CSE331 Fall 2014 28
Crucial rules for painting Always override paintComponent(g) if you want to draw on a component Always call super.paintComponent(g) first NEVER, EVER, EVER call paintComponent yourself Always paint the entire picture, from scratch Use paintComponent sGraphics parameter to do all the drawing. ONLYuse it for that. Don t copy it, try to replace it, or mess with it. It is quick to anger. DON T create new Graphics or Graphics2D objects Fine print: Once you are a certified to do things differently, but that requires deeper understanding of the GUI library s structure and specification wizard, you may find reasons CSE331 Fall 2014 29
Whats next and not Major topic for next lecture is how to handle user interactions We already know the core idea: it s a big-time use of the observer pattern Beyond that you re on your own to explore all the wonderful widgets in Swing/AWT. Have fun!! (But don t sink huge amounts of time into eye candy) CSE331 Fall 2014 30
