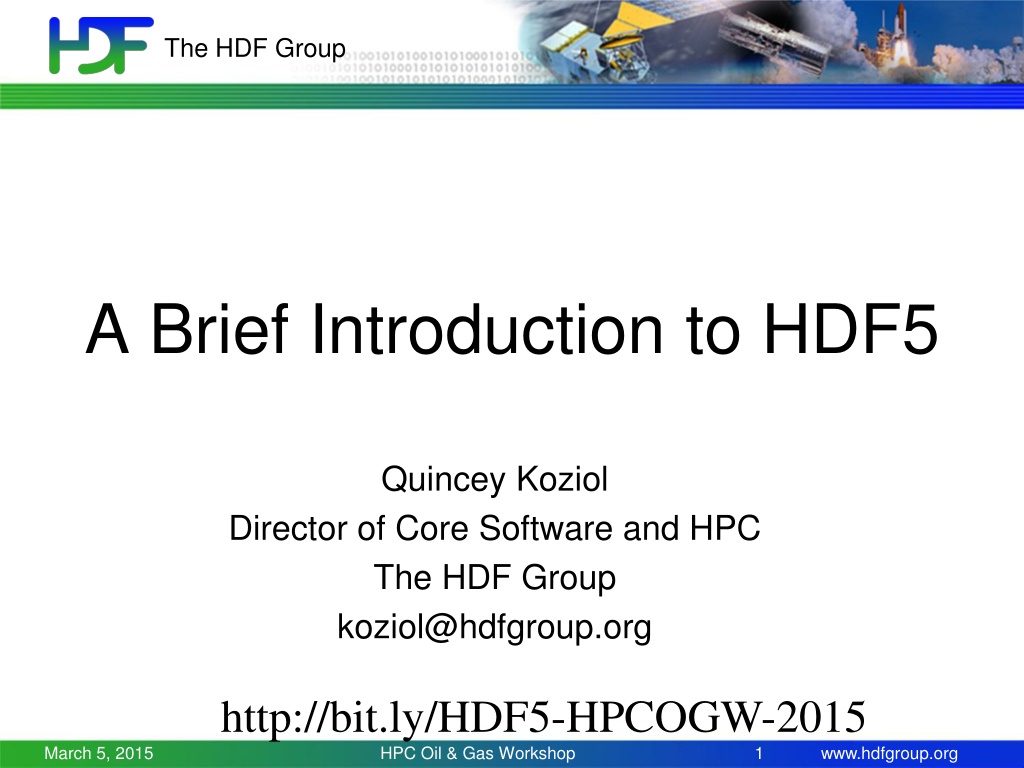

A Brief Introduction to HDF5
Quincey Koziol
Director of Core Software and HPC
The HDF Group
koziol@hdfgroup.org
March 5, 2015
1
HPC Oil & Gas Workshop
http://bit.ly/HDF5-HPCOGW-2015
Why use HDF5?
•
C
h
a
l
l
e
n
g
i
n
g
D
a
t
a
:
•
Application data that pushes the limits of traditional
solutions.
•
S
o
f
t
w
a
r
e
S
o
l
u
t
i
o
n
s
:
•
For very large and/or complex data
•
With very fast access requirements
•
Easily share data across a platforms
•
Use different programming languages and OSs.
•
Take advantage of the tools that understand HDF5.
•
Enable long-term preservation of data.
March 5, 2015
2
HPC Oil & Gas Workshop
http://bit.ly/HDF5-HPCOGW-2015
HDF5 is like …
March 5, 2015
HPC Oil & Gas Workshop
3
What is HDF5?
March 5, 2015
HPC Oil & Gas Workshop
4
•
HDF5 == Hierarchical Data Format, v5
•
A
f
l
e
x
i
b
l
e
d
a
t
a
m
o
d
e
l
•
Structures for data organization and specific
ation
•
O
p
e
n
s
o
u
r
c
e
s
o
f
t
w
a
r
e
•
Implements the data model
•
P
o
r
t
a
b
l
e
f
i
l
e
f
o
r
m
a
t
•
Designed for high volume or complex data
March 5, 2015
5
HDF5 Data Model
•
Groups – provide structure among objects
•
Datasets – where the primary data goes
•
Data arrays
•
Rich set of datatype options
•
Flexible, efficient storage and I/O
•
Attributes - for metadata
Everything else is built essentially from
Everything else is built essentially from
these parts.
these parts.
HPC Oil & Gas Workshop
HDF5 Software
HDF5 home page:
http://hdfgroup.org/HDF5/
March 5, 2015
HPC Oil & Gas Workshop
6
Useful Tools For New Users
March 5, 2015
HPC Oil & Gas Workshop
7
Recent HPC Success Story
•
Performance results on Blue Waters @ NCSA
•
I/O Kernel of a DOE Plasma Physics
application
•
R
u
n
n
i
n
g
o
n
2
9
8
,
0
4
8
c
o
r
e
s
•
~10 Trillion particles
•
S
i
n
g
l
e
2
9
1
T
B
H
D
F
5
f
i
l
e
•
Achieved 52 GB/s
•
~50% of the peak performance
•
Using 1 GB stripe size and 160 Lustre OSTs
March 5, 2015
8
HPC Oil & Gas Workshop
HDF5 in Oil & Gas
•
REMSQL: Standard for reservoir data
(Energistics)
•
http://www.energistics.org/reservoir/resqml-
standards/current-standards
•
H5EM-TS: Exchange standard for field EM data
(EMGS, Statoil, Interaction)
•
ftp://fileformats.emgs.com/H5EM-
TS_1.0/documentation/H5EM-
TS_information_sheet.pdf
March 5, 2015
HPC Oil & Gas Workshop
9
HDF5 in Oil & Gas
•
TEMHDF: Exchange standard for
MetalMapper and other EMI data
•
ftp://geom.geometrics.com/pub/Data/TEM2H5_
Deliverables/TEM2HDF_RefManual.pdf
•
PH5: Archival format for active source seismic
data (moving away from SEG-Y, to HDF5)
•
http://www.passcal.nmt.edu/content/ph5-what-it
•
Petrel: E&P Workflow and Visualization
•
http://www.software.slb.com/products/platform/
Pages/petrel.aspx
March 5, 2015
HPC Oil & Gas Workshop
10
HDF5 in Oil & Gas
•
Globe Claritas: HDF5 is format for their seismic
processing software
•
SEG-Y vs. HDF5 Whitepaper:
http://www.globeclaritas.com/content/download/10
303/55223/file/HDF5%20For%20Seismic%20Refle
ction%20Datasets.pdf
•
News release:
http://www.globeclaritas.com/Claritas/Overview/Lat
est-Release
•
PDF data sheet:
http://www.globeclaritas.com/content/download/88
39/47774/file/Claritas%20HDF5.pdf
•
Powerpoint:
http://www.slideshare.net/guy_maslen/a-quick-
start-guide-to-using-hdf5-in-globe-claritas
March 5, 2015
HPC Oil & Gas Workshop
11
Where We’ll Be Soon: HDF5 1.10
•
Beta release:
Fall 2015
•
Major Features:
•
Single-Writer/Multiple-Reader (SWMR)
•
Virtual Datasets
•
Improved scalability of chunked datasets
•
Parallel I/O performance and capabilities
March 5, 2015
12
HPC Oil & Gas Workshop
Other Items of Interest
•
We’re
not
planning to change current
multi-threaded concurrency behavior
•
H
D
F
5
E
x
c
e
l
A
d
d
-
i
n
:
H
E
X
A
D
•
REST-based service for HDF5 data
•
HDF Compass visualization package
March 5, 2015
13
HPC Oil & Gas Workshop
Thank You!
Questions & Comments?
March 5, 2015
14
HPC Oil & Gas Workshop
http://bit.ly/HDF5-HPCOGW-2015
The HDF Group Services
•
Helpdesk and Mailing Lists
•
Available to all users as a first level of support:
help@hdfgroup.org
,
hdf-forum@lists.hdfgroup.org
•
Priority Support
•
Rapid issue resolution and advice
•
Consulting
•
Needs assessment, troubleshooting, design reviews, etc.
•
Training
•
Tutorials and hands-on practical experience
•
Enterprise Support
•
Coordinate HDF activities across departments
•
Special Projects
•
Adapting customer applications to HDF
•
New features and tools
•
Research and Development
March 5, 2015
15
HPC Oil & Gas Workshop
http://bit.ly/HDF5-HPCOGW-2015
HDF5 1.10 Planned Features: SWMR
•
Improves HDF5 for Data Acquisition:
•
Allows simultaneous data gathering and
monitoring/analysis
•
Focused on storing data sequences for
high-speed data sources
•
Supports ‘Ordered Updates’ to file:
•
Crash-proofs accessing HDF5 file
•
Possibly uses small amount of extra space
March 5, 2015
16
HPC Oil & Gas Workshop
HDF5 1.10 Planned Features
•
Virtual Object Layer (VOL)
•
Provides the HDF5 data model and API, but
allows different underlying storage
mechanisms
•
Intercepts all HDF5 API calls that can touch
the data on disk and routes them to a VOL
plugin
•
Possibly SEG-Y VOL plugin?
March 5, 2015
17
HPC Oil & Gas Workshop
HDF5 1.10 Planned Features
•
‘Virtual’ Datasets
•
Can “stitch together” multiple ‘source’
datasets into a single ‘virtual’ dataset
•
Supports unlimited dimensions in both source
and virtual datasets
March 5, 2015
18
HPC Oil & Gas Workshop
HDF5 1.10 Planned Features: Chunk Imp.
March 5, 2015
19
HPC Oil & Gas Workshop
HDF5 1.10 Planned Features: HPC
•
Continue to improve our use of MPI and
parallel file system features
•
Remove ‘truncate’ operation on file close, etc.
•
Reduce # of I/O accesses for metadata access
•
Collective Read/Write of metadata
•
Multi-dataset Collective I/O
•
Support for compression in parallel
•
Collective access mode only
•
Possibly Support Single-Write/Multiple-Reader
(SWMR) access in parallel
March 5, 2015
20
HPC Oil & Gas Workshop
HDF5 Roadmap
March 5, 2015
21
•
Concurrency
•
Single-Writer/Multiple-
Reader (SWMR)
•
Internal threading
•
Virtual Object Layer (VOL)
•
Data Analysis
•
Query / View / Index APIs
•
Native HDF5 client/server
•
Performance
•
Scalable chunk indices
•
Metadata aggregation
and Page buffering
•
Asynchronous I/O
•
Variable-length
records
•
Fault tolerance
•
Parallel I/O
•
I/O Autotuning
HPC Oil & Gas Workshop
“
The best way to predict the
future is to invent it.
”
– Alan Kay
Where We’re Not Going
•
We’re
not
changing multi-threaded
concurrency support
•
Keep “global lock” on library
•
Will
focus on asynchronous I/O instead
•
Will
be using threads internally though
March 5, 2015
22
HPC Oil & Gas Workshop
Codename “HEXAD”
•
H
D
F
5
E
x
c
e
l
A
d
d
-
i
n
:
H
E
X
A
D
•
Lets you do the usual things including:
•
Display content (file structure, detailed object info)
•
Create/read/write datasets
•
Create/read/update attributes
•
Plenty of ideas for bells & whistles
•
HDF5 Image & PyTables support, etc.
•
S
e
n
d
i
n
y
o
u
r
M
u
s
t
H
a
v
e
/
N
i
c
e
T
o
H
a
v
e
l
i
s
t
!
*
•
Stay tuned for the beta program
*
help@hdfgroup.org
March 5, 2015
23
HPC Oil & Gas Workshop
HDF Server
•
REST-based service for HDF5 data
•
Reference Implementation for REST API
•
Developed in Python using Tornado Framework
•
Supports Read/Write operations
•
Clients can be Python/C/Fortran or Web Page
•
Let us know what specific features you’d like to
see.
March 5, 2015
24
HPC Oil & Gas Workshop
HDF Compass
•
“Simple” Python HDF5 Viewer application
•
Cross platform (Windows/Mac/Linux)
•
Native look and feel
•
Can display extremely large HDF5 files
•
View HDF5 files and OpenDAP resources
•
Plugin model enables different file
formats/remote resources to be supported
•
Community-based development model
March 5, 2015
25
HPC Oil & Gas Workshop
March 5, 2015
26
Brief History of HDF
1987
At NCSA (University of Illinois), forms task force to
create an architecture-independent file format and
library,
which
becomes HDF
Early
NASA adopts HDF for Earth Observing System project
1990’
s
1996
DOE
collaborates with the HDF group (at NCSA) to
create
“
Big HDF” which becomes HDF5
1998
HDF5 released, with support from DOE, NASA & NCSA
2006
The HDF Group spins out of University of Illinois as
non-profit corporation
HPC Oil & Gas Workshop
The HDF Group
•
Established in 1988
•
18 years at University of Illinois’ National Center
for Supercomputing Applications
•
8 years as independent non-profit company:
“The HDF Group”
•
The HDF Group owns HDF4 and HDF5
•
HDF4 & HDF5 formats, libraries, and tools are
open source and freely available with BSD-style
license
March 5, 2015
27
HPC Oil & Gas Workshop
HDF5, a flexible data model, is designed for managing challenging data with fast access requirements. Its structure includes groups, datasets, and arrays, facilitating efficient storage and I/O operations. Various tools and examples enable users to work with HDF5 files effectively, making it a popular choice for handling large and complex data in diverse applications.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript
The HDF Group A Brief Introduction to HDF5 Quincey Koziol Director of Core Software and HPC The HDF Group koziol@hdfgroup.org http://bit.ly/HDF5-HPCOGW-2015 March 5, 2015 HPC Oil & Gas Workshop 1 www.hdfgroup.org
Why use HDF5? Challenging Data: Application data that pushes the limits of traditional solutions. Software Solutions: For very large and/or complex data With very fast access requirements Easily share data across a platforms Use different programming languages and OSs. Take advantage of the tools that understand HDF5. Enable long-term preservation of data. http://bit.ly/HDF5-HPCOGW-2015 March 5, 2015 HPC Oil & Gas Workshop 2 www.hdfgroup.org
HDF5 is like March 5, 2015 HPC Oil & Gas Workshop 3 www.hdfgroup.org
What is HDF5? HDF5 == Hierarchical Data Format, v5 A flexible data model Structures for data organization and specification Open source software Implements the data model Portable file format Designed for high volume or complex data March 5, 2015 HPC Oil & Gas Workshop 4 www.hdfgroup.org
HDF5 Data Model Groups provide structure among objects Datasets where the primary data goes Data arrays Rich set of datatype options Flexible, efficient storage and I/O Attributes - for metadata Everything else is built essentially from these parts. March 5, 2015 HPC Oil & Gas Workshop 5 www.hdfgroup.org
HDF5 Software HDF5 home page: http://hdfgroup.org/HDF5/ March 5, 2015 HPC Oil & Gas Workshop 6 www.hdfgroup.org
Useful Tools For New Users h5dump, h5ls: Tools to dump or list contents of HDF5 file HDFView: Java browser for HDF5 files http://www.hdfgroup.org/hdf-java-html/hdfview/ HDF5 Examples (C, Fortran, Java, Python, Matlab) http://www.hdfgroup.org/ftp/HDF5/examples/ h5cc, h5c++, h5fc: Scripts to compile applications March 5, 2015 HPC Oil & Gas Workshop 7 www.hdfgroup.org
Recent HPC Success Story Performance results on Blue Waters @ NCSA I/O Kernel of a DOE Plasma Physics application Running on 298,048 cores ~10 Trillion particles Single 291TB HDF5 file Achieved 52 GB/s ~50% of the peak performance Using 1 GB stripe size and 160 Lustre OSTs March 5, 2015 HPC Oil & Gas Workshop 8 www.hdfgroup.org
HDF5 in Oil & Gas REMSQL: Standard for reservoir data (Energistics) http://www.energistics.org/reservoir/resqml- standards/current-standards H5EM-TS: Exchange standard for field EM data (EMGS, Statoil, Interaction) ftp://fileformats.emgs.com/H5EM- TS_1.0/documentation/H5EM- TS_information_sheet.pdf March 5, 2015 HPC Oil & Gas Workshop 9 www.hdfgroup.org
HDF5 in Oil & Gas TEMHDF: Exchange standard for MetalMapper and other EMI data ftp://geom.geometrics.com/pub/Data/TEM2H5_ Deliverables/TEM2HDF_RefManual.pdf PH5: Archival format for active source seismic data (moving away from SEG-Y, to HDF5) http://www.passcal.nmt.edu/content/ph5-what-it Petrel: E&P Workflow and Visualization http://www.software.slb.com/products/platform/ Pages/petrel.aspx March 5, 2015 HPC Oil & Gas Workshop 10 www.hdfgroup.org
HDF5 in Oil & Gas Globe Claritas: HDF5 is format for their seismic processing software SEG-Y vs. HDF5 Whitepaper: http://www.globeclaritas.com/content/download/10 303/55223/file/HDF5%20For%20Seismic%20Refle ction%20Datasets.pdf News release: http://www.globeclaritas.com/Claritas/Overview/Lat est-Release PDF data sheet: http://www.globeclaritas.com/content/download/88 39/47774/file/Claritas%20HDF5.pdf Powerpoint: http://www.slideshare.net/guy_maslen/a-quick- start-guide-to-using-hdf5-in-globe-claritas March 5, 2015 HPC Oil & Gas Workshop 11 www.hdfgroup.org
Where Well Be Soon: HDF5 1.10 Beta release: Fall 2015 Major Features: Single-Writer/Multiple-Reader (SWMR) Virtual Datasets Improved scalability of chunked datasets Parallel I/O performance and capabilities March 5, 2015 HPC Oil & Gas Workshop 12 www.hdfgroup.org
Other Items of Interest We re not planning to change current multi-threaded concurrency behavior HDF5 Excel Add-in: HEXAD REST-based service for HDF5 data HDF Compass visualization package March 5, 2015 HPC Oil & Gas Workshop 13 www.hdfgroup.org
The HDF Group Thank You! Questions & Comments? http://bit.ly/HDF5-HPCOGW-2015 March 5, 2015 HPC Oil & Gas Workshop 14 www.hdfgroup.org
The HDF Group Services Helpdesk and Mailing Lists Available to all users as a first level of support: help@hdfgroup.org, hdf-forum@lists.hdfgroup.org Priority Support Rapid issue resolution and advice Consulting Needs assessment, troubleshooting, design reviews, etc. Training Tutorials and hands-on practical experience Enterprise Support Coordinate HDF activities across departments Special Projects Adapting customer applications to HDF New features and tools Research and Development http://bit.ly/HDF5-HPCOGW-2015 March 5, 2015 HPC Oil & Gas Workshop 15 www.hdfgroup.org
HDF5 1.10 Planned Features: SWMR Improves HDF5 for Data Acquisition: Allows simultaneous data gathering and monitoring/analysis Focused on storing data sequences for high-speed data sources Supports Ordered Updates to file: Crash-proofs accessing HDF5 file Possibly uses small amount of extra space March 5, 2015 HPC Oil & Gas Workshop 16 www.hdfgroup.org
HDF5 1.10 Planned Features Virtual Object Layer (VOL) Provides the HDF5 data model and API, but allows different underlying storage mechanisms Intercepts all HDF5 API calls that can touch the data on disk and routes them to a VOL plugin Possibly SEG-Y VOL plugin? March 5, 2015 HPC Oil & Gas Workshop 17 www.hdfgroup.org
HDF5 1.10 Planned Features Virtual Datasets Can stitch together multiple source datasets into a single virtual dataset Supports unlimited dimensions in both source and virtual datasets March 5, 2015 HPC Oil & Gas Workshop 18 www.hdfgroup.org
HDF5 1.10 Planned Features: Chunk Imp. Dataset type Index type Space Speed improvements Same storage space as contiguous dataset storage (no index) improvements Constant time lookups Faster parallel I/O no unlimited dimensions, no I/O filters, no missing chunks no unlimited dimensions implicit no actual chunk index Smaller index overhead Constant time lookups fixed sized smaller chunk index extensible array 1 unlimited dimension Smaller index overhead Constant time lookups and appends Faster 2+ unlimited dimension Improved B-tree* Smaller index overhead March 5, 2015 HPC Oil & Gas Workshop 19 www.hdfgroup.org
HDF5 1.10 Planned Features: HPC Continue to improve our use of MPI and parallel file system features Remove truncate operation on file close, etc. Reduce # of I/O accesses for metadata access Collective Read/Write of metadata Multi-dataset Collective I/O Support for compression in parallel Collective access mode only Possibly Support Single-Write/Multiple-Reader (SWMR) access in parallel March 5, 2015 HPC Oil & Gas Workshop 20 www.hdfgroup.org
HDF5 Roadmap Concurrency Single-Writer/Multiple- Reader (SWMR) Internal threading Virtual Object Layer (VOL) Data Analysis Query / View / Index APIs Native HDF5 client/server Performance Scalable chunk indices Metadata aggregation and Page buffering Asynchronous I/O Variable-length records Fault tolerance Parallel I/O I/O Autotuning The best way to predict the future is to invent it. Alan Kay HPC Oil & Gas Workshop 21 www.hdfgroup.org March 5, 2015
Where Were Not Going We re not changing multi-threaded concurrency support Keep global lock on library Will focus on asynchronous I/O instead Will be using threads internally though March 5, 2015 HPC Oil & Gas Workshop 22 www.hdfgroup.org
Codename HEXAD HDF5 Excel Add-in: HEXAD Lets you do the usual things including: Display content (file structure, detailed object info) Create/read/write datasets Create/read/update attributes Plenty of ideas for bells & whistles HDF5 Image & PyTables support, etc. Send in your Must Have/Nice To Have list!* Stay tuned for the beta program * help@hdfgroup.org March 5, 2015 HPC Oil & Gas Workshop 23 www.hdfgroup.org
HDF Server REST-based service for HDF5 data Reference Implementation for REST API Developed in Python using Tornado Framework Supports Read/Write operations Clients can be Python/C/Fortran or Web Page Let us know what specific features you d like to see. March 5, 2015 HPC Oil & Gas Workshop 24 www.hdfgroup.org
HDF Compass Simple Python HDF5 Viewer application Cross platform (Windows/Mac/Linux) Native look and feel Can display extremely large HDF5 files View HDF5 files and OpenDAP resources Plugin model enables different file formats/remote resources to be supported Community-based development model March 5, 2015 HPC Oil & Gas Workshop 25 www.hdfgroup.org
Brief History of HDF 1987 At NCSA (University of Illinois), forms task force to create an architecture-independent file format and library, which becomes HDF Early NASA adopts HDF for Earth Observing System project 1990 s 1996 DOE collaborates with the HDF group (at NCSA) to create Big HDF which becomes HDF5 1998 HDF5 released, with support from DOE, NASA & NCSA 2006 The HDF Group spins out of University of Illinois as non-profit corporation March 5, 2015 HPC Oil & Gas Workshop 26 www.hdfgroup.org
The HDF Group Established in 1988 18 years at University of Illinois National Center for Supercomputing Applications 8 years as independent non-profit company: The HDF Group The HDF Group owns HDF4 and HDF5 HDF4 & HDF5 formats, libraries, and tools are open source and freely available with BSD-style license March 5, 2015 HPC Oil & Gas Workshop 27 www.hdfgroup.org
