Hardware Setup Instructions for KCU105 Board

KCU105 Instructions

Hardware Setup 1. Connect USB cable between PC and JTAG port

Hardware Setup 1. Connect USB cable between PC and JTAG port

Standard COM Port

Set Ethernet IP

Open Device manager and check for the COM ports. In this case, we have COM Port 8 (Enhanced) and COM Port 7 (Standard)

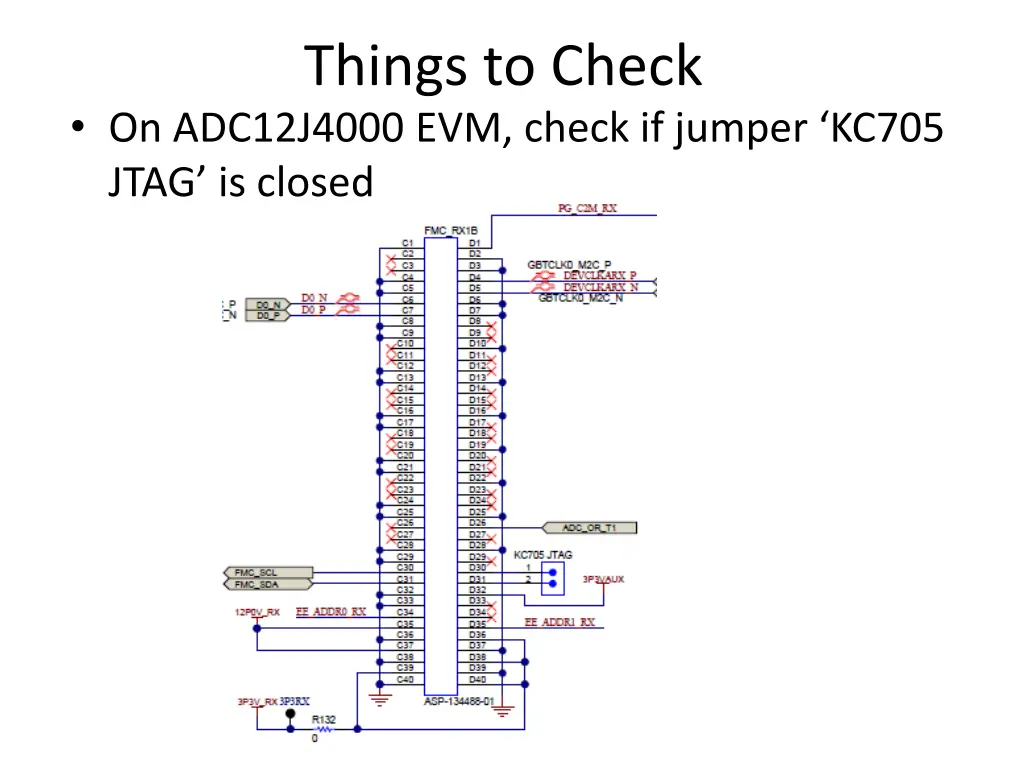

Things to Check On ADC12J4000 EVM, check if jumper KC705 JTAG is closed

Open both the COM ports using any Utility (like Hercules). For Standard COM Port(in this case COM port 7), make sure of the below settings while opening the port.

For Enhanced COM Port(in this case COM Port 8), make sure of the below settings while opening the port.

For Enhanced COM Port(in this case COM Port 161), make sure of the below settings while opening the port.

Set Baud rate to 115200

In the Tera Terminal window, select File then New connection to open a second terminal.

Click on Serial then select the standard port as shown below. In this example, the COM Port is 162.

Make sure the port settings are as shown below

Connect Ethernet cable, power up KCU105

Now download the firmware using Vivado v15.2 Open Hardware Manager

Once open select Open Target then Open New Target from the drop down list

Click Next twice and you should se the following. Click Next again then Finish.

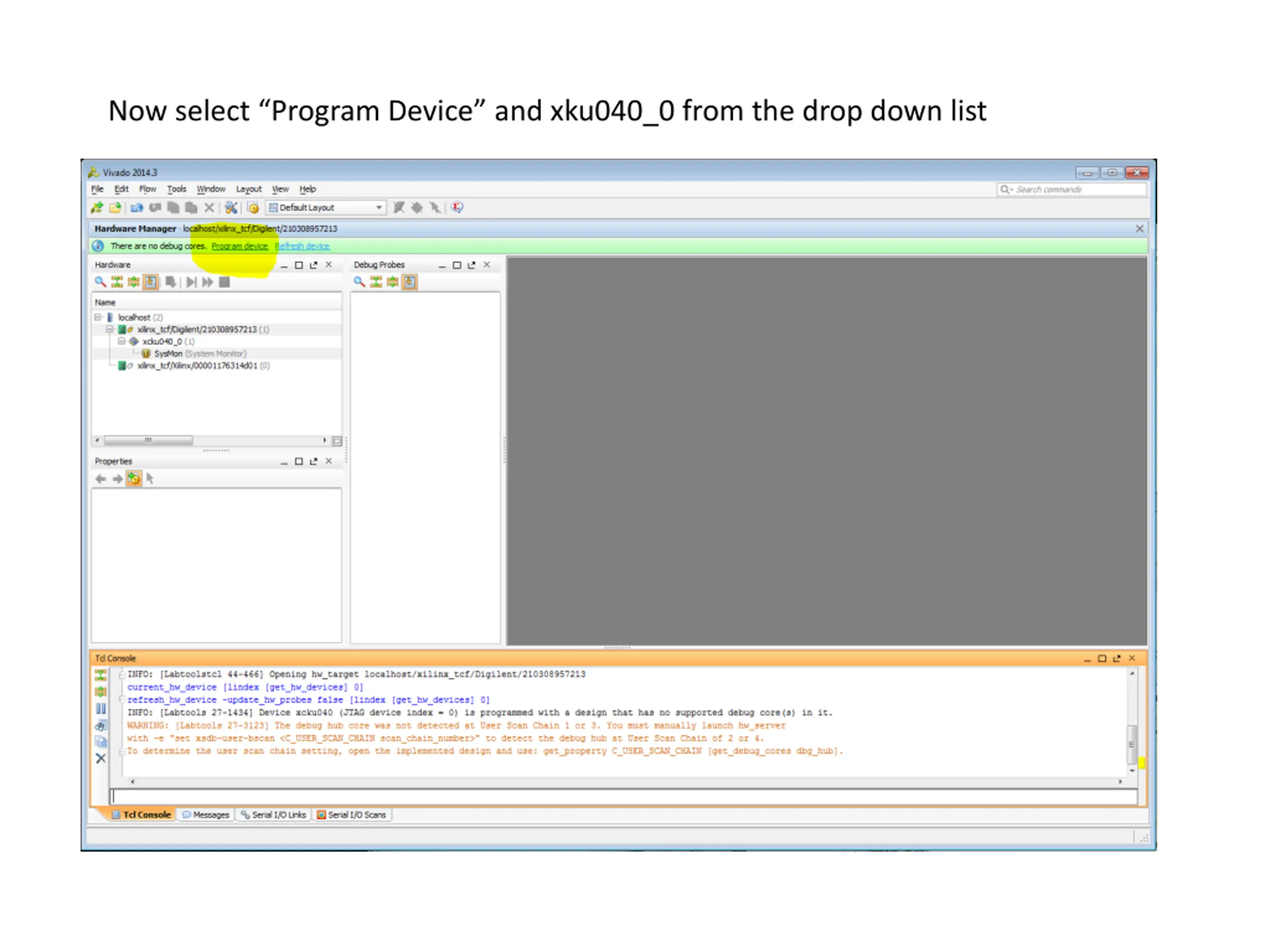

Now select Program Device and xku040_0 from the drop down list

Now select the Bit file and click Program

Enhanced COM Port Once firmware is downloaded, we need to set the FMC voltage to 1.8v in the enhanced port. To do that, in the Hercules where we have opened the Enhanced COM port, enter 0 to go the Main menu The main menu items will be displayed. Enter 4 to Adjust FPGA Mezzanini Card (FMC) settings Again enter 4 to Set FMC VADJ to 1.8V. To read the voltage value, go back to the main menu by entering 0. Then enter 2 to Get the Power system Voltages and enter 7 to Get the VADJ1D8 voltage .

Do the following:

Standard COM Port

KCU105 + DAC38J84 Configuration

Select Onboard clocking in the DAC GUI and verify the basic settings are as follows. Hit button 1. Program and wait for completion

Go to the following Tab and modify the 3 settings highlighted

Go to the following Tab and modify the 1 setting highlighted.

Open HSDC Pro and specify the IP address to connect

Select the INI from the dropdown and verify the HSDC Pro settings are as follows and then press Send. #samples can go up to maximum of 12288 in this case.

Now press Reset DAC JESD Core and Trigger button in DAC GUI

Check the DAC output. Sample snapshot from Spectrum Analyzer:

KCU105 + ADC12J4000 Configuration

If firmware is not downloaded, follow the steps from Slide 2 to 11 to download it.

Select Fs=3100 Msps and hit Program Clocks and ADC

Go to Low Level View and Load Config LMK04828_DB1_Fs_3100Msps_HTW.cfg Now specify the IP address in HSDC Pro and hit capture

Open HSDC Pro and specify the IP address to connect

Select the ADC INI, specify the ADC Output Data rate and hit Capture in HSDC Pro
