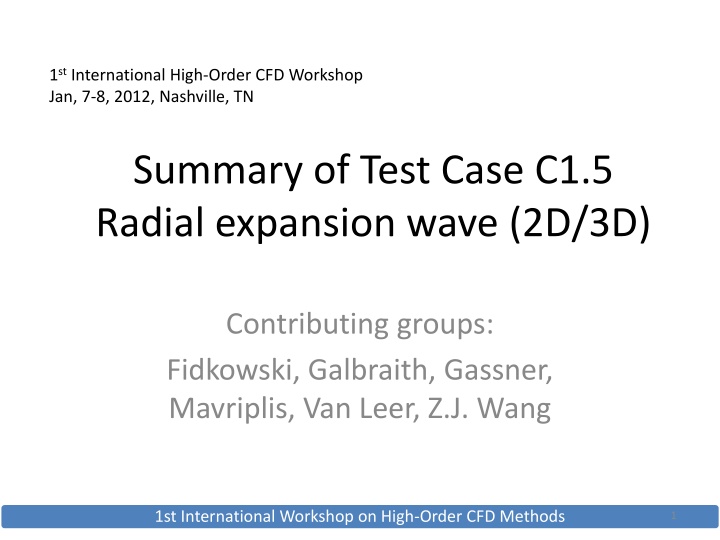

Summary of Test Case C1.5
Radial expansion wave (2D/3D)
1
1
st
International High-Order CFD Workshop
Jan, 7-8, 2012, Nashville, TN
Contributing groups:
Fidkowski, Galbraith, Gassner,
Mavriplis, Van Leer, Z.J. Wang
P =2
P = 3
P =4
2D:
Error vs. DOF
•
Expected order: 2P+1 on rectangles,
P+1 on triangles.
•
Order short of 2P +1 on rectangles.
•
Cause: unexpected lack of solution
smoothness at larger times.
•
All results for t=2,
γ
=3, for greatest
smoothness.
•
Van Leer has lowest error.
2D: Error vs. Work
P =2
P = 3
P =4
P =2
P = 3
P =4
•
Galbraith most efficient owing to use of
analytical integration rather than
Gaussian quadrature.
•
Van Leer second best.
3D: Error vs. DOF
P =2
P = 3
P =4
•
Only regular hexahedral
elements used.
•
Results even further below
expected order due to lack of
solution smoothness.
•
All results for t=2,
γ
=3.
•
Van Leer has lowest error.
P =2
P = 3
P =4
3D: Error vs. Work
•
Only regular hexahedral
elements used
•
Van Leer most efficient.
Conclusions
•
Before order of accuracy 2P+1 can be reached
with any DG method, the problem of the non-
smoothness of the solution must be fixed,
possibly by adding a manufactured source term.
•
The consistently low errors of Van Leer et al.
may be owing to high-order Gaussian quadrature
used in anticipation of order of accuracy 2P+1.
sdsd
This summary provides insights into the highlights of the FY 2025 submission guide changes, data quality improvements, and revisions for hospital inpatient discharge data. Key changes include new file formats, updated fields, and table enhancements to streamline the submission process. Stay informed to ensure compliance with the latest guidelines.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript
1st International High-Order CFD Workshop Jan, 7-8, 2012, Nashville, TN Summary of Test Case C1.5 Radial expansion wave (2D/3D) Contributing groups: Fidkowski, Galbraith, Gassner, Mavriplis, Van Leer, Z.J. Wang 1st International Workshop on High-Order CFD Methods 1
2D: Error vs. DOF Expected order: 2P+1 on rectangles, P+1 on triangles. Order short of 2P +1 on rectangles. Cause: unexpected lack of solution smoothness at larger times. All results for t=2, =3, for greatest smoothness. Van Leer has lowest error. P =2 P = 3 P =4 C1.5 Radial expansion wave
2D: Error vs. Work P =2 P =2 Galbraith most efficient owing to use of analytical integration rather than Gaussian quadrature. Van Leer second best. P = 3 P =4 P = 3 P =4 C1.5 Radial expansion wave
3D: Error vs. DOF Only regular hexahedral elements used. Results even further below expected order due to lack of solution smoothness. All results for t=2, =3. Van Leer has lowest error. P =2 P = 3 P =4 C1.5 Radial expansion wave
3D: Error vs. Work Only regular hexahedral elements used P =2 Van Leer most efficient. P = 3 P =4 C1.5 Radial expansion wave
Conclusions Before order of accuracy 2P+1 can be reached with any DG method, the problem of the non- smoothness of the solution must be fixed, possibly by adding a manufactured source term. The consistently low errors of Van Leer et al. may be owing to high-order Gaussian quadrature used in anticipation of order of accuracy 2P+1. C1.5 Radial expansion wave
