Earthquake Prediction Using Acoustic Data
QuakeML

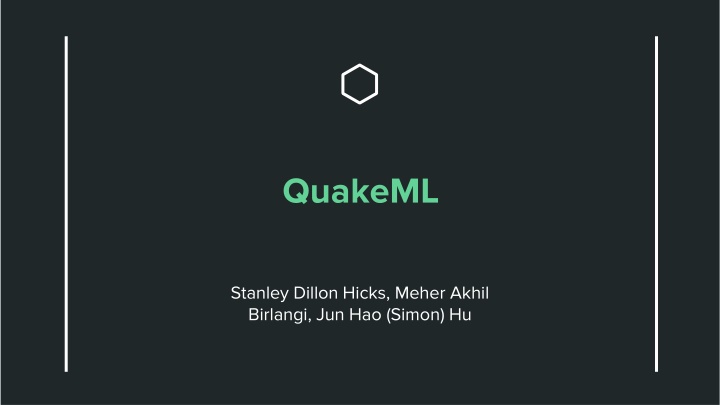

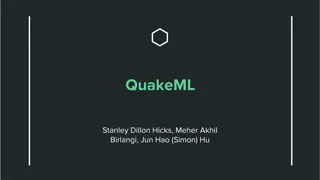

Stanley Dillon Hicks, Meher Akhil
Birlangi, Jun Hao (Simon) Hu
Background
Earthquakes can cause billions of dollars in damage and cause large losses of life
Earthquakes also devastate local infrastructure and in rare and unfortunate cases
can cause land to be uninhabitable (Fukushima)
Thus, it is desirable to be able to predict when Earthquakes occur, and prepare for
them.
Background

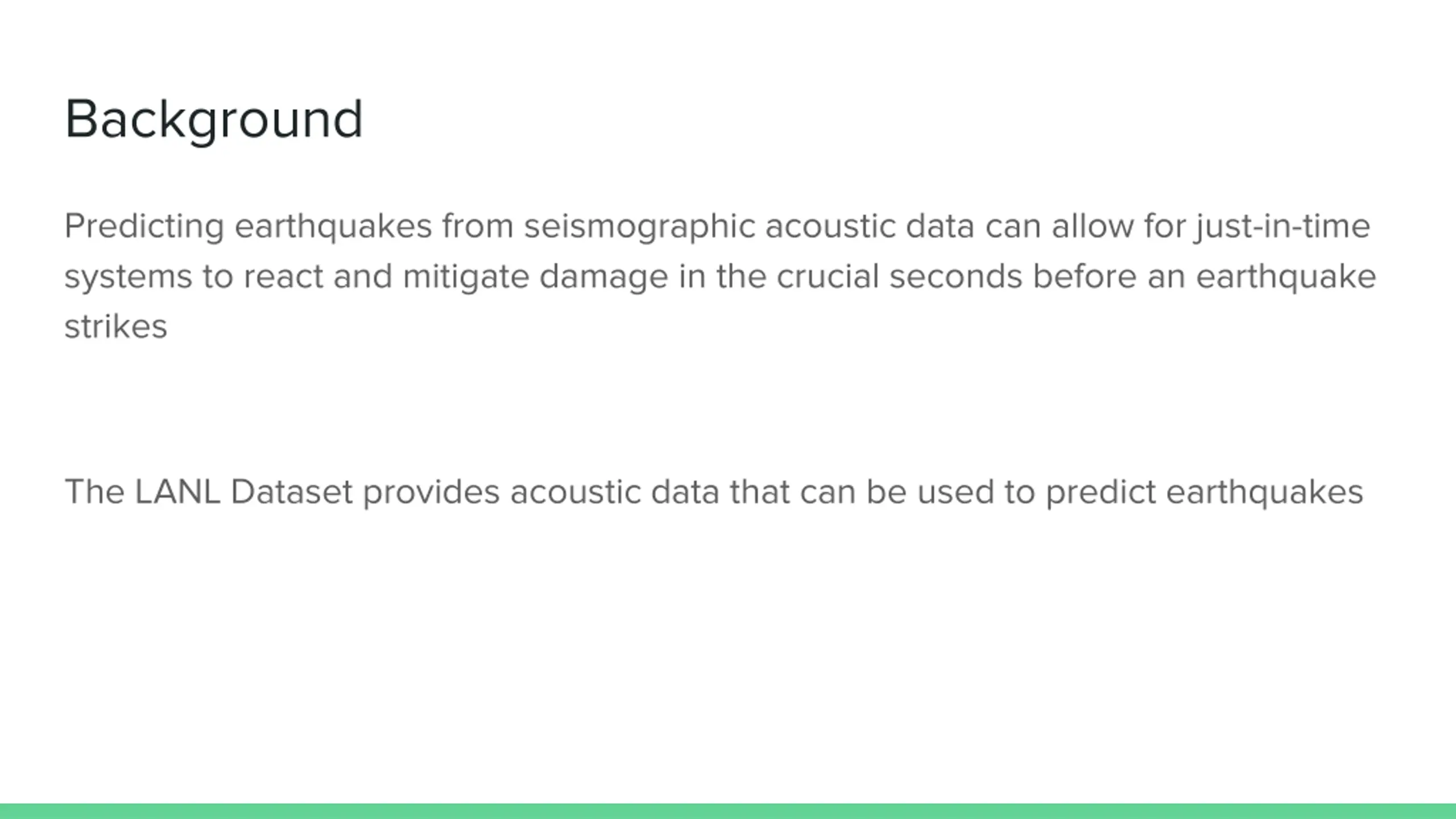

Predicting earthquakes from seismographic acoustic data can allow for just-in-time
systems to react and mitigate damage in the crucial seconds before an earthquake
strikes
The LANL Dataset provides acoustic data that can be used to predict earthquakes
Main Reference: Leduc, Hulbert, et al.
●
Los Alamos National Laboratory (LANL)
●
Simulated earthquakes in the lab and measured acoustic signal and time-to-
failure.
●
Used a Random Forests model to predict time-to-failure.
●
Features used:
○
Variance of acoustic signal
○
Kurtosis of acoustic signal (skewness of the distribution)
○
Mean of acoustic signal, rolling window (100, 1000, 10000).
How Machine Learning Can Be Applied
●
The real world physical model for earthquakes is incomplete
●
Modern machine learning methods show lots of promise on time series data
●
Models with fast inference times may provide actionable data faster
Dataset Details
Dataset: LANL Earthquake Prediction (Kaggle)
A
c
o
u
s
t
i
c
D
a
t
a
●
A
c
o
u
s
t
i
c
D
a
t
a
o
f
l
a
b
o
r
a
t
o
r
y
e
a
r
t
h
q
u
a
k
e
s
r
e
c
o
r
d
e
d
f
r
o
m
a
p
i
e
z
o
c
e
r
a
m
i
c
s
e
n
s
o
r
●
4
1
9
4
S
e
g
m
e
n
t
s
c
o
n
t
a
i
n
i
n
g
1
5
0
,
0
0
0
s
a
m
p
l
e
s
r
e
c
o
r
d
e
d
a
t
4
M
H
Z
T
i
m
e
t
o
F
a
i
l
u
r
e
●
T
i
m
e
u
n
t
i
l
n
e
x
t
l
a
b
o
r
a
t
o
r
y
e
a
r
t
h
q
u
a
k
e
f
o
r
e
a
c
h
s
e
g
m
e
n
t
,
b
a
s
e
d
o
n
a
m
e
a
s
u
r
e
o
f
f
a
u
l
t
s
t
r
e
n
g
t
h
Denoising
●
From reviewing background on Earthquakes, signals should resemble a series
of oscillations, followed by a large spike indicative of a shake.
●
Also from Leduc, Hulbert, et al. the collected data was collected using a
piezoceramic sensor and not generated using a physical model (e.g. second-
order hyperbolic partial differential equation) so it will be subject to noise.
●
Also just qualitatively listening to the acoustic signal, it sounds noisy!
●
We are interested if denoising helps get better results!
Denoising
●
Classical
○
High-pass, low-pass, band-pass filters.
●
Statistical methods
○
Kalman Filtering (but you need to know the noise model)
○
MAP Estimation (you need some sort of model for the data)
○
Sparse Recovery (relatively hard to implement and could be non-convex)
●
Deep Learning Methods
○
Linear autoencoders
■
Treat acoustic signal as one long vector.
○
Convolutional autoencoders
■
Compute the spectrogram and feed that into a convolutional autoencoder.
●
Wavelet Methods
○
Recent and very popular and perform well against Kalman filtering when dealing with non-
Gaussian noise.
Denoising
●
Four approaches.
○
For each approach, the large acoustic data is broken into smaller
segments of length 784.
●
Classical high-pass filter
○
Use a 5th or 7th order butterworth filter to remove the low
frequency components.
●
Wavelet
○
Using a Daubechies wavelet.
●
Wavelet + high-pass filter
○
First the signal is filtered through a high-pass filter, then a wavelet
filter using Haar wavelets.
●
Linear Autoencoder
○
300 -> 200 -> 100 -> 200 -> 300 -> 784 Dense layers.
○
30% Dropout at each hidden layer.
○
Leaky ReLU activation for each hidden layer.
Feature Extraction
●
Features were extracted on a
segment by segment basis, general
segment statistics and statistics
based on a rolling window for each
segment ex.
○
Across windows of 10,100, and 1000
timestep windows, similar to paper [ref]
○
Statistics for acoustic signals at the start
and end of each segment
○
Linear Detrending of signals
●
Individual features were then
standardized after being generated
●
54 features in total generated
Model Details
●
Initially based off of prior work results we began by fitting a Random Forest
model to the data.
●
Estimator hyperparameter was selected using Randomized Search
●
Final Parameters
○
N_estimators = 1600
Model Details
●
As an improvement to Random Forest, we will use XGBoost, which improves on Random
forest through Gradient Boosting and allowing for very efficient training and inference
●
Hyperparameters were selected through a Random Hyperparameter search with a stratified 5-
Fold Cross Validation
●
Final Parameters:
○
Max Depth = 9
○
Min Child Weight = 6
○
Subsampling = 0.9
○
Subsampling By Tree = 0.8
Results/Observations - Random Forest
Mean MAE: 3.8460411489774327
Results/Observations - XGBoost
With a 5-Fold Cross Validation: Mean Validation MAE of 2.0866
Results/Observations - XGBoost
Future Work
●
Implement a convolutional autoencoder for
denoising using the spectrogram as the input
to the network and compare it to linear
autoencoder.
●
See the difference between noisy data and
denoised data.
References
[1]
https://public.lanl.gov/geophysics/geophysics
/nonlinear/2017/Rouet-LeducGRL17.pdf
[2]
https://onlinelibrary.wiley.com/doi/full/10.1111/j.
1365-246X.2007.03650.x
[3]
https://web.njit.edu/~akansu/PAPERS/ANA-
IWS-WAS-
ELSEVIER%20PHYSCOM%202010.pdf
