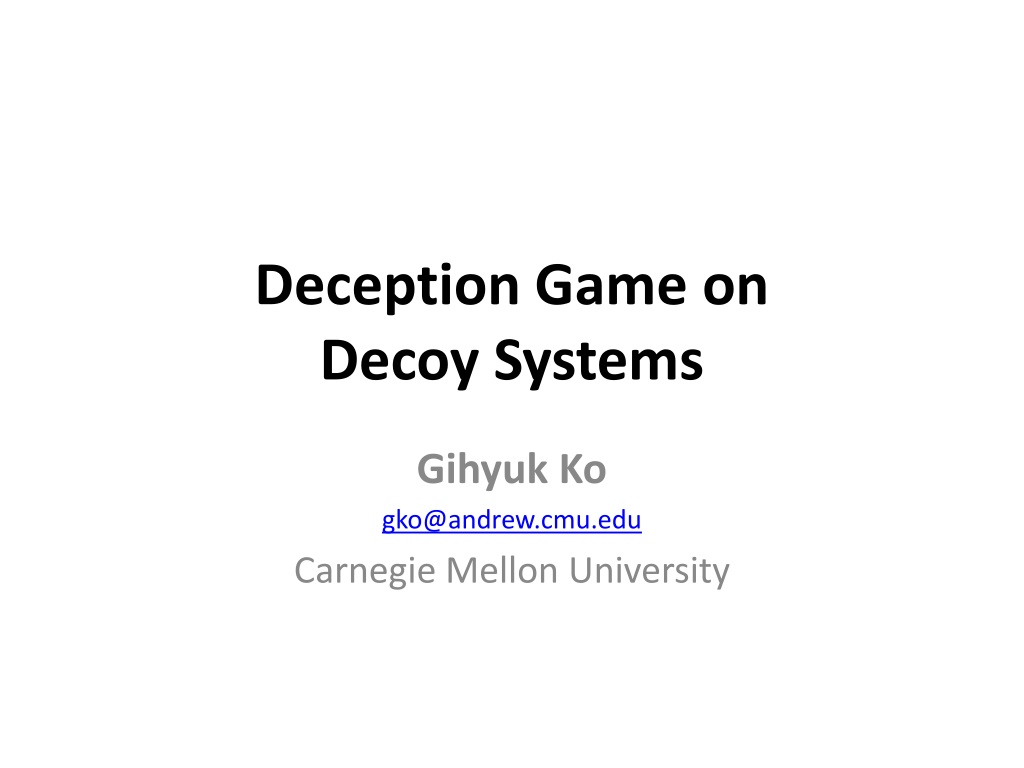

Deception Game on Decoy Systems and Honeypots
Deception Game on
Decoy Systems
Gihyuk Ko
gko@andrew.cmu.edu
Carnegie Mellon University
Decoy Systems and Honeypots
2
•
Decoy Systems
:
–
One of the deception technologies in computer security
–
Lure attackers into accessing fake objects (i.e., decoys)
–
Monitor attackers’ behavior, mitigate intrusion
•
Many variations in implementations of
decoy systems
–
Honeypots, Honeywords, Kamouflage System
, etc.
•
Honeypots
[Spitzner03]
:
“an information system resource whose value lies in
unauthorized or illicit use of that resource”
–
A
fake
server/host which
looks like a real
server/host
–
Seems as a valuable resource to attack to the attackers
–
No true value to the outsiders
Honeypots in the network
3
Honeypots
Actual servers
Attacker
272.17.31.10
272.17.31.11
272.17.31.12
272.17.31.13
272.17.31.14
272.17.31.15
272.17.31.16
272.17.31.17
Attack
successful
Attack fails:
becomes
monitored
Fake Honeypots
[Rowe06]
•
Attackers became aware that defenders use
honeypots
–
Attackers
‘probe’
the target to avoid attacking
honeypots
–
Attackers may collect
‘clues’
to discover honeypots
using
‘heuristics’
•
Signature-based approach
: look for particular features
e.g., well-known honeypot tool name, “magic numbers”
•
Anomaly-based approach
: use metrics on entire system
e.g., # of files / subdirectories, # of english-word file names,
stdev of length of filename
4
Fake Honeypots
[Rowe06]
(cont’d)
•
Fake honeypots:
–
Ordinary hosts/servers which are made to appear
like honeypots
–
Produced by planting
‘clues’
into the system
e.g., plant well-known honeypot tool’s trace in the memory,
make the stdev of the filename length close to zero
•
Attackers who discover
‘clues’
will
avoid the system
•
Fake honeypots are protected against intrusion
–
Using decoys, defender can deliberatively
‘
deceive’
attackers in active way
5
Attacker-defender game using honeypots
•
Consider an attacker who wants to attack
honeypot network
–
Attacker attacks honeypot node
gets detected
–
Attacker would first try to discover (by
‘probing’
)
honeypots, and avoid attacking them
–
Defender can build
‘fake honeypot’
to deceive the
attacker
–
These interactions can happen multiple times back
and forth
•
This can be viewed as a
two-player
game
!
6
Key Points
•
Many variations in deception techniques
which use decoy systems
–
Honeypots, Fake honeypots
•
Some attacker-defender interactions using the
decoy systems can be explained as
a two-
player game
–
Developing a game-theory model can benefit
defender in countering attacker with strategy!
7
Objective
•
Develop a
game-theoretic model
which
reflects
interactions
between real world
attacker and defender using
decoy
systems
, that
involve deceptive actions
such as ‘lying’.
8
Game Definition – Decoy Systems
Decoy Systems:
–
True objects:
actual valuable resource (e.g., servers)
–
Decoy objects:
decoys without any value (e.g., honeypots)
•
Total
n
objects,
k
true objects
,
n-k
decoys
•
Indicator function:
/
9
Game Definition – Category
We define a
two-player non-cooperative
complete imperfect information dynamic game
–
Two-player
: Attacker
A
, Defender
D
–
Non-cooperative
: independent decision-making
–
Complete information
: strategy profiles and
payoffs(utilities) are known to each other
–
Imperfect information
: not all the past actions are
known to each party
–
Dynamic
: turn-taking manner
10
Game Definition – Goals / Moves
Goals
•
A
’s goal:
distinguish
true objects from all objects
–
Learn
•
D
’s goal: prevent attacker from learning true objects
–
By
‘lying’
to an attacker
Moves
;
11
Game Definition – Moves (cont’d)
12
D
Initialization
D
deploys
decoys
and
true objects
D
defines an indicator function
Game Definition – Moves (cont’d)
13
D
Probe-Respond
A
A
picks an object to
‘probe’
D
responds to
‘probe’:
Tell the Truth
:
return indicator value of an object
Lie
:
return logical complement of indicator value of an object
Repeats until
A
stops
Game Definition – Moves (cont’d)
14
D
Termination
A
A
concludes with
k
objects to attack
...
Game Definition – Moves (cont’d)
Moves (cont’d)
•
Multiple
‘probes’
on the same object:
–
Applying different
‘heuristics’
to the same object
–
Higher probability to reveal identity of the object
–
Assumption
: two
‘probes’
on the same object
reveals whether object is decoy or not
15
Game Definition – Utilities
Utilities
•
We assume both
A
’s
‘probing’
and
D
’s
‘lying’
have per-
action costs
–
A
’s per-probe cost overall cost
–
D
’s per-lie cost
overall cost
•
Incentives depend on attacker’s final move (attack):
–
When
A
picked a
true object,
A
gets
overall incentive
–
When
A
picked a
decoy object
,
D
gets overall incentive
–
Incentives work in zero-sum manner:
•
Overall utility:
16
Analysis on Possible Strategies
Three possible example attacker strategies
•
All-Round-Probing
Attacker
•
No-Probing
Attacker
•
Selectively-Probing
Attacker
17
Analysis on Possible Strategies
All-Round-Probing Attacker
•
Attacker probes all objects
twice
until it finds k
true objects
•
Attacker always gets
k
true object right
–
Defender’s lies doesn’t help: defender should n
o
t use
any lies to maximize its utility
–
Unlikely to be considered as an attacker strategy
18
Analysis on Possible Strategies
No-Probing Attacker
•
Attacker might guess
k
objects without any probing
–
No cost for both
A
and
D
•
Efficiency of decoy systems comes as countermeasure
–
Intuitively, increasing portion of decoys
in the network,
expected correct guesses decreases
–
Increasing per-object penalty( ) will also benefit defender
19
Analysis on Possible Strategies
Selectively-Probing Attacker
•
Attacker may selectively probe twice on the
objects where he gets
‘true object’
response
•
Possible countermeasure for defender:
–
‘lie’
in every true objects to deter examination
from attacker as much as possible
–
‘lie’
in every decoy objects to make attacker waste
each probe examining decoy
20
Conclusion
•
Some attacker-defender interactions can be
viewed as a two-player game
•
We proposed a game-theoretic model which
reflects interaction between attacker and
defender using decoy systems
•
Analyzing many other possible strategies using
our game will remain as a future work
21
References
[Spitzner03]
L. Spitzner,
“Honeypots: Catching the Insider Threat”
, Computer
Security Applications Conference, 2003.
[Rowe06]
N. C. Rowe and E. J. Custy, “Fake Honeypots: A Defensive Tactic for
Cyberspace,”
Proceedings of 2006 IEEE Workshop on Information Assurance
,
pp. 223-230, 2006.
[Roy10]
S. Roy
et al.
, “A Survey of Game Theory as Applied to Network
Security,”
Proceedings of the 43
rd
Hawaii International Conference on System
Sciences
, pp. 1-10, 2010.
22
Game Definition – Moves (cont’d)
Moves (cont’d)
•
Step 1
:
Initialization
–
Defender
D
deploys
decoys
and
true objects
•
Step 2
:
Probe-Respond
–
Repeated until
A
stops
a: Attacker
A
picks an object to
‘probe’
To avoid attacking decoys: to collect
‘clues’
Assume
A
uses one
‘heuristic’
per each
‘probe’
23
Game Definition – Moves (cont’d)
Moves (cont’d)
•
Step 2
:
Probe-Respond (cont’d)
b: Defender
D
responds to
A
’s
‘probe’
by giving one-
digit value to
A
.
Defender can either ‘tell the truth’ or ‘lie’
24
Game Definition – Moves (cont’d)
Moves (cont’d)
•
Multiple
‘probes’
on the same object:
–
Applying different
‘heuristics’
to the same object
–
Higher probability to reveal identity of the object
–
Assumption
: two
‘probes’
on the same object reveals
whether object is decoy or not
•
Step 3
:
Termination
–
Attacker concludes with
k
objects to attack
;
25
