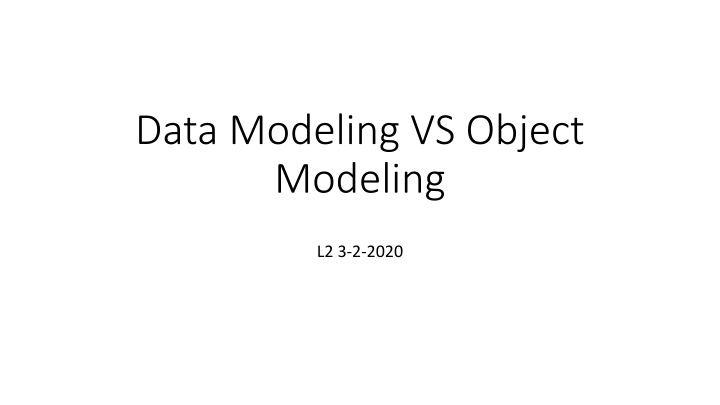

Data Modeling vs Object Modeling
Data Modeling VS Object
Modeling
L2 3-2-2020
D
a
t
a
M
o
d
e
l
i
n
g
Data modeling is the act of exploring data-oriented structures.
Like other modeling artifacts data models can be used for a variety of
purposes.
From the point of view of an object-oriented developer data modeling is
conceptually similar to class modeling.
With data modeling you identify entity types whereas with class modeling
you identify classes.
Data attributes are assigned to entity types just as you would assign
attributes and operations to classes.
There are associations between entities, similar to the associations
between classes – relationships, inheritance, composition, and aggregation
are all applicable concepts in data modeling.
S
t
e
p
s
f
o
r
D
a
t
a
m
o
d
e
l
i
n
g
The following tasks are performed in an iterative manner:
Identify entity types
Identify attributes
Apply naming conventions
Identify relationships
Apply data model patterns (analysis pattern for reuse etc.)
Assign keys
Normalize to reduce data redundancy
De-normalize to improve performance
- See more at:
http://www.agiledata.org/essays/dataModeling101.html#sthash.tBH8f6xj.dpuf
Why Data Models Shouldn't Drive Object
Models (And Vice Versa)
A common problem is the idea that a data model should drive the development of objects. This idea comes in
two flavors: physical data schema should drive the development of objects and that a conceptual/logical data
model should be (almost) completely developed up front before beginning to design objects. Both of these
views are inappropriate for non-agile projects as well as for agile projects.
Why do we want to base object models on existing data schemas?
First, there is very likely a desire to reuse the existing thinking that went behind the current schema. But it is
important to reuse only right things.
There is an
impedance mismatch
(conceptual and technical difficulties) between the object and relational
paradigms, and this mismatch leads object and data practitioners to different designs.
Object developers apply different design techniques and concepts than the techniques that data modelers
apply.
Second, the database owner seeks to maintain or even enhance their political standing within an organization
by forcing developers to base their application on their existing design.
http://www.agiledata.org/essays/drivingForces.html#sthash.sBpfWrV1.dpuf
What to do?
First, look at existing physical data models to get an idea of what is currently
going on, and look for the technical constraints. Don’t limit the application
with a bad database design.
Second, even if the existing database design is very good there can be
significant differences in the way that objects are mapped to relational
databases.
The solution is to properly map Objects to relational databases
http://www.agiledata.org/essays/drivingForces.html#sthash.sBpfWrV1.dpuf
Example: Online book store
Starting with data modeling!
D
a
t
a
M
o
d
e
l
i
n
g
f
o
r
O
n
l
i
n
e
B
o
o
k
S
t
o
r
e
Customers
will use a
web based interface
to browse
book
s based on
categories
.
Books are represented by,
ISBN
,
Title
,
Author
,
Publisher
,
Edition
,
Year of
Publication
,
Price, Short Reviews if available, ratings and recommendations, Table
of Contents
if available., an
image of the book cover, category
e.g.,
computer
science, History, General Knowledge, Biography
, etc.
Only
digital copy
of books (in pdf format) will be available. Books are not available
in
hard copy
. (printing and free distribution of pdf will not be allowed).
Customers can simply search books using
keywords
. A keyword can be an author
name, book title (or part of title), or a category, such as “History”. The system will
provide all search results based on the keyword provided.
Search can be filtered on specific categories.
Search can also be filtered on a
language
(Eng., Urdu), or on
a price range
(<1000,
1000-2000, >2000, etc.)
Initially only the
title
and
author
of the book(s) are displayed; on click (of a
selection) other attributes are displayed.
Customers create
accounts
in the book store. Each account contains
customer profile
information
: name, age, geographical location, categories of
interest, email
. Each account has a
PayPal
account linked to it. Profile
information can be updated by the customer. Customers will
login
to the
book store using an account
name and password
.
Customers can save books in cart or as favorite for later use.
Guest users
can search but must create account for purchase.
Registered customers
will be provided
recommendation
s based on their
profile.
Best sellers, latest arrivals
will be displayed for all customers.
All
online sales data
are recorded in the database with
timestamp
.
The system will have a separate view of
admin, customers (and suppliers
-
optional).
Customers can buy books using their PayPal account. The
customers
will be
able to remove or add more books the order before making a payment.
Paypal
will be used to manage the
Shopping cart
and to deal with the
payment
options (using PayPal Sandbox Testing environment
https://developer.paypal.com/docs/classic/lifecycle/ug_sandbox/).
If the payment
transaction
is successful, a
tracking number
and
receipt
will be generated. The users will be able to track their
shipment
, based
on this tracking number.
Extra features
A
supplier
account can also be created. A supplier will upload
of
books. The owner will purchase the book from the supplier through
paypal.
Database design
Book
ISBN - Primary Key
Title
Author
Publisher
Edition
Year
Price
Reviews
Rating
recommendations
Contents
ImagePath
SourcePath
Popularity
Category_ID
Customer
Customer_ID - Primary Key
Name
Age
Location
Interests
Epurse
Username
Password
IfAdmin
Category
Category_ID - Primary Key
Name
Parent_ID
Sales
Book - Foreign Key
Customer – Foreign Key
Timestamp
SalesID – Primary Key
Publishers
Name
Address
PublisherID – primary key
Order
Book_id - Foreign Key
Customer_id – Foreign Key
OrderID – Primary Key
Do we need any stored procedure?
•
DB group: read about stored procedures, if these are of any use here
to increase the efficiency and security.
Example : complete class diagram
