Compact Aerial Photogrammetry System (CAPS) with VTOL Drone

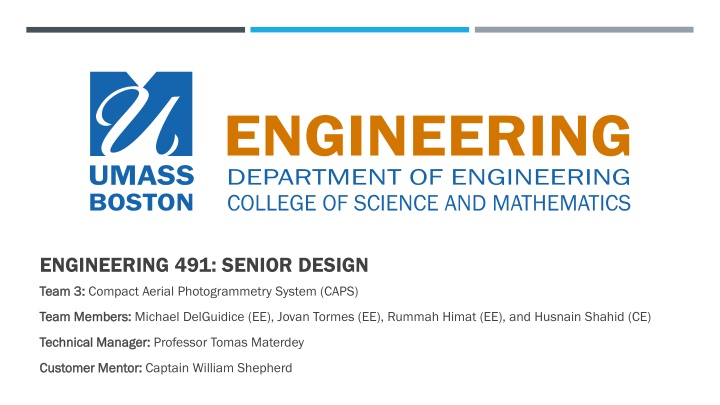

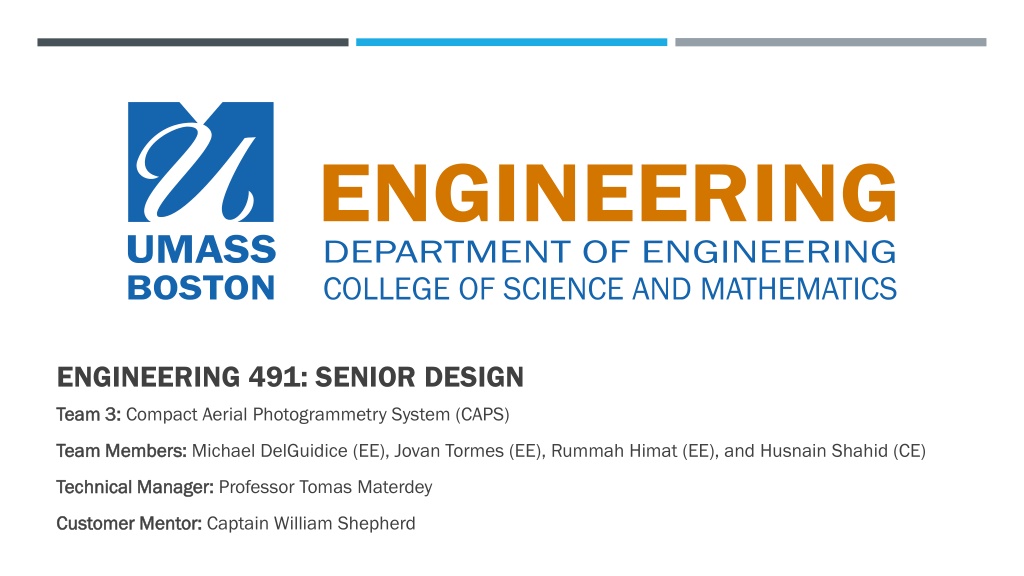

ENGINEERING 491: SENIOR DESIGN

Team 3:
Compact Aerial Photogrammetry System (CAPS)
Team Members:
Michael DelGuidice (EE), Jovan Tormes (EE), Rummah Himat (EE), and Husnain Shahid (CE)
Technical Manager:
Professor Tomas Materdey
Customer Mentor:
Captain William Shepherd

Project Proposal:
Compact Aerial Photogrammetry System (CAPS)
We will purchase a fixed-wing VTOL drone, equip it with a
camera, and fly above campus to take images to be used to
generate a georeferenced map. Our system rapidly
photographs a large area, then software will create maps
and compare images.
This system will be tested on the Umass Boston campus.
Project Scope
The drone, camera, GPS, RF transmitter, and image
processing software composes a
self-contained
 system that
combines hybrid drone versatility with advanced image
analysis. Our system can be used for aerial assessments
and coherent change detection (CCD) applications.

VOTL Drone

Mapping

Flight Path

Engineering Requirements for CAPS Project
The drone performs by vertically taking off, completing
flight in fixed-wing mode horizontally over buildings on
campus, and then vertically landing using only 80% of its
battery.
Images gathered by camera overlap 60-70%, and include
GPS location, and orientation data.
The photogrammetry software reproducibility
 c
ombines
images to create 2D and 3D maps.
Customer Requirements for CAPS Project
Drone flight path and image data is stored, allowing the
map production to be repeated over a length of time.
Georeferenced maps are analyzed with a
coherent
change detection
 algorithm to compare differences in
maps over time.

VOTL Drone

Mapping

Flight Path

5 Project Specific Success Criteria (PSSC's):
The hybrid drone completes a vertical take-off/landing (VTOL) and
has a fixed-wing design for horizontal flight through the air.
A
PCB
 functions properly in the drone to assist the image taking
and transmission system by amplifying Wi-Fi or RF signal.
The camera equipped to the drone captures aerial images of
campus with GPS location and sends them to ground hub in real
time.
The drone accurately with georeferencing follows the flight path
above campus programmed through drone-mapping software and
can repeat this process.
An aerial map of campus is produced with photogrammetry
software, using
machine learning
and computer vision algorithms
that classify and stitch images together that overlap 60-70%.

VOTL Drone

Mapping

Flight Path

Fixed-Wing VOTL UAV / Compact Aerial Photogrammetry System (CAPS) Subsystem Block Diagram

Skills And Tools:

Jovan, Husnain
analyzation
Working with
the camera to
understand
GPS location,
resolution, and
any storage
limitations.

Michael, Fox
Online tutorials
and forums
Includes
understanding
conditions for
flight, using
controller, and
reading manuals.

Husnain, Fox
KiCAD PCB
Design
Using this
software will
allow us to
design and
build a PCB.

Michael, Fox
Image-based
CCD software
Ensuring that
maps are
accurate in
orientation and
quality, before
scanning images
for variation.

Jovan, Husnain
Online tutorials
Open-source
projects
Software that will
generate 2D/3D
scans of buildings
based on photos
taken by drone.

Microsoft Project Gantt Chart:

Microsoft Project Gantt Chart:

Microsoft
Project
Critical
Report:

Project Design: Fixed-Wing VOTL Drone
First Choice
 –
Purchase a Commercial ARF Hybrid Drone:
OMP Hobby ZMO Z3 VTOL
For $1,399, this drone has a range of 60 minutes. The built in GPS,
three motorized propellers, and a Caddx Air Unit Camera means we
would only need to build a transmitter and receiver to process images.
Alternative – Purchase a
Commercial RTF
Hybrid Drone:
HEQ Swan K1 Pro
For $1,099, this drone can transmit images up to 1.86 miles and
a has  range of 30 minutes (Rotor and Fixed Mode). With a built in
GPS and four motorized propellers, we would need to purchase a
camera and receiver to send images to ground control.


VOTL Drone

Mapping

Flight Path

Our Selection for Consumer Drone:

OMPHobby ZMO Z3 VTOL

Camera:
Included and built into the nose of the drone.
Load:
The drone is built primarily of foam, so the load
capacity after the camera is added may be minimal.
Shipping:
Multiple websites offering free <1 week shipping

HEQ Swan K1 Pro

Camera:
Not included, will be placed at nose of the drone
Load:
The drone is built primarily of foam, so the load
capacity after the camera is added between 0.3-0.8 lbs.
Shipping:
Can pay for less than 1 week-shipping (<$50)

Project Design: Aerial Camera
First Choice
 –
Purchase a 4k @ 60 rps
compatible
camera:
Caddx Walnut Action Camera
This $129 model is a full frame camera that is WIFI-enabled. The
camera has a built-in battery and a microSD card slot. We are unsure if
this camera is compatible with the OMPHobby drone.
Hawkeye Firefly X Lite
This $140 model is a micro frame camera that is WIFI-enabled. The
camera has a built-in battery and a microSD card slot. We are unsure if
this camera is compatible with the OMPHobby drone.
Alternative –
Purchase a
 lower-quality
compatible
camera:
Caddx Air Unit Micro Camera
This $189 model is a micro frame camera with a built-in video
transmitter. The camera has a built-in battery and a microSD card slot.
This camera is specifically compatible with the OMPHobby drone.

VOTL Drone

Mapping

Flight Path

Our Selection for Aerial Cameras:

Caddx Walnut Action Camera

Sensor Size:
Full Frame: 38mm x 36mm
Image Resolution:
4K @ 60fps
Image Transmission:
WiFi Enabled
Weight:
0.139 lbs

Caddx Air Unit Micro Camera

Sensor Size:
Micro Frame: 19mm x 19mm
Image Resolution:
1080p @ 60fps
Image Transmission:
Built-in Video Transmitter
Weight:
0.092 lbs

B

Photogrammetry Software:

Agisoft Metashape:
An open-source software. With this software we will
be able to do photogrammetric triangulation, point
cloud data, measurements for distances, volumes
and areas, 3D model generation and textures.
Minimum requirement for quality photomapping is
12MPX resolution photos.
Higher the quality of the camera: smoother the
texturing of the maps.
F
ree trial, but an educational License is also
available.

Umass Boston Flight Path Proposal:

Main considerations for our flight path
Umass Boston’s 120-acre campus is comprised of
11 buildings, ranging in height from approximately
30 to 168 feet. The dense population, windy
conditions, and active construction zones will
mean we will have to exercise caution.
The flight range of most commercial drones within
our budget is between 15 and 50 minutes,
depending on the conditions. This will require us to
subdivide the campus and capture images during
multiple flight to generate a single-stitched image.
Federal Aviation Administration regulations
mandate that the height of UMB’s campus
buildings cannot exceed 200 feet
. The FAA
designates that personal drones cannot
exceed 196 feet in Umass Boston's airspace.

Project Deliverables And Budget:
Deliverables
Purchase a Fixed-Wing Hybrid VTOL drone
Install camera on drone with image transmission
system.
Have drone complete flight path above campus
Create aerial map of UMass Boston Campus from
photogrammetry software.
Confirm georeferenced 2D and 3D map accuracy.
Repeat process for Coherent Change Detection.

Budget
OMPHobby ZMO Z3 VTOL

$1,399
Shipping


Free
Caddx Walnut Action Camera

$129
Shipping


Free
Agisoft Metashape

Free

Total


$1539



Design Validation Tests:
Software and Photogrammetry Validation
Take images with camera detached from drone to
test GPS data and assess quality/pixel size.
Generate 2D/3D maps in Agisoft Metashape
using images from camera.
Ensuring software is up to date and
compatible with images.
Hardware and Drone Flight Validation
Assess drone for defects, and proper camera
mounting mechanism.
Test vertical take/landing, and horizontal
movement in open field.
Look at battery life for different usage times.
Check orientation of camera images when drone
is in flight.


APPROVAL

TM, Professor Materdey

CM, Captain Shepherd

Project Execution, Safety, and Resource Section:

Our Project (CAPS) will commence in stages, keeping the components of
drone flight
,
gathering
,
map stitching
, and
coherent change detection
separate and testable.
Our drone will be registered with FAA, and permission from campus safety officials will be obtained
before all flights.
We will adhere to ethical considerations by communicating progress with TM/CM, keeping track of
any changes in budget and drone or software functions, logging errors in coding, and blurring any
personal details we photograph.
