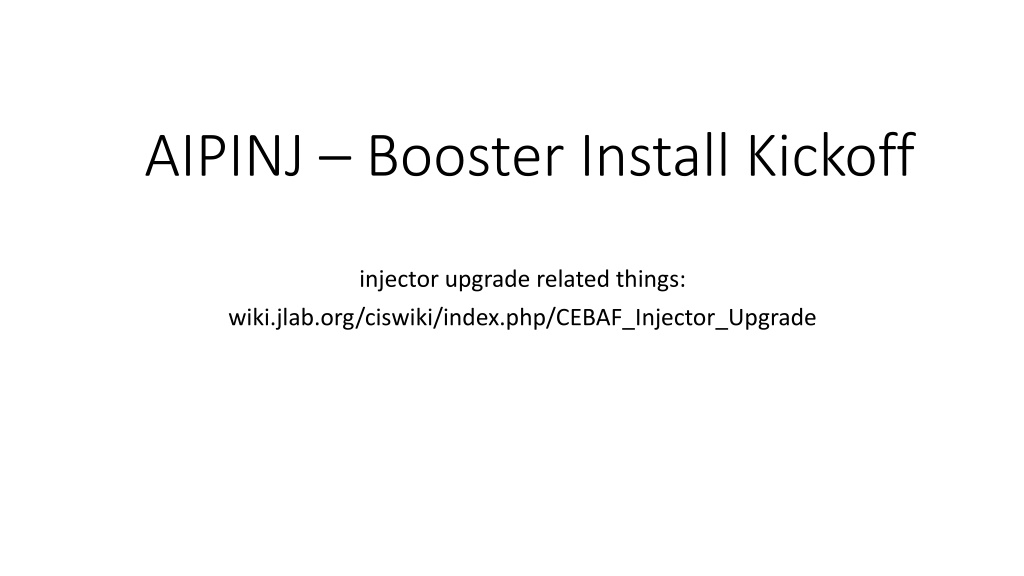

  1. AIPINJ Booster Install Kickoff injector upgrade related things: wiki.jlab.org/ciswiki/index.php/CEBAF_Injector_Upgrade

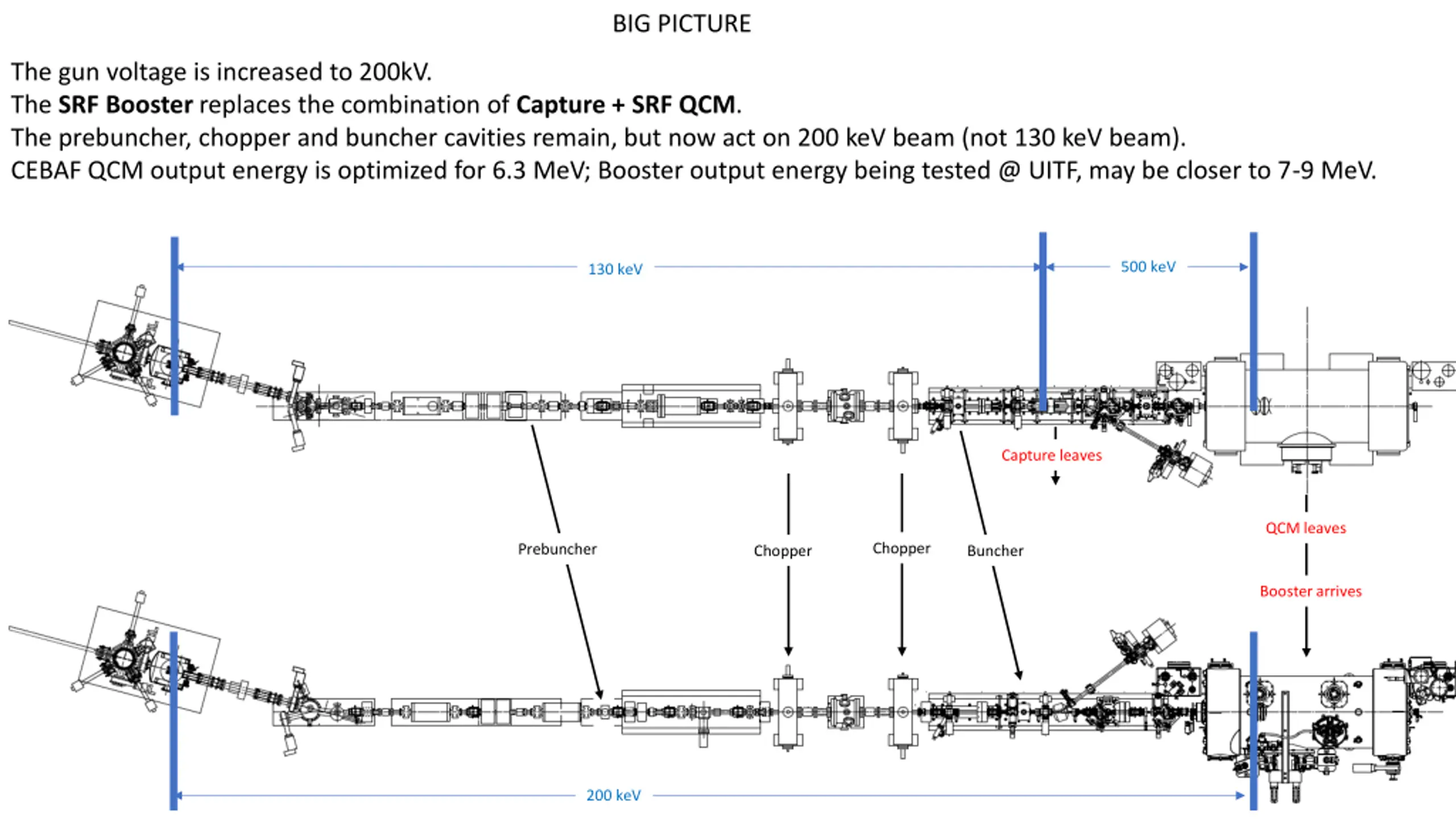

  2. BIG PICTURE The gun voltage is increased to 200kV. The SRF Booster replaces the combination of Capture + SRF QCM. The prebuncher, chopper and buncher cavities remain, but now act on 200 keV beam (not 130 keV beam). CEBAF QCM output energy is optimized for 6.3 MeV; Booster output energy being tested @ UITF, may be closer to 7-9 MeV. 500 keV 130 keV Capture leaves QCM leaves Chopper Prebuncher Chopper Buncher Booster arrives 200 keV

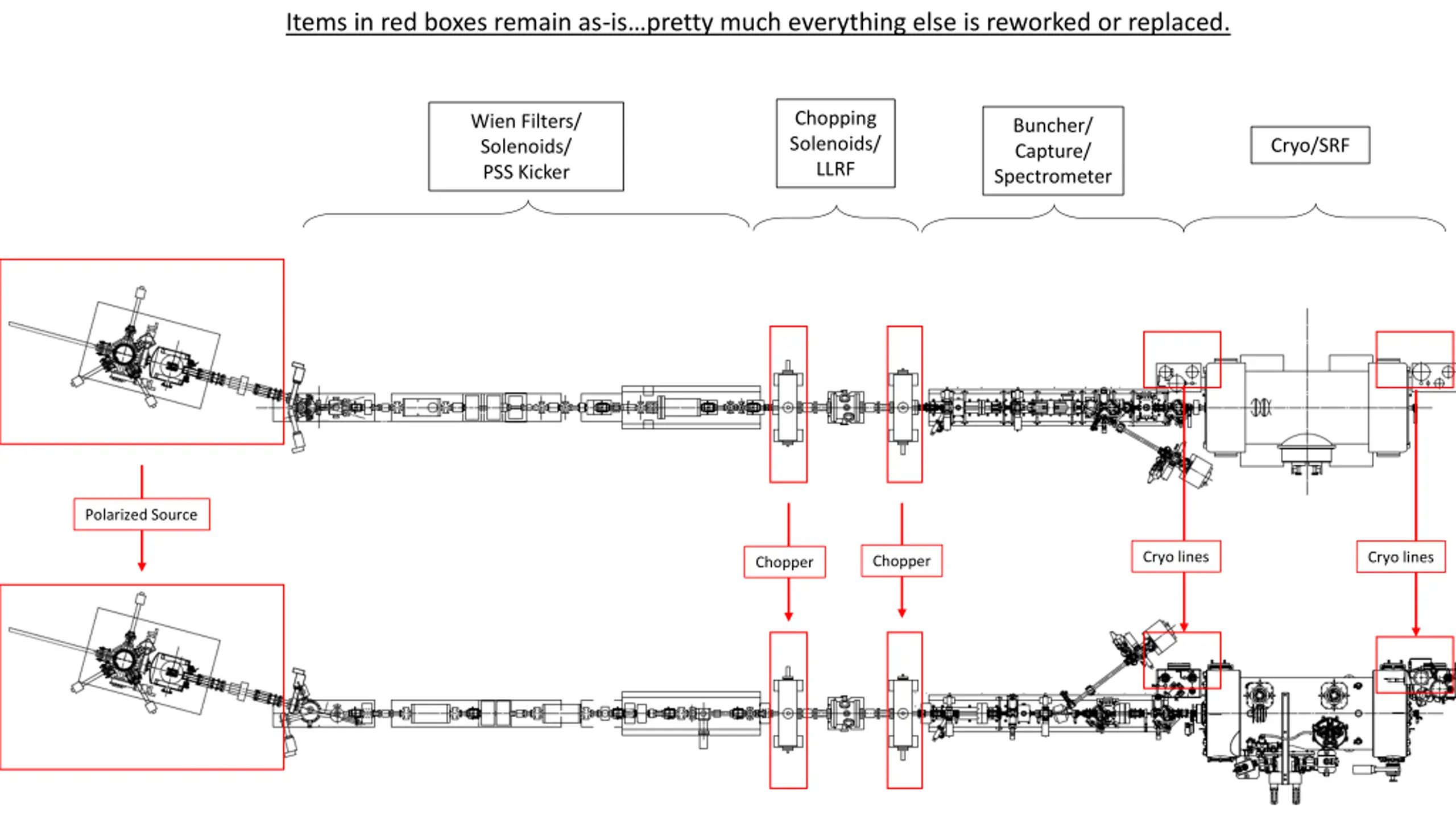

  3. Items in red boxes remain as-ispretty much everything else is reworked or replaced. Chopping Solenoids/ LLRF Wien Filters/ Solenoids/ PSS Kicker Buncher/ Capture/ Spectrometer Cryo/SRF Polarized Source Cryo lines Cryo lines Chopper Chopper

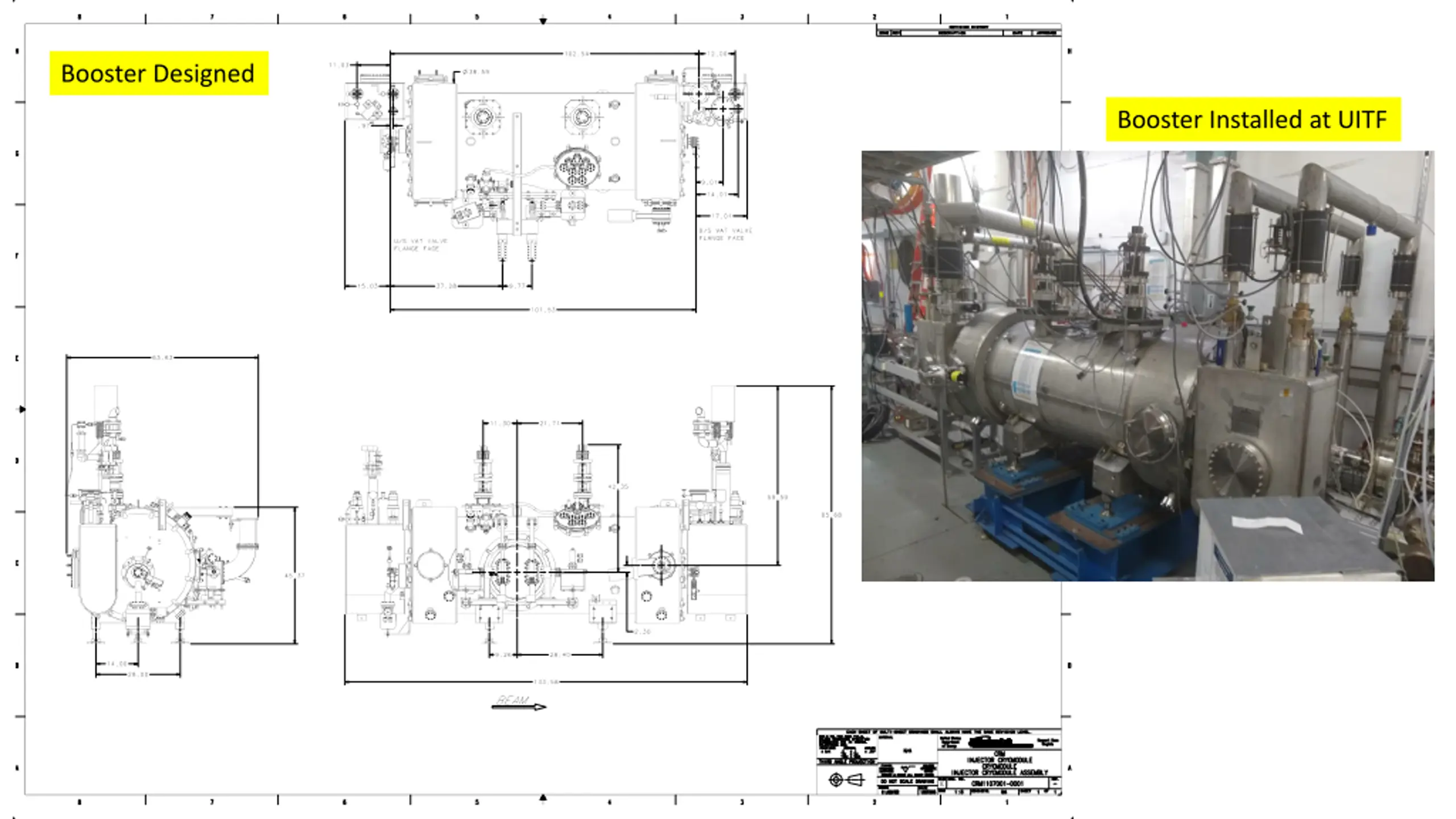

  4. Booster Designed Booster Installed at UITF

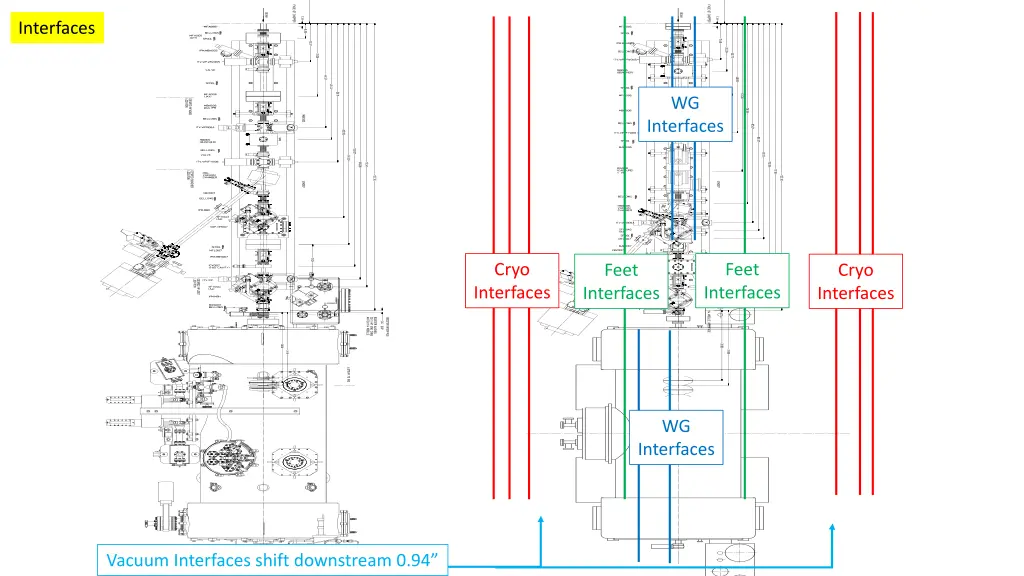

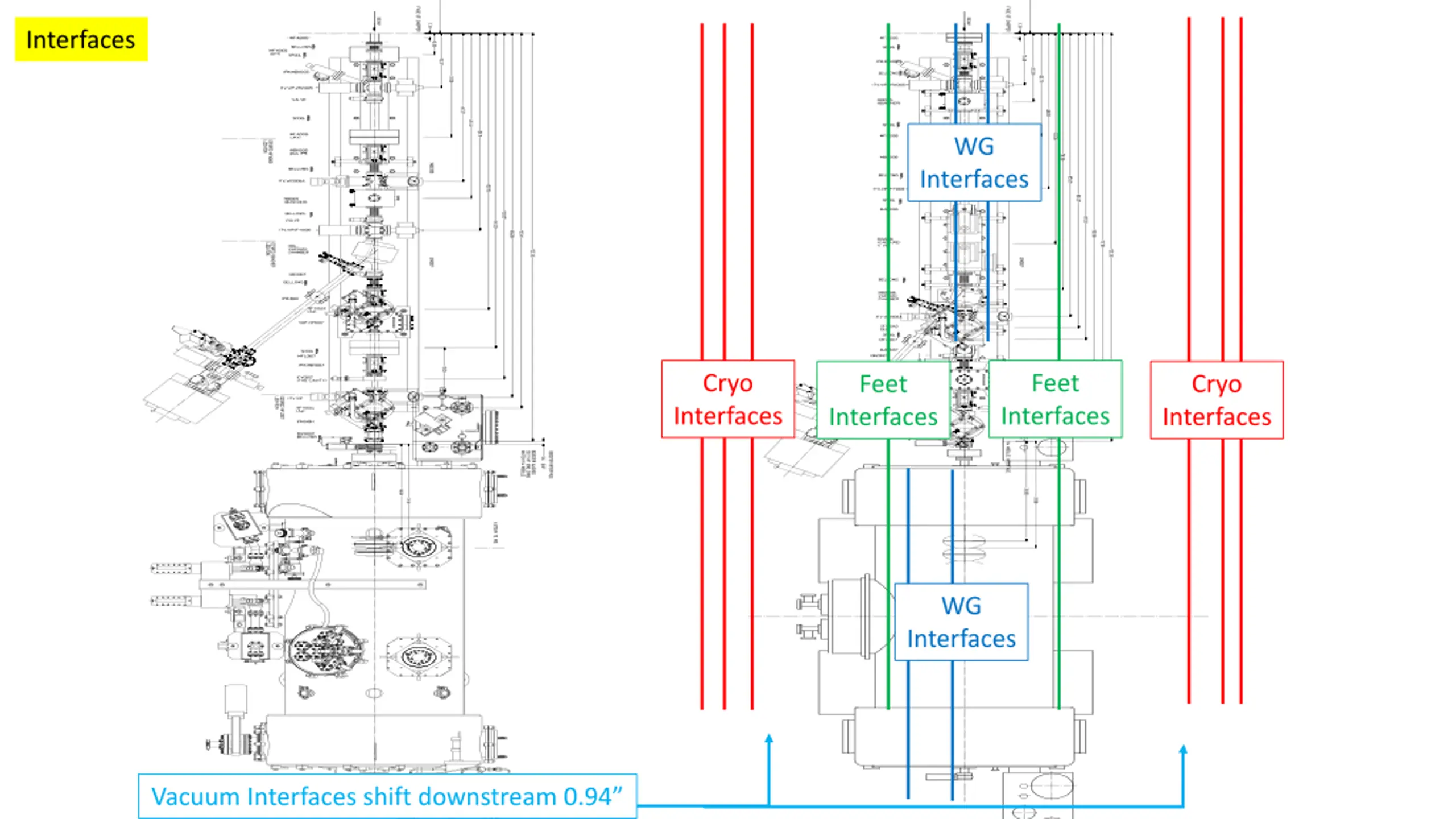

  5. Interfaces WG Interfaces Cryo Feet Feet Cryo Interfaces Interfaces Interfaces Interfaces WG Interfaces Vacuum Interfaces shift downstream 0.94

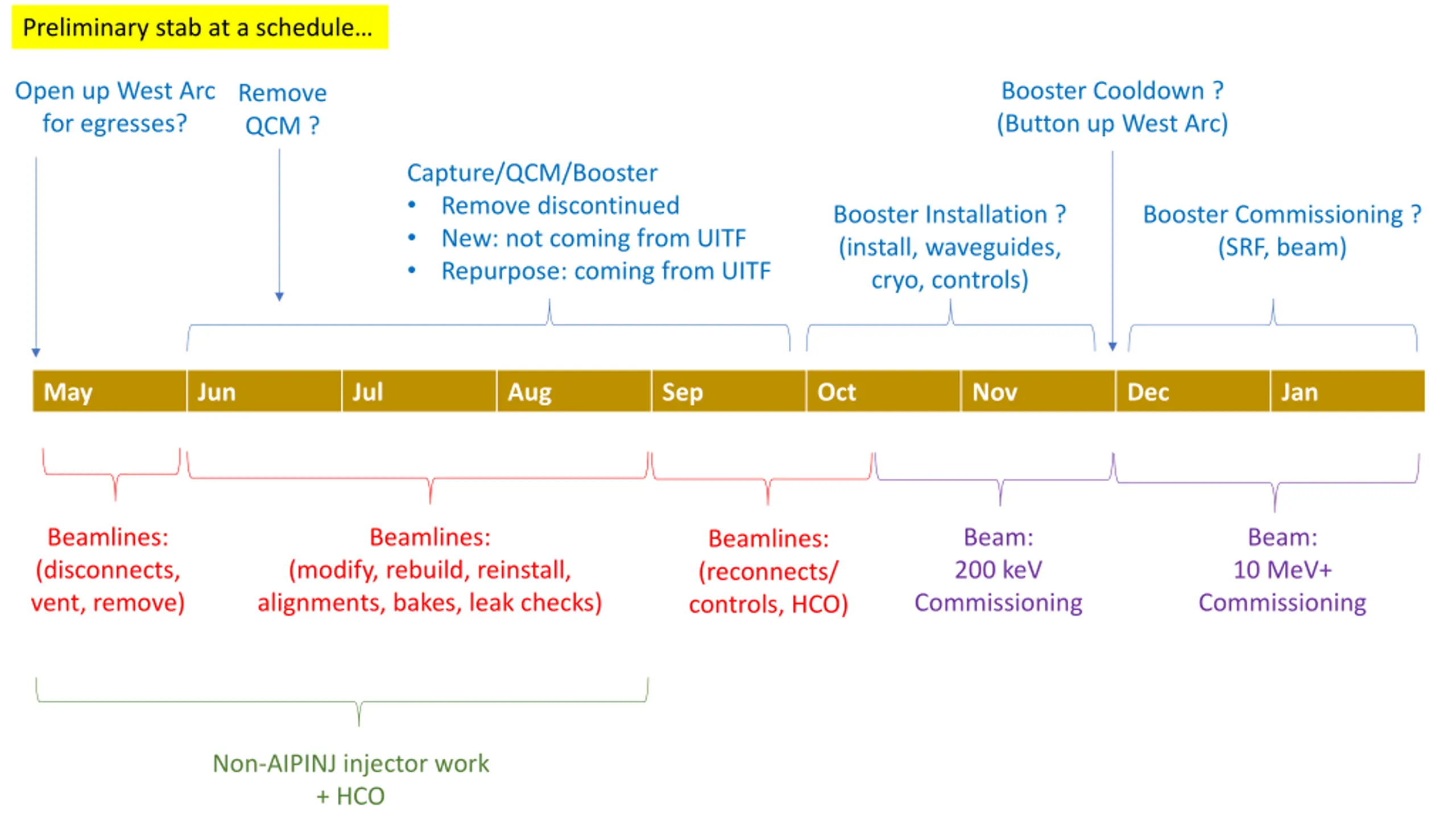

  6. Preliminary stab at a schedule Open up West Arc for egresses? Booster Cooldown ? (Button up West Arc) Remove QCM ? Capture/QCM/Booster Remove discontinued New: not coming from UITF Repurpose: coming from UITF Booster Installation ? (install, waveguides, cryo, controls) Booster Commissioning ? (SRF, beam) May Jun Jul Aug Sep Oct Nov Dec Jan Beamlines: (disconnects, vent, remove) Beamlines: Beam: 200 keV Commissioning Beam: 10 MeV+ Commissioning Beamlines: (reconnects/ controls, HCO) (modify, rebuild, reinstall, alignments, bakes, leak checks) Non-AIPINJ injector work + HCO

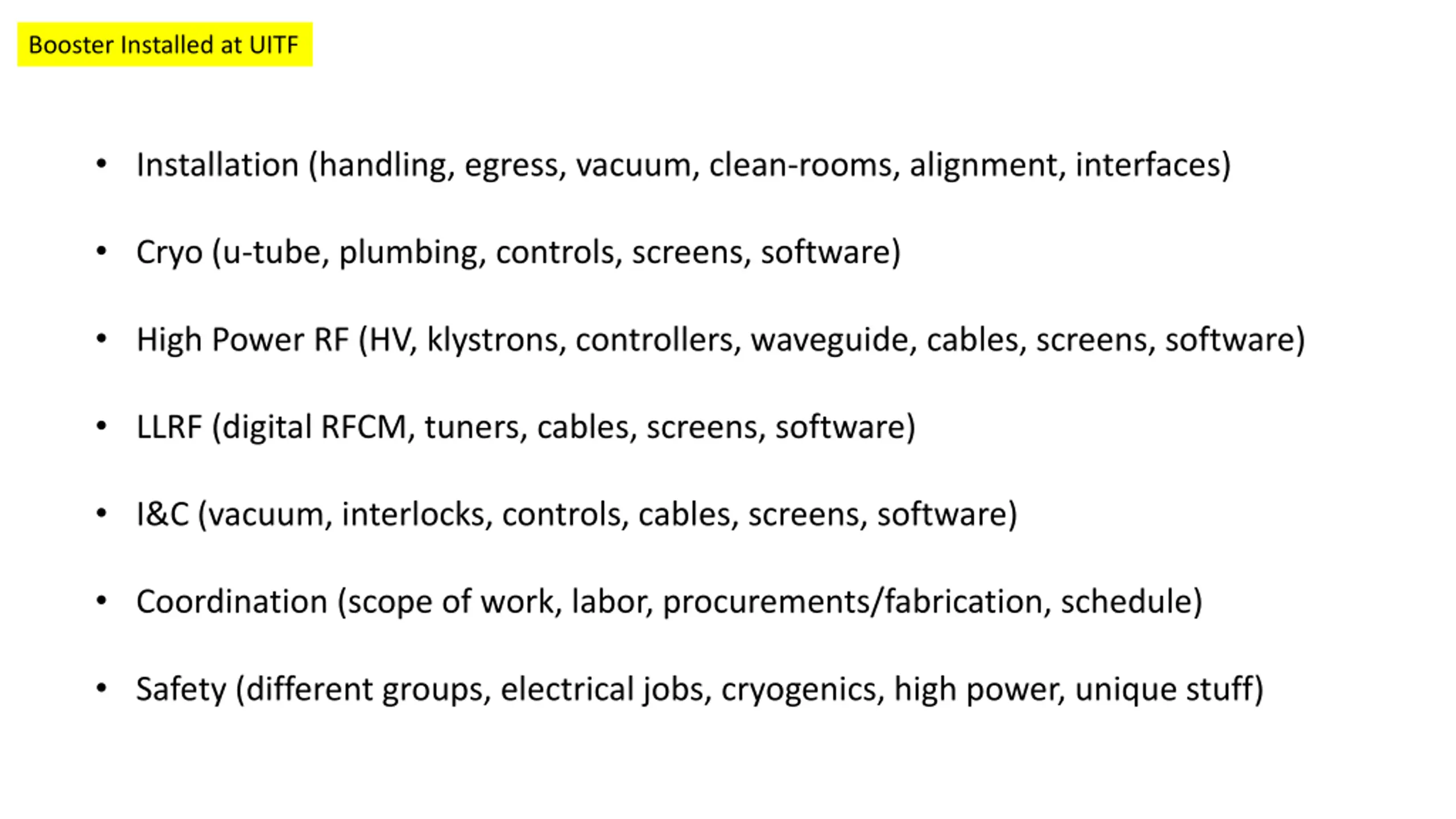

  7. Booster Installed at UITF Installation (handling, egress, vacuum, clean-rooms, alignment, interfaces) Cryo (u-tube, plumbing, controls, screens, software) High Power RF (HV, klystrons, controllers, waveguide, cables, screens, software) LLRF (digital RFCM, tuners, cables, screens, software) I&C (vacuum, interlocks, controls, cables, screens, software) Coordination (scope of work, labor, procurements/fabrication, schedule) Safety (different groups, electrical jobs, cryogenics, high power, unique stuff)
