WebKit: A Comprehensive Overview

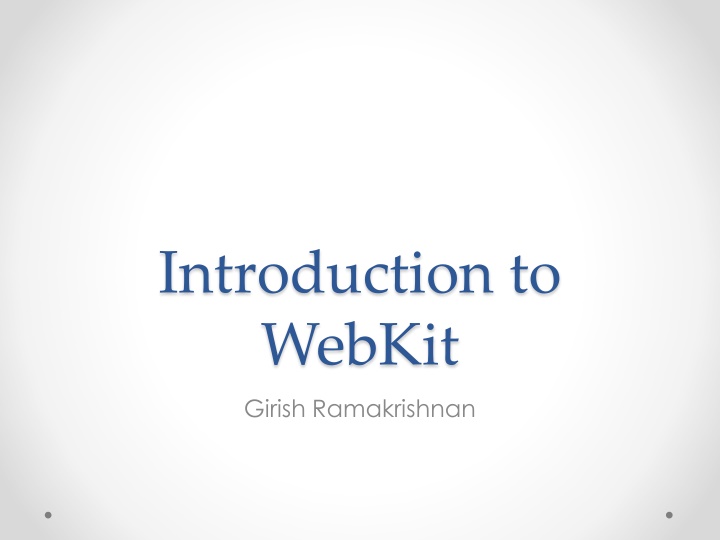

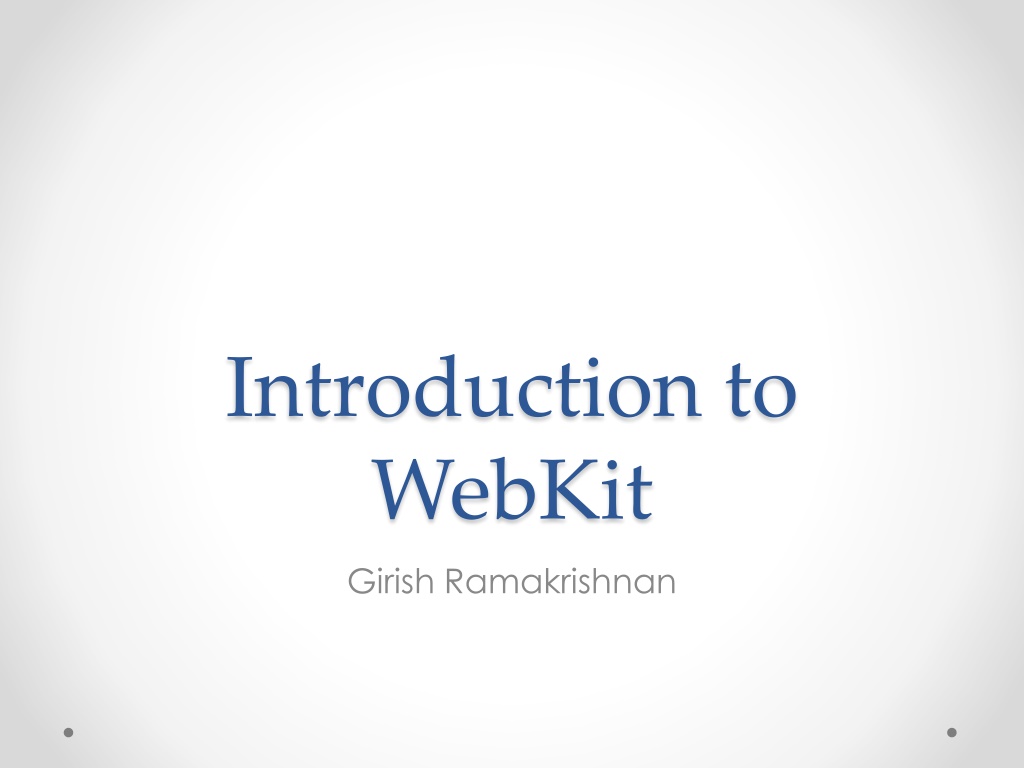

Introduction to
WebKit
Girish Ramakrishnan
History
1999
2001-3
2005
What is WebKit
WebKit is a rendering engine for web content
WebKit is not a browser, a science project, or the
solution to every problem
HTML
JavaScript
CSS
WebKit
Rendering of
a web page
Image stolen from
Adam Barth’s Presentation
WebKit ports
WebKit is designed to be highly portable
Bindings
(JavaScript API, Objective-C API)
Components
WebCore
(HTML, CSS, DOM, etc, etc)
WTF
(Data structures, Threading
primitives)
Platform
(Network, Storage, Graphics)
JavaScriptCore
(JavaScript Virtual Machine)
WebKit and WebKit2
(Embedding API)
Image stolen from
Adam Barth’s Presentation
WTF!?
•
The STL of WebKit project
o
Data structures
o
String
•
URL parser
•
Compiled as static lib
•
Minimal porting required (ifdef’s)
•
Source/WTF
JavaScriptCore
(AKA SFX and Nitro)
•
Primarily developed by Apple
•
Byte Level Interpreter (Llint)
•
Optional DFG JIT
•
Non-trivial to use a stand alone
•
Compiled as static lib
•
Source/JavaScriptCore
WebCore
•
HTML, CSS, XML, SVG ….
WebCore
•
Asks WebKit layer to load resource
•
Resource loading and frame loading are totally
separate
Network
Loader
Image stolen from
Adam Barth’s Presentation
WebCore
•
Fires off pre-load requests on the fly
•
XSS Auditor
Network
Loader
HTML Parser
WebCore
•
Parser generates DOM tree
Network
Loader
HTML Parser
DOM
Script
CSS
WebCore
•
Create RenderObjects using “Attachment”
Network
Loader
HTML Parser
DOM
Script
Render Tree
CSS
WebCore
•
CSS Style Computation
Network
Loader
HTML Parser
DOM
Script
Render Tree
CSS
RenderStyles
Image stolen from
Adam Barth’s Presentation
WebCore
•
CSS Style Computation
Network
Loader
HTML Parser
DOM
Script
Render Tree
CSS
RenderStyles
Image stolen from
Adam Barth’s Presentation
WebCore
Network
Loader
HTML Parser
DOM
Script
Render Tree
CSS
Layout
(RenderLayer,
LineBoxes)
RenderStyles
WebCore graphics
•
Accelerated Compositing
Image stolen from
Ariya Hidayat’s blogpost
WebCore Graphics
•
Tiled rendering
Image stolen from
Ariya Hidayat’s blogpost
WebCore
Directory structure is insightful
•
bindings (and idl files)
•
bridge
•
css
•
Dom
•
editing
•
history
•
html
•
icu
•
Inspector
•
loader
•
Platforms (graphics, network)
•
plugins
•
rendering
•
storage
•
svg
•
xml
WebCore Porting
•
Platforms/ implements port abstraction
o
Networking & Graphics
o
Time, DnD, Themes, Clipboard, UA
•
Many features like plugins require port specific
enhancements
o
Sprinkle ifdefs as necessary
o
Add dir/<port>/<file><port>.cpp
o
E.g history/qt/HistoryItemQt.cpp
WebCore Porting (2)
•
Client interfaces
o
Abstract interfaces implemented by the port
o
Used in place of ifdef’s when it’s useful for many ports
class GeolocationClient { virtual bool requestAccess() = 0; }void Page::setClient(GeolocationClient *c) { client = c; }bool Page::requestLocationAccess() { return client->requestAccess(); }// Qt
class GeolocationClientQt : public GeolocationClient { … }…
page->setClient(new GeolocationClientQt);
WebCore
•
Modules (battery, gelocation, indexeddb..)
•
Layout tests
•
Unit tests
WebKit
•
Platform specific code
o
APIs
o
WebCoreSupport
WebKit2
•
New async API that uses split process model
•
Developed by Apple
WebKit2
Image taken from
WebKit Wiki
WebKit2 vs Chrome
Image taken from
WebKit Wiki
Trying out WebKit
•
WebKit has no releases
•
Each port is compiled differently git.webkit.org
Thank you
•
Questions?
