Truss Inter-Force Calculation Illustrated Step-by-Step

In this detailed guide, we walk through the process of calculating inter-forces in a truss structure. Starting from setting up the assembly in Mechanism, to adding driving forces, analyzing forces through Force Balance, and finally determining the final result, each step is visually explained for easy understanding and implementation.

• Truss Analysis
• Mechanism Assembly
• Force Balance
• Structural Engineering
• Step-by-Step Guide

brey765 Follow

Uploaded on Nov 26, 2024 | 0 Views

Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

Presentation Transcript

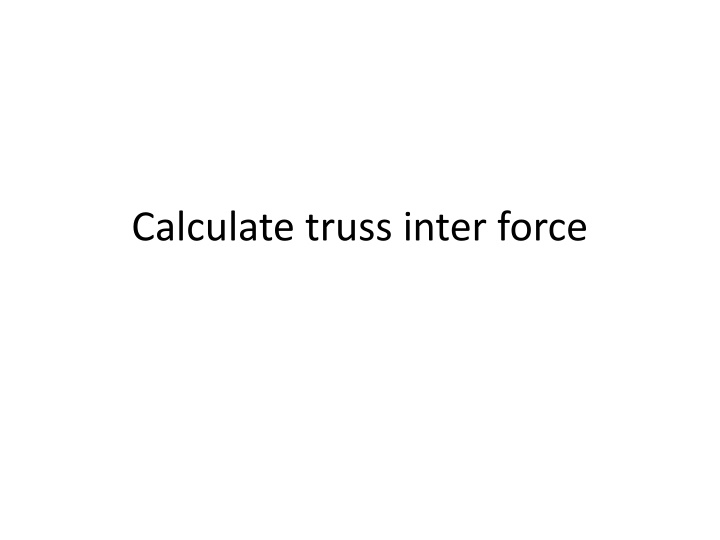

1. Calculate truss inter force

2. Target Represent the left question from Mechanical of Material colleague book

3. Create assy in Mechanism Except one using slider all other using pin to assembly DD install pin and slider

4. Assy finish Drag checking, can not move.

5. Open in Mechanism Add driving force, to simply and match book solution, setting magnitude to 1, direction is -Y

6. Add measure (KEYPOINT) Type: connection reaction Pick up chosen bar (CD in example) It is key point for the representation

7. Setting Analysis Type : force balance

8. Final result Force in bar CD is 1.333 driving force(match book solution -1.33mg)
