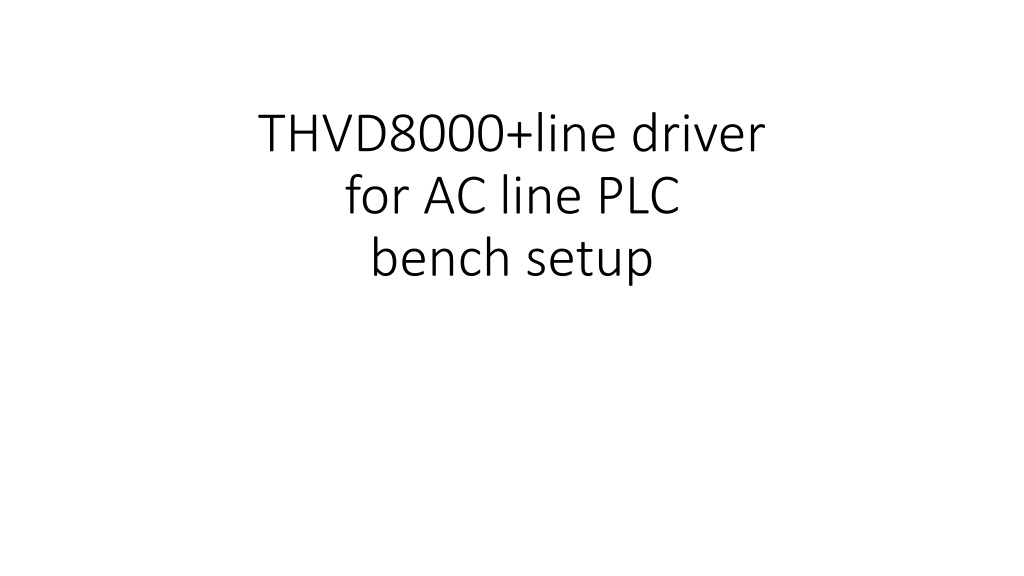

THVD8000 Line Driver for AC Line PLC Bench Setup


THVD8000+line driver
for AC line PLC
bench setup


Transmitting Path

Components: THVD8000EVM, THS6222EVM, AFE031 boostpack, one
transformer, one HV capacitor, UCC28880EVM
Signal path: THVD8000EVM => THS6222EVM => AFE031 boostpack =>
transformer/HV capacitor => AC line
Power: AC line => UCC28880EVM => THS6222EVM => AFE031
boostpack => THVD8000EVM

Signal: THVD8000 -> THS6222

TP4

TP3

J4

J3

Signal: THS6222 -> AFE031 boostpack
(AFE031 chip unpowered)

J5

PAOUT

Signal: AFE031 boostpack -> coupling circuit

Line Coupling +

Line Coupling -

Phase

Neutral

Power: UCC28880EVM -> THS6222EVM

Phase

Neutral

V+

V-

Power: THS6222EVM -> AFE031 boostpack

TB2

V+

V-

Power: AFE031 boostpack -> THVD8000EVM

GND

Vdd

GND

Vcc

Receiving Path

Components: THVD8000EVM, AFE031 boostpack, one transformer,
one HV capacitor, UCC28880EVM
Signal path: AC line => transformer/HV capacitor => AFE031
boostpack => THVD8000EVM
Power: AC line => UCC28880EVM => AFE031 boostpack =>
THVD8000EVM

Signal: coupling circuit -> AFE031 boostpack

Line Coupling +

Line Coupling -

Phase

Neutral

Signal: AFE031 boostpack -> THVD8000EVM
(AFE031 chip unpowered)

TP4

RXPGA1IN
Slide Note
Embed
Share

Explore the setup of THVD8000 line driver for AC line PLC, including transmitting and receiving paths, signal flow, power distribution, and components involved. Follow the signal path from THVD8000EVM to AFE031 boostpack, transformer, HV capacitor, and UCC28880EVM. Understand the power flow from AC line to THVD8000EVM via UCC28880EVM and AFE031 boostpack. Dive into signal transmission through THS6222EVM, coupling circuits, and more for a comprehensive insight.
