Detailed examination of the optical setup for an Optical Frequency Interferometer (OFI) system, including the input/output configurations with various optical components such as prisms, crystals, and wave plates. The analysis focuses on the path and behavior of beams within the system, considering reflections, refractions, clipping, and dumping of ghost beams by baffles. The images illustrate the layout and components of the OFI bench, providing insights into the design and functionality of the system.


Uploaded on Sep 14, 2024 | 0 Views


Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

E N D

Presentation Transcript

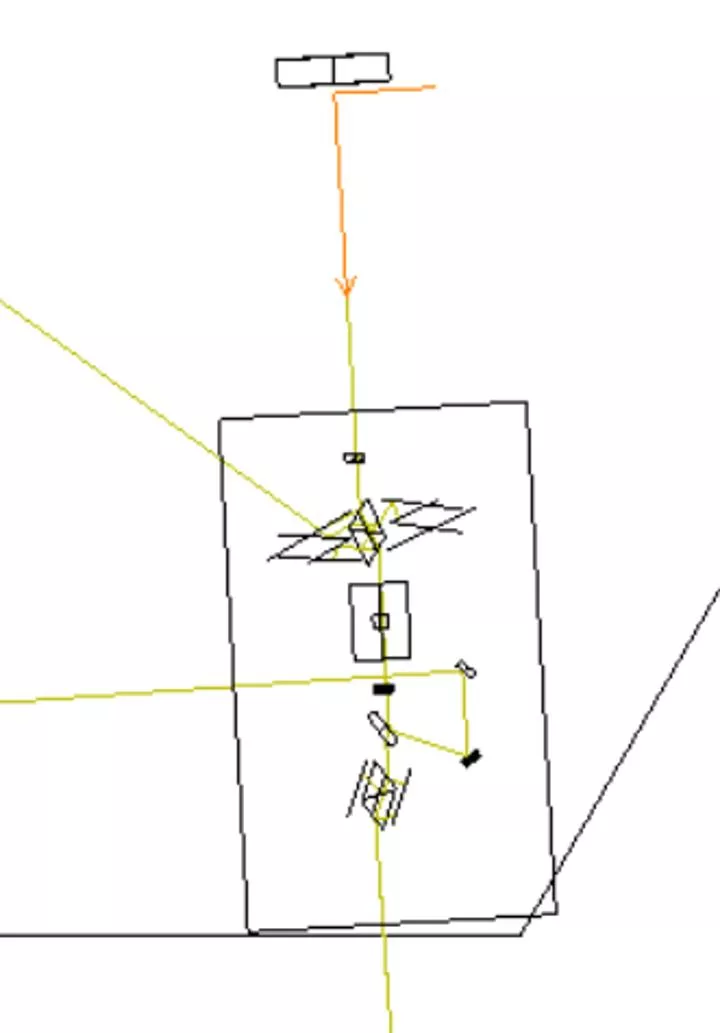

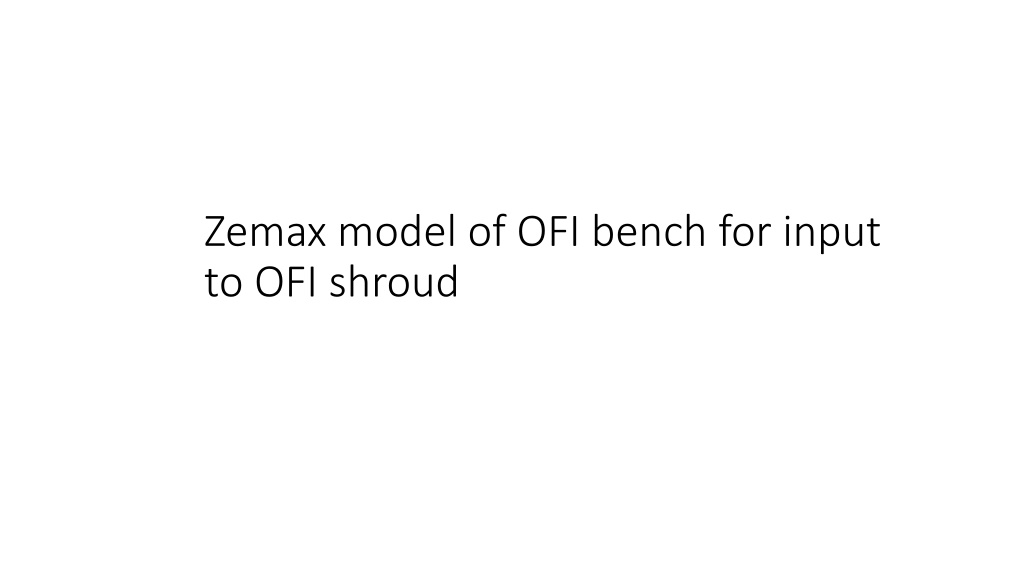

  1. Zemax model of OFI bench for input to OFI shroud

  2. Input Wedge ghost beam dumped on SRM- AR baffle

  3. Brewster prism 1storder dumped by W baffles

  4. TGG Crystal front face dumped by SRM-AR baffle

  5. TGG Crystal back face dumped by SRM-AR baffle

  6. Half Wave Plate No wedge? Ghost beam goes to SRM, reflected from HR face and returns. Makes it all the way back through OFI

  7. Output Brewster prism dumped by small baffles on OFI bench

  8. OFI SQZ M2 No wedge? Both TFP beams shown Both hit OFI SQZ M1 Similar path to TFP ghost beams, possible clipping on HWP

  9. OFI SQZ M1 No wedge? Both TFP beams shown Similar path to TFP ghost beams
