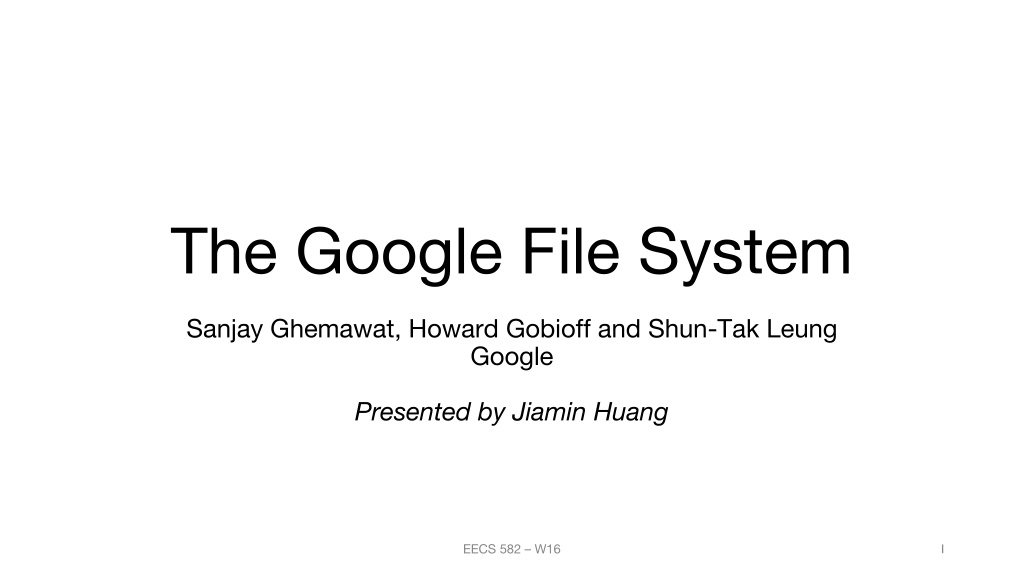

The Google File System Architecture
The Google File System
Sanjay Ghemawat, Howard Gobioff and Shun-Tak Leung
Presented by Jiamin Huang
EECS 582 – W16
1
•
Component failures are the norm
•
Files are huge
•
Appends are common; random writes are rare
•
Co-designing the applications and file system API increases
flexibility
Problem
2
Architecture
3
Master
•
Single master
•
Metadata
•
File and chunk namespaces
•
Mapping from files to chunks
•
Locations of each chunk’s replica
•
Replicate using operation log
•
Read-only shadow masters
4
Master operations
•
Namespace management using locks
•
Place chunk replicas across racks
•
Replicate chunks for higher availability
•
Moves chunks around for disk space and load balancing
•
Garbage collection
•
Deleted files
•
Stale replicas
•
Lazy reclaim
5
•
Multiple chunkservers
•
Free to join and leave
•
Stores actual data
•
Report chunk locations to master
•
Checksums the data for integrity
•
Replicated by the master
Chunkserver
6
Interface
•
Normal operations: create, delete, open, close, read, write
•
Additional operations
•
Snapshot
•
Create copy of file or directory tree
•
Copy-on-write
•
Record append
•
Atomic
•
Returns the offset to the client
7
System Interaction - Read
1.
Client sends file name and chunk index to master
•
Can be multiple chunks
2.
Master returns replica locations
•
May return locations for the next chunks
3.
Client sends request to a chunkserver
4.
Chunk servers returns the data
5.
Further reads require no client-master interaction
8
System Interaction - Write
1.
Master selects a primary chunkserver and grants a lease
2.
Client asks master the location of primary and secondaries
3.
Client pushes the data to all replicas
4.
All replicas reply to the client
5.
Client sends write request to primary
6.
Primary executes request, forwards it to secondaries
7.
Secondaries replay all mutations in the order of the primary
9
System Interaction - Append
•
Same as write
•
Primary pads the chunk if space is not enough and client
retries
•
Each append is at most ¼ of the chunk size
•
Large appends are broken into multiple operations
10
Consistency Model
•
Consistency level
•
Defined
•
Consistent
•
Inconsistent
•
Implications for applications
•
Rely on appends rather than overwrites
•
Checkpoint
•
Use self-validating, self-identifying records
11
Evaluation - Micro-benchmarks
12
Evaluation - Real world clusters
•
Cluster A
•
Research and Development
•
A few MBs to a few TBs of data
•
Tasks run up to hours
•
Cluster B
•
Production use
•
Continuously generate and process multi-TB data
•
Long running tasks
13
Storage and Metadata
14
Read/Write Rate
15
Recovery Time
•
Kill one chunkserver
•
15000 chunks containing 600 GB data
•
All chunks restored in 23.2 mins
•
Kill two chunkservers
•
Each with 16000 chunks and 660 GB data
•
Results in 266 single replicas
•
Single replicas restored to at least 2x within 2 mins
16
Conclusion
•
Some assumptions no longer hold
•
Failures are normal
•
Optimize for large files
•
Optimize for appends
•
Fault tolerance
•
Constant monitoring
•
Replication
•
Fast recovery
17
•
Bisection, high bandwidth network
•
Flat storage model
•
Non-blocking API
•
Single master, multiple tractservers
•
Deterministic data placement
•
Dynamic work allocation with small work unit
•
Parallel writes to all replicas
•
Parallel replication
Flat Datacenter Storage (FDS)
18
Tachyon
•
Pushes lineage into the storage layer
•
Lineage information is persisted before the actual data
•
Asynchronous, selective checkpointing
•
Leaves and hot files first
•
Resource allocation based on job priority
•
Uses client side caching to increase replication factor
19
Discussion
•
How should the design be changed to handle small files?
•
How to use multiple masters to avoid SPOF?
•
How can consistency be improved?
20
