Develop flows showing interaction between SMO modules in the context of open-source architecture using OSC, ONAP, and other code. The objective is to align open-source work with O-RAN trends, improve synergy, reduce duplication, and provide feedback to O-RAN discussions. Related work includes Decoupled SMO Architecture, Non-RT RIC Architecture, and OAM Architecture among others. Current drafts and figures showcase the latest progress in O-RAN SMO Architecture and OSC/ONAP projects related to SMO.


Uploaded on Mar 27, 2024 | 4 Views


Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

E N D

Presentation Transcript

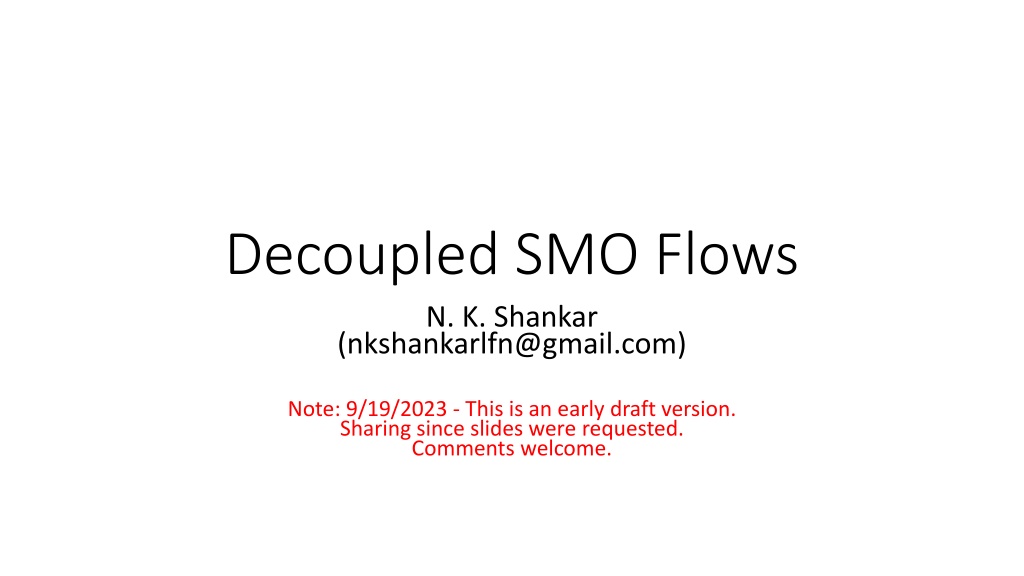

  1. Decoupled SMO Flows N. K. Shankar (nkshankarlfn@gmail.com) Note: 9/19/2023 - This is an early draft version. Sharing since slides were requested. Comments welcome.

  2. Disaggregated SMO Flows Objective Develop flows showing interaction between SMO modules, in the context of end-to-end open-source architecture/implementation using OSC, ONAP and other open-source code Motivation Align open-source work related to SMO with O-RAN trends, esp. ongoing Decoupled SMO Architecture Improve synergy, and reduce duplication, among projects Identify best practices and gaps (note: it is expected that open-source will not address all gaps) Provide feedback to O-RAN WG discussions

  3. Related work WG1 - Decoupled SMO Architecture (SMOF, SMOS) See following slides from WG2 Non-RT RIC Architecture, R1, A1, DME, SME, AIML WG6 O2 DMS, O2 IMS WG10 OAM Architecture, O1, OFH-MP OSC projects: oam, non-rt-ric, smo, aimlfw, sim, inf, etc. ONAP projects: sdn-c/sdn-r, ves, so, a1, cps, policy, acm, intent etc.

  4. Decoupled SMO latest SBA figure (from Annex A) Summary of all the SMOSs defined so far is available in section 6 of the DEC_SMO TR Figure 6.2.2 -1: SMOSs in the SMO SBA representation 4

  5. Current draft view of O-RAN SMO Architecture (June 2023) Active ongoing work External Interface External Interface SMO rApps Service Mgmnt & Exposure (SME) Data Mgmnt & Exposure (DME) Topology Exposure & Inv. Mgmnt (TE&IV) rApp R1 Services Management SMO Service Communications A1 related services Fed. O-Cloud Orch & Mgmnt (FOCOM) RAN NF FM RAN NF CM RAN NF PM Non-RT RIC NF Orch. (NFO) O1 A1 OFH-MP O2 O1 Nodes Near-RT RIC O-RU O-DU O-CU O-cloud Ref: O-RAN Decoupled SMO Architecture Decoupled SMO Architecture TR-R003-v01.00.09

  6. OSC and ONAP projects related to SMO (draft, expect changes) Relevant projects intent aimlfw int smo-pkg acm dcae sdc ? oof? idam a&ai security-framework 5gson non-rt-ric cps policy ? so smo e2e-slicing dmaap/kafka ves sdn-c non-rt-ric Notes: Figure is meant to explore alignment to O-RAN architecture Each red/blue label is an osc/onap open source project/component We may/do not have or need 1:1 mapping between projects and architecture blocks oam ran-sim sim sim inf Ref: OSC/ONAP SMO Framework: Exploring interactions among SMO-related projects in OSC and ONAP, https://wiki.o-ran-sc.org/download/attachments/3604609/OSC_ONAP_SMO_Framework_v5.pptx?api=v2

  7. Proposed SO&A SMOS and ZT loops (from Annex A) SMO rApp Topology & Inventory (TE&IV) Data Service Service Management and Exposure (SME) Management and Exposure (DME) Orchestration & Assurance (SO&A) R1 Services rApp Management TE&IV Services SME Services DME Services SMOS Communication ZT Automation A1 related services Network Function Orchestrator (NFO) RAN NF PM RAN NF CM RAN NF FM Federated O-Cloud Orchestration and Management (FOCOM) Non-RT RIC A1 O-FH/ M-Plane O2 Near-RT RIC O1 O-Cloud O-RU O1 Nodes SMO Legend: Consumption of services Services specified or under development in O-RAN External interface Synergies between capabilities, typically handled together SMO capabilities (candidate SMOS) O-RAN defined interface Production of services 7

  8. Decoupled SMO background SMOSs (from Annex A) SMO SERVICES (SMOSs) IDENTIFIED SO FAR RAN NF OAM related SMOSs RAN NF Performance Assurance Management SMO Service (NFPM): Topology Exposure and Inventory Management (TE&IV) Visualization and optimization of the network rely upon knowing and maintaining the relationship between O-RAN resources (i.e., RAN network view). RAN NF Fault Supervision Management SMO Services (NFFM): Topology Exposure (TE) and Inventory Management (IV) services provide an up-to-date information of O- RAN resources and their relationships. RAN NF Provisioning Management SMO Services (NFCM): Pending WG10 WIs completion for more details Non-RT RIC related SMOSs rApps Service Management and Exposure SMOS O-Cloud resources management and orchestration related Network Function Orchestration SMOS (NFO) SMOS Federated O-Cloud Orchestration and Management (FOCOM) SMOS Service Management and Exposure (SME) Data Management and Exposure (DME) RAN analytics SMOS Network Slice Subnet Management SMOS 8

  9. Decoupled SMO background SMOFs (from Annex A) SMO FUNCTIONS (SMOFs) IDENTIFIED SO FAR RAN NF OAM SMO Function (RNOAMF) Produces RAN NF OAM SMO Services (NFPM, NFFM, NFCM) O-Cloud Resources Management and Orchestration SMO Function (ORMO SMOF) Produces NFO and FOCOM services Non-RT RIC SMOF SMOF interactions Certain SMOSs are expected to be leveraged by all SMOSs ONGOING PROPOSALS/DISCUSSIONS Discussion with WG2 rapporteurs and co-chair in Osaka about impacts to make SME and DME generic services, not limited to rApps consumption and non-RT RIC TIM.AO-2023.06.19-WG1-Decoupled_SMO_architecture_alignment_F2F.pptx Outcome: SME is ready to be used as generic SMOS, DME requires some changes in their APIs Service Orchestration (SO) and Service Assurance (SA) SMOSs Discussion paper in Osaka (see next slide), ATG decision to follow it with a joint CR: TES.AO-2023.06.02-WG1-I-DEC_SMO_TR_discussion-paper_SO_Automation-v01.pptx Policy Management in SMO Couple of discussion papers in Osaka, to be followed up by a WG1-WG6 joint session SMO/RAN domain vs Transport management domain (details in subsequent slides) 9

  10. Sequence Flows Sequence flows seem to be the best tool to capture interactions between SMOF/SMOS Proposed approach Review existing flows and interactions, and build on existing work Develop flows using latest terminology from DEC-SMO Take top-down approach to get the correct high-level structure Develop detailed flows in places where it makes sense Following slides show some examples of flows which need to be harmonized using SMOF/SMOS concepts DEC-SMO work - example of SMOF/SMOS concepts O-RAN WGs (WG10, WG2) OSC work

  11. Example 1: WG1 DEC-SMO RNOAMF Fault Supervision Use Case CR in WG1 DEC-SMO TR (approved 9/18) https://oranalliance.atlassian.net/wiki/download/attachments/ 2844918001/DCM.AO-2023.06.16-WG1-CR-0003-DEC_SMO- Fault%20Supervision-v06.docx?api=v2 Sequence diagram in Annex A Uses new SMOF/SMOS terminology RNOAMF (RAN NF OAM SMO Function) produces .. NFFM (NF Fault Management) SMO Service Interaction with Other SMOS consumer (e.g. rApp) SME O-RAN NF (O1 node)

  12. Example 2 WG1 DEC-SMO Topology Management CR in WG1 DEC-SMO (under review) RNOAMF (RAN NF OAM SMO Function) ORMO (O-Cloud Resources Management and Orchestration SMO Function) SO and TE&IV (Topology Exposure and Inventory Management ) SMOF Non-RT RIC SMO Function https://oranalliance.atlassian.net/wiki/download/attachments/2844918001/FJT.AO-2023.06.12-WG1-CR-0001-DEC_SMO-TR_topology_management_service-v04.docx?api=v2

  13. Example 3 WG10 OAM PM O-RAN.WG10.OAM-Architecture- R003-v10.00 Figure 4.2.2-2: Measurement Data File Consumption https://oranalliance.atlassian.net/wiki/download/attachments/ 2211610730/O-RAN.WG10.OAM-Architecture-R003- v10.00.00.docx?api=v2 Generic reference to: NFO OAM Functions Non-RT RIC O2 DMS

  14. Example 4 OSC PM Streaming example Collaboration between oam and non-rt-ric and sim projects in OSC - Interactions between rApp and .. OSC components in SMO Common and SMO OAM Message Router, PM Database, Topology Service, PM Coordination, PM Collector, VES Collector, OAM Controller .. OSC sim and RAN Network need to provide data sources for Topology and RAN Data https://wiki.o-ran-sc.org/display/OAM/PM+Streaming

  15. Example 5 O-RAN.WG2.Non-RT-RIC-ARCH- R003-v04.00 (July 2023) https://oranalliance.atlassian.net/wiki/download/attachments/ 2340816222/O-RAN.WG2.Non-RT-RIC-ARCH-R003- v04.00.docx?api=v2 Fig 10.4.2-3 Example workflow of AI/ML training Shows rApps interacting with following: All shown as non-anchored functions in SMO/Non-RT RIC as per current O- RAN specs AI/ML workflow functions (details of SMOF / SMOS status ongoing) DME (SMOS) Model repo (unspecified)

  16. More work needed!! Comments/participation welcome

  17. Annex A: Backgrund Reference: WG1 Overview of Decoupled SMO Architecture https://oranalliance.atlassian.net/wiki/download/attachments/2844918001/ERI- 2023-09-08-WG1_I_1ATG- Decoupled_SMO_architecture_overview_for_other_WGs_v01.pptx?api=v2

  18. Decoupled SMO architecture overview for WG11 Cristina Badulescu, Ericsson Septemebr 2023 (WG1 DEC_SMO TR rapporteurs: Cristina Badulescu; Li Xiang) 18

  19. Decoupled SMO background SMO services defined in WGs WG2, WG6 and WG10 have been defining SMO services: orchestration& cloudification OAM (FM, PM, CM/provisioning) Non-RT RIC and exposure to rApps for SMO functionality enhancement [DEC_SMO TR] Figure 4.1-2: Categories of SMOSs based on documented O-RAN SMO capabilities 19

  20. Decoupled SMO background External terminations Existing services of SME and DME enabling service and data exposure both internally and externally [DEC_SMO TR] Figure 4.2-1: SMO external terminations 20

  21. Decoupled SMO background decision for SBA approach ATG decision to approach the SMO architecture in an SBA manner SMO Service (SMOS): Standardized cohesive set of management, orchestration and automation capabilities offered by an SMO Function. SMO Functions (SMOFs): Internal SMO entities which provide one or more SMO Services. Note: An SMO Function exposes standardized interfaces which enable interoperability between SMO Functions [DEC_SMO TR] Figure 4.1-3: SBA representation of the documented SMO services in July 2022 specifications 21

  22. Decoupled SMO latest SBA figure Summary of all the SMOSs defined so far is available in section 6 of the DEC_SMO TR Figure 6.2.2 -1: SMOSs in the SMO SBA representation 22

  23. Decoupled SMO background SMOSs SMO SERVICES (SMOSs) IDENTIFIED SO FAR RAN NF OAM related SMOSs RAN NF Performance Assurance Management SMO Service (NFPM): Topology Exposure and Inventory Management (TE&IV) Visualization and optimization of the network rely upon knowing and maintaining the relationship between O-RAN resources (i.e., RAN network view). RAN NF Fault Supervision Management SMO Services (NFFM): Topology Exposure (TE) and Inventory Management (IV) services provide an up-to-date information of O- RAN resources and their relationships. RAN NF Provisioning Management SMO Services (NFCM): Pending WG10 WIs completion for more details Non-RT RIC related SMOSs rApps Service Management and Exposure SMOS O-Cloud resources management and orchestration related Network Function Orchestration SMOS (NFO) SMOS Federated O-Cloud Orchestration and Management (FOCOM) SMOS Service Management and Exposure (SME) Data Management and Exposure (DME) RAN analytics SMOS Network Slice Subnet Management SMOS 23

  24. Decoupled SMO background SMOFs SMO FUNCTIONS (SMOFs) IDENTIFIED SO FAR RAN NF OAM SMO Function (RNOAMF) Produces RAN NF OAM SMO Services (NFPM, NFFM, NFCM) O-Cloud Resources Management and Orchestration SMO Function (ORMO SMOF) Produces NFO and FOCOM services Non-RT RIC SMOF SMOF interactions Certain SMOSs are expected to be leveraged by all SMOSs ONGOING PROPOSALS/DISCUSSIONS Discussion with WG2 rapporteurs and co-chair in Osaka about impacts to make SME and DME generic services, not limited to rApps consumption and non-RT RIC TIM.AO-2023.06.19-WG1-Decoupled_SMO_architecture_alignment_F2F.pptx Outcome: SME is ready to be used as generic SMOS, DME requires some changes in their APIs Service Orchestration (SO) and Service Assurance (SA) SMOSs Discussion paper in Osaka (see next slide), ATG decision to follow it with a joint CR: TES.AO-2023.06.02-WG1-I-DEC_SMO_TR_discussion-paper_SO_Automation-v01.pptx Policy Management in SMO Couple of discussion papers in Osaka, to be followed up by a WG1-WG6 joint session SMO/RAN domain vs Transport management domain (details in subsequent slides) 24

  25. Proposed SO&A SMOS and ZT loops SMO rApp Topology & Inventory (TE&IV) Data Service Service Management and Exposure (SME) Management and Exposure (DME) Orchestration & Assurance (SO&A) R1 Services rApp Management TE&IV Services SME Services DME Services SMOS Communication ZT Automation A1 related services Network Function Orchestrator (NFO) RAN NF PM RAN NF CM RAN NF FM Federated O-Cloud Orchestration and Management (FOCOM) Non-RT RIC A1 O-FH/ M-Plane O2 Near-RT RIC O1 O-Cloud O-RU O1 Nodes SMO Legend: Consumption of services Services specified or under development in O-RAN External interface Synergies between capabilities, typically handled together SMO capabilities (candidate SMOS) O-RAN defined interface Production of services 25

  26. WG1-WG9 discussion in Osaka about SMO and TN Management interactions TN Mgmt exposed services TN Management Optics MW Packet L2/L3 Outcome: - WG9 was asked to define the services that TN Management domain exposes, so SMO can consume them - Examples of TN Management services to be exposed to other management domains such as SMO/RAN management: 1. Expose requests for TN with specific characteristics (e.g., 3GPP NRM containing the characteristics needed for TN, the attachment circuit definition) Expose abstracted TN topology that is relevant/consumable by SMO Expose some FCAPS that are relevant for SMO to understand the SLA fulfilment level for TN (e.g., enable monitoring FM, PM for TN by the SMO) 2. 3. 26

  27. Latest WG1 ATG Architecture related documents O-RAN Architecture Description latest draft: O-RAN.WG1.OAD-R003-v10.00.docx Decoupled SMO architecture TR latest draft: O-RAN-WG1.Decoupled-SMO-Architecture-TR-v01.00.09.zip 27
