Synchronous and Asynchronous Counters in Digital Electronics
Counters:
Two types
of
counters:
Synchronous (parallel) counters
Asynchronous (ripple)
counters
Ripple counters
allow
some
flip-flop
outputs to be used
as a source of
clock
for
other flip-flops.
Synchronous counters apply
the
same clock to all
flip-flops.

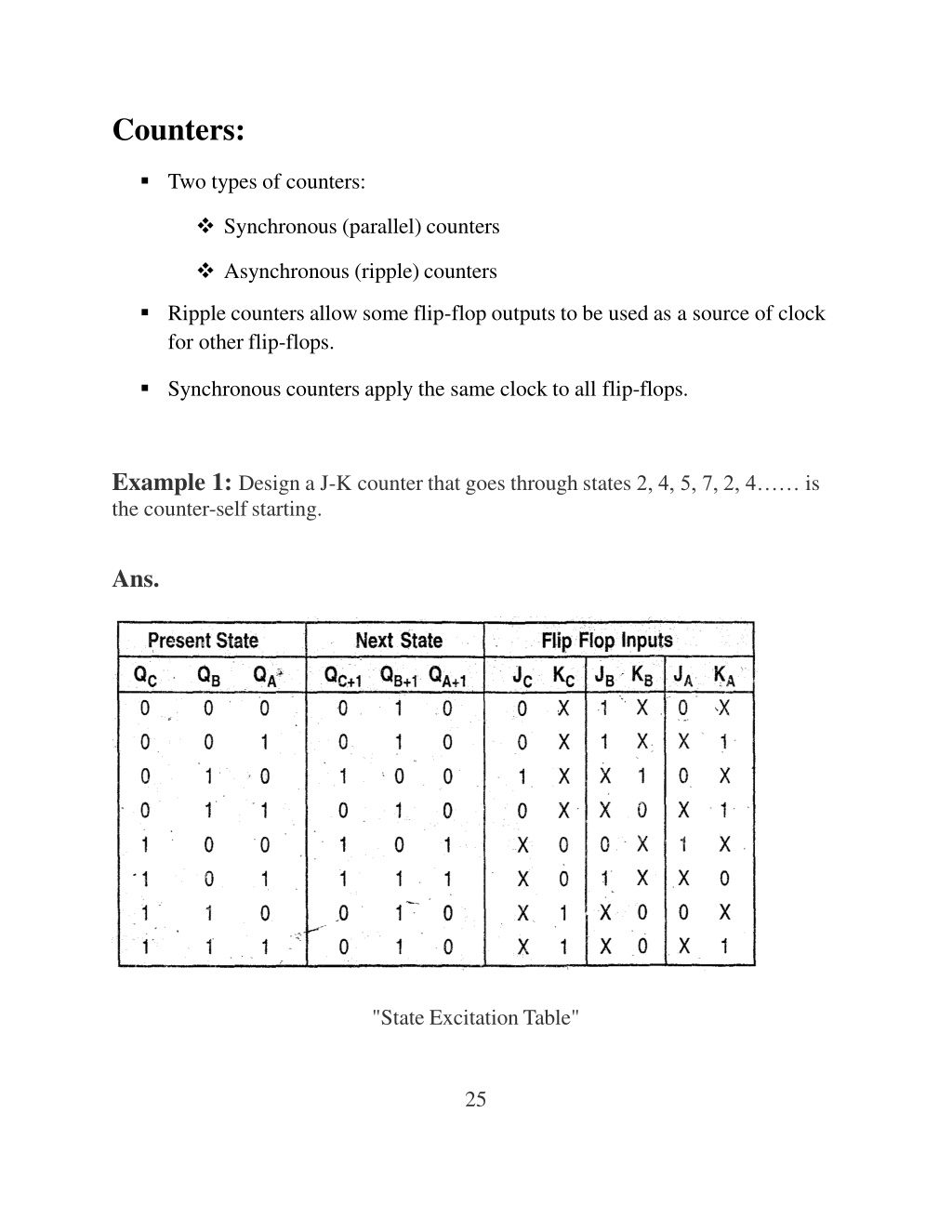

Example 1:
Design
a
J-K
counter that goes through states
2, 4, 5, 7, 2, 4……
is
the
counter-self
starting.
Ans.
"State Excitation
Table"
25
K
-
m
aps
:
Circuit
Diagram:
26
Example 2:
Design
an
up-down counter using
JK
Flip-flop
to
count
0, 2, 3, 6,
4,
0….
Ans.
Up-down counter counts
as
(0,
2, 3, 6, 4,
0,......).
"State Ecitation
Table"
K
-
m
aps
:
27
Circuit
diagram
:
