UNEP HFC Workshop Refrigeration Session 1, part 1 OVERVIEW Paulo Vodianitskaia paulo.vodia@hapiterra.com Bangkok, 20-21 April 2015

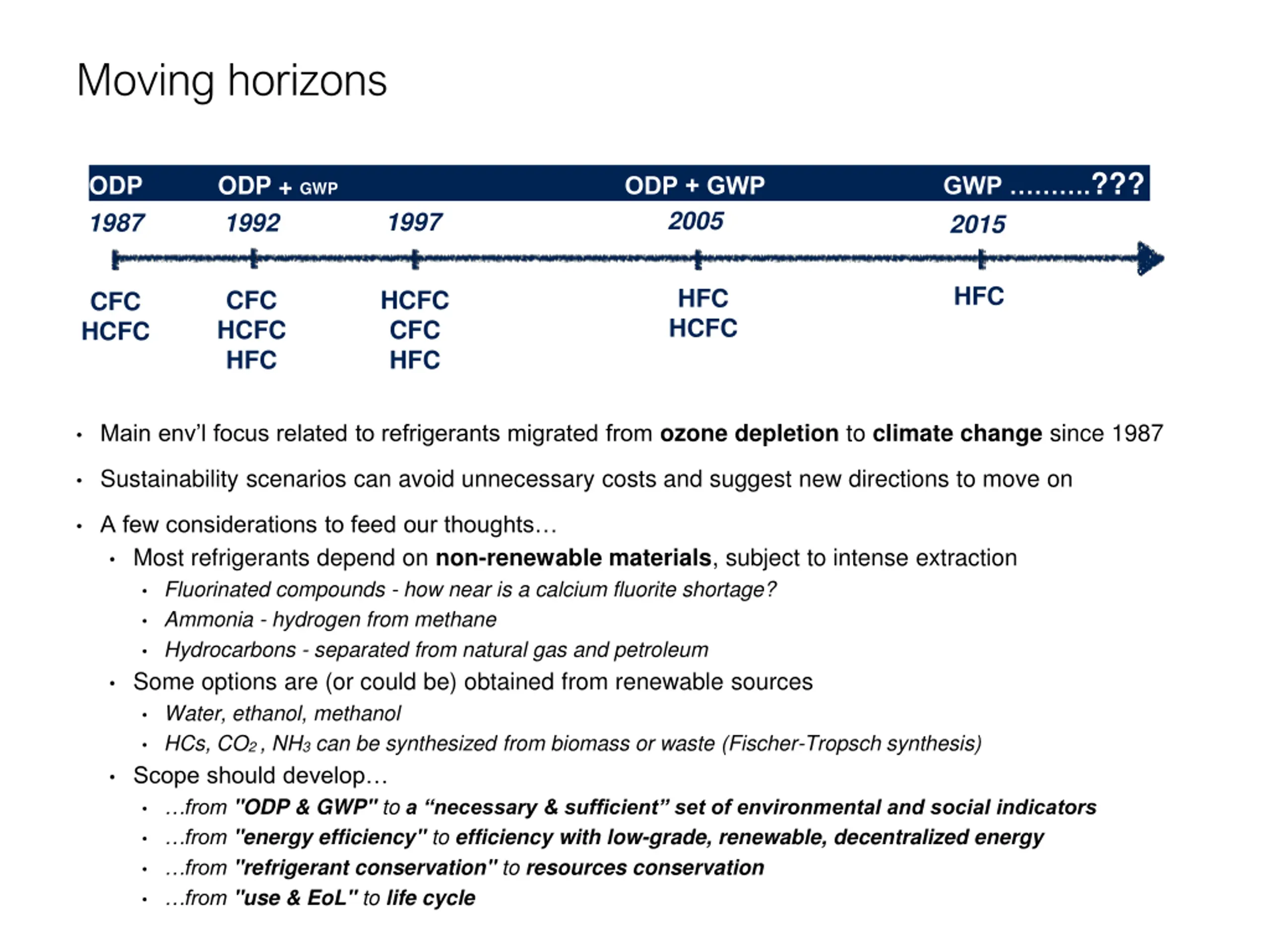

Moving horizons ODP ODP + GWPODP + GWP GWP .??? 2005 1997 1987 1992 2015 HFC HFC HCFC CFC HCFC HFC HCFC CFC HFC CFC HCFC Main env l focus related to refrigerants migrated from ozone depletion to climate change since 1987 Sustainability scenarios can avoid unnecessary costs and suggest new directions to move on A few considerations to feed our thoughts Most refrigerants depend on non-renewable materials, subject to intense extraction Fluorinated compounds - how near is a calcium fluorite shortage? Ammonia - hydrogen from methane Hydrocarbons - separated from natural gas and petroleum Some options are (or could be) obtained from renewable sources Water, ethanol, methanol HCs, CO2 , NH3 can be synthesized from biomass or waste (Fischer-Tropsch synthesis) Scope should develop from "ODP & GWP" to a necessary & sufficient set of environmental and social indicators from "energy efficiency" to efficiency with low-grade, renewable, decentralized energy from "refrigerant conservation" to resources conservation from "use & EoL" to life cycle

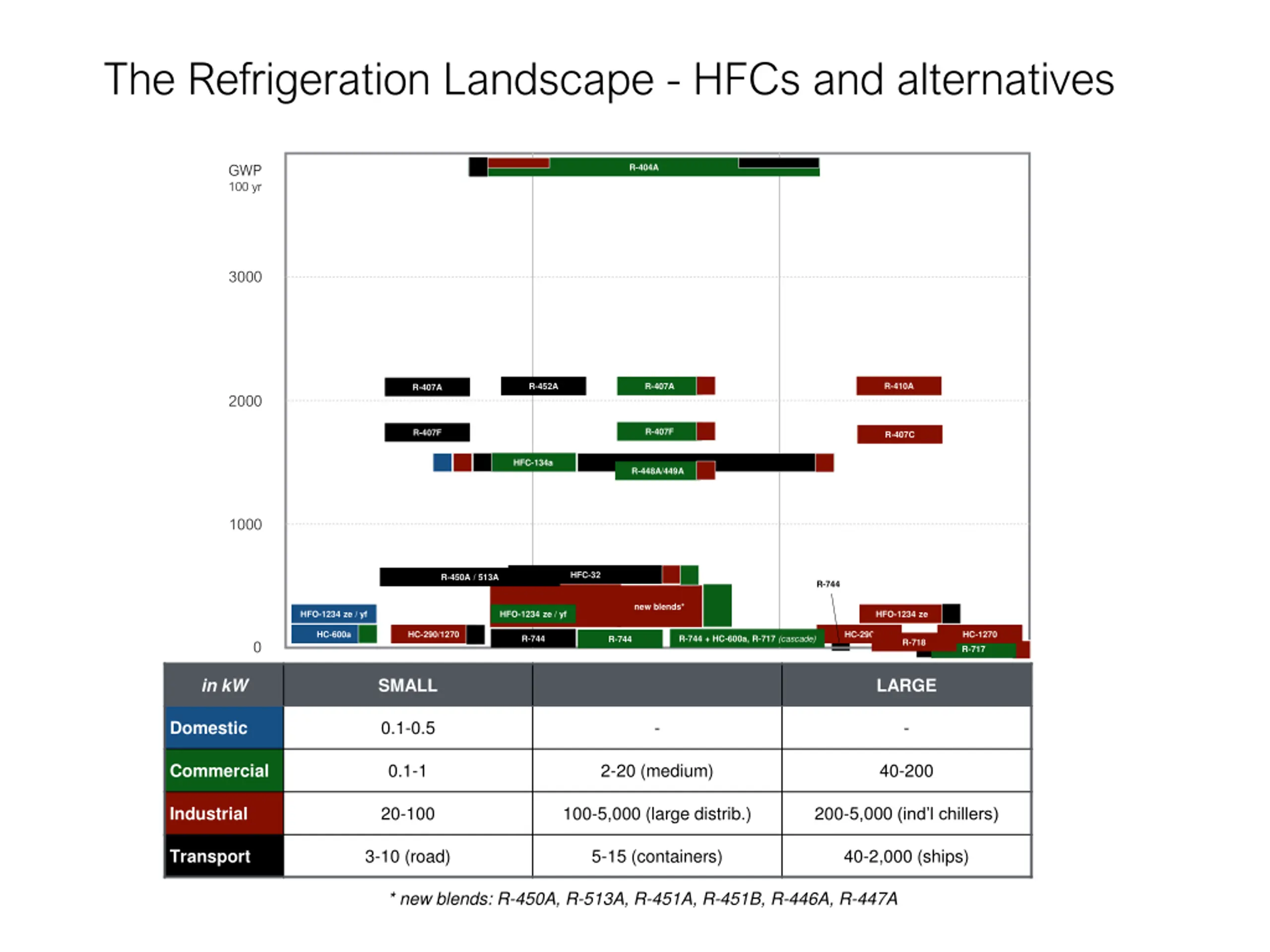

The Refrigeration Landscape - HFCs and alternatives GWP 100 yr R-404A 3000 R-410A R-452A R-407A R-407A 2000 R-407F R-407F R-407C HFC-134a R-448A/449A 1000 HFC-32 R-450A / 513A R-744 new blends* HFO-1234 ze / yf HFO-1234 ze / yf HFO-1234 ze HC-600a HC-290/1270 HC-290 HC-1270 R-744 + HC-600a, R-717 (cascade) R-744 R-744 R-718 0 R-717 in kW SMALL LARGE 0.1-0.5 - - Domestic 0.1-1 2-20 (medium) 40-200 Commercial 20-100 100-5,000 (large distrib.) 200-5,000 (ind l chillers) Industrial 3-10 (road) 5-15 (containers) 40-2,000 (ships) Transport * new blends: R-450A, R-513A, R-451A, R-451B, R-446A, R-447A

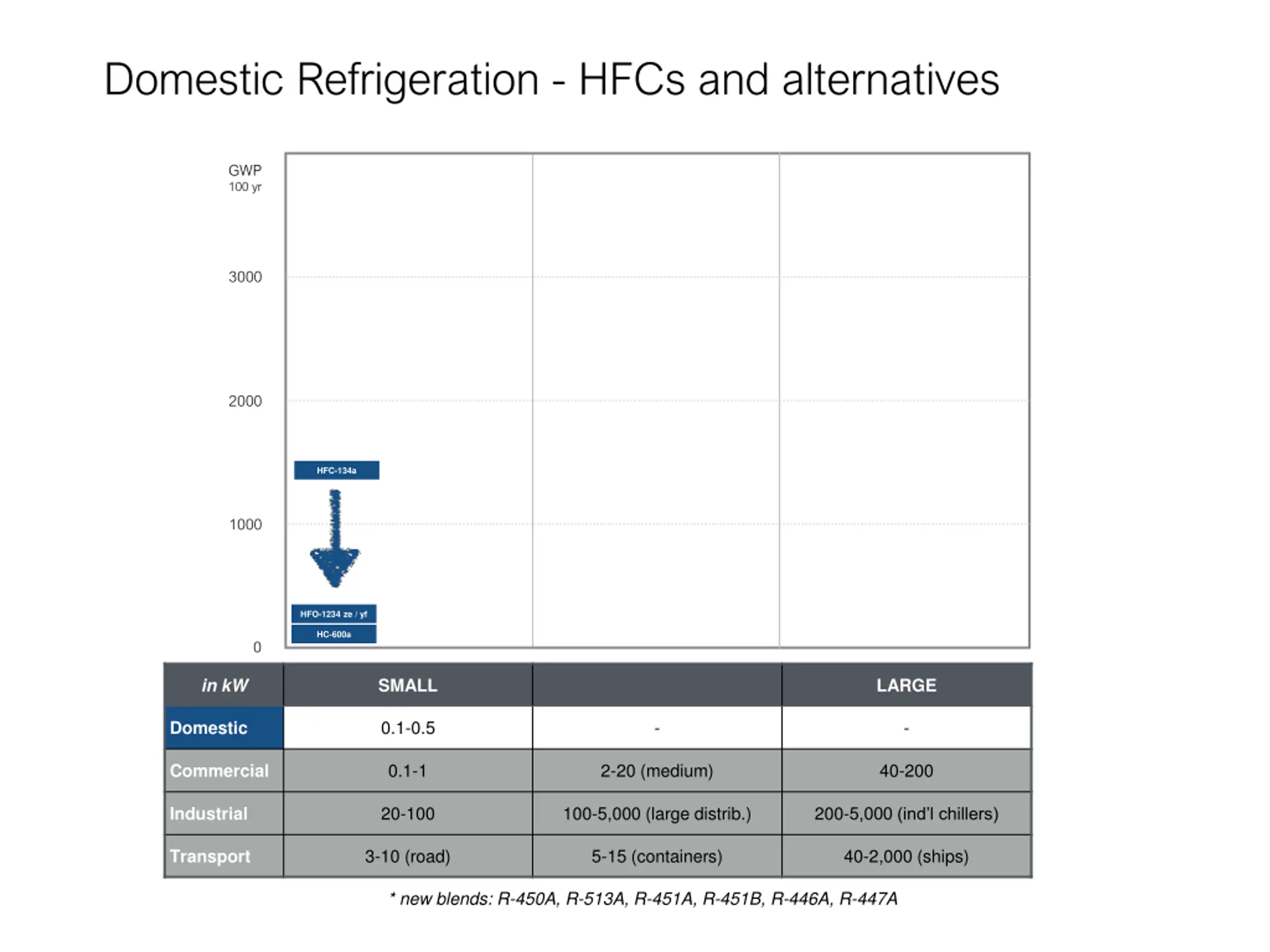

Domestic Refrigeration - HFCs and alternatives GWP 100 yr 3000 2000 HFC-134a 1000 HFO-1234 ze / yf HC-600a 0 in kW SMALL LARGE 0.1-0.5 - - Domestic 0.1-1 2-20 (medium) 40-200 Commercial 20-100 100-5,000 (large distrib.) 200-5,000 (ind l chillers) Industrial 3-10 (road) 5-15 (containers) 40-2,000 (ships) Transport * new blends: R-450A, R-513A, R-451A, R-451B, R-446A, R-447A

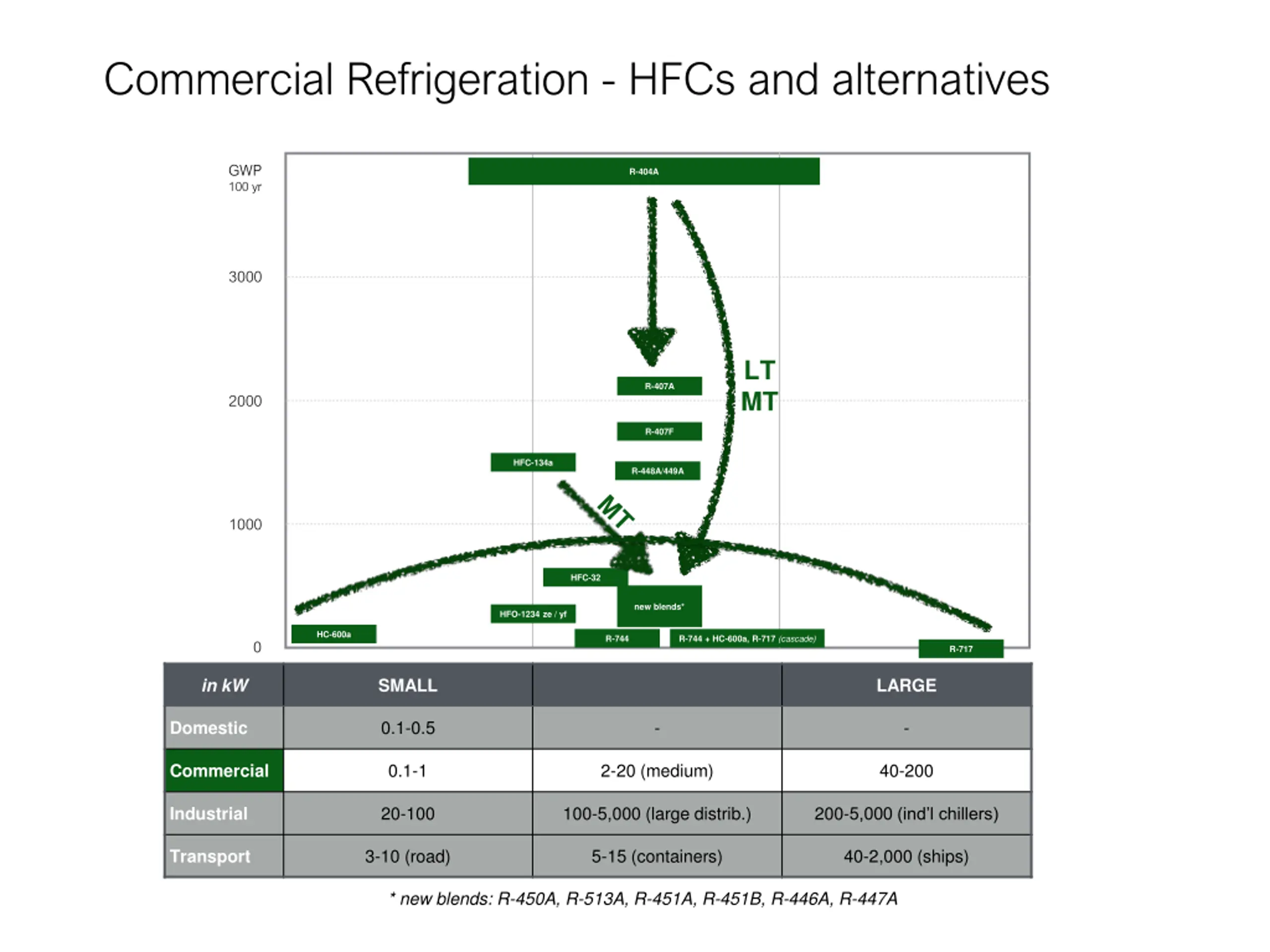

Commercial Refrigeration - HFCs and alternatives GWP 100 yr R-404A 3000 LT MT R-407A 2000 R-407F HFC-134a R-448A/449A 1000 HFC-32 new blends* HFO-1234 ze / yf HC-600a R-744 + HC-600a, R-717 (cascade) R-744 0 R-717 in kW SMALL LARGE 0.1-0.5 - - Domestic 0.1-1 2-20 (medium) 40-200 Commercial 20-100 100-5,000 (large distrib.) 200-5,000 (ind l chillers) Industrial 3-10 (road) 5-15 (containers) 40-2,000 (ships) Transport * new blends: R-450A, R-513A, R-451A, R-451B, R-446A, R-447A

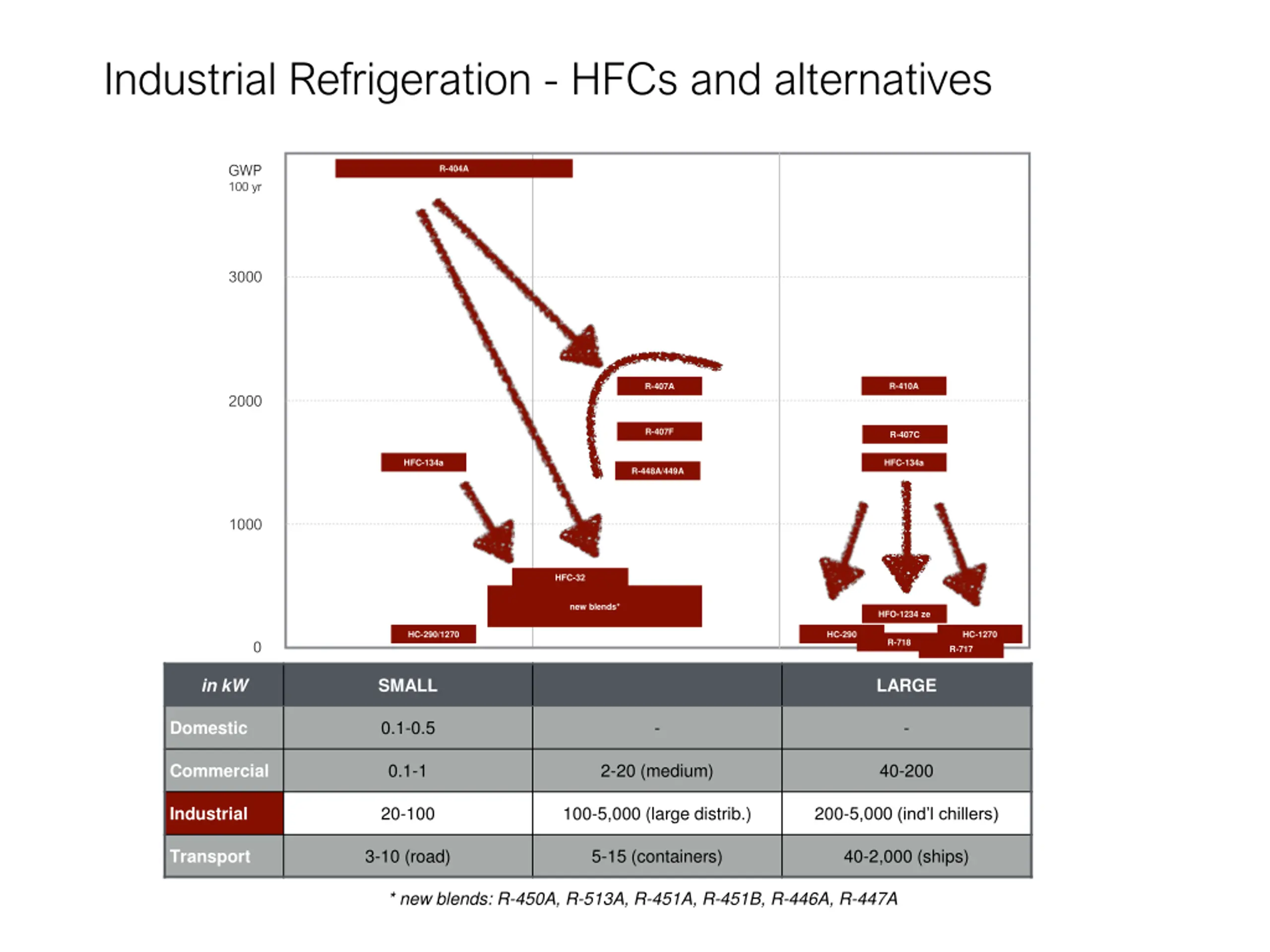

Industrial Refrigeration - HFCs and alternatives GWP 100 yr R-404A 3000 R-410A R-407A 2000 R-407F R-407C HFC-134a HFC-134a R-448A/449A 1000 HFC-32 new blends* HFO-1234 ze HC-290/1270 HC-290 HC-1270 R-718 0 R-717 in kW SMALL LARGE 0.1-0.5 - - Domestic 0.1-1 2-20 (medium) 40-200 Commercial 20-100 100-5,000 (large distrib.) 200-5,000 (ind l chillers) Industrial 3-10 (road) 5-15 (containers) 40-2,000 (ships) Transport * new blends: R-450A, R-513A, R-451A, R-451B, R-446A, R-447A

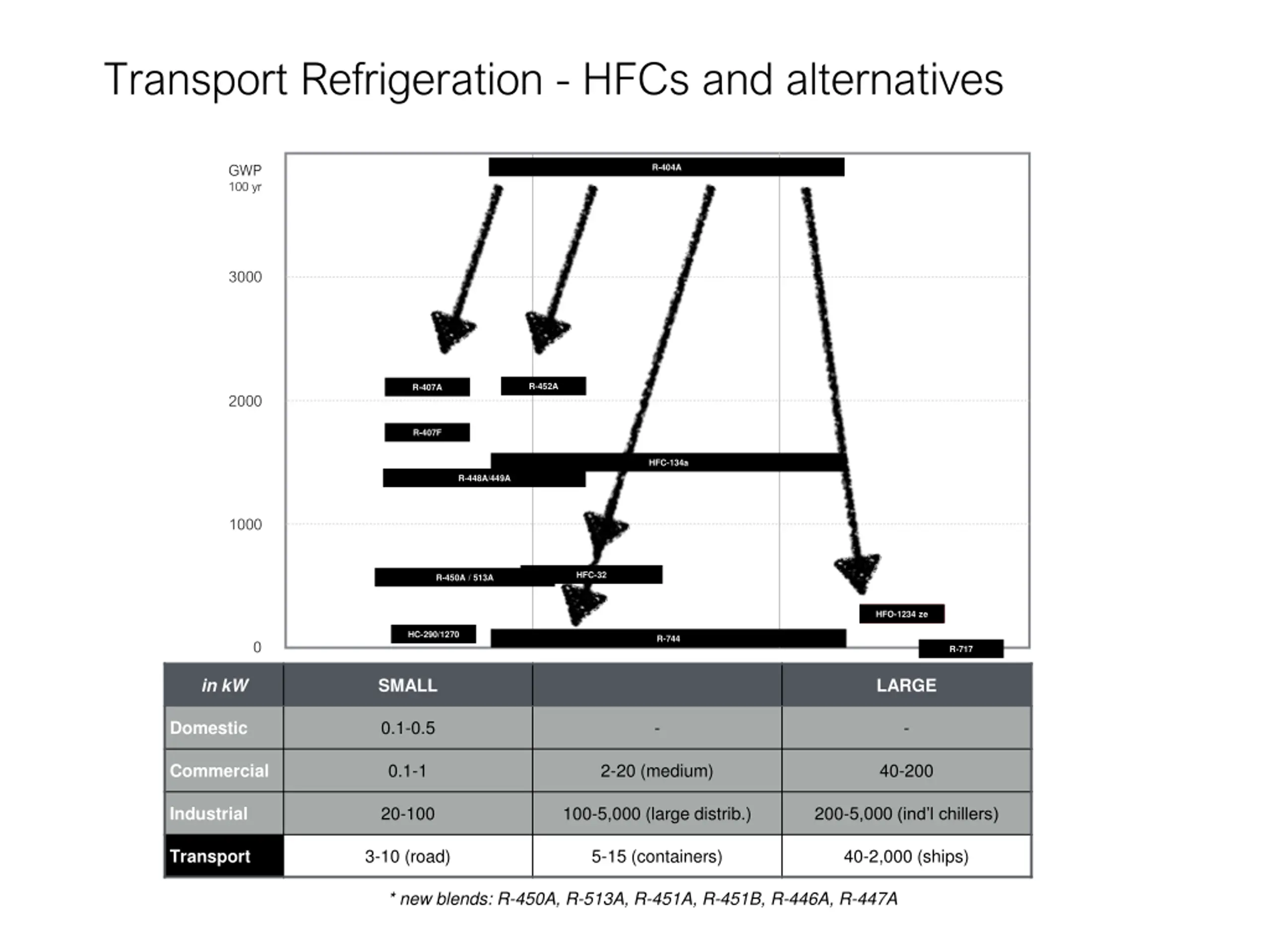

Transport Refrigeration - HFCs and alternatives GWP 100 yr R-404A 3000 R-452A R-407A 2000 R-407F HFC-134a R-448A/449A 1000 HFC-32 R-450A / 513A HFO-1234 ze HFO-1234 ze HC-290/1270 R-744 0 R-717 in kW SMALL LARGE 0.1-0.5 - - Domestic 0.1-1 2-20 (medium) 40-200 Commercial 20-100 100-5,000 (large distrib.) 200-5,000 (ind l chillers) Industrial 3-10 (road) 5-15 (containers) 40-2,000 (ships) Transport * new blends: R-450A, R-513A, R-451A, R-451B, R-446A, R-447A

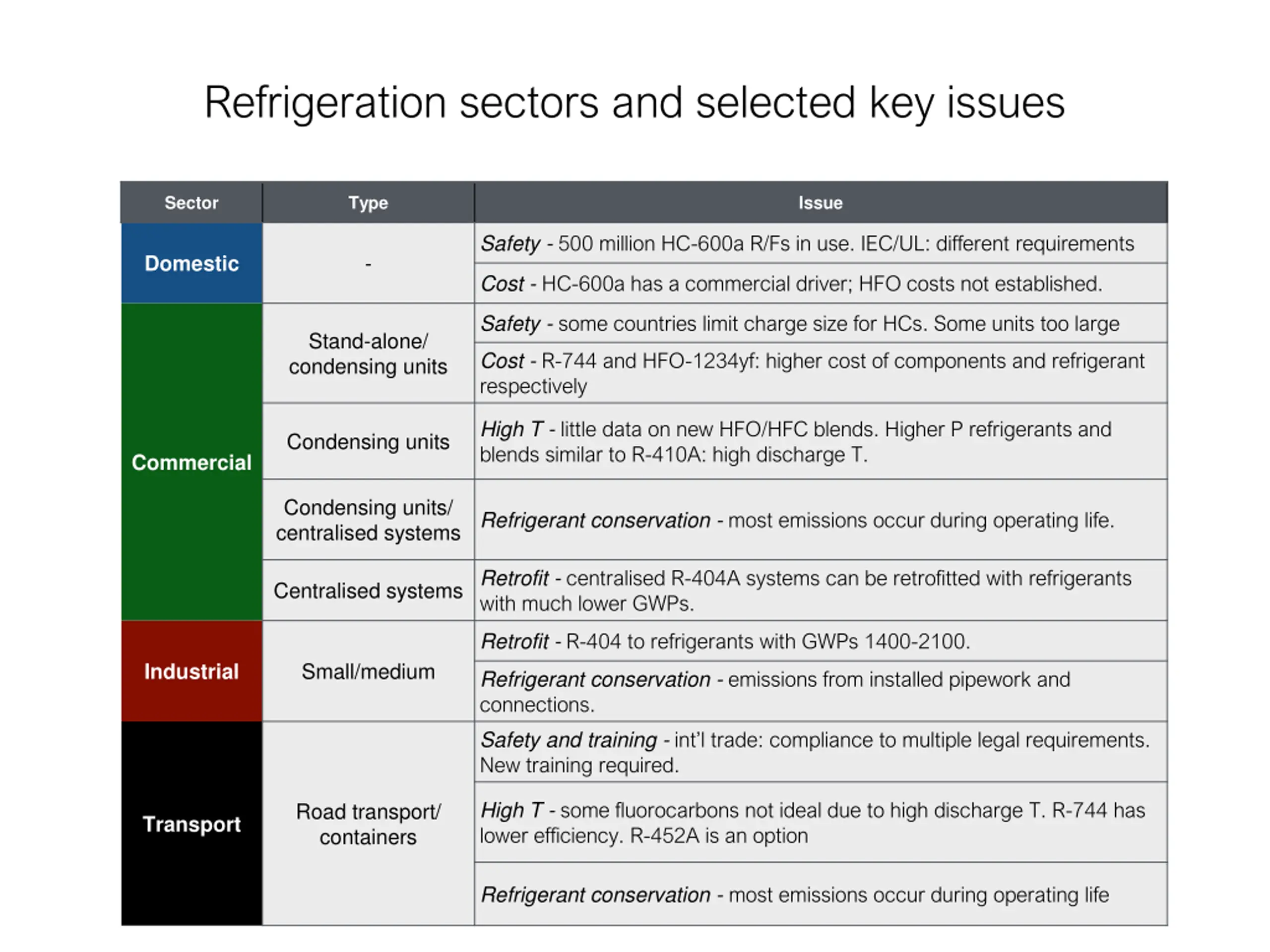

Refrigeration sectors and selected key issues Sector Type Issue Safety - 500 million HC-600a R/Fs in use. IEC/UL: different requirements - Domestic Cost - HC-600a has a commercial driver; HFO costs not established. Safety - some countries limit charge size for HCs. Some units too large Stand-alone/ condensing units Cost - R-744 and HFO-1234yf: higher cost of components and refrigerant respectively High T - little data on new HFO/HFC blends. Higher P refrigerants and blends similar to R-410A: high discharge T. Condensing units Commercial Condensing units/ centralised systems Refrigerant conservation - most emissions occur during operating life. Retrofit - centralised R-404A systems can be retrofitted with refrigerants with much lower GWPs. Centralised systems Retrofit - R-404 to refrigerants with GWPs 1400-2100. Small/medium Industrial Refrigerant conservation - emissions from installed pipework and connections. Safety and training -int l trade: compliance to multiple legal requirements. New training required. High T - some fluorocarbons not ideal due to high discharge T. R-744 has lower efficiency. R-452A is an option Road transport/ containers Transport Refrigerant conservation - most emissions occur during operating life
