Finding the Radius of the Earth Experiment at Gloucestershire College on Tuesday 11thMarch 2014

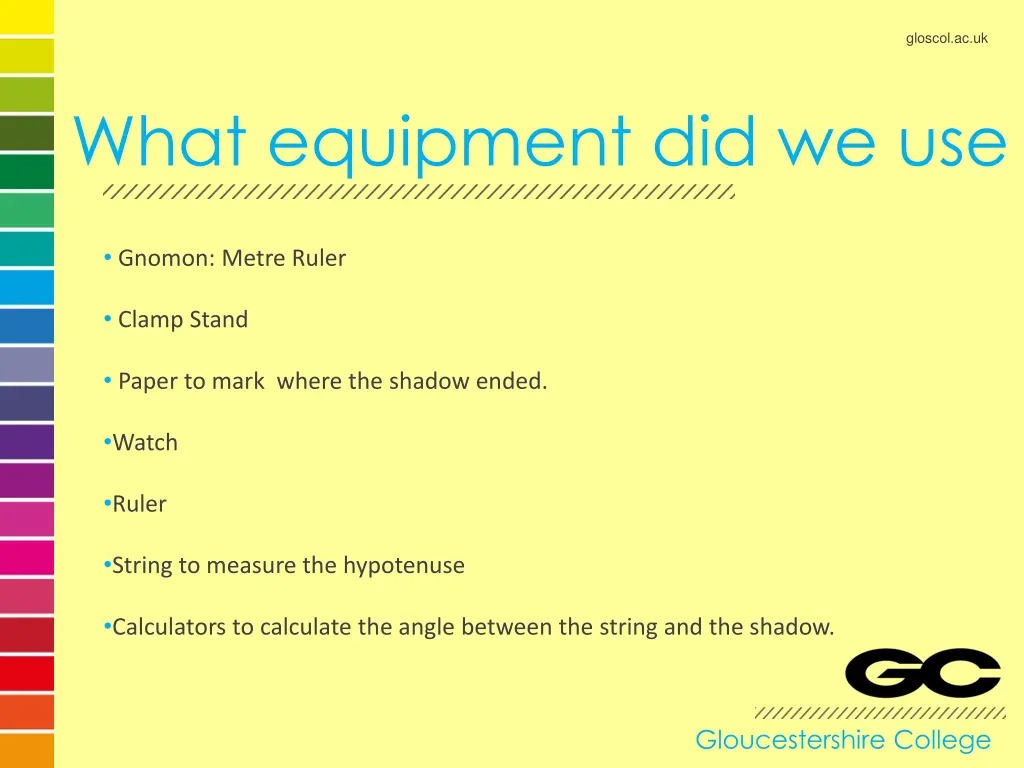

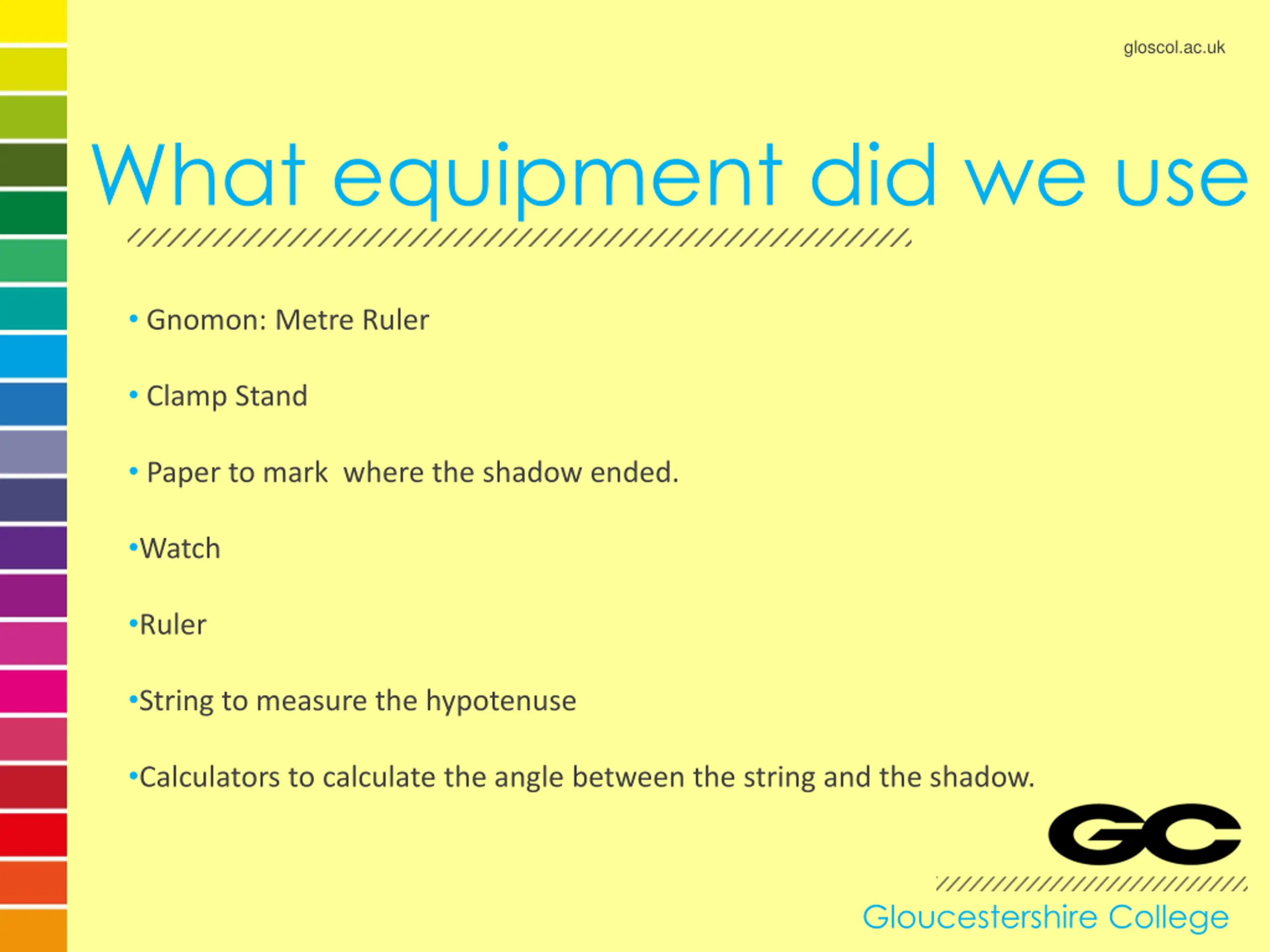

gloscol.ac.uk What equipment did we use Gnomon: Metre Ruler Clamp Stand Paper to mark where the shadow ended. Watch Ruler String to measure the hypotenuse Calculators to calculate the angle between the string and the shadow. Gloucestershire College

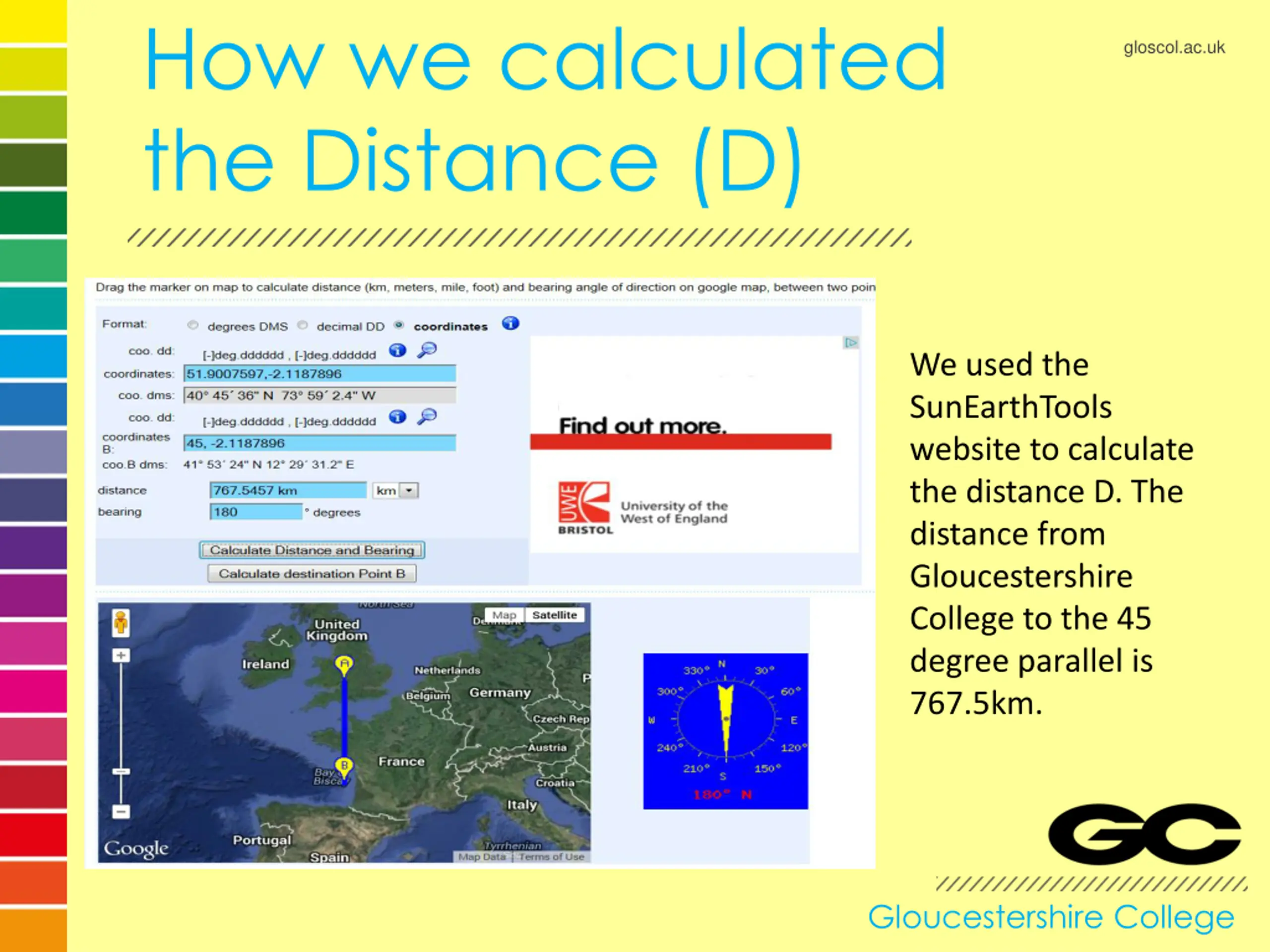

How we calculated the Distance (D) gloscol.ac.uk We used the SunEarthTools website to calculate the distance D. The distance from Gloucestershire College to the 45 degree parallel is 767.5km. Gloucestershire College

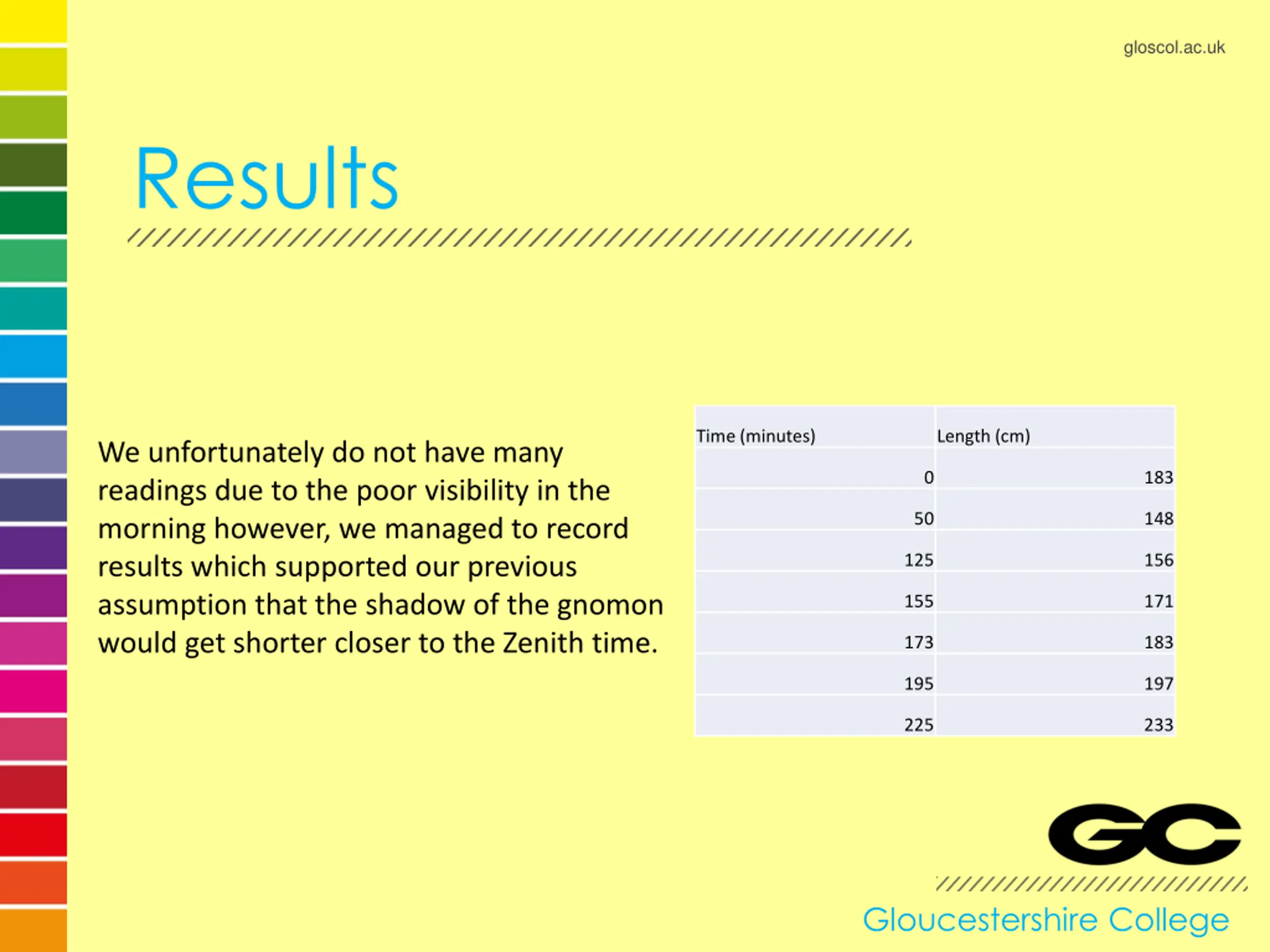

gloscol.ac.uk Results Time (minutes) Length (cm) We unfortunately do not have many readings due to the poor visibility in the morning however, we managed to record results which supported our previous assumption that the shadow of the gnomon would get shorter closer to the Zenith time. 0 183 50 148 125 156 155 171 173 183 195 197 225 233 Gloucestershire College

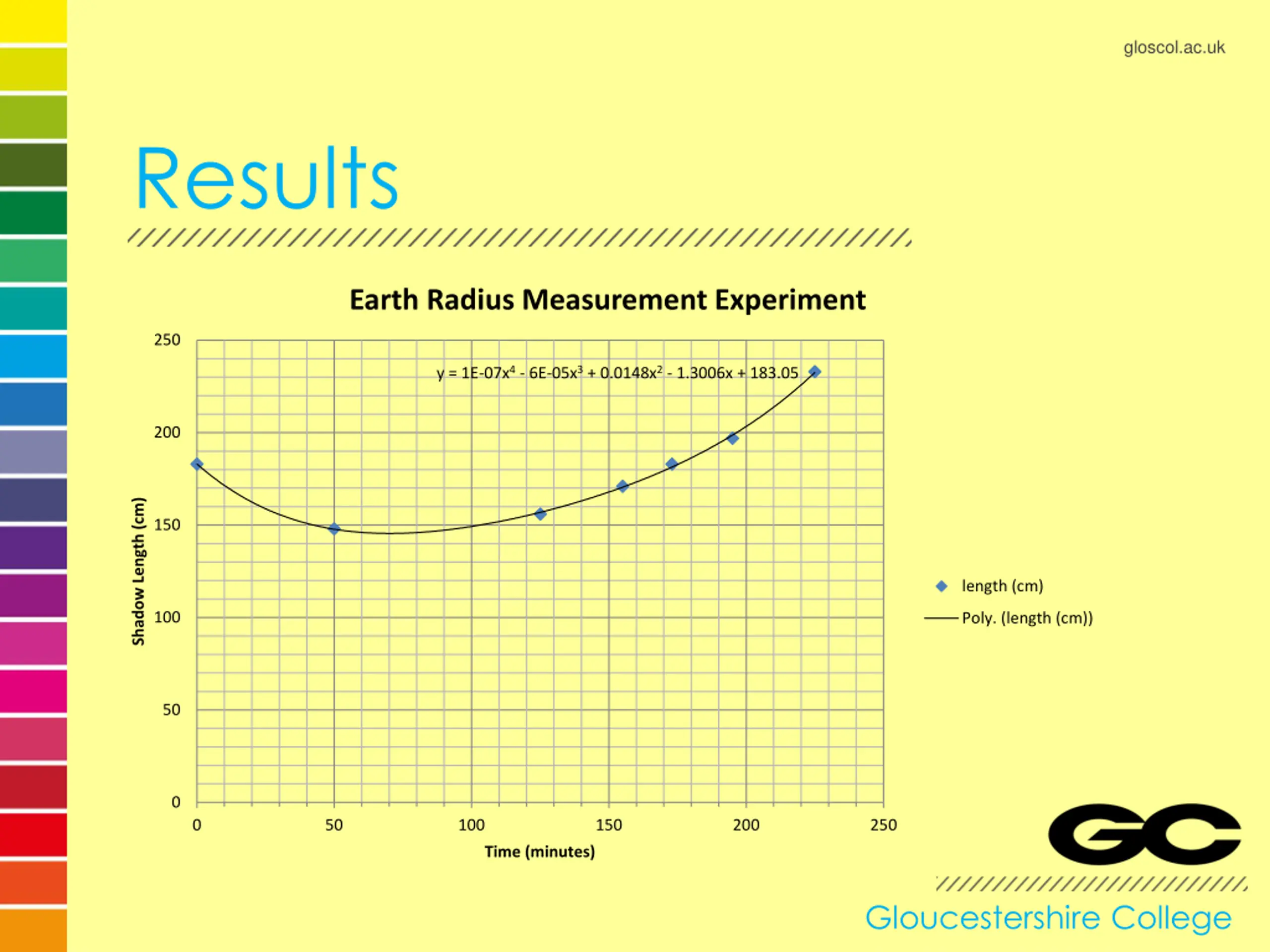

gloscol.ac.uk Results Earth Radius Measurement Experiment 250 y = 1E-07x4 - 6E-05x3 + 0.0148x2 - 1.3006x + 183.05 200 Shadow Length (cm) 150 length (cm) 100 Poly. (length (cm)) 50 0 0 50 100 150 200 250 Time (minutes) Gloucestershire College

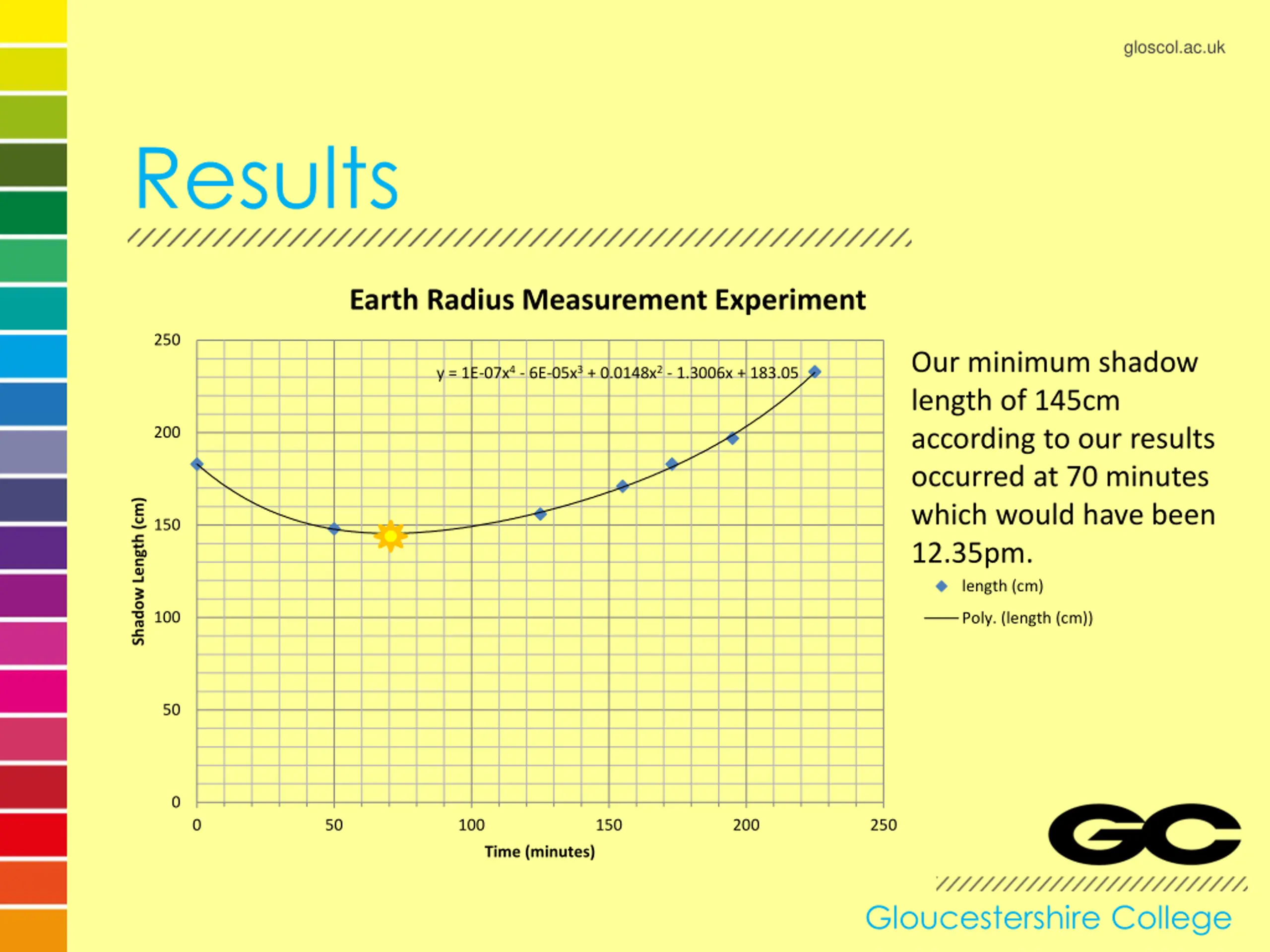

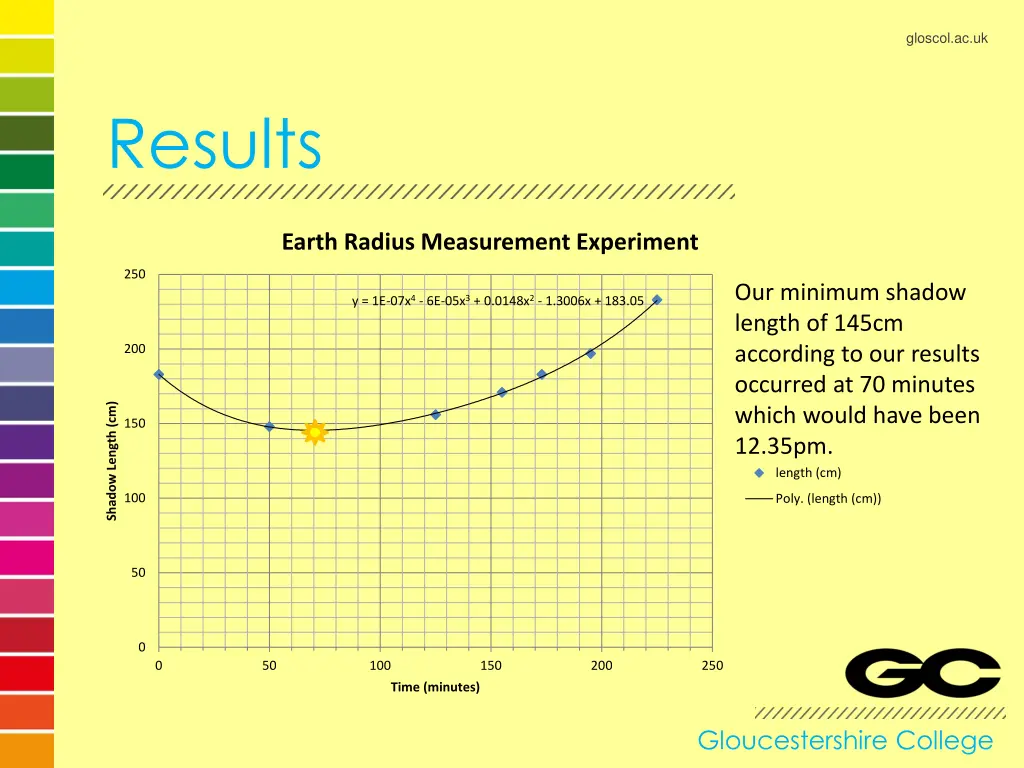

gloscol.ac.uk Results Earth Radius Measurement Experiment 250 Our minimum shadow length of 145cm according to our results occurred at 70 minutes which would have been 12.35pm. y = 1E-07x4 - 6E-05x3 + 0.0148x2 - 1.3006x + 183.05 200 Shadow Length (cm) 150 length (cm) 100 Poly. (length (cm)) 50 0 0 50 100 150 200 250 Time (minutes) Gloucestershire College

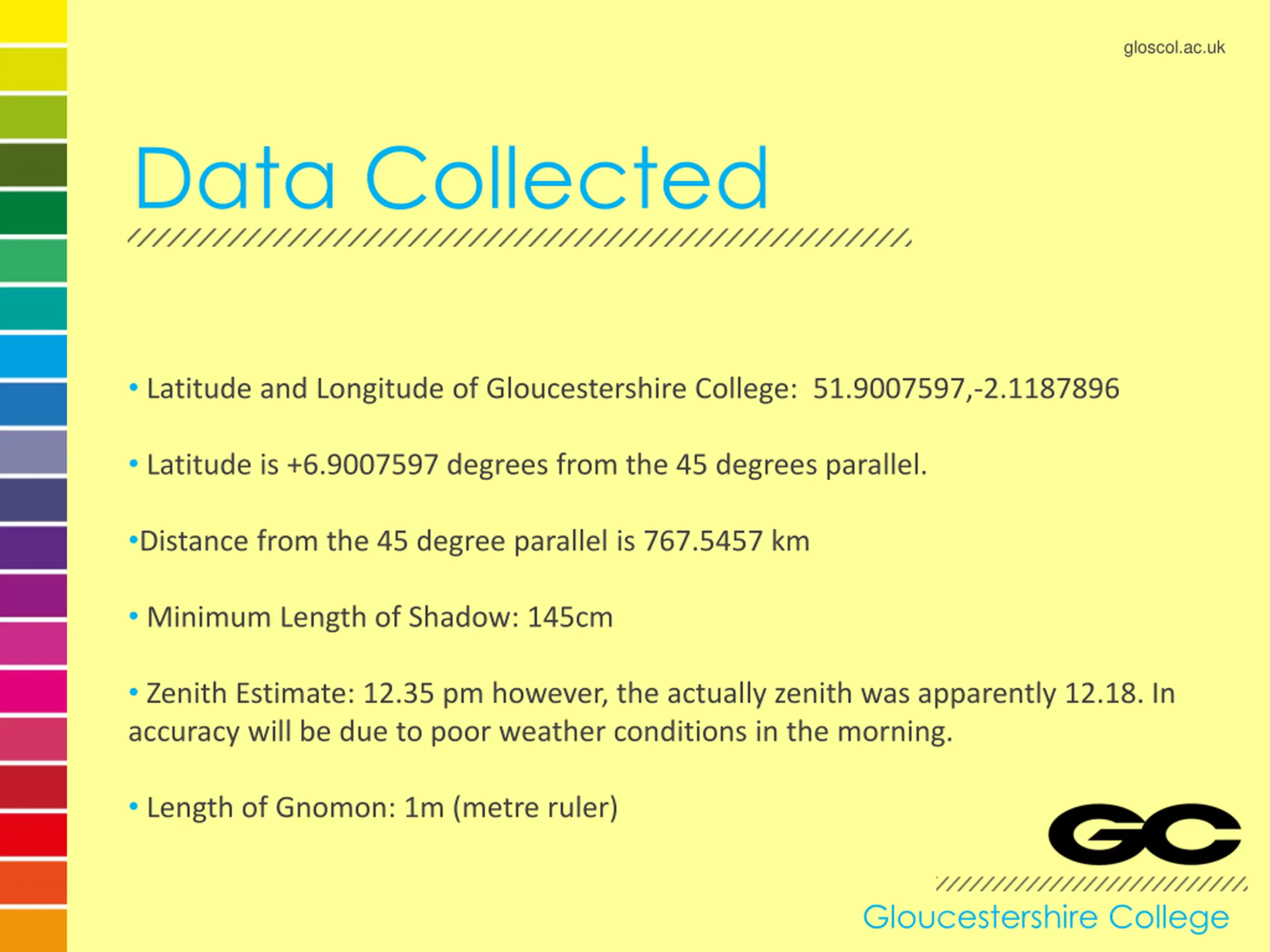

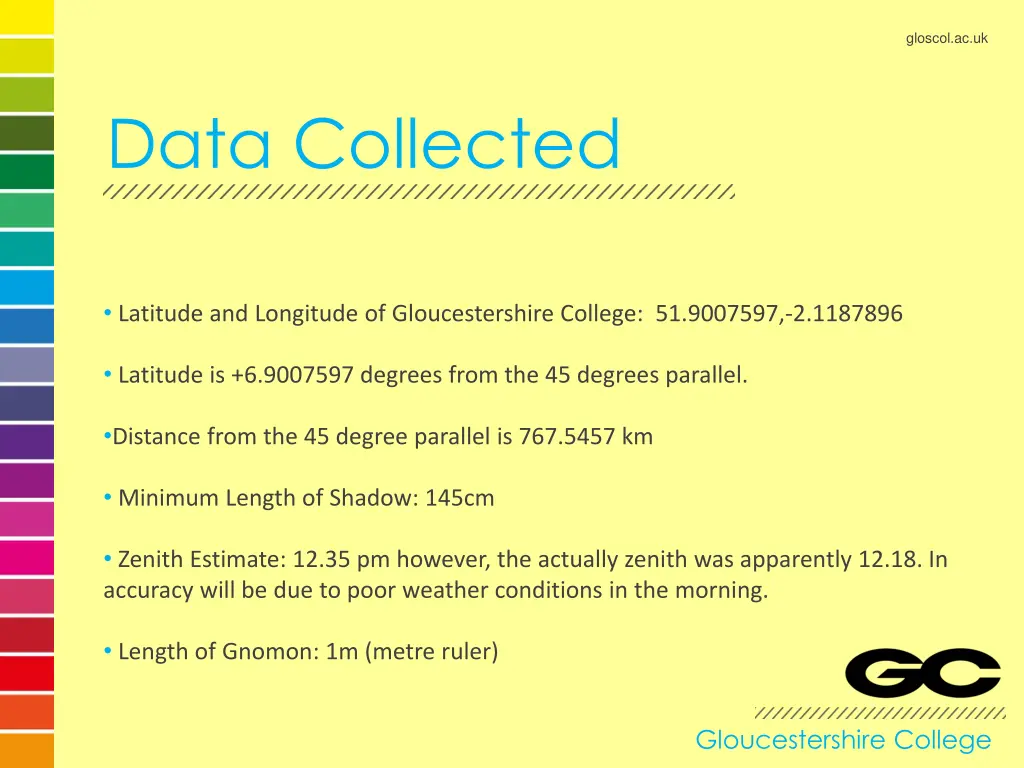

gloscol.ac.uk Data Collected Latitude and Longitude of Gloucestershire College: 51.9007597,-2.1187896 Latitude is +6.9007597 degrees from the 45 degrees parallel. Distance from the 45 degree parallel is 767.5457 km Minimum Length of Shadow: 145cm Zenith Estimate: 12.35 pm however, the actually zenith was apparently 12.18. In accuracy will be due to poor weather conditions in the morning. Length of Gnomon: 1m (metre ruler) Gloucestershire College

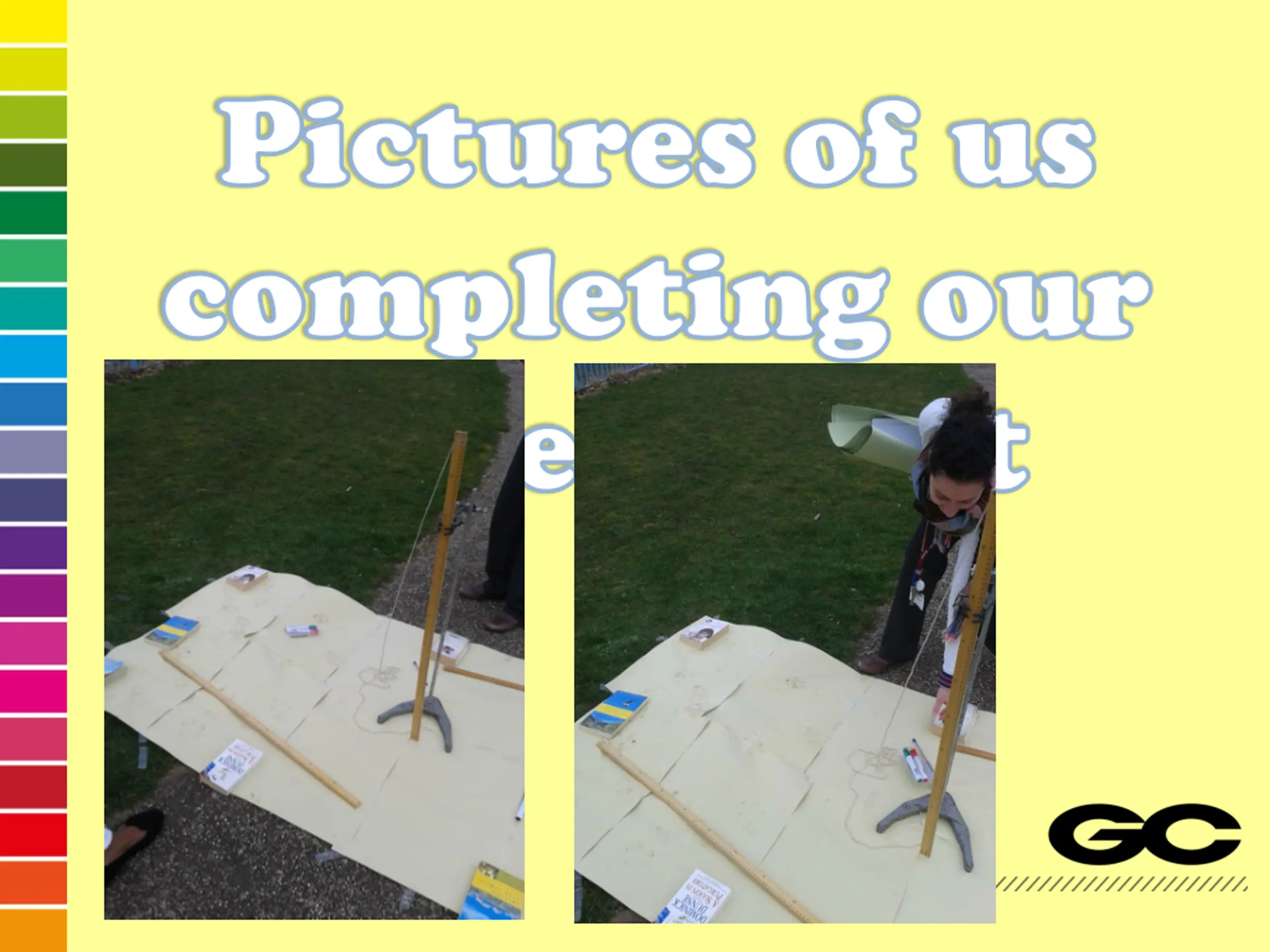

Pictures of us Pictures of us completing our completing our experiment experiment
