Python Programming in Context Chapter 10

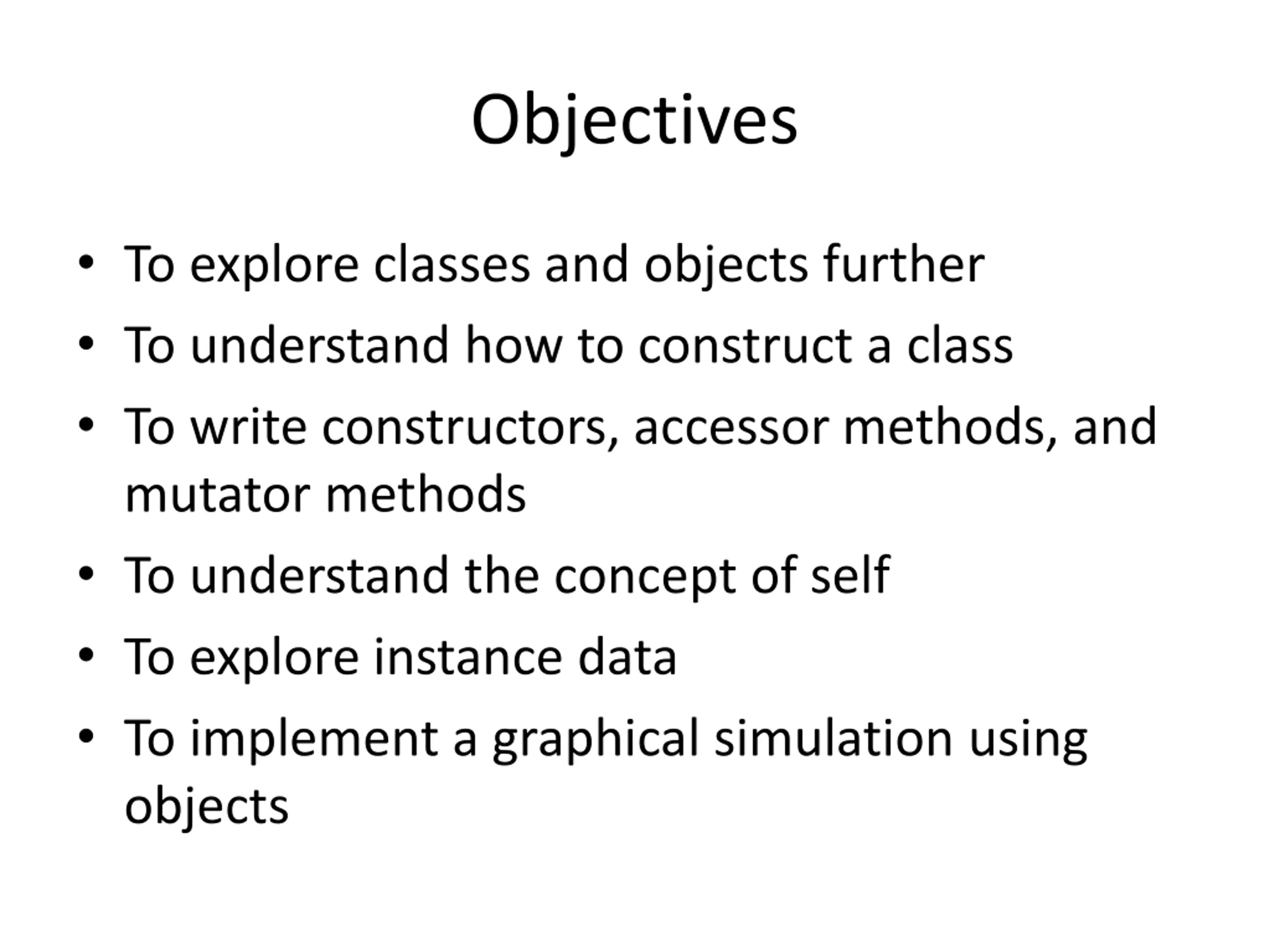

Objectives To explore classes and objects further To understand how to construct a class To write constructors, accessor methods, and mutator methods To understand the concept of self To explore instance data To implement a graphical simulation using objects

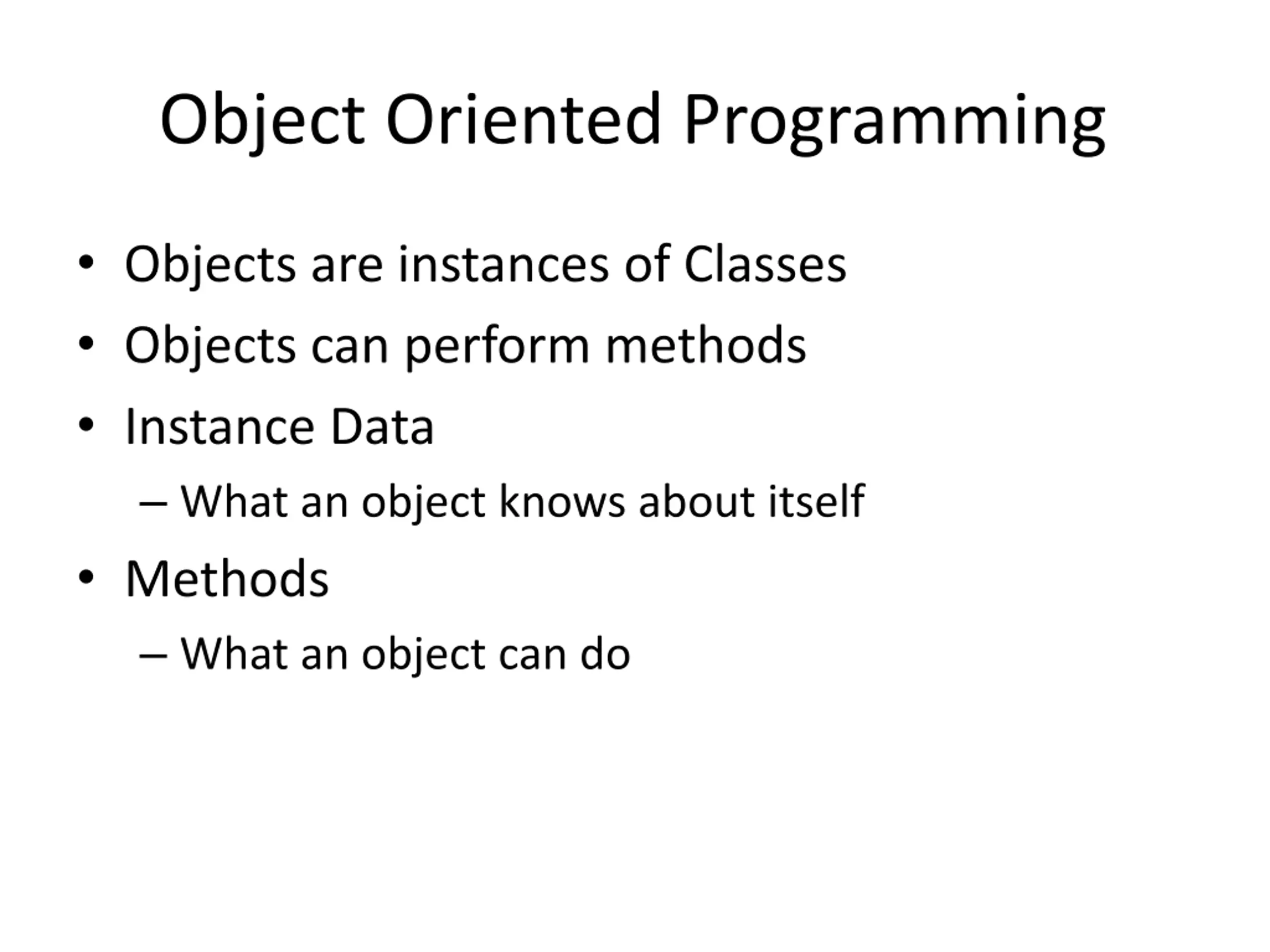

Object Oriented Programming Objects are instances of Classes Objects can perform methods Instance Data What an object knows about itself Methods What an object can do

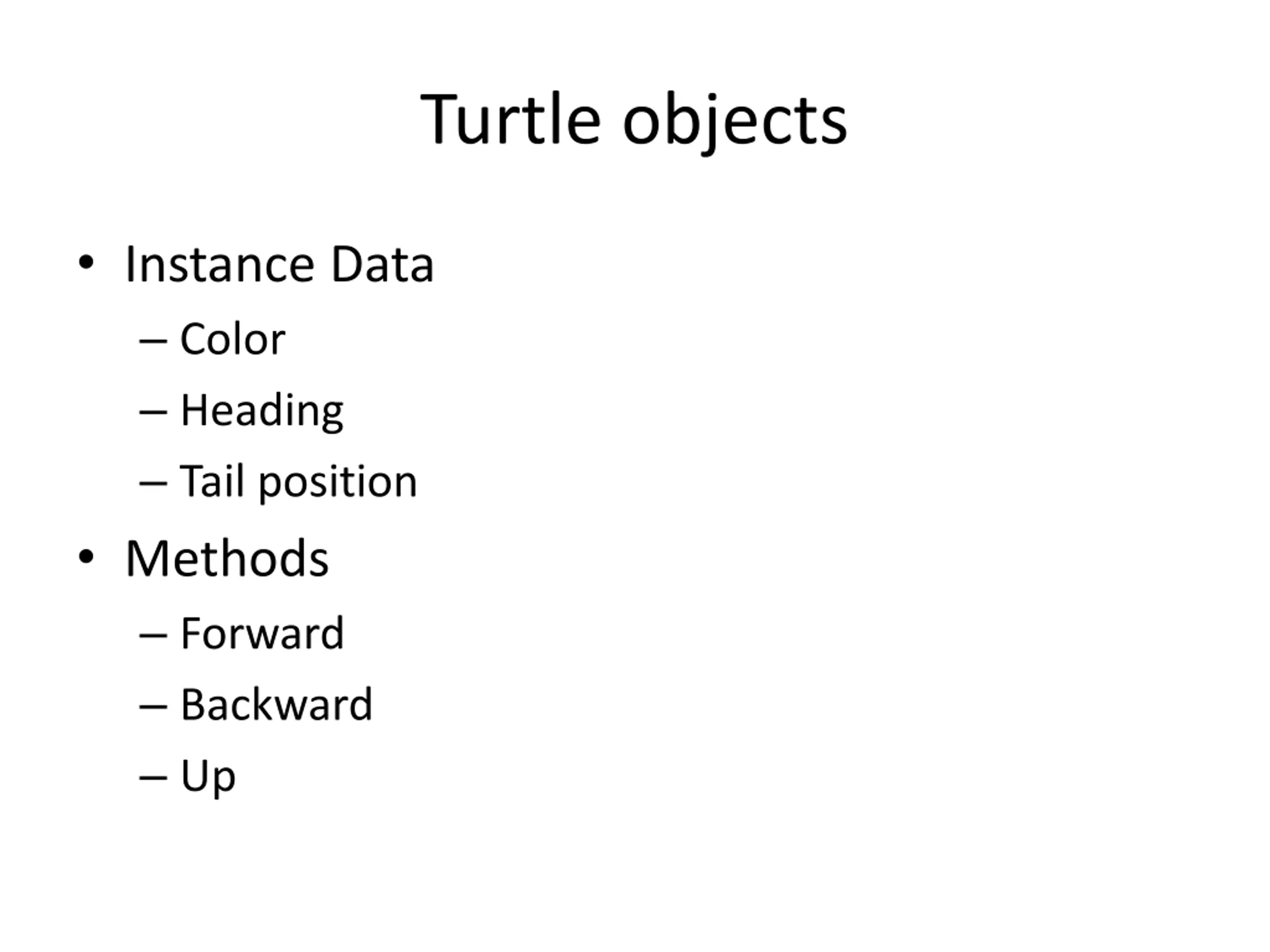

Turtle objects Instance Data Color Heading Tail position Methods Forward Backward Up

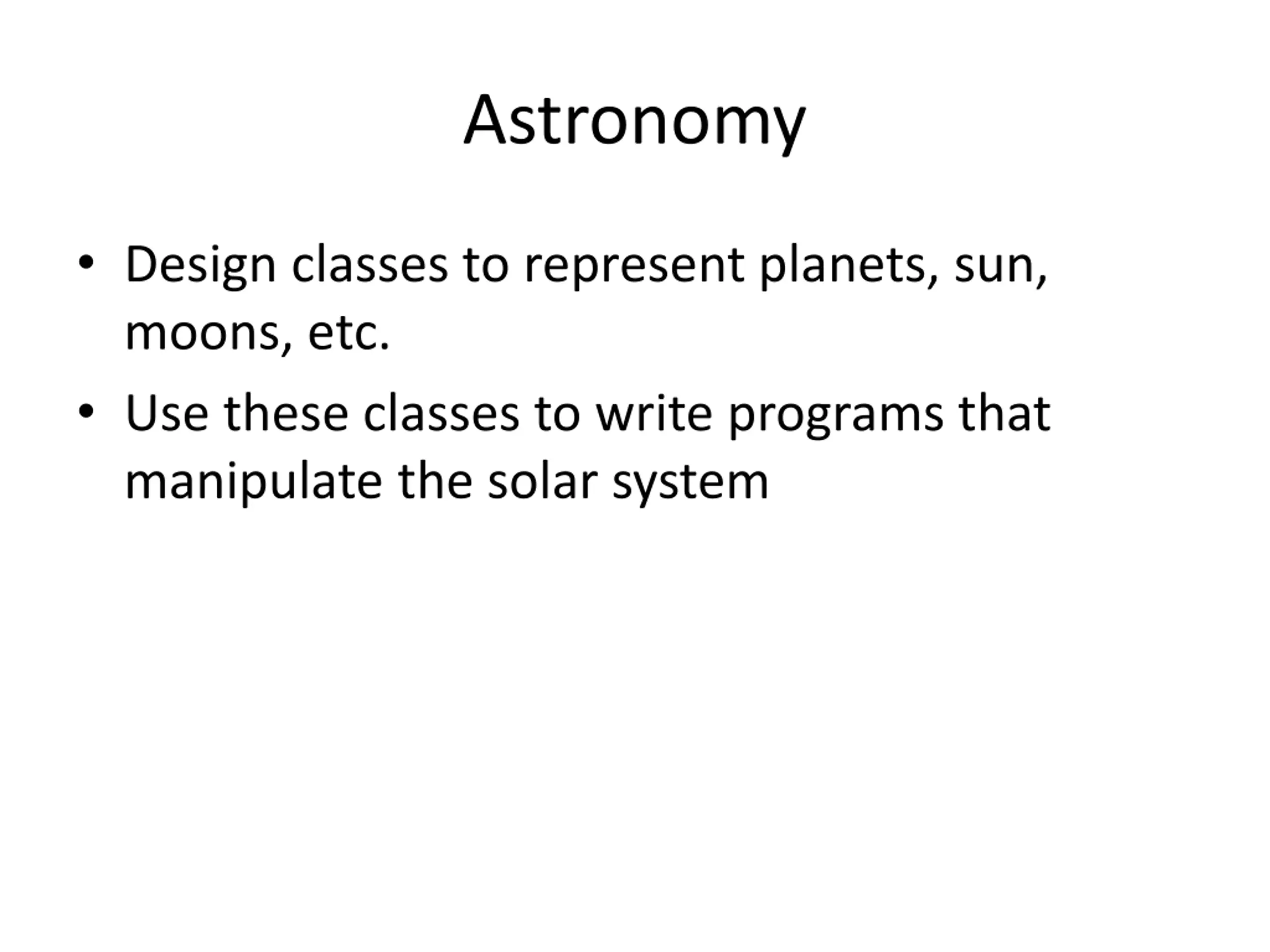

Astronomy Design classes to represent planets, sun, moons, etc. Use these classes to write programs that manipulate the solar system

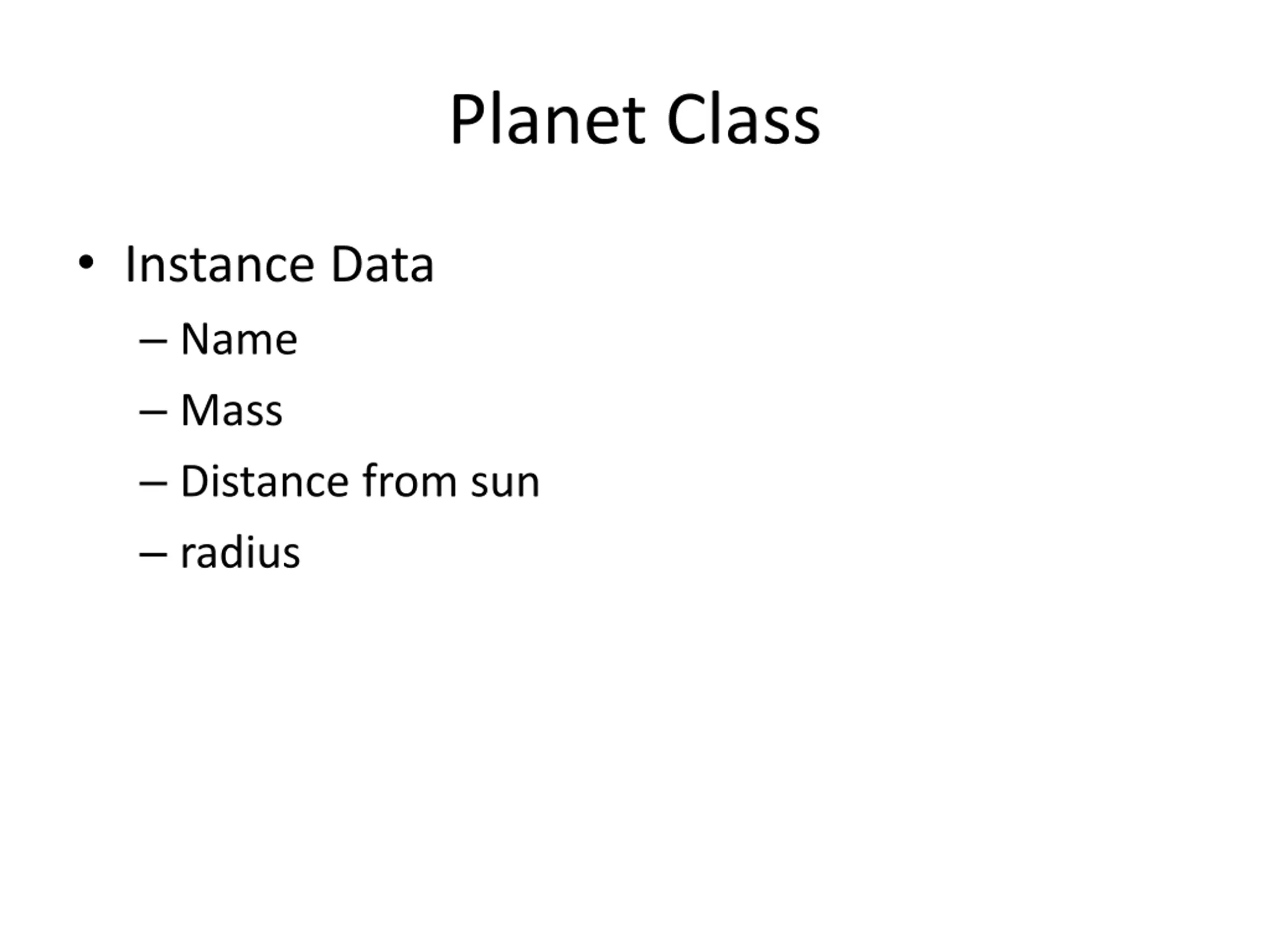

Planet Class Instance Data Name Mass Distance from sun radius

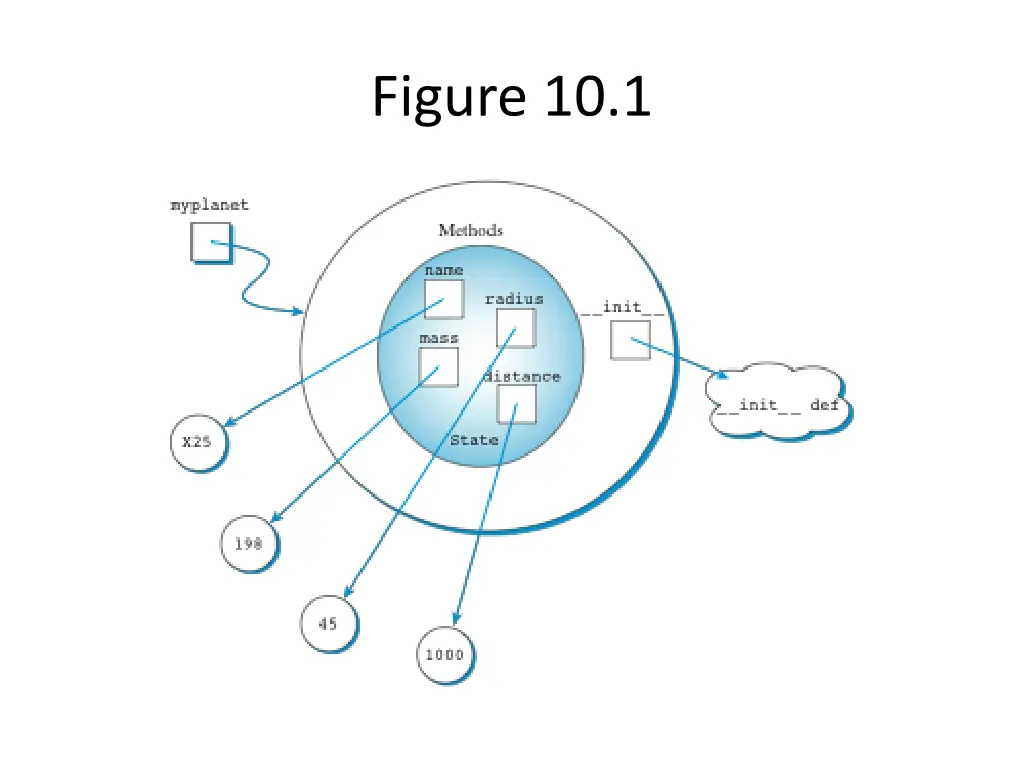

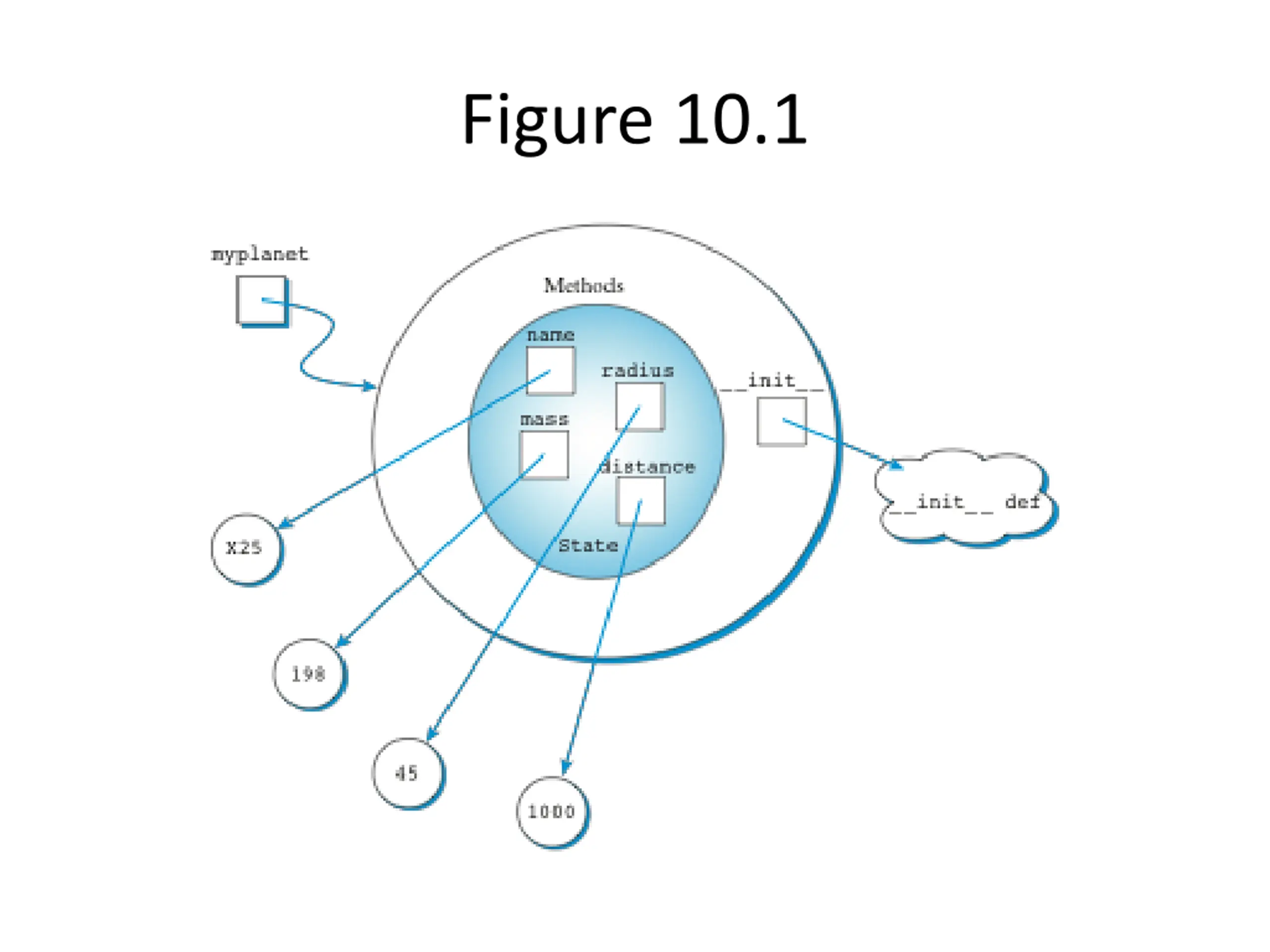

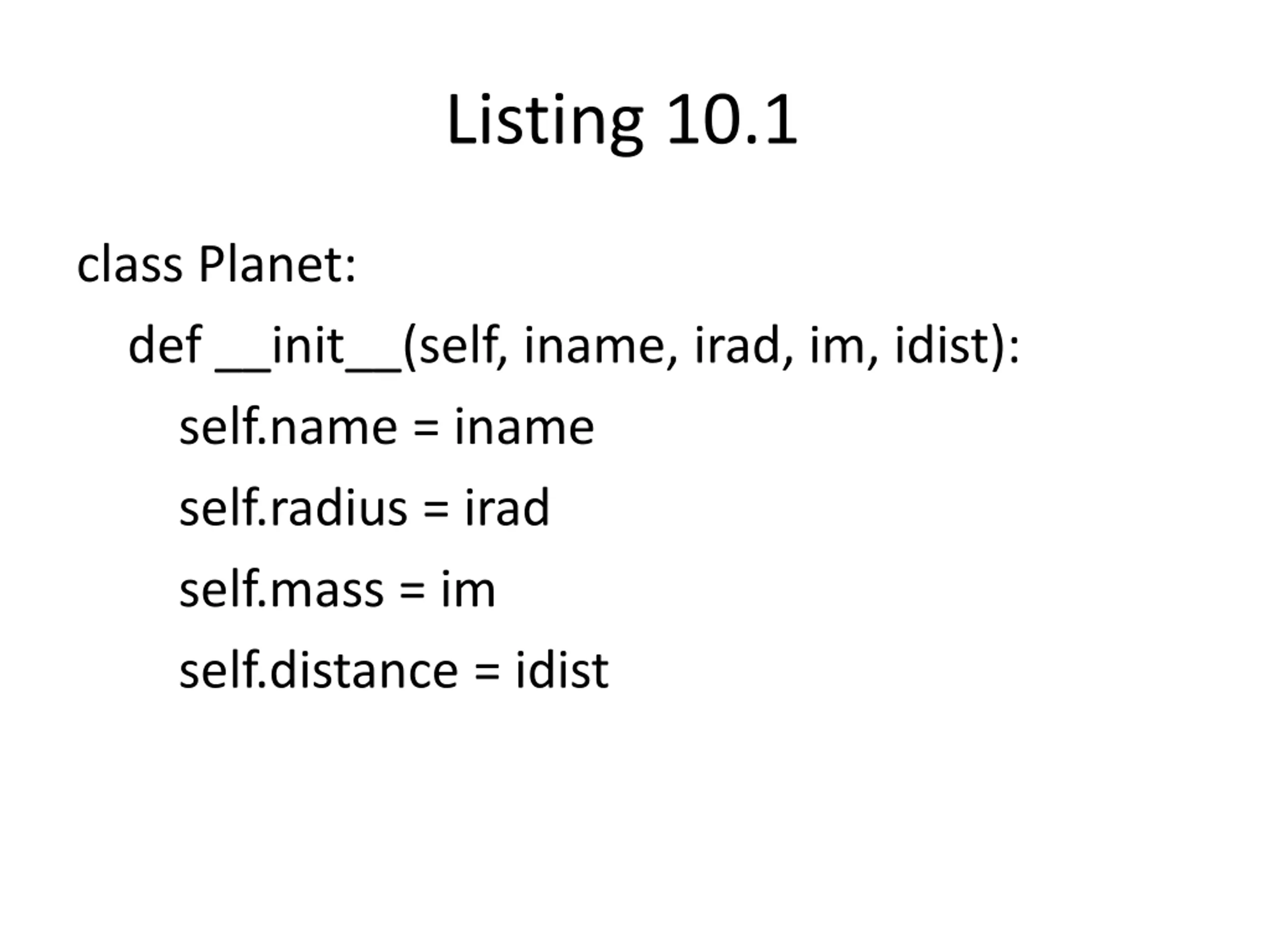

Listing 10.1 class Planet: def __init__(self, iname, irad, im, idist): self.name = iname self.radius = irad self.mass = im self.distance = idist

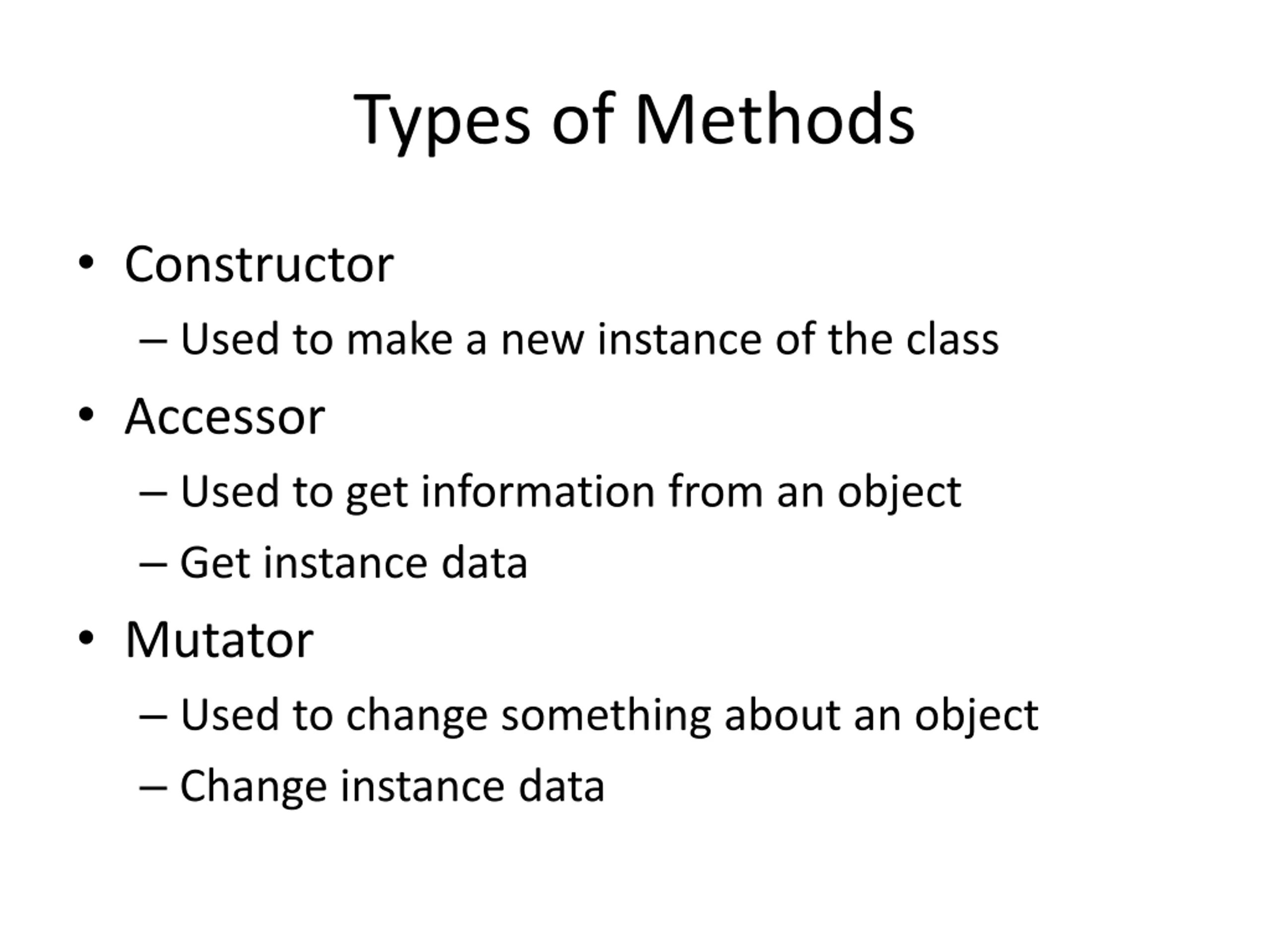

Types of Methods Constructor Used to make a new instance of the class Accessor Used to get information from an object Get instance data Mutator Used to change something about an object Change instance data

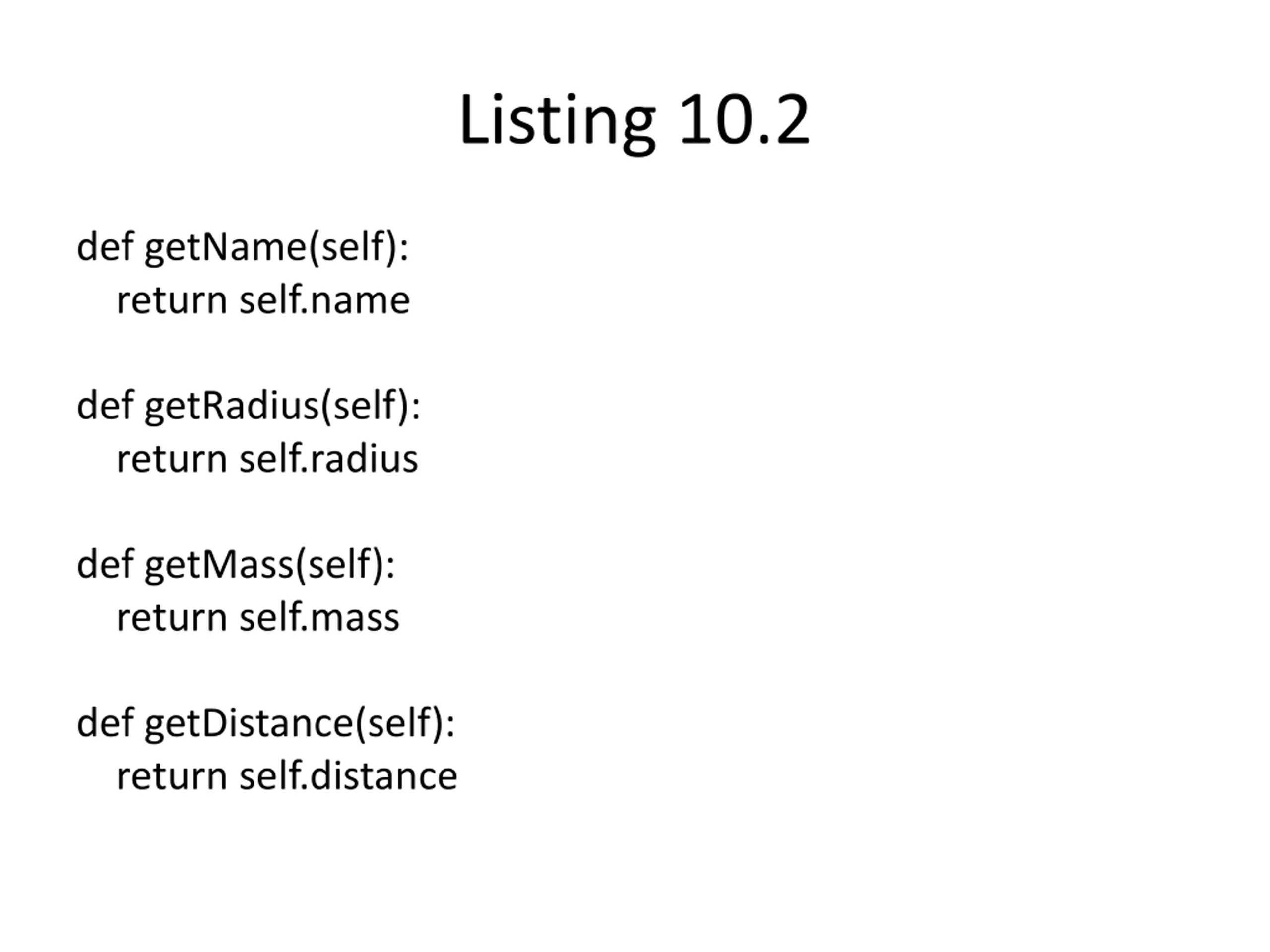

Listing 10.2 def getName(self): return self.name def getRadius(self): return self.radius def getMass(self): return self.mass def getDistance(self): return self.distance

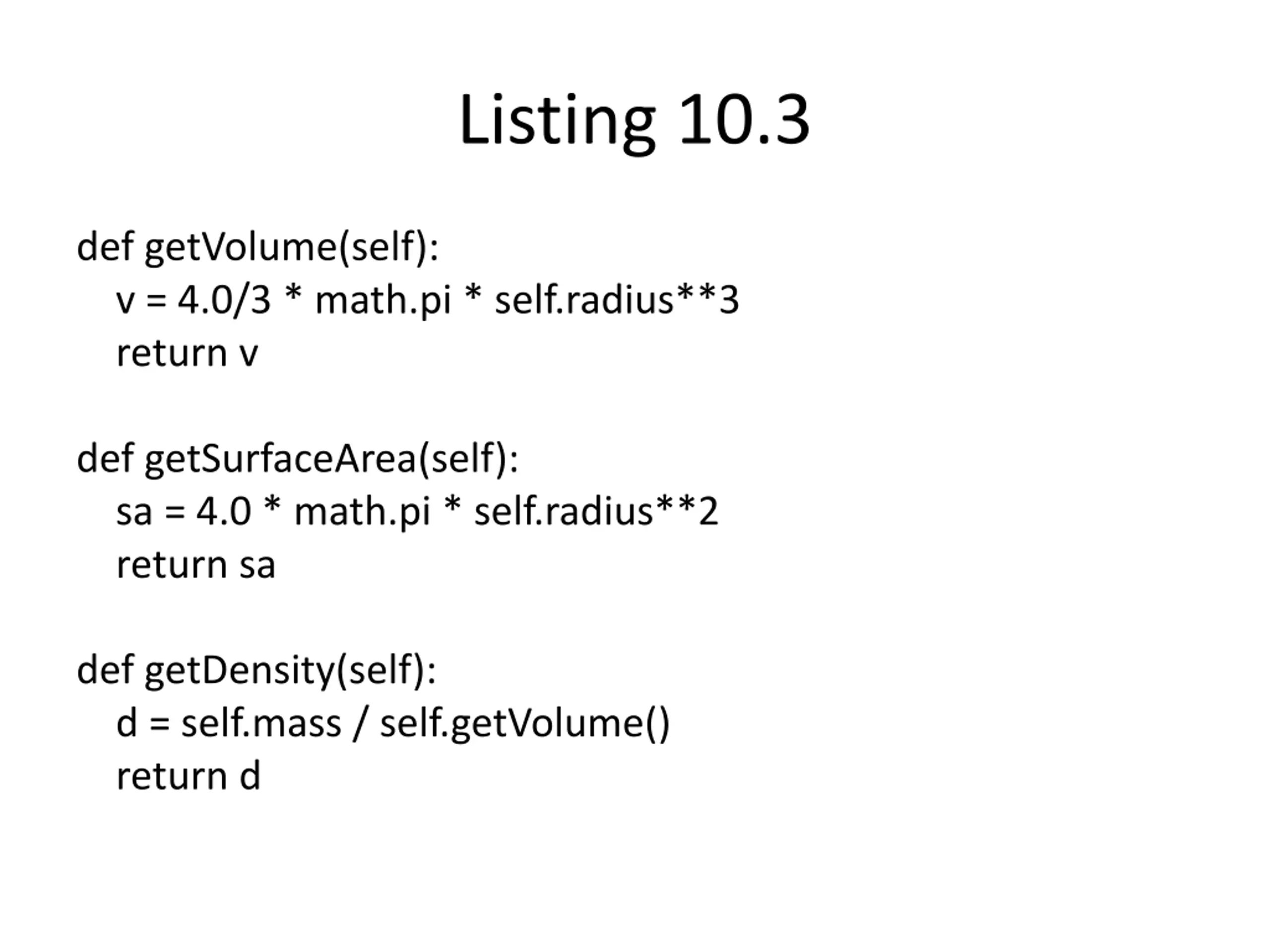

Listing 10.3 def getVolume(self): v = 4.0/3 * math.pi * self.radius**3 return v def getSurfaceArea(self): sa = 4.0 * math.pi * self.radius**2 return sa def getDensity(self): d = self.mass / self.getVolume() return d

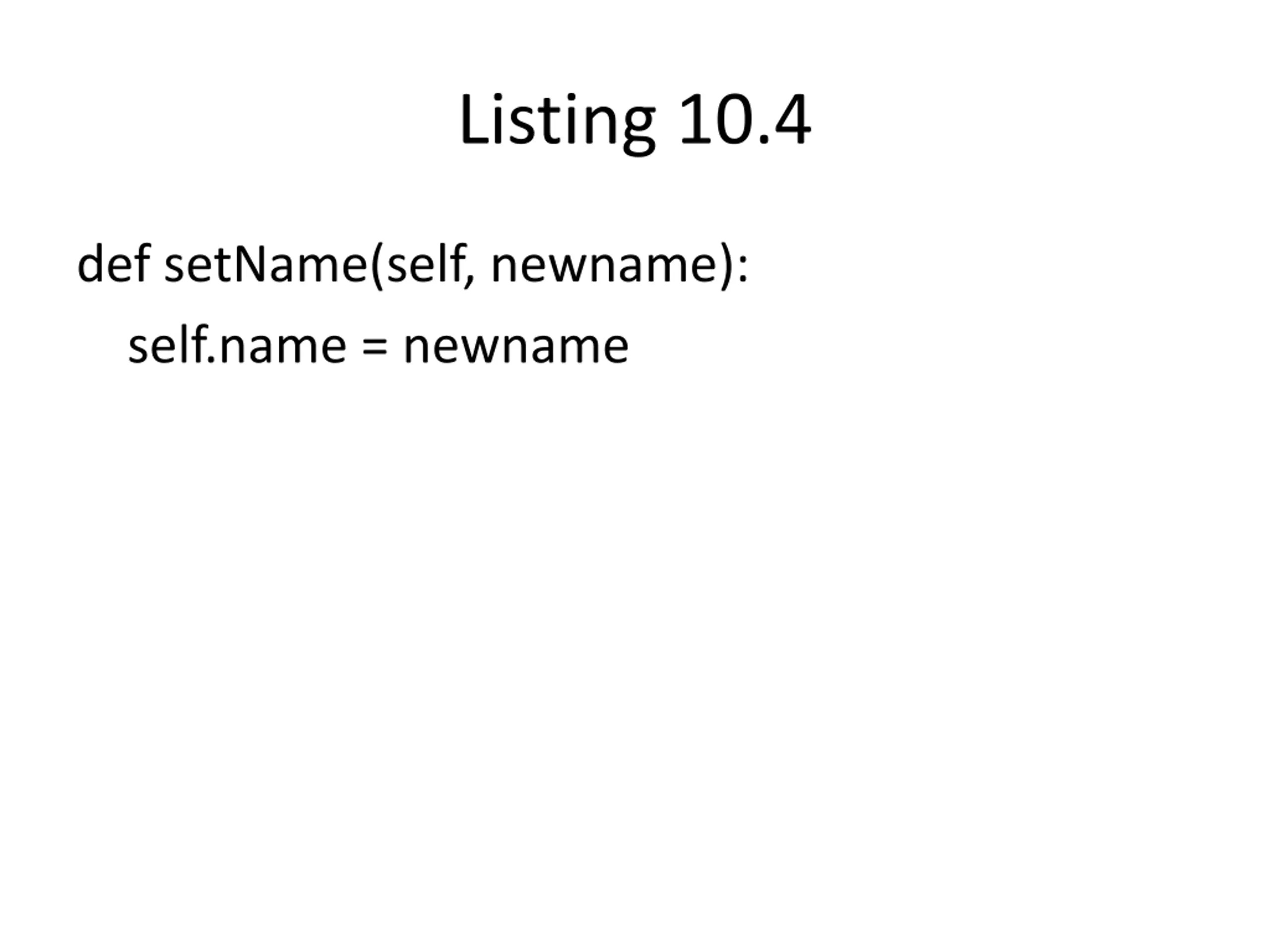

Listing 10.4 def setName(self, newname): self.name = newname

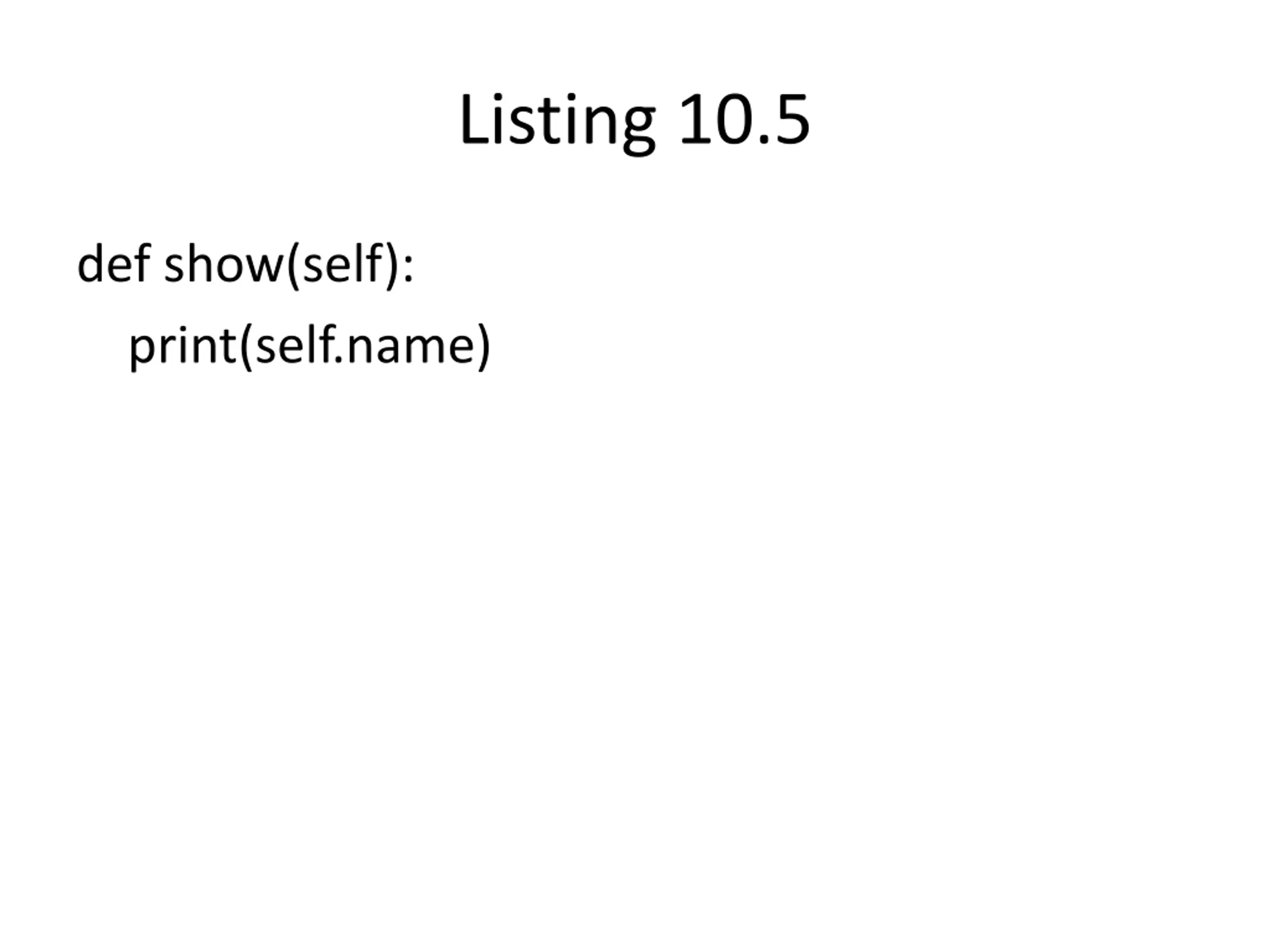

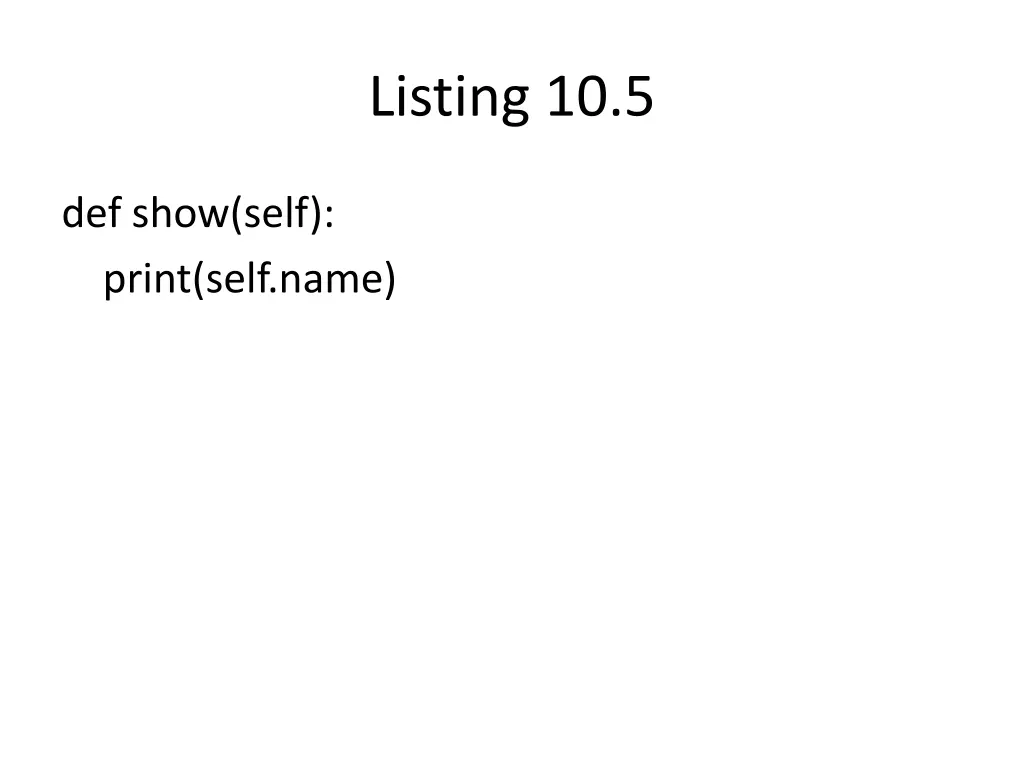

Listing 10.5 def show(self): print(self.name)

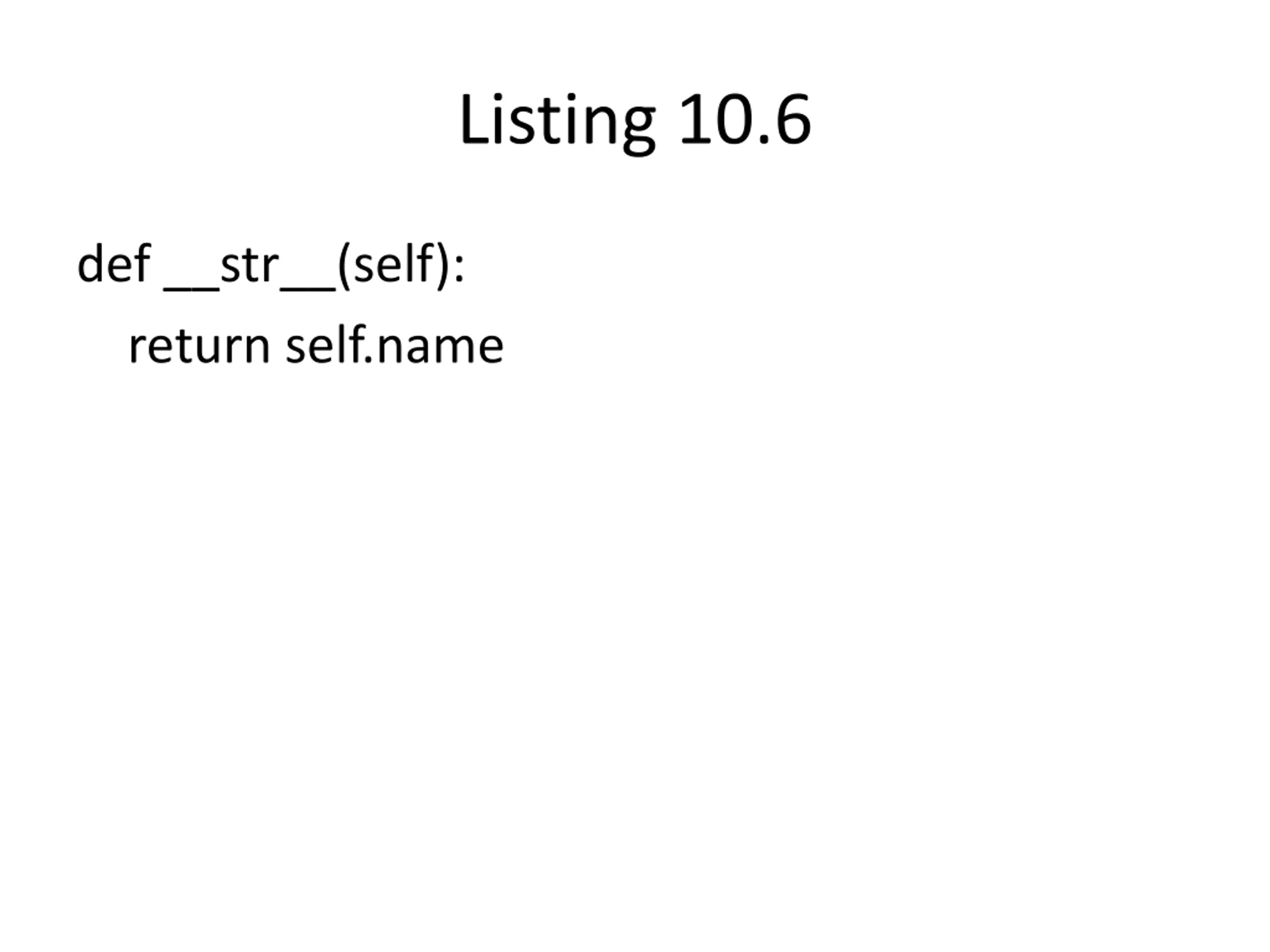

Listing 10.6 def __str__(self): return self.name

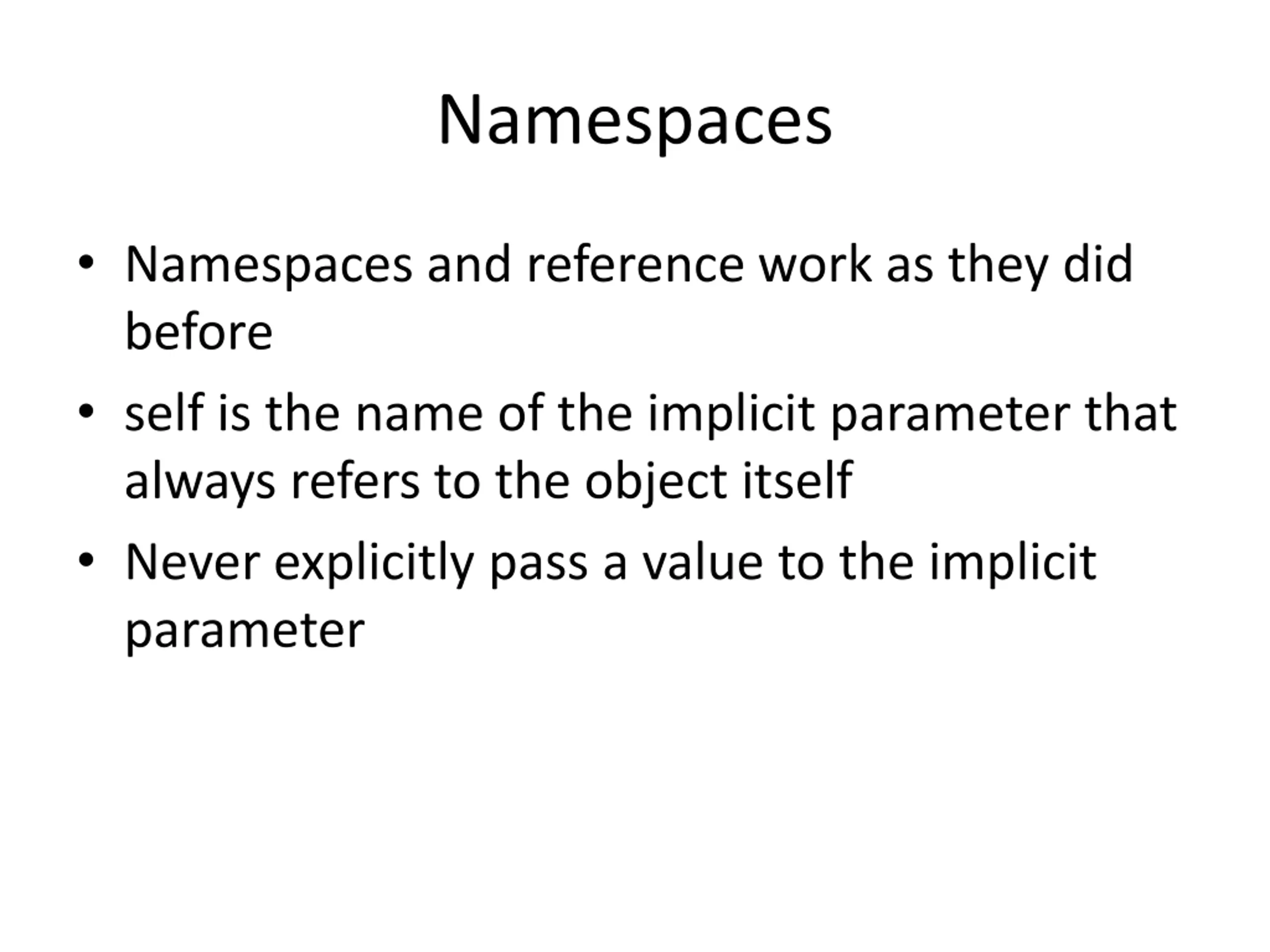

Namespaces Namespaces and reference work as they did before self is the name of the implicit parameter that always refers to the object itself Never explicitly pass a value to the implicit parameter

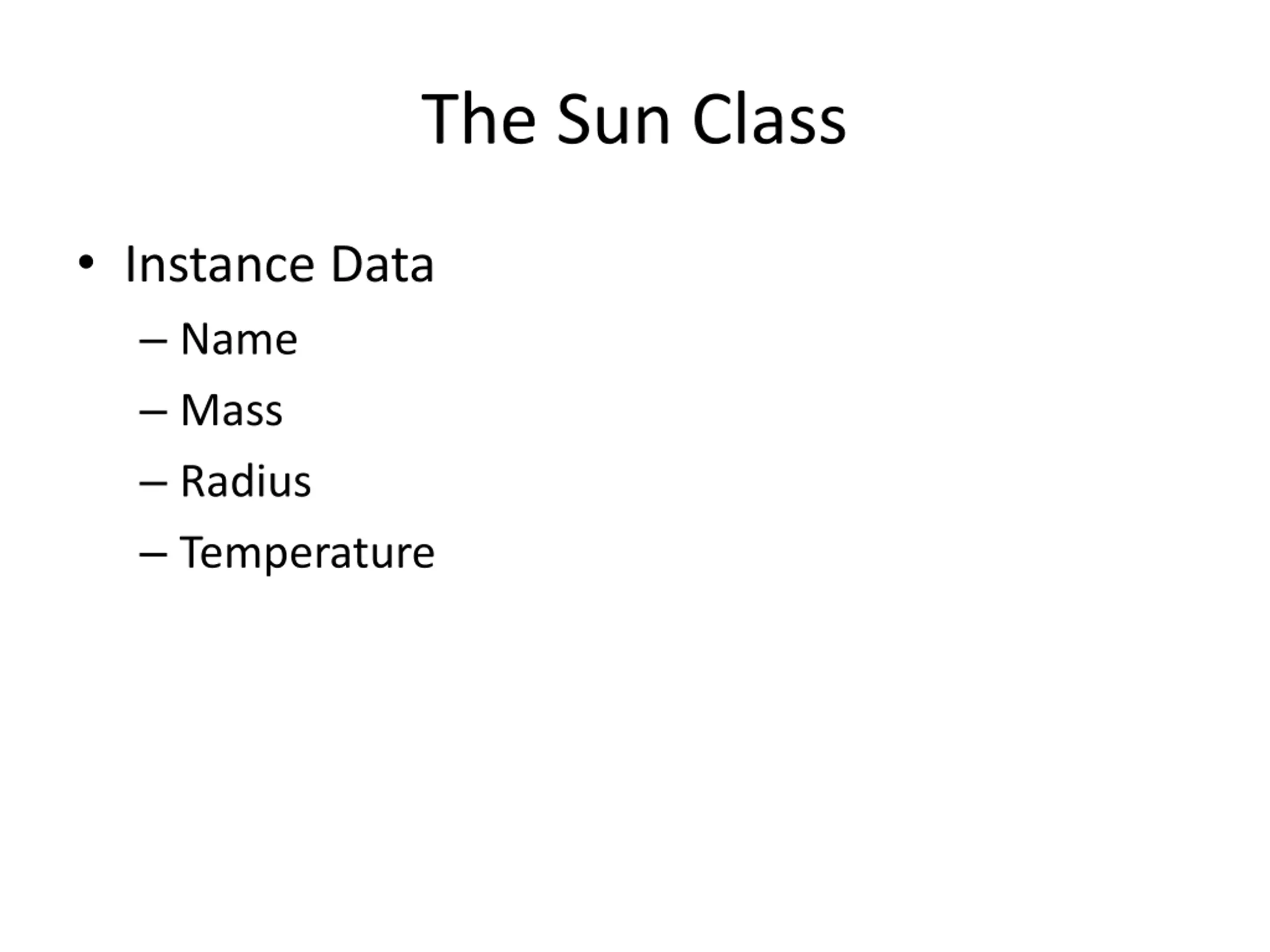

The Sun Class Instance Data Name Mass Radius Temperature

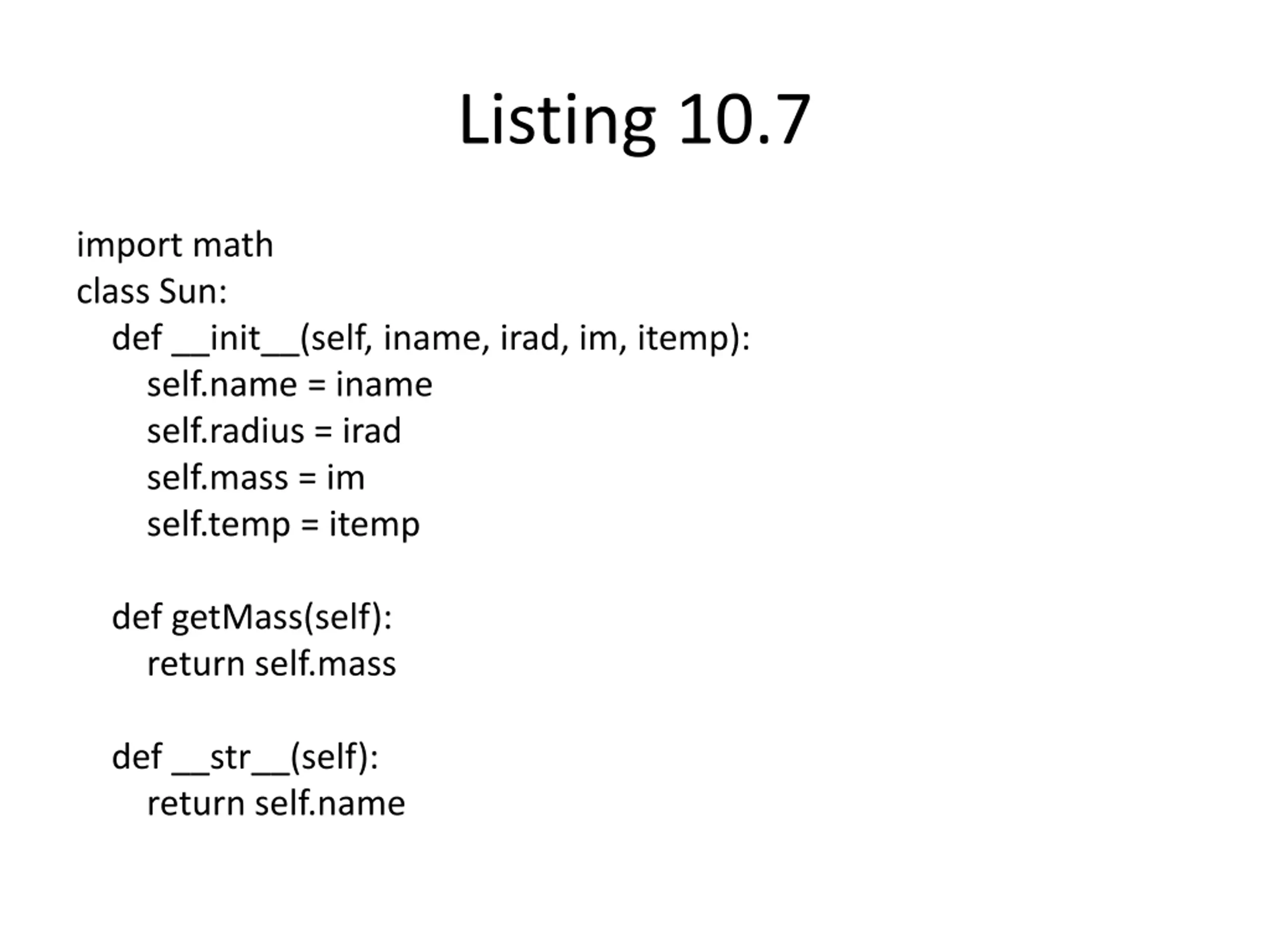

Listing 10.7 import math class Sun: def __init__(self, iname, irad, im, itemp): self.name = iname self.radius = irad self.mass = im self.temp = itemp def getMass(self): return self.mass def __str__(self): return self.name

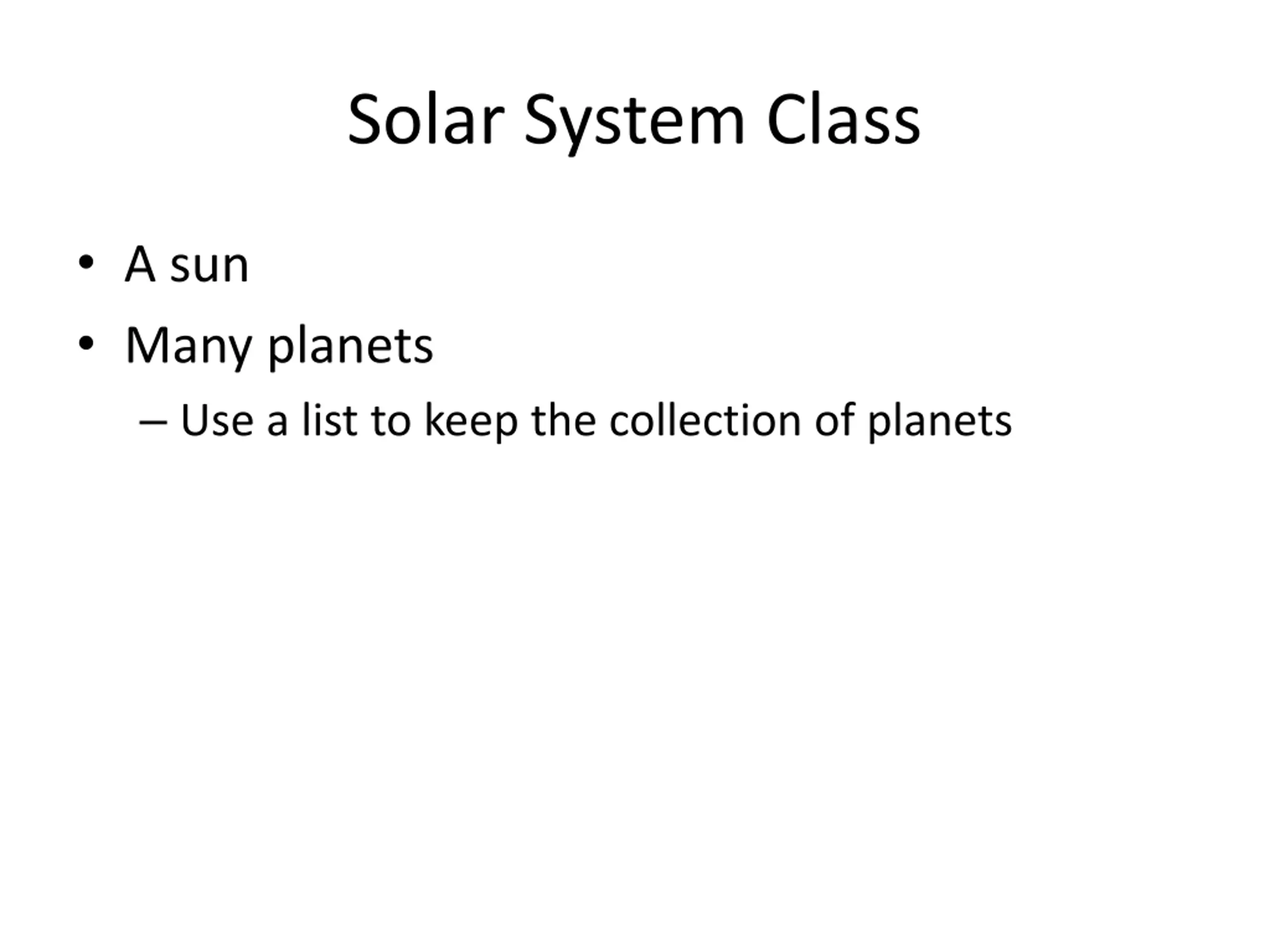

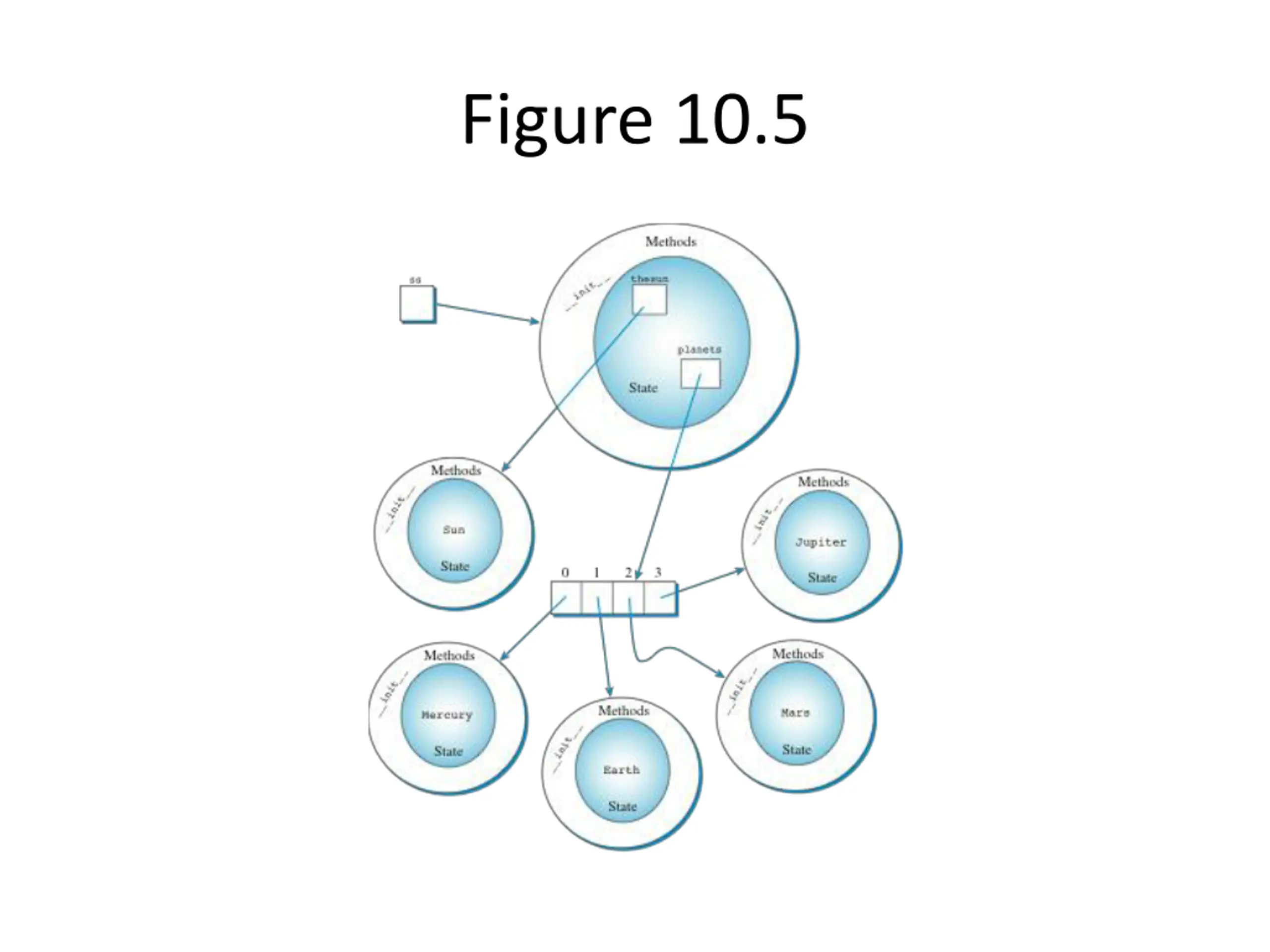

Solar System Class A sun Many planets Use a list to keep the collection of planets

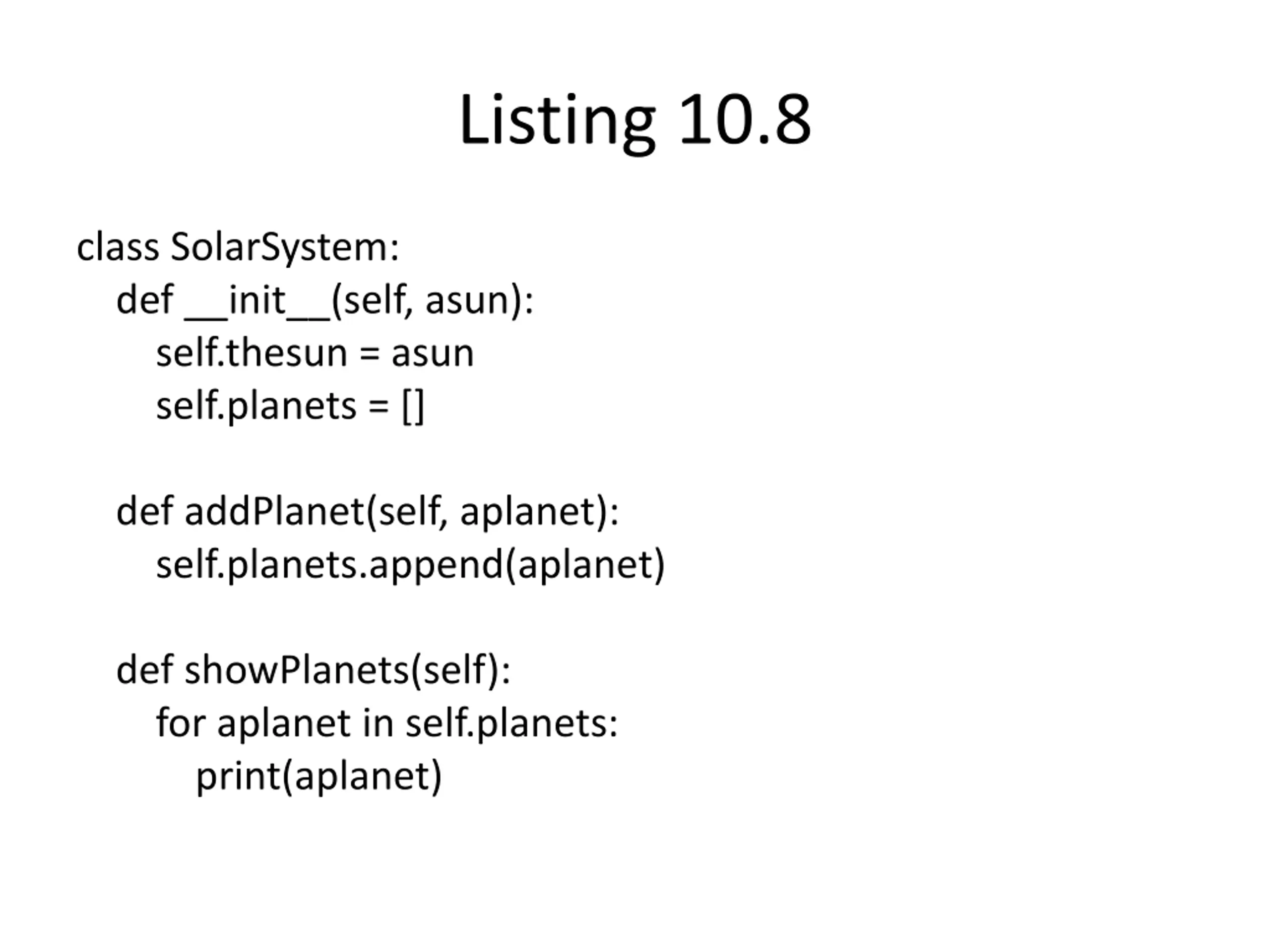

Listing 10.8 class SolarSystem: def __init__(self, asun): self.thesun = asun self.planets = [] def addPlanet(self, aplanet): self.planets.append(aplanet) def showPlanets(self): for aplanet in self.planets: print(aplanet)

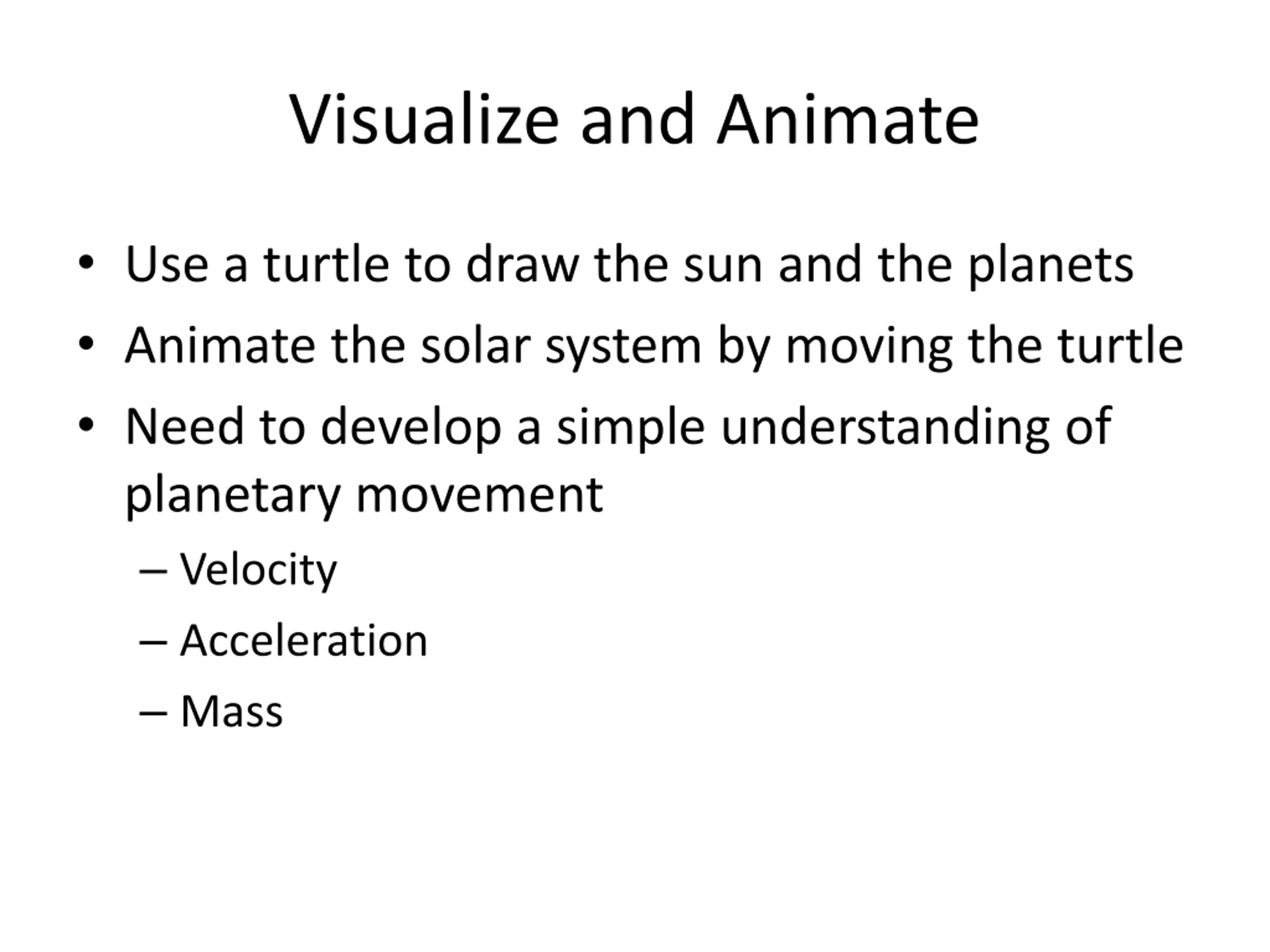

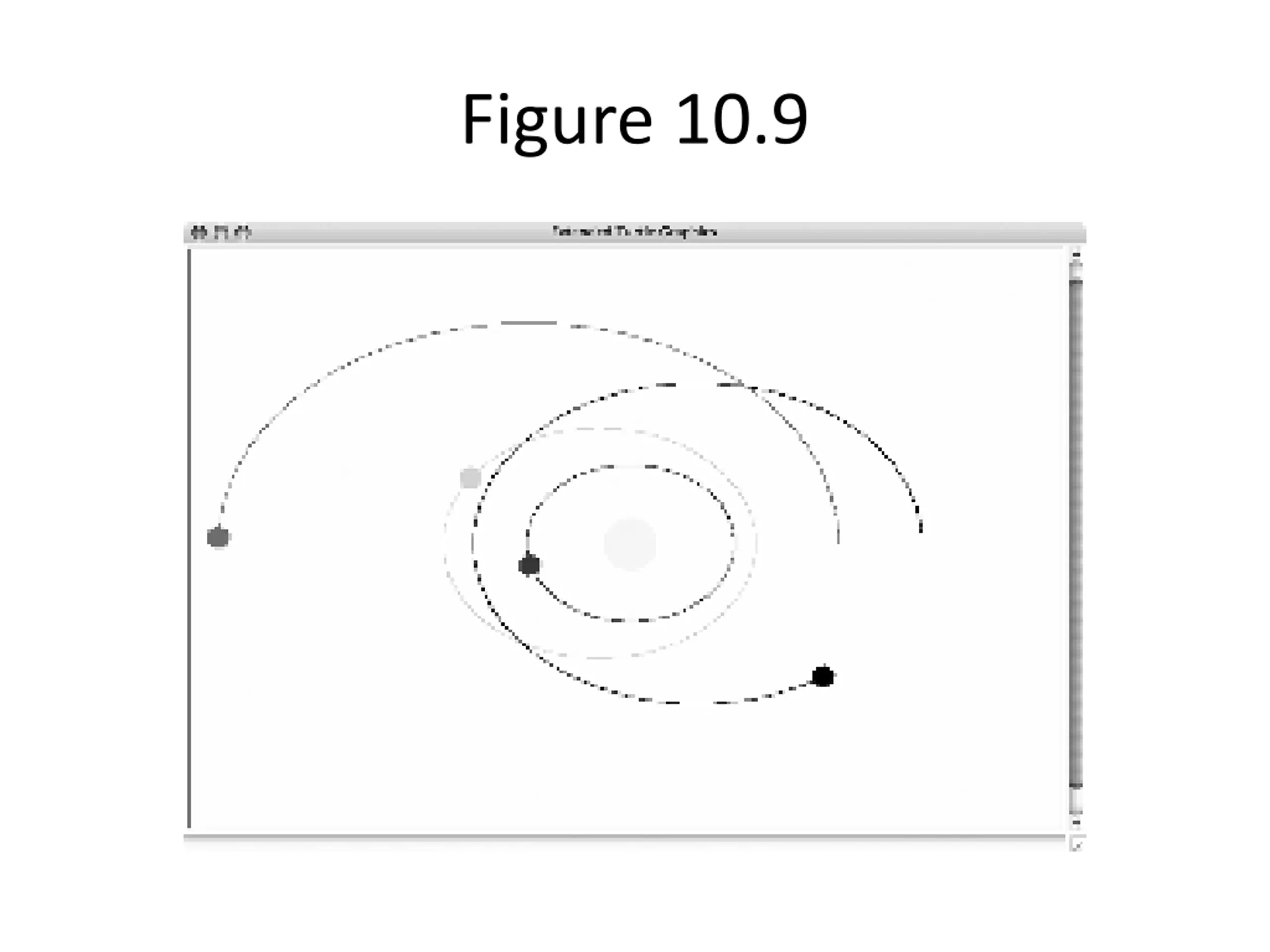

Visualize and Animate Use a turtle to draw the sun and the planets Animate the solar system by moving the turtle Need to develop a simple understanding of planetary movement Velocity Acceleration Mass

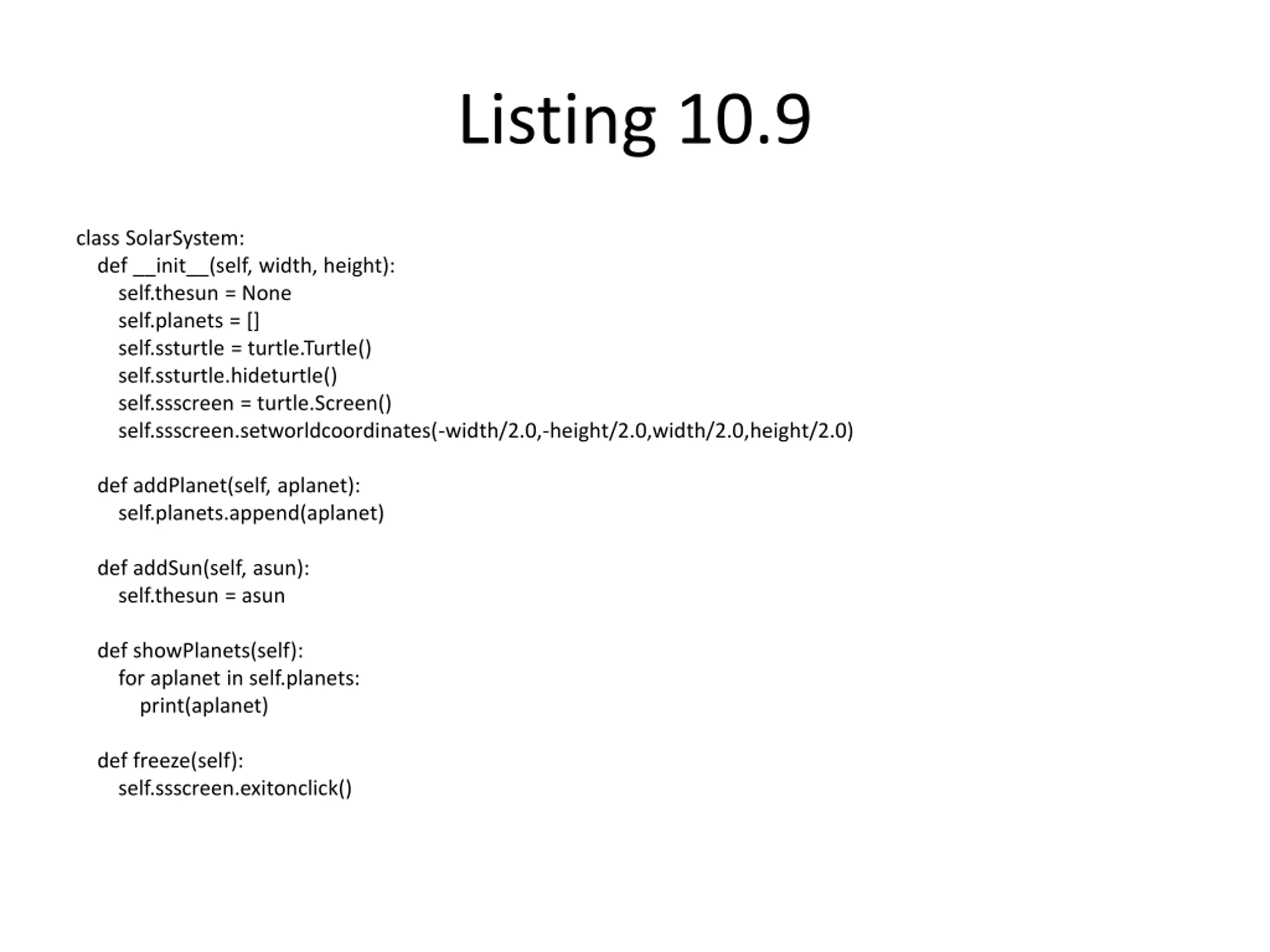

Listing 10.9 class SolarSystem: def __init__(self, width, height): self.thesun = None self.planets = [] self.ssturtle = turtle.Turtle() self.ssturtle.hideturtle() self.ssscreen = turtle.Screen() self.ssscreen.setworldcoordinates(-width/2.0,-height/2.0,width/2.0,height/2.0) def addPlanet(self, aplanet): self.planets.append(aplanet) def addSun(self, asun): self.thesun = asun def showPlanets(self): for aplanet in self.planets: print(aplanet) def freeze(self): self.ssscreen.exitonclick()

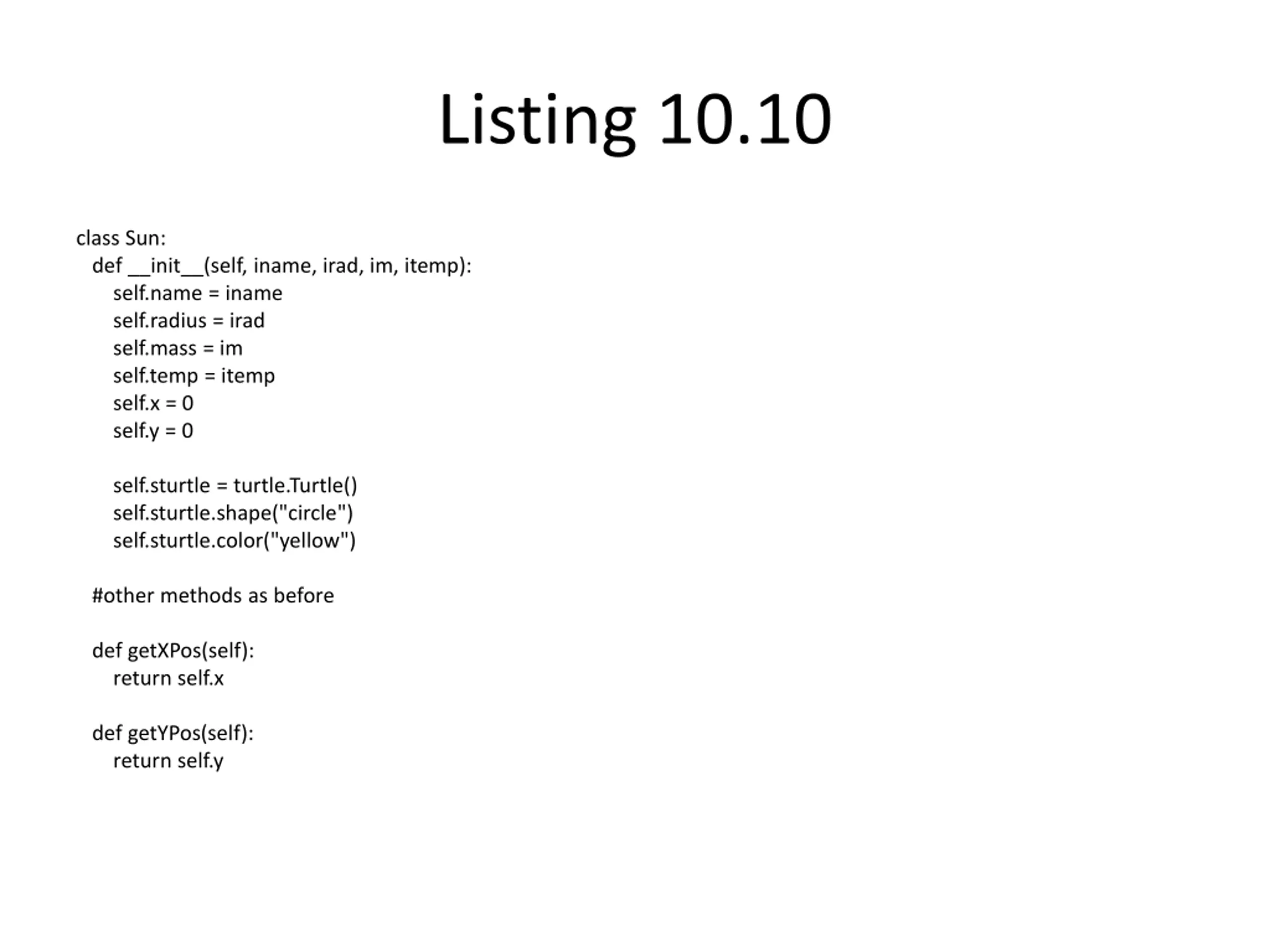

Listing 10.10 class Sun: def __init__(self, iname, irad, im, itemp): self.name = iname self.radius = irad self.mass = im self.temp = itemp self.x = 0 self.y = 0 self.sturtle = turtle.Turtle() self.sturtle.shape("circle") self.sturtle.color("yellow") #other methods as before def getXPos(self): return self.x def getYPos(self): return self.y

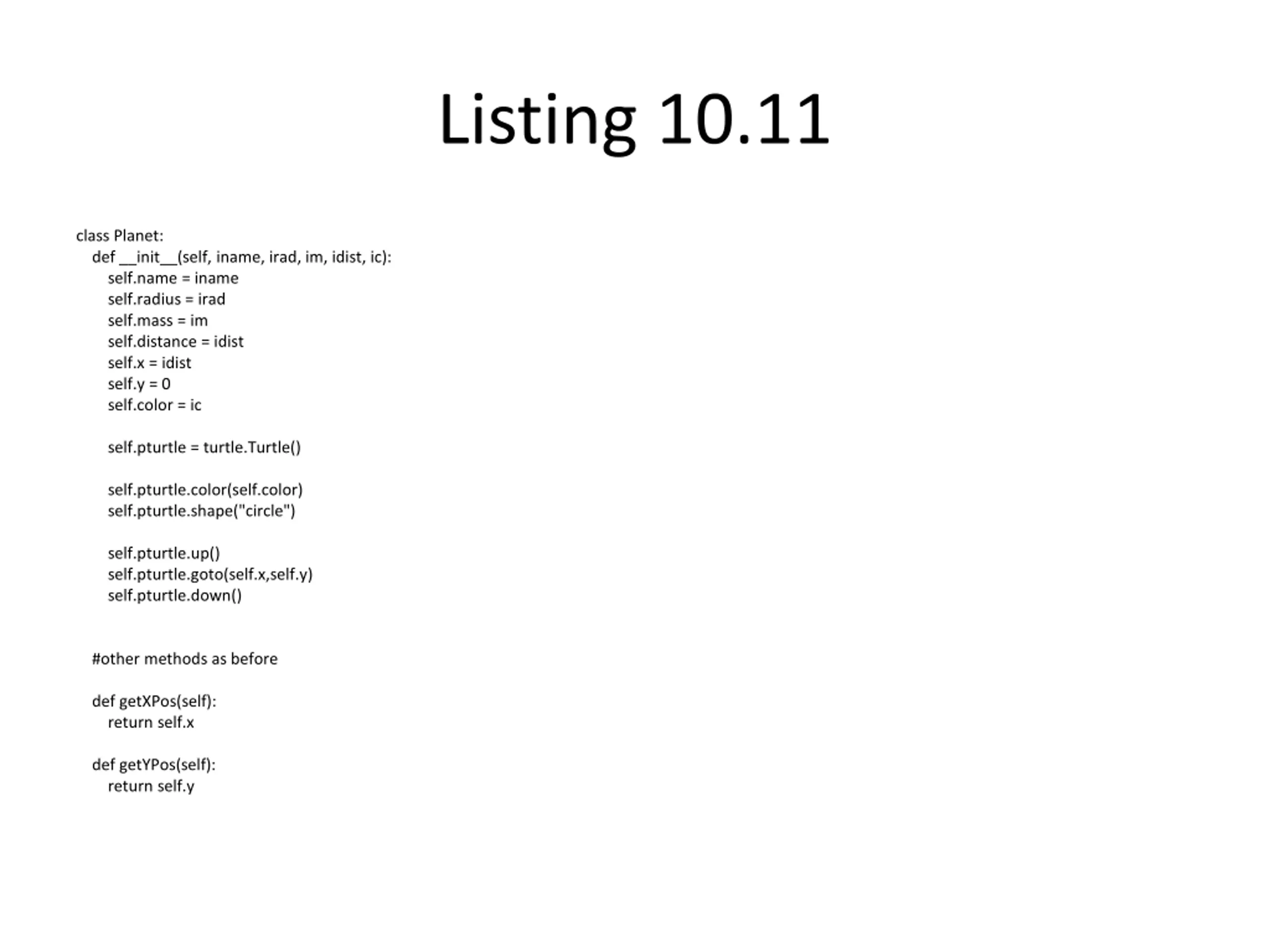

Listing 10.11 class Planet: def __init__(self, iname, irad, im, idist, ic): self.name = iname self.radius = irad self.mass = im self.distance = idist self.x = idist self.y = 0 self.color = ic self.pturtle = turtle.Turtle() self.pturtle.color(self.color) self.pturtle.shape("circle") self.pturtle.up() self.pturtle.goto(self.x,self.y) self.pturtle.down() #other methods as before def getXPos(self): return self.x def getYPos(self): return self.y

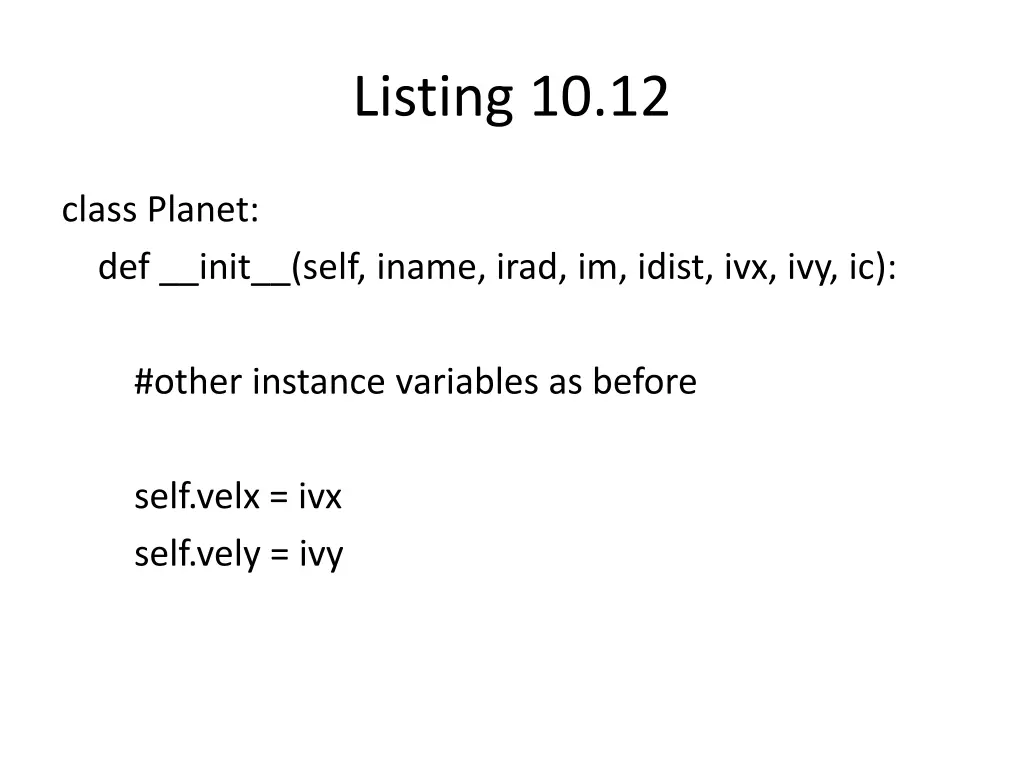

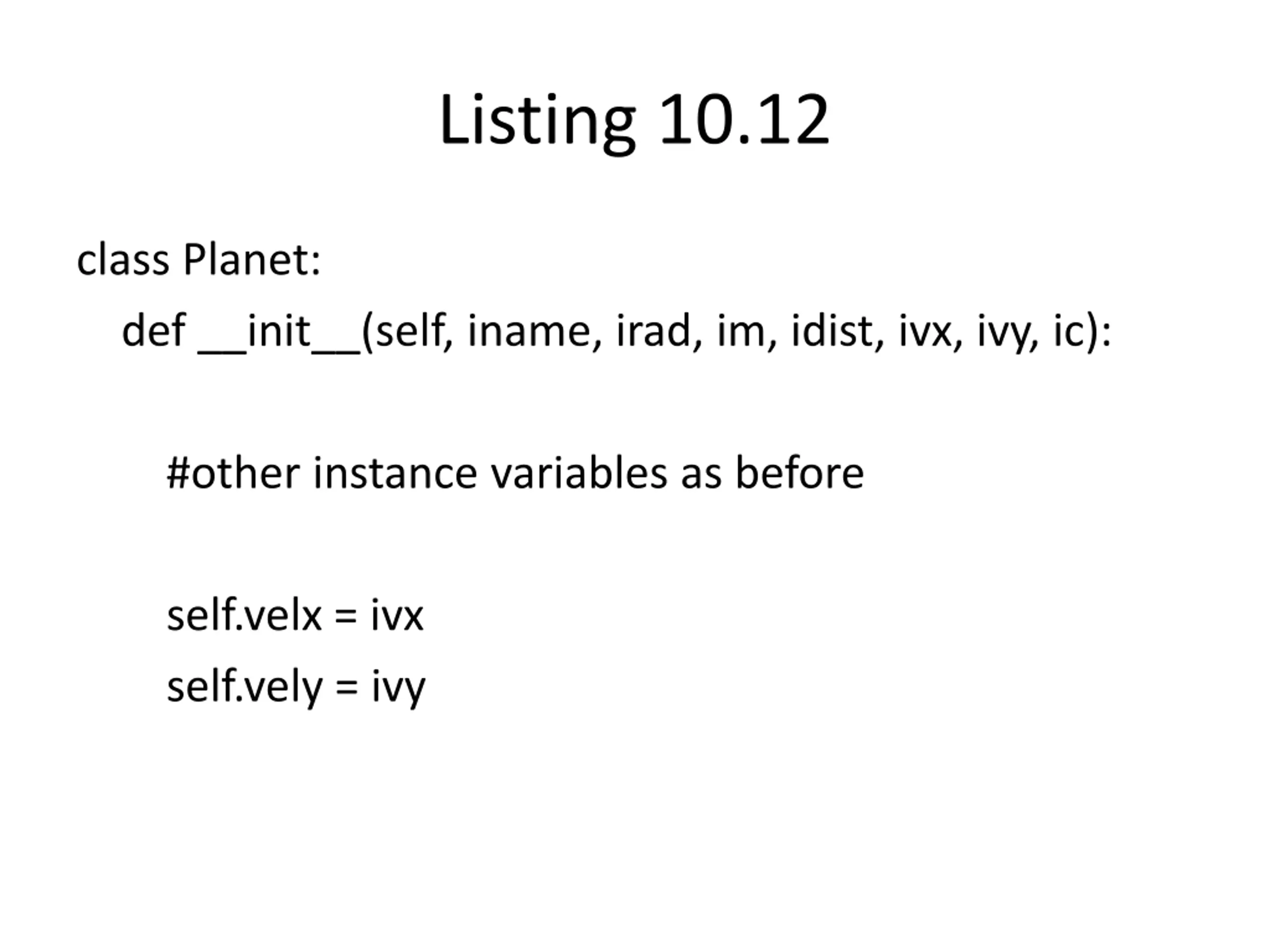

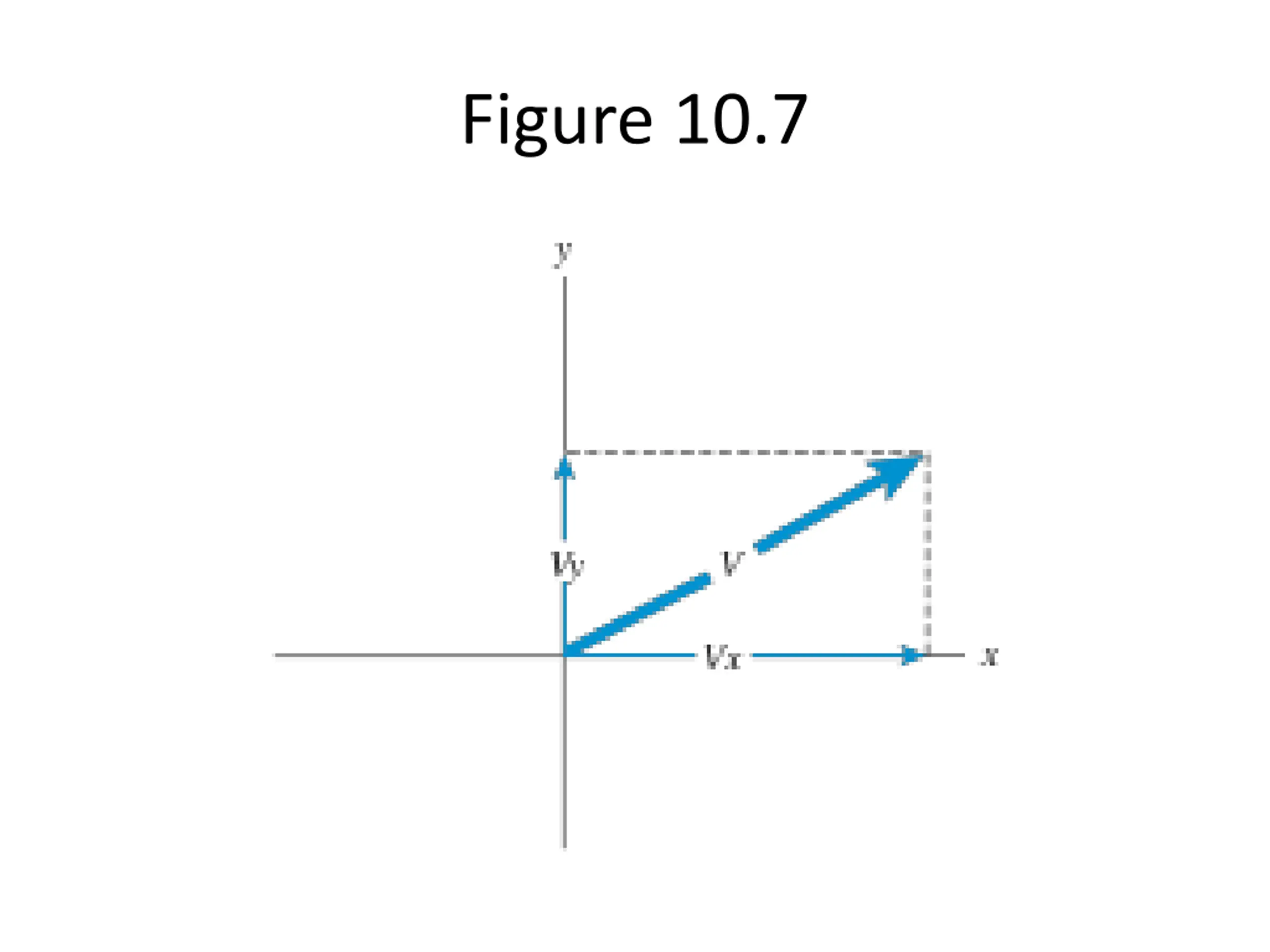

Listing 10.12 class Planet: def __init__(self, iname, irad, im, idist, ivx, ivy, ic): #other instance variables as before self.velx = ivx self.vely = ivy

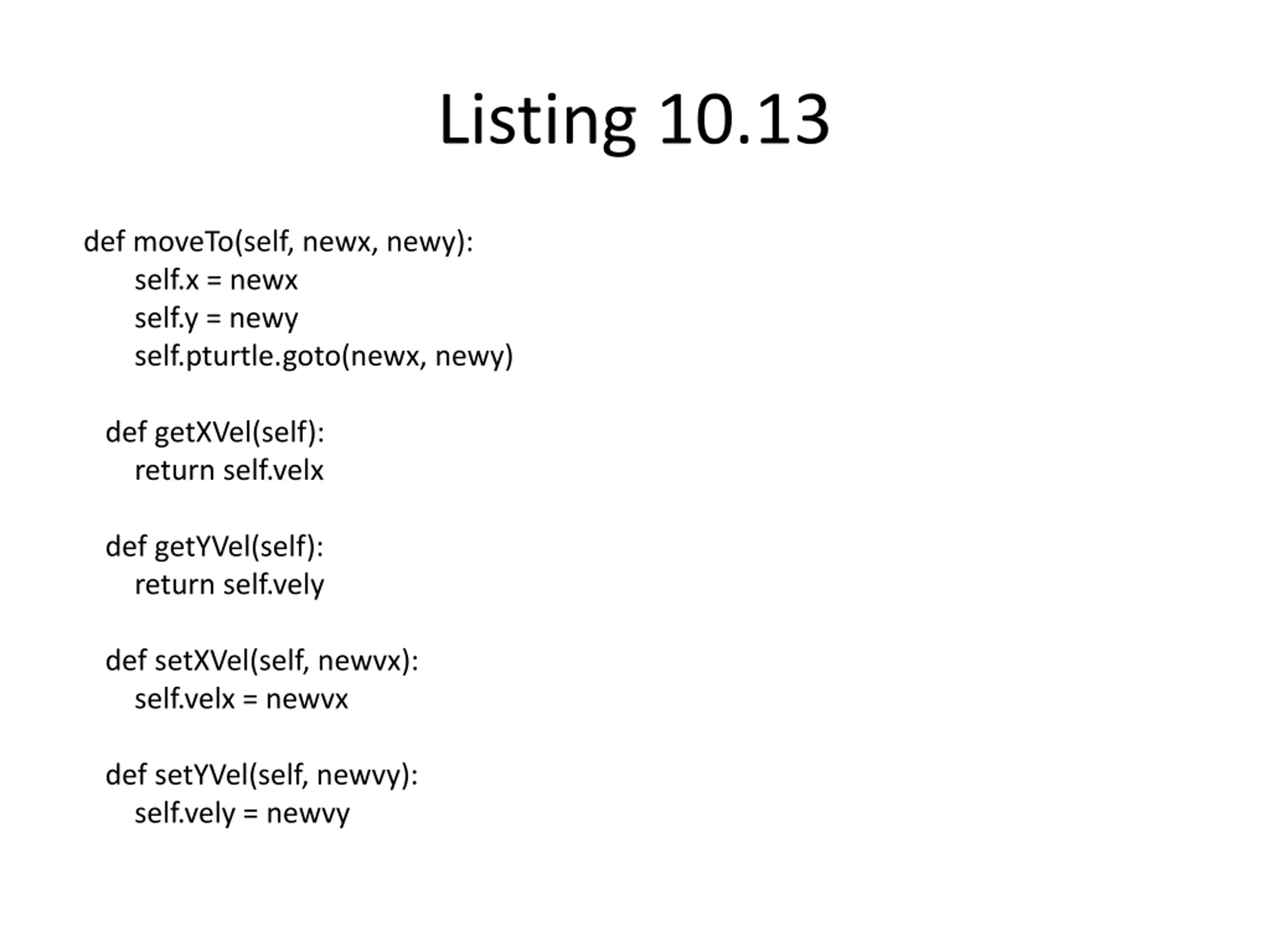

Listing 10.13 def moveTo(self, newx, newy): self.x = newx self.y = newy self.pturtle.goto(newx, newy) def getXVel(self): return self.velx def getYVel(self): return self.vely def setXVel(self, newvx): self.velx = newvx def setYVel(self, newvy): self.vely = newvy

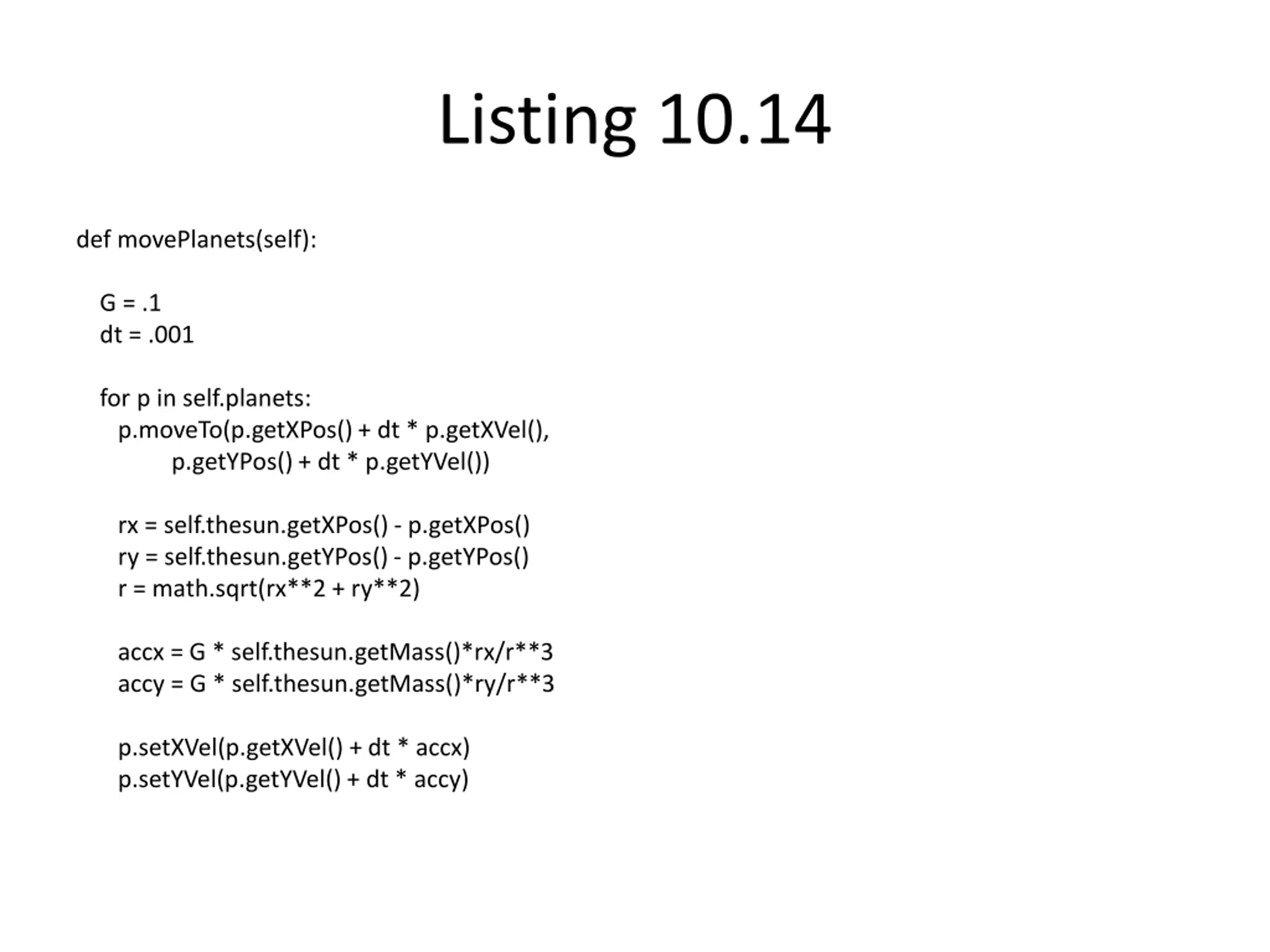

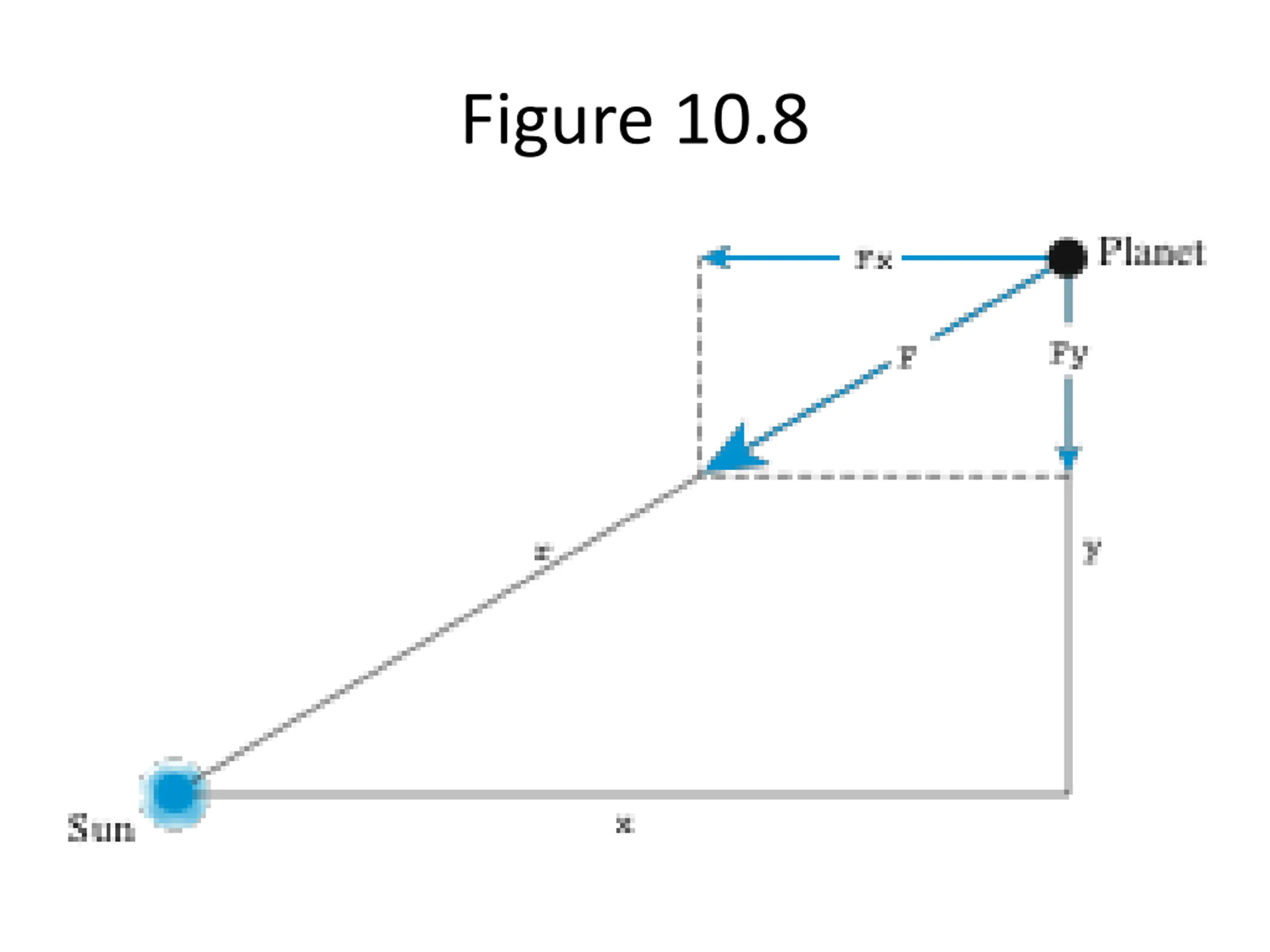

Listing 10.14 def movePlanets(self): G = .1 dt = .001 for p in self.planets: p.moveTo(p.getXPos() + dt * p.getXVel(), p.getYPos() + dt * p.getYVel()) rx = self.thesun.getXPos() - p.getXPos() ry = self.thesun.getYPos() - p.getYPos() r = math.sqrt(rx**2 + ry**2) accx = G * self.thesun.getMass()*rx/r**3 accy = G * self.thesun.getMass()*ry/r**3 p.setXVel(p.getXVel() + dt * accx) p.setYVel(p.getYVel() + dt * accy)

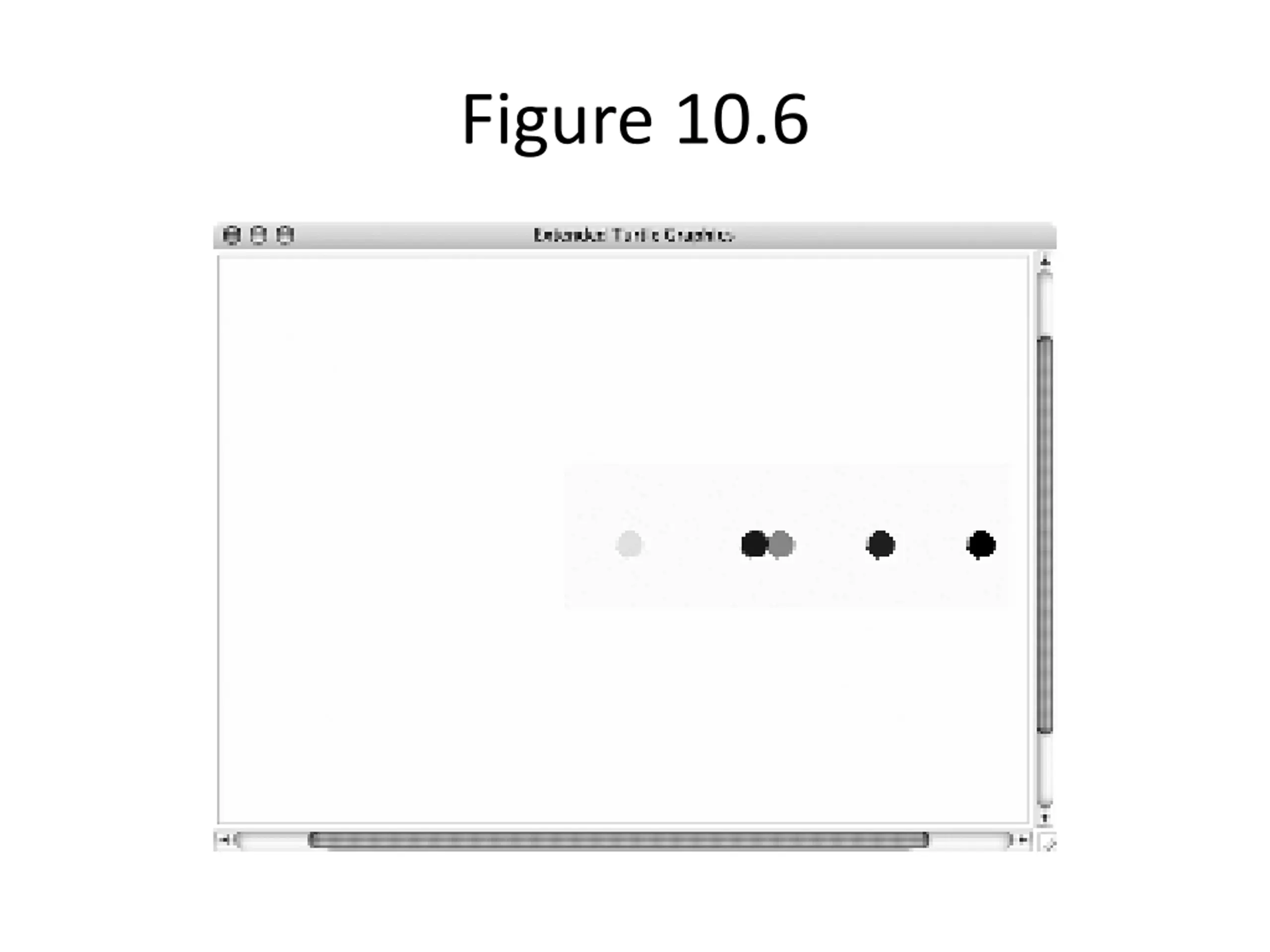

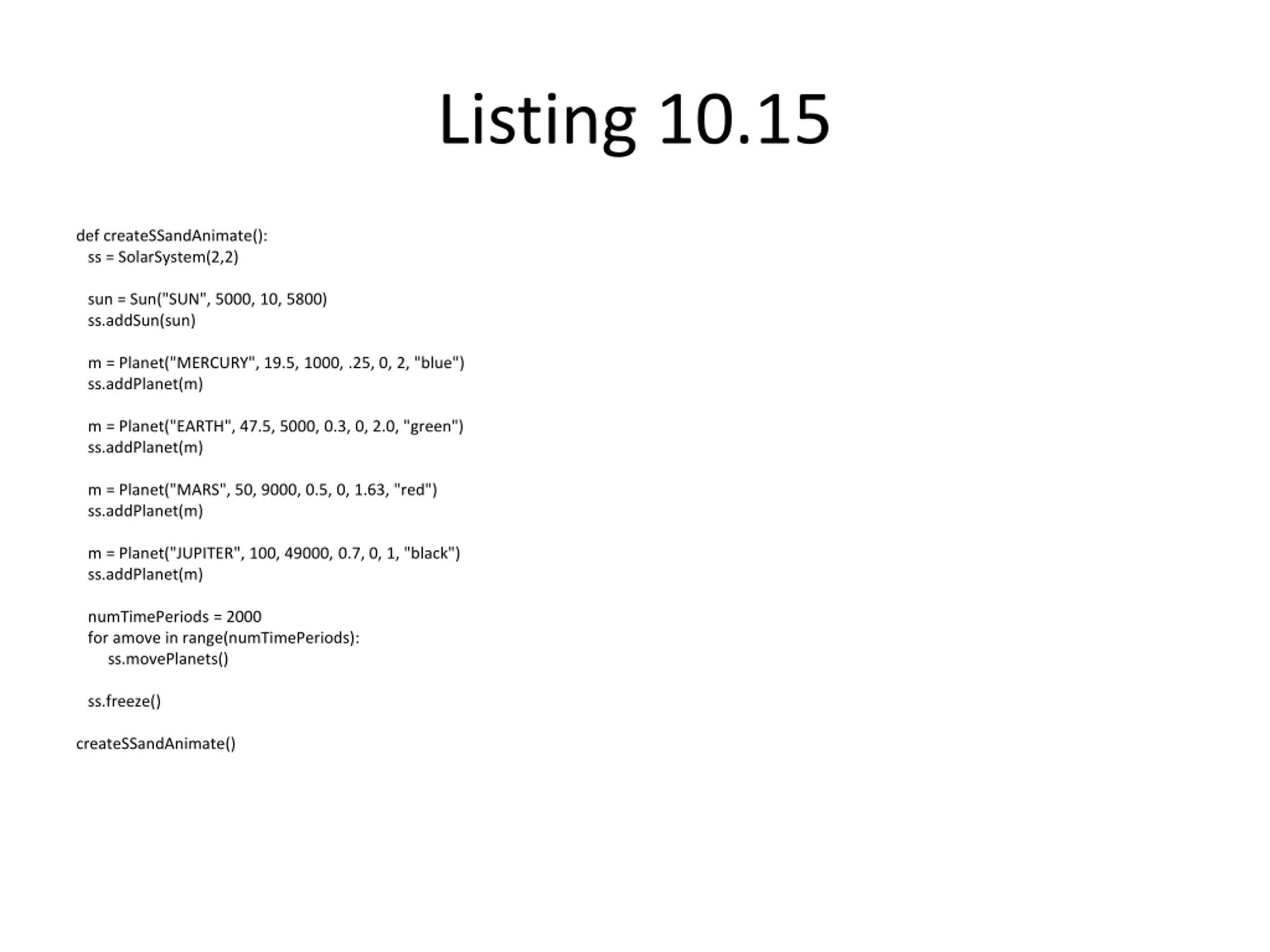

Listing 10.15 def createSSandAnimate(): ss = SolarSystem(2,2) sun = Sun("SUN", 5000, 10, 5800) ss.addSun(sun) m = Planet("MERCURY", 19.5, 1000, .25, 0, 2, "blue") ss.addPlanet(m) m = Planet("EARTH", 47.5, 5000, 0.3, 0, 2.0, "green") ss.addPlanet(m) m = Planet("MARS", 50, 9000, 0.5, 0, 1.63, "red") ss.addPlanet(m) m = Planet("JUPITER", 100, 49000, 0.7, 0, 1, "black") ss.addPlanet(m) numTimePeriods = 2000 for amove in range(numTimePeriods): ss.movePlanets() ss.freeze() createSSandAnimate()
