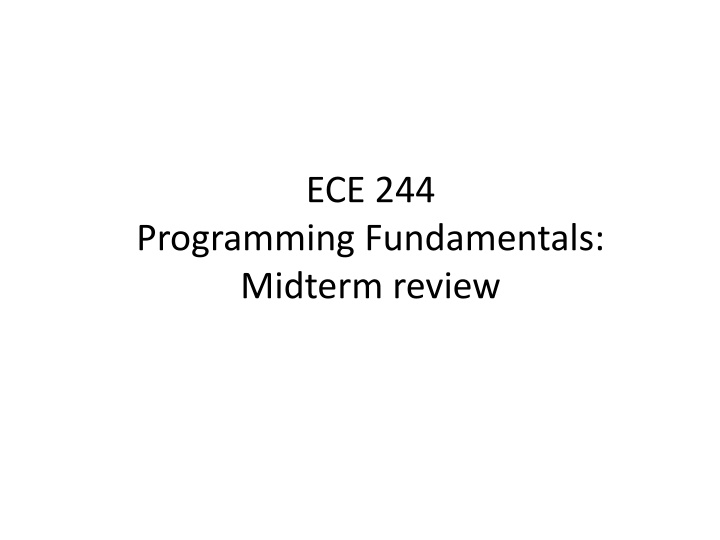

Programming Fundamentals Midterm Review

ECE 244
Programming Fundamentals:
Midterm review
What we have learnt
Review of C
Parameters passing
Compilation and program organization
C++ I/
O (the use of stringstream
)
Pointers + structures
Classes
Access control
Constructors/destructor
Operator overloading
Parameter passing: 2014 midterm Q1c
 1 int do_something (int* & ptr1, int* ptr2) {
 2
int* t;
 3
*ptr1 = *ptr1 + *ptr2;
 4
*ptr2 = *ptr1 + *ptr2;
 5
t = ptr1;
 6
ptr1 = ptr2;
 7
ptr2 = ptr1;
 8
return (*ptr1 + *ptr2);
 9
}
10 int main () {
11   int* p = new int;
12   int* q = new int;
13   int z;
14
*p = 5;
15
*q = 8;
16   z = do_something (p, q);
17
z = z + *p + *q;
18
cout << z << endl;
19
return (0);
29
}
Memory:
addr. : 0  1  2  3  4  5  6  7  8  9
Memory:
addr. :100
1
04
5
8

ptr1
Program organization
The rule is very simple: you have to declare sth (e.g.,
a function or class) before you use it
But you CANNOT declare a
class/structure/global
more
than once!
#ifndef SYMBOL
#define SYMBOL
Declarations go into header file
Include all the necessary header files in .cpp file
Only compile .cpp file  link for incremental
compilation
Incremental compilation
g++ -c -Wall main.cc -o main.o
g++ -c -Wall insert.cc -o insert.o
g++ -c -Wall search.cc -o search.o
g++ main.o insert.o search.o
o linklist.exe
Pointers + structures
Pointers
Pointers to pointers
Pointers to structures
int *p = new int;
int **q = &p;
**q = 100;
cout << *p <<  endl;

struct node {
    int data;
    struct node *next;
} *head;
struct node *p =
new node
;
struct node **q = &p;
(*q)->data = 10;
(*q)->next = new node;
(*q)->next->data = 11;
cout << p->next->data << endl;
cout << ((*p).next)->data << endl;
delete p->next;
delete p;
  4 class A{
  5 public:
  6   A () { cout << "A instantiated" << endl; }
  7   ~A() { cout << "A destroyed" << endl; }
  8 };
  9 A a;
 10 A *foo() {
 11   A b;
 12   A *p = NULL;
 13   cout <<"In foo”<< endl;
 14   p = new A[2];
 15   return p;
 16 }
 17 int main() {
 18   A c[3];
 19   A *q = NULL;
 20   cout << "In main" << endl;
 21   q = foo();
 22   delete [] q;
 23   cout << "Done" << endl;
 24   return 0;
 25 }

Output:
A instantiated
A instantiated
A instantiated
A instantiated
In main
A instantiated
In foo
A instantiated
A instantiated
A destroyed
A destroyed
A destroyed
Done
A destroyed
A destroyed
A destroyed
A destroyed
Classes constructor/destructor
Array of objects

line 18: A c[3];
An array of 3 objects, located on
stack
A *p = new A[2];
An array of 2 objects, located on
heap
A *p[10];
An array of 10
pointers
No constructor is called!
for (int i=0; i<10; i++) p[i] = new
A;


Operator overloading
Overloading binary operator:
Overloading unary operator:
const Complex Complex::operator+ (const Complex &x) const
{
  return Complex(real+x.getReal(), imag+x.getImag());
}
  A a = b;
  Complex a(3.2, 1.0);
  Complex b(4.0, 0.5);
  Complex c;
  c = a + b;
Complex& Complex::operator= (const Complex &x)
{
  real = x.getReal();
  imag = x.getImag();
  return *this;
}
Slide Note
Embed
Share

The review covers various topics including C parameters passing, compilation, program organization, C++ I/O, the use of stringstream, pointers, structures, classes, access control, constructors/destructor, and operator overloading. It includes code snippets and explanations on parameter passing, program organization rules, incremental compilation, pointers and structures, and classes with constructors and destructors.

  • Programming Fundamentals
  • Midterm Review
  • C++
  • Pointers
  • Classes

Uploaded on Oct 04, 2024 | 0 Views


Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

E N D

Presentation Transcript


  1. ECE 244 Programming Fundamentals: Midterm review

  2. What we have learnt Review of C Parameters passing Compilation and program organization C++ I/O (the use of stringstream) Pointers + structures Classes Access control Constructors/destructor Operator overloading

  3. Parameter passing: 2014 midterm Q1c 1 int do_something (int* & ptr1, int* ptr2) { 2 int* t; 3 *ptr1 = *ptr1 + *ptr2; 4 *ptr2 = *ptr1 + *ptr2; 5 t = ptr1; 6 ptr1 = ptr2; 7 ptr2 = ptr1; 8 return (*ptr1 + *ptr2); 9 } 10 int main () { 11 int* p = new int; 12 int* q = new int; 13 int z; 14 *p = 5; 15 *q = 8; 16 z = do_something (p, q); 17 z = z + *p + *q; 18 cout << z << endl; 19 return (0); 29 } p ptr1 q z Memory: 42 84 100 104 XX 104 addr. : 0 1 2 3 4 5 6 7 8 9 Memory: 13 5 21 8 addr. :100 104 t ptr2 100 104 104

  4. Program organization The rule is very simple: you have to declare sth (e.g., a function or class) before you use it But you CANNOT declare a class/structure/global more than once! #ifndef SYMBOL #define SYMBOL Declarations go into header file Include all the necessary header files in .cpp file Only compile .cpp file link for incremental compilation

  5. Incremental compilation g++ -c -Wall main.cc -o main.o g++ -c -Wall insert.cc -o insert.o g++ -c -Wall search.cc -o search.o g++ main.o insert.o search.o o linklist.exe

  6. Pointers + structures int *p = new int; int **q = &p; **q = 100; cout << *p << endl; Pointers Pointers to pointers struct node { int data; struct node *next; } *head; Pointers to structures struct node *p = new node; struct node **q = &p; (*q)->data = 10; (*q)->next = new node; (*q)->next->data = 11; cout << p->next->data << endl; cout << ((*p).next)->data << endl; delete p->next; delete p;

  7. Classes constructor/destructor 4 class A{ 5 public: 6 A () { cout << "A instantiated" << endl; } 7 ~A() { cout << "A destroyed" << endl; } 8 }; 9 A a; 10 A *foo() { 11 A b; 12 A *p = NULL; 13 cout <<"In foo << endl; 14 p = new A[2]; 15 return p; 16 } 17 int main() { 18 A c[3]; 19 A *q = NULL; 20 cout << "In main" << endl; 21 q = foo(); 22 delete [] q; 23 cout << "Done" << endl; 24 return 0; 25 } Output: A instantiated A instantiated A instantiated A instantiated In main A instantiated In foo A instantiated A instantiated A destroyed A destroyed A destroyed Done A destroyed A destroyed A destroyed A destroyed line 9 line 18 line 11 line 14 line 16 line 22 line 25, c[3] line 25, a

  8. Array of objects line 18: A c[3]; An array of 3 objects, located on stack A *p = new A[2]; An array of 2 objects, located on heap A *p[10]; An array of 10 pointers No constructor is called! for (int i=0; i<10; i++) p[i] = new A;

  9. Operator overloading Overloading binary operator: const Complex Complex::operator+ (const Complex &x) const { return Complex(real+x.getReal(), imag+x.getImag()); } A a = b; Complex a(3.2, 1.0); Complex b(4.0, 0.5); Complex c; c = a + b; Overloading unary operator: Complex& Complex::operator= (const Complex &x) { real = x.getReal(); imag = x.getImag(); return *this; }
