Presentation Transcript

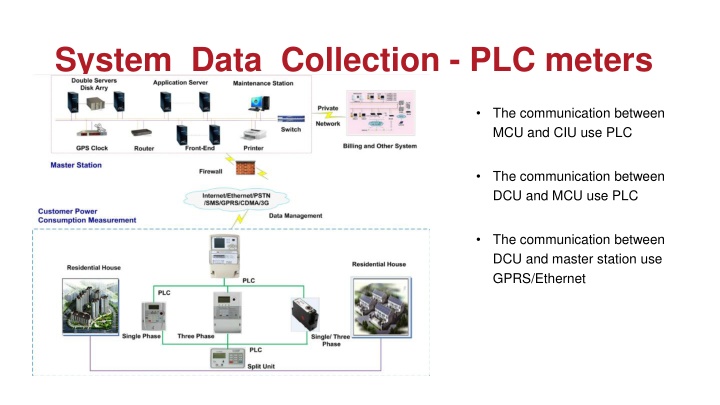

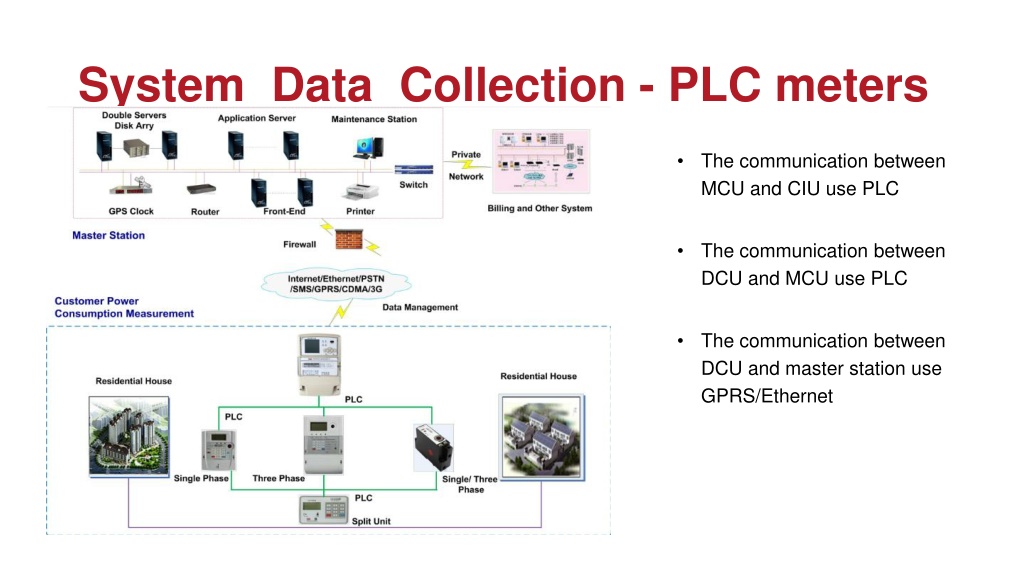

System Data Collection - PLC meters The communication between MCU and CIU use PLC The communication between DCU and MCU use PLC The communication between DCU and master station use GPRS/Ethernet
Data Concentrator Unit (DCU) Load Data Function Management Transferring Remote and Local Switch on/off Data Parameters set/search Collecting Data analysis Event Record Remote Update Concentrator
Data Concentrator Unit (DCU) P0: Infrared Port Indicator Button Battery SIM Card Slot LCD P1: USB Port PLC/RF/Zigbee Module Name board Antenna P2:RJ45 Auxiliary terminals Terminal blocks Cover
