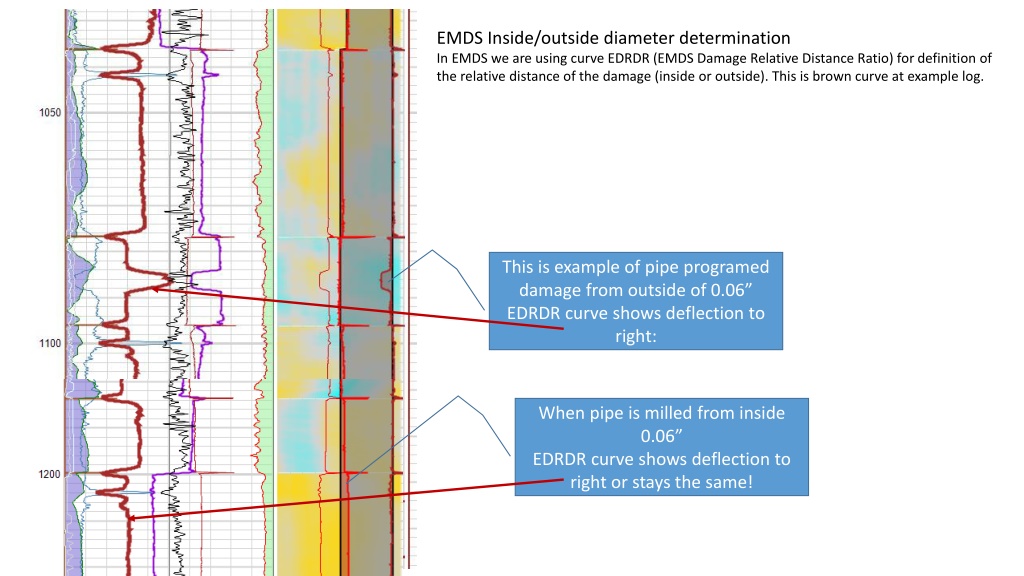

EMDS Inside/outside diameter determination In EMDS we are using curve EDRDR (EMDS Damage Relative Distance Ratio) for definition of the relative distance of the damage (inside or outside). This is brown curve at example log. This is example of pipe programed damage from outside of 0.06 EDRDR curve shows deflection to right: When pipe is milled from inside 0.06 EDRDR curve shows deflection to right or stays the same!
Typically collar shows lack of mass from inside(near channels red) and more mass from outside (far channels blue). Also red on B, BB Sensors while Blue at Far A and Far C sensors (can be red at near A and near C Sensors A Sensor B,BB,C, A A Sensor B Sensor BB Sensor C Sensor Typically addition of mass from outside (centralizer on casing) shows lack of mass from inside(near channels red) and more mass from outside (far channels blue) Typically damage from outside shows lack of mass from outside(far channels red) and more mass from inside (near channels blue)
100 EMDSA 10000 1.9 MFC 2.1 1 MFC 24 .23 EMDSNR 1.77 0 Time 142 0 Azimuth 702 0 Azimuth 432 0 Time 62 Second Pipe Third Pipe First Pipe
This is example unreported detected casing patch in the well behind tubing.
Unreported third casing of unknown size detected behind two pipes: tubing and casing.
Casing weight change detected behind tubing.
9326 Collar between joints 242 and 243 has compromised integrity and lack of mass in middle part. Maybe it was not screwed properly and was additionally damaged. Damage or corrosion rate in collar is hard to quantify! 7 bad collar. 7 good collar. Detection of bad casing collar behind tubing.
9544 Collar between joints 242 and 243 has compromised integrity and lack of mass in middle part. Maybe it was not screwed properly and was additionally damaged. Damage or corrosion rate in collar is hard to quantify! 7 bad collar. 7 good collar. Detection of bad casing collar behind tubing.
9714.8 Collar between joints 242 and 243 has compromised integrity and lack of mass in middle part. Maybe it was not screwed properly and was additionally damaged. Damage or corrosion rate in collar is hard to quantify! 7 bad collar. 7 good collar. Detection of bad casing collar behind tubing.
