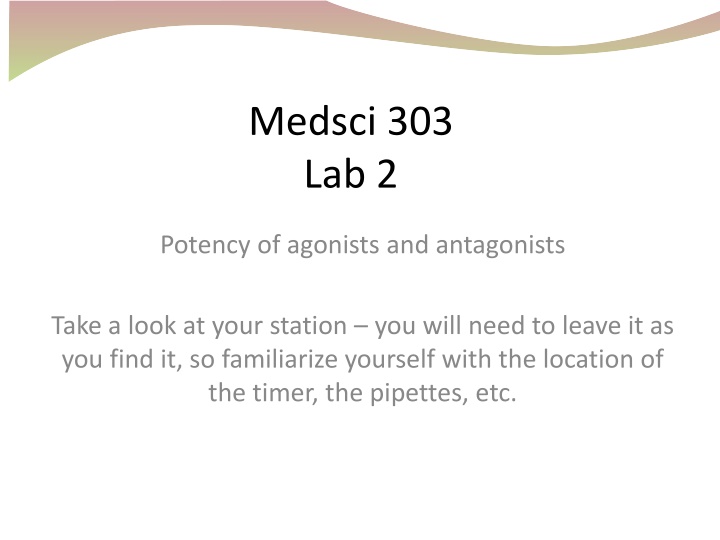

Medsci 303
Lab 2
Potency of agonists and antagonists
Take a look at your station – you will need to leave it as
you find it, so familiarize yourself with the location of
the timer, the pipettes, etc.
How is the tissue suspended?
Tissue/Carbogen
Hook 1
Tissue
Resting
tension across
tissue is 0.5gm
T
I
M
E
R
S
T
A
R
T
E
D
?
•
Please do not touch the equipment on your
bench during this introduction
(other than washing every 5 min)
•
Do not close the Chart program, log out, or do
anything which will undo the calibration that
has been done for your station
•
You will be writing up this lab – use your time
in the lab well (Report Guide is on website and
data will be posted on Cecil)
Plan for today’s lab
•
Introduce demonstrators
•
Brief intro to this lab and organ baths
•
Prepare dilutions
•
Conduct the experiment
•
Measure/transform the responses
•
Record your data. Submit to demonstrator.
•
Clean up. Follow instructions or lose marks.
Today’s Health And Safety
•
Wear gloves and safety glasses
•
There are
3 types
of rubbish bins:
1.
Small YELLOW buckets
on
your bench (tips,
empty tubes, gloves) for during experiment
2.
Big YELLOW bins for lab waste too
3.
Paper waste bins
under
the bench
(for paper trash NOT for anything used in the
lab,
especially not gloves)
Intro to the Power Lab Equipment
We have already:
Set up Chart for Windows
Opened GP Ileum Method
Auto Calibrated the Powerlab to 0.5g
(calibration “translates” the contraction into a gram value)
DO NOT CLOSE PROGRAM
or it will need to be done again
Intro to Organ Baths
Intro to the Organ Bath – Surrounding
Apparatus
A) Adjust
resting tension
D) Loosen to
remove
carbogen hook
B) Do Not Touch!
C) Unhook
from force
transducer
to suspend tissue
Tissue hooks
Today's experiment
•
Using guinea pig ileum in an organ bath to gain data
to construct concentration-response curves
•
Comparing and contrasting the curves of 2 agonists
(Exp A)
•
Observe the effect on the concentration-response
curve in the presence of 2 different antagonists (Exp
B/C)
ASK YOURSELF?
WHICH EXPERIMENT AM I DOING?
A? B? or C?
Read the protocol through completely while
equilibrating your tissue
Agonist Dilutions
Use the correct pipette / tip combination – ask if you
are unsure
We suggest:
Prepare
500 ul
of each agonist solution you need.
i.e. (V
2
= 0.5 ml)
You need to:
Use water as your diluent.
If your drug is on ice,
keep your dilutions on ice
.
Before you start adding drugs...
•
Check tension (big silver dial), have you equilibrated
for 30 minutes (washing every 5 min)?
•
Do you know how to use Chart?
–
Enter time/drug conc. => add drug => hit enter on
chart to mark time)?
•
Prepare your
agonist
serial dilutions:
–
4 test tubes per agonist
–
Add conc. from
low to high
(i.e. 10
-6
first)
–
Keep pipette tips below the Krebs when adding
agonist
5 minute cycle
START ADDING YOUR FIRST DRUG…
If you are unsure of what you are doing...think
first...ask second...
5 minute cycle
W
W
Empty
and
refill
Readjust
tension
@
~ 4
mins
For part two:
Exp A
•
When last contraction is ending, drain and refill chamber twice,
start timer for 30 minute equilibration, washing every 5 minutes
Exp B & C
•
Drain and refill the reservoir – Set the tap to overflow to drain
•
When the reservoir is empty, STOP overflow (or you will waste
the new Krebs)
•
Add Krebs with antagonist
•
Drain and refill the chamber twice, start timer for 30 minute
equilibration, washing every 5 minutes
Parts of a Laboratory Report
MEDSCI 305
Pharmacology Undergraduate
Student
Support for Reports
•
Report Writing Guide
•
Rubric
•
Website
•
Piazza
•
Tutors
•
Group
Lab Reports
•
Aim
•
Introduction
•
Method
•
Results
•
Discussion
•
Conclusion
•
Referencing (primarily in Intro & Discussion)
•
PRESENTATION
Introduction
•
Scientist vs Undergraduate Student
•
“To learn something about the science of the course you are
taking”
•
An effective introduction in a lab report
•
Established the learning context for the lab
•
Link practical with lectures (Lecture 3, Chapter 4 Rang and
Dale)
•
General background information
•
Your scientific writing skills are important here. A
place to assess conciseness, flow of information
as well as relevance of information
Materials and Methods
•
What did you do and how did you do it?
•
Animal species, tissue type/origin
•
Experimental setup/process description
•
Equipment used (organ bath, analysis or graphical software)
•
Drugs and Solutions (final conc of exposure not how each
working solution is made)
•
Data Analysis
•
Which data are from which experiment
•
Data manipulation, how was it transformed?
•
Include an appendix to highlight which data excluded
Results
•
Display your graphs using the format provided
on the web site.
•
Class data
•
Narrative results also required, provide
quantitative values where possible so
magnitude of effect can be clearly seen
•
Think about flow/layout here too
Discussion
•
3 pages maximum
•
Answer the questions given to you specifically
•
Depth of answer important
•
Results based support where possible
•
Excellent referencing of facts
Measuring contractions
•
Stop the trace
•
Move the M pointer to the baseline before the first
contraction you want to measure.
•
Move your mouse along the line and record the maximum
response (g) within the
~
30 second window.
•
Move M to the baseline just prior to the next agonist addition
and measure the maximum. Do this for each concentration.
•
Change all your contractions into % of maximum, i.e. if your
biggest contraction is 8g, then make all other contractions a %
of 8g. 4g = 50% etc…
•
Record your data on the handouts/in your manual
Normalising Responses
Class Data
•
Record your data into the data sheet in your manual
NOW
–
MAKE SURE IT IS CLEAR SO YOUR DEMONSTRATOR
CAN UNDERSTAND IT.
–
Class data will be posted on Cecil by 5pm Thurs for
you to process and present in your report.
You can get started on the rest of the report earlier –
there is plenty to do!
CONTINUE WITH PART TWO…
Clean-up instructions
Empty petri dishes and rinse them under the tap
Test tubes emptied in sink & disposed of in waste bin
Tissue disposed of in waste bin
Upper reservoir drained, then filled with
2 litres of hot
water
(leave on overflow), leave bubbles flowing
Tidy up your bench (pipettes etc.) – leave it as it was !
Empty your ice bucket into sink
Do not save chart file when closing Chart, log out
Tidy away your mouse and keyboard etc.
Station must be checked off by a tutor/demonstrator
before you leave.
