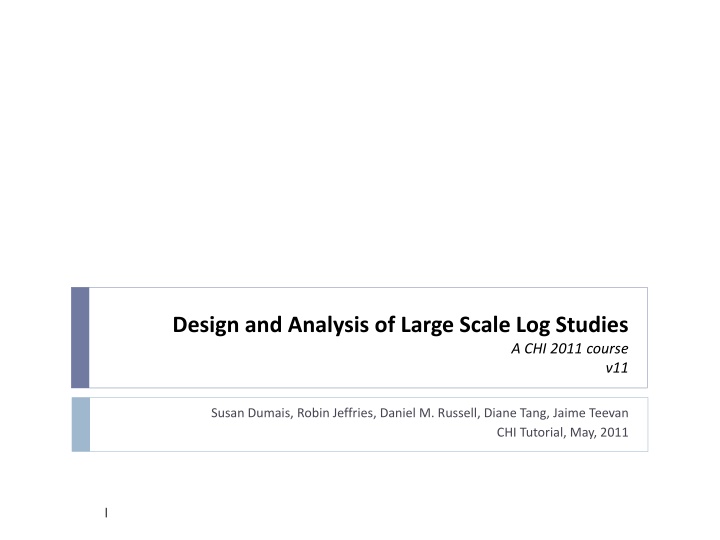

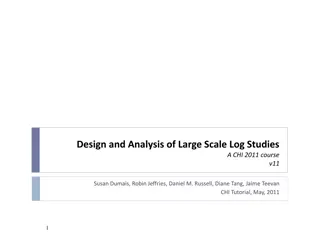

Design and Analysis of Large Scale Log Studies
A CHI 2011 course
v11
Susan Dumais, Robin Jeffries, Daniel M. Russell, Diane Tang, Jaime Teevan
CHI Tutorial, May, 2011
1
Introduction
Daniel M. Russell
2
What Can We (HCI) Learn from Log Analysis?
Logs are the traces of human behavior
… seen through the lenses of whatever sensors we have
Actual behaviors
As opposed to recalled behavior
As opposed to subjective impressions of behavior
3
Benefits
Portrait of real behavior… warts & all
… and therefore, a more complete, accurate picture of ALL behaviors,
including the ones people don’t want to talk about
Large sample size / liberation from the tyranny of small N
Coverage (long tail) & Diversity
Simple framework for comparative experiments
Can see behaviors at a resolution / precision that was
previously impossible
Can inform more focused experiment design
4
Drawbacks
Not annotated
Not controlled
No demographics
Doesn’t tell us the
why
Privacy concerns
AOL / Netflix / Enron / Facebook public
Medical data / other kinds of personally identifiable data
5
00:32 …now I know…
00:35 … you get a lot of weird things..hold on…
00:38 “Are Filipinos ready for gay flicks?”
00:40 How does that have to do with what
I just….did...?
00:43 Ummm…
00:44 So that’s where you can get surprised…
you’re like, where is this… how does
this relate…umm…
What Are Logs for This Discussion?
User behavior events over time
User activity primarily on web
Edit history
Clickstream
Queries
Annotation / Tagging
PageViews
… all other instrumentable events (mousetracks, menu events….)
Web crawls (e.g., content changes)
E.g., programmatic changes of content
6
How to Generate Logs
Use existing logged data
Explore sources in your community (e.g., proxy logs)
Work with a company (e.g., intern, visiting researcher)
Construct targeted questions
Generate your own logs
Focuses on questions of unique interest to you
Construct community resources
Shared software and tools
Client side logger (e.g., VIBE logger)
Shared data sets
Shared experimental platform to deploy experiments (and to attract
visitors)
Other ideas?
7
Interesting Sources of Log Data
Anyone who runs a Web services
Proxy (or library) logs at your institution
Publically available social resources
Wikipedia (content, edit history)
Delicious, Flickr
Facebook public data?
Others?
GPS
Virtual worlds
Cell call logs
8
Other Kinds of Large Data Sets
Mechanical Turk (may / may not be truly log-like)
Other rater panels, particularly ones that generate behavioral
logs
Medical data sets
Temporal records of many kinds…
Example: logs from web servers for your web site
Example: an app that generates logs
a la the “instrumented Sketchup” application
Akers, et al., 2009
9
Audience Discussion
What kind of logs do you need to analyze?
What kinds of logs does your work generate?
Open Discussion
10
Overview
Perspectives on log analysis
Understanding User Behavior (Teevan)
Design and Analysis of Experiments (Tang & Jeffries)
Discussion on appropriate log study design (all)
Practical Considerations for log analysis
Collection & storage (Dumais)
Data Cleaning (Russell)
Discussion of log analysis & HCI community (all)
11
Section 1:
Understanding User Behavior
Jaime Teevan & Susan Dumais
Microsoft Research
12
Kinds of User Data
13
Kinds of User Data
14
Goal: Build an abstract picture of behavior
Goal: Build an abstract picture of behavior
Kinds of User Data
15
Goal: Build an abstract picture of behavior
Goal: Build an abstract picture of behavior
Goal: Decide if one approach is better than another
Goal: Decide if one approach is better than another
Web Service Logs
16
Government
Government
contractor
contractor
Recruiting
Recruiting
Academic field
Academic field
Example sources
Search engine
Commercial site
Types of information
Queries, clicks, edits
Results, ads, products
Example analysis
Click entropy
Teevan, Dumais and Liebling.
To
Personalize or Not to Personalize:
Modeling Queries with Variation
in User Intent
. SIGIR 2008
Web Browser Logs
17
Example sources
Proxy
Logging tool
Types of information
URL visits, paths followed
Content shown, settings
Example analysis
Revisitation
Adar, Teevan and Dumais.
Large
Scale Analysis of Web Revisitation
Patterns
. CHI 2008
Web Browser Logs
18
Example sources
Proxy
Logging tool
Types of information
URL visits, paths followed
Content shown, settings
Example analysis
DiffIE
Teevan, Dumais and Liebling.
A
Longitudinal Study of How
Highlighting Web Content Change
Affects .. Interactions.
CHI 2010
Rich Client-Side Logs
19
Example sources
Client application
Operating system
Types of information
Web client interactions
Other client interactions
Example analysis
Stuff I’ve Seen
Dumais et al.
Stuff I've Seen: A
system for personal information
retrieval and re-use.
SIGIR 2003
Logs Can Be Rich and Varied
Sources of log data
Types of information logged
Web service
Search engine
Commerce site
Web Browser
Proxy
Toolbar
Browser plug-in
Client application
Interactions
Queries, clicks
URL visits
System interactions
Context
Results
Ads
Web pages shown
20
Using Log Data
What can we learn from log analysis?
What can’t we learn from log analysis?
How can we supplement the logs?
21
Using Log Data
What can we learn from log analysis?
Now: About people’s behavior
Later: Experiments
What can’t we learn from log analysis?
How can we supplement the logs?
22
Generalizing About Behavior
Buttons clicks
Structured answers
Information use
Information needs
What people think
23
chi 2011
Human
Human
behavior
behavior
Feature
Feature
use
use
Generalizing Across Systems
Bing version 2.0
Bing use
Web search engine use
Search engine use
Information seeking
Logs from a particular run
Logs from a Web search engine
From many Web search engines
From many search verticals
From browsers, search, email…
24
Build
Build
new
new
tools
tools
Build
Build
better
better
systems
systems
Build
Build
new
new
features
features
What We Can Learn from Query Logs
25
[Joachims 2002]
Sessions 2.20
queries long
[Silverstein et al. 1999]
[Lau and Horvitz, 1999]
Navigational,
Informational,
Transactional
[Broder 2002]
2.35 terms
[Jansen et al. 1998]
Queries appear 3.97 times
[Silverstein et al. 1999]
Summary measures
Query frequency
Query length
Analysis of query intent
Query types and topics
Temporal features
Session length
Common re-formulations
Click behavior
Relevant results for query
Queries that lead to clicks
26
Query
typology
27
Query behavior
Query
typology
28
Long term trends
29
Uses of Analysis
•
Ranking
–
E.g., precision
•
System design
–
E.g., caching
•
User interface
–
E.g., history
•
Test set
development
•
Complementary
research
Query behavior
Query
typology
Partitioning the Data
Language
Location
Time
User activity
Individual
Entry point
Device
System variant
30
[Baeza Yates et al. 2007]
Partition by Time
Periodicities
Spikes
Real-time data
New behavior
Immediate feedback
Individual
Within session
Across sessions
31
[Beitzel et al. 2004]
Partition by User
Temporary ID (e.g., cookie, IP address)
High coverage but high churn
Does not necessarily map directly to users
User account
Only a subset of users
32
[Teevan et al. 2007]
What Logs Cannot Tell Us
People’s intent
People’s success
People’s experience
People’s attention
People’s beliefs of what’s happening
Limited to existing interactions
Behavior can mean many things
33
Example: Click Entropy
Question: How ambiguous
is a query?
Approach: Look at
variation in clicks.
[Teevan et al. 2008]
Click entropy
Low if no variation
human computer interaction
High if lots of variation
hci
34
Government
Government
contractor
contractor
Recruiting
Recruiting
Academic field
Academic field
Which Has Lower Variation in Clicks?
www.usajobs.gov
v.
federal government jobs
find phone number
v.
msn live search
singapore pools
v.
singaporepools.com
35
Click entropy = 1.5
Click entropy = 2.0
Result entropy = 5.7
Result entropy = 10.7
Results change
Results change
Which Has Lower Variation in Clicks?
www.usajobs.gov v. federal government jobs
find phone number v. msn live search
singapore pools v. singaporepools.com
tiffany
v.
tiffany’s
nytimes
v.
connecticut newspapers
36
Click entropy = 2.5
Click entropy = 1.0
Click position = 2.6
Click position = 1.6
Result quality varies
Which Has Lower Variation in Clicks?
www.usajobs.gov v. federal government jobs
find phone number v. msn live search
singapore pools v. singaporepools.com
tiffany v. tiffany’s
nytimes v. connecticut newspapers
campbells soup recipes
v.
vegetable soup recipe
soccer rules
v.
hockey equipment
37
Click entropy = 1.7
Click entropy = 2.2
Clicks/user = 1.1
Clicks/user = 2.1
Task affects # of clicks
Results change
Result quality varies
Dealing with Log Limitations
Look at data
Clean data
Supplement the data
Enhance log data
Collect associated information (e.g., what’s shown)
Instrumented panels (critical incident, by individual)
Converging methods
Usability studies, eye tracking, surveys,
field studies, diary studies
38
Example: Re-Finding Intent
Large-scale log analysis of re-finding
[Tyler and Teevan 2010]
Do people know they are re-finding?
Do they mean to re-find the result they do?
Why are they returning to the result?
Small-scale critical incident user study
Browser plug-in that logs queries and clicks
Pop up survey on repeat clicks and 1/8 new clicks
Insight into intent + Rich, real-world picture
Re-finding often targeted towards a particular URL
Not targeted when query changes or in same session
39
Summary: Understanding User Behavior
Log data gives a rich picture of real world behavior
There are many potential sources of log data
Partition the data to view interesting slices
Recognize what the data can and cannot tell you
Supplement logs with complementary data
40
Section 2: Design and Analysis of
Experiments
Robin Jeffries & Diane Tang
41
What Do We Mean by an Experiment?
A change to the user experience, directly or indirectly
Have a hypothesis
Collect metrics to verify / nullify hypothesis
Measurability is key!
Running on a live (web) app; data coming in from real
users, doing their own tasks
Multiple
arms
, each providing different experiences
At minimum, the new experience and the original
control
Can be an entire space of parameters with multiple values
for each parameter
42
R
Example Changes and Hypotheses
Visible changes:
Underlines: if I remove underlines, the page will be cleaner
and easier to parse and users will find what they need faster
Left Nav: by adding links to subpages, users will be able to
better navigate the site
Adding a new feature: the usage of this feature is better than
what was previously shown in its place
Less visible changes:
Ranking: if I change the order of the (search) results, users will
find what they are looking for faster (higher up on the page)
43
R
Why Do Experiments?
To test your hypothesis
In reality (or ultimately): gather data to make an
informed, data-driven decision
Little changes can have big impacts. You won't know
until you measure it.
With big changes, who knows what will happen. Your
intuition is not always correct
Law of unintended side effects:
what you wanted to
impact gets better, but something else gets worse.
You want to know that.
44
R
What Can We Learn from Experiments?
How (standard) metrics change
Whether/How often users interact with a new
feature
How users interact with a new feature
Whether behavior changes over time. (learning/
habituation)
But, remember, you are following a cookie, not a
person
45
R
What Can’t We Learn from Experiments?
WHY: figuring out why people do things
Need more direct user input
Tracking a user over time
Without special tracking software: only have a cookie
Cookie != user
Measuring satisfaction / feelings directly
Only indirect measures (e.g., how often users return)
Did users even notice the change?
Did users tell their friends about feature x?
Did users get a bad impression of the product?
Did the users find the product enjoyable to use?
Is the product lacking an important feature?
Would something we didn't test have done better than what we did test?
Is the user confused and why?
46
R
Section Outline
Background
Experiment design:
What am I testing & what am I measuring?
Experiment sizing:
How many observations do I need?
Running experiments:
What do I need to do?
Analyzing experiments:
I’ve got numbers, what do they mean?
47
D
Basic Experiment Definitions
Incoming request R has:
Cookie C
Attributes A:
Language, country, browser, etc.
Experiment:
Diversion: is a request in the experiment?
Unit of diversion: cookie vs. request
May also depend on attributes
Triggering: which subset of diverted requests does an
experiment actually change (impact)?
E.g., weather onebox vs. page chrome
Page chrome: triggering == diversion
Weather onebox: triggering << diversion
On triggered requests, experiment changes what is served to
the user
48
D
Examples: Weather Onebox vs. Page Chrome
49
D
Experiment Design
What decision do you want to make?
3 interlinked questions:
What do you want to test?
What is the space you will explore/what factors will you
vary?
What hypotheses do you have about those changes?
What metrics will you use to test these hypotheses?
How will you make your decision?
Every outcome should lead to a decision
50
R
Decisions, Goals, Underlying Assumptions
Ultimately: have a goal, make a decision
Goal: improve the user experience
Assumption: if users find what they are looking for faster,
then the user experience is improved
Decision: Will making the page less cluttered change how
quickly users find what they want?
Goal: increase feature usage
Decision: Will changing the appearance of links on the
page increase the click through to this feature?
Goal: increase time on site
Decision: Will adding dancing hamsters to the page lead
visitors to spend more time on the site?
51
R
Changes: Design Space
Which factors do you want to vary?
E.g., layout, positioning, features, colors, size, etc.
Practical:
Are there options that are unacceptable?
E.g., Blue text on blue
background
Full-factorial (all possible combinations) or not?
Analysis isn’t easy for non-full factorial design
More arms in full factorial
increase in total work
Experiment size & number of arms can be an issue for full factorial
Confounds/nuisance factors
Not always possible to isolate: have a plan
Example: images coming from a separate server, which sometimes
goes down, so image is not shown. Want to treat those requests
differently than the requests that produce the intended results
52
R
Example: Video Inclusions
Show a playable thumbnail of a video in web results for
highly ranked video results
Explore different visual treatments for thumbnails
and
different levels of triggering the thumbnail
Treatments:
1.
Thumbnail on right and conservative triggering
2.
Thumbnail on right and aggressive triggering
3.
Thumbnail on left and conservative triggering
4.
Thumbnail on left and aggressive triggering
5.
Control (never show thumbnail; never trigger)
Note:
this is not a complete factorial experiment
(should have 9 conditions)
53
R
Video
Inclusions
54
R
Hypotheses
Given the proposed changes, what effects do you expect
to see?
More concrete than “it will be cool”
Will it impact
what
users do
, how often
they do it
,
how long
it
will take, their
satisfaction
?
How will you measure these changes?
What vs. why
Hypotheses
metrics
55
R
Metrics
Which metrics?
Often lots of metrics
What vs. why; need a
suite of metrics to answer multiple questions
Some matter all the time: overall usage, whole page parsing, etc.
Some matter to your hypothesis:
“Increased feature usage”: click through rate, bounce rate, etc.
“Easier to parse”: time to first action
Metrics may “disagree”
Is TTR (time to result) faster, but success lower?
Is TTR faster, but users never come back?
Is TTR faster, but only for a subset of users (who overwhelm the metric)?
How big of a change in the metrics matter?
Statistical vs. practical significance
56
R
Putting It Together: Experiments
Given the decisions and space of possible changes:
Get set of possible arms
For each arm, what are the hypotheses & metrics?
How different are the hypotheses?
Which hypotheses are measurable?
Do we need to run all possible arms to make the decision?
Given this smaller set of arms, now come the practical
issues:
How big do the arms need to be to get reasonable metrics?
Given that, how many arms can I actually run?
What else do I need to think about in order to actually run an
experiment?
57
R
Experiment Sizing: Overview
Metrics
Power: How big a change do you want to detect? How many
observations will you need in order to detect that change?
Triggering
How much of the incoming traffic is actually affected?
Power + Triggering
How big your experiment is
How many arms you can run concurrently?
How big is each arm?
What is the exposure risk (if this is a product)?
58
D
Power
Power is the probability that when there really is a
difference, you will statistically detect it
Power depends on:
What you want to measure
Size of difference you want to be able to detect
Standard error of the measurement
Number of observations
Power can (and should be) calculated before you run
the experiment
Too many studies where it was discovered after the fact that there wasn't
enough power to detect the effect of interest
There are standard formulas, e.g., en.wikipedia.org/wiki/Statistical_power
59
D
Power Example: Variability Matters
60
D
Power: Variance of Logs Data
Logs data has high variance
Users vary widely: sophistication, language, strategy, etc.
Tasks vary widely
Independence assumptions may not hold
Cookies vs. requests
Sequence of events from a cookie are correlated
If I clicked on a “show more” link before, I’m more likely to do it again
If I queried for a topic before, I’m more likely to query for that topic again
If I search a lot today, I’m more likely to search a lot tomorrow
Interacts with metrics (request-based metric vs. cookie-based metric)
Changes variance
How to measure variance
Globally: A1 vs. A2 vs. … experiments
Per-experiment: pre-periods and post-periods
61
D
Sizing and Triggering
Triggering: what fraction of traffic actually shows the change?
Power calculation: need X requests to detect change of C%
Triggering fraction: expt. affects Y (fraction) of requests
Actual experiment size: X / Y
Approach valid only if counterfactuals are logged in the control
Experiment: when does weather onebox show?
Control: when would weather onebox have shown?
(counterfactual)
In some cases, you can’t identify the counterfactual cases, and
you have to calculate metrics on the full set of (diluted) data
If no counterfactual, need to measure (C * Y)% change in
metric on all traffic
The smaller Y is, the more dilution you have
62
D
Experiment Sizing: Example
63
D
Sizing: Other Design Choices
How long will you need to run your experiment, given your
sizing calculations?
How many arms do you have?
How much traffic can you devote to your experiment arms?
Power vs. risk trade-offs
How many users are you willing to impact? (suppose it’s a terrible
user experience – how many users do you want to annoy?)
Risk of exposure (for potential new products)
Sequential vs. simultaneous arms
Sequential reduces risk, but introduces analysis issues such as seasonality
and other timing issues (holidays, major weather event)
How many days?
Shorter means faster, but units of weeks smooth out day of week
effects
64
D
Within-subject vs. Between-subject
Within-subject:
Has l
ower variance:
need less traffic to get significant metrics
Two options:
Within-results: interleaved results (e.g., search results)
Within-results is inherently within subject
Within-subject: time slicing – show expt. and control at different times
Interleaved: very useful, but primarily for ranking changes
Same number of results, no UI changes
Time-slicing: within-user variance lower, but users may have different
tasks, be on different OS/browsers, in different locations, etc.
Between-subject: More broadly useful, but higher variance,
will need more traffic
65
D
Running Experiments
Selecting a population (diversion)
Controls
66
R
Selecting a Population
A population is a set of people
In particular location(s)
Using particular language(s)
During a particular time period
Doing specific activities of interest
Important to consider how those choices might impact
your results
Chinese users vs. US users during Golden Week
Sports related change during Super Bowl week in US vs. UK
Users in English speaking countries vs. users of English UI vs.
users in US
67
R
68
R
Controls
A control is the standard user experience that you are
comparing a change to
What is the right control?
Gold standard:
Equivalent sample from same population
Doing similar tasks
Using either:
The existing user experience
A baseline “minimal” “boring” user experience
69
R
How Controls Go Wrong
Treatment is opt-in
Treatment or control limited to subset (e.g., treatment
only for English, control world-wide)
Treatment and control at different times
Control is all the data, treatment is
limited to events that showed something novel (no
counterfactual)
Not logging counterfactuals at experiment time.
Often very hard to reverse-engineer later
Gives a true apples-to-apples comparison
But, not always possible (e.g., if what-to-display decisions are
being made "on the fly")
70
R
Analyzing Experiments
Sanity checking
Metrics, confidence intervals, slicing
Mix vs. metric shifts
71
D
Sanity Checking
Before looking at the metrics to draw conclusions,
make sure that you believe the numbers!
E.g., overall traffic
Very few changes impact overall traffic
Number of cookies, % of traffic
Break data down along different dimensions / slicings
E.g., do you see different effects with different browsers? In
different countries?
Things that can screw things up
Bots visiting your site (did you mess with them?)
If you got mentioned in a blog, did that cause a traffic spike
Don't bother looking at other metrics unless
sanity checks pass!
72
D
Managing Real World Challenges
73
Data from all around the world
E.g., collecting data for a given day (start/end times differ), collecting
"daytime" data
One-of-a-kind events
Death of Michael Jackson/Anna Nicole Smith
Problems with data collection server
Data schema changes
Multiple languages
Practical issues in processing many orthographies
E.g., dividing into words to compare query overlap
Restricting language:
Language ≠ country
Query language ≠ UI language
D
When is a Metric Change Significant?
74
Confidence interval (C.I.): interval around the
treatment mean that contains the true value of the
mean x% (typically 95%) of the time
C.I.s that do not contain the control mean are
statistically significant (statistically different from the
control)
This is an independent test for each metric
Thus, you will get 1 in 20 results (for 95% C.I.s) that are
spurious -- you just don't know which ones
C.I.s are not necessarily straightforward to compute.
D
How to Interpret Significant Metrics
If you look at enough metrics, something will be significant by
chance.
Confidence interval only tells you there is a 95% chance that this
difference is real; not 100%
If only a few things significant, is chance the likely explanation?
Look for converging evidence (many metrics are correlated; do all the
metrics correlated with this one move in the same direction?)
If your parameters are continuous, you may be able to
interpolate or extrapolate to other values (e.g., 1” submit
button vs. 2”; how would 1.5” do?)
You can miss significance because the true difference is
tiny/zero or because you don’t have enough power
If you did your sizing right, you have enough power to see all the
differences of practical significance
75
D
More on Metrics
Your experiment may have diverted on 10% of events, but only
triggered on 20% of those events.
Which denominator are you using?
It’s obvious to look at the metrics that apply to your specific
change, but what about the overall impact?
E.g., if your change slows things down, those who stay may have a
great experience, but what about those who left?
Slicing up the data
Country, language, browser, etc.
Great way to understand the effects better
Is most of the change coming from users of browser X; in country Y?
Need to be careful re: mix vs. metric shifts (Simpson’s paradox)
76
D
Simpson’s Paradox:
Simultaneous Mix and Metric Changes
77
Changes in mix (denominators) make combined metrics
(ratios) inconsistent with yearly metrics
Batting averages
D
More on Simpson’s Paradox
Neither the individual data (the yearly metrics) or the
combined data is inherently more correct
It depends, of course, on what your hypothesis is
Once you have mix changes (changes to the
denominators across subgroups), all metrics (changes to
the ratios) are suspect
Always
compare your denominators across samples
Maybe the point of the experiment was to produce a mix
change
Can you restrict analysis to the data not impacted by the mix
change (the subset that didn't change)?
Minimally, be up front about this in any writeup
78
D
Detailed Analysis
Big Picture
Not all effects will point the same direction
Take a closer look at the items going in the "wrong" direction
Can you interpret them?
E.g., people are doing fewer next-pages because they are finding their
answer on the first page
Could they be artifactual?
What if they are real?
What should be the impact on your conclusions? on your decision?
Significance and impact are not the same thing
Couching things in terms of % change vs. absolute change
helps
A substantial effect size depends on what you want to do with
the data
79
D
Summary:
Critical Steps When Designing Experiments
Determine your hypotheses
Decide on which metrics
Size your experiment
Take the triggering fraction into account
If at all possible, identify the counterfactual events in the
control
Sanity check your data
Make sure you have enough power to not miss effects of
interest; look for converging evidence to keep from acting
on spuriously significant results
Don’t get bit by Simpson’s Paradox
80
R
Discussion
All
81
Our story to this point…
Perspectives on log analysis
Understanding user behavior
Jaime
What you can / cannot learn from logs
Observations vs. experiments
Different kinds of logs
How to design / analyze large logs
Robin & Diane
Selecting populations
Statistical Power
Treatments
Controls
Experimental error
82
Discussion
How might you use logs analysis in your research?
What other things might you use large data set analysis to
learn?
Time-based data vs. non-time data
Large vs. small data sets?
83
Section 3: Practical Considerations for Log
Analysis
84
Overview
Data collection and storage
[Susan Dumais]
Logging the data
Storing the data
Using the data responsibly
Data analysis
[Daniel M. Russell]
How to clean the data
Discussion: Log analysis and the HCI community
85
Section 3A:
Data Collection, Storage and Use
Susan Dumais and Jaime Teevan
Microsoft Research
86
Overview
Logging the data
Storing the data
Using the data responsibly
Building large-scale systems out-of-scope
87
A Simple Example
Logging search Queries and Clicked Results
88
c
h
i
2
0
1
1
A Simple Example (cont’d)
Logging
Queries
Basic data: <query, userID, time>
Which time? time
Client.send
, time
Server.receive
, time
Server.send
, time
Client.receive
Additional contextual data:
Where did the query come from?
What results were returned?
What algorithm or presentation was used?
Other metadata about the state of the system
89
A Simple Example (cont’d)
Logging
Clicked Results
(on the SERP)
How can a Web service know which SERP links are clicked?
Proxy re-direct
Script (e.g., JavaScript)
Dom and cross-browser challenges, but can instrument more than link clicks
No download required; but adds complexity and latency, and may influence user
interaction
What happened after the result was clicked?
What happens beyond the SERP is difficult to capture
Browser actions (back, open in new tab, etc.) are difficult to capture
To better interpret user behavior, need richer client instrumentation
90
http://www.chi2011.org vs.
http://redir.service.com/?q=chi2011&url=http://www.chi2011.org/&pos=
3&log=DiFVYj1tRQZtv6e1FF7kltj02Z30eatB2jr8tJUFR
<img border="0" id="imgC" src=“image.gif" width="198" height="202"
onmouseover
="changeImage()"
onmouseout
="backImage()">
<script lang="text/javascript">
function changeImage(){ document.imgC.src="thank_you..gif “; } function backImage(){ document.imgC.src=“image.gif"; }</script>
Browsers, Tabs and Time
Interpreting what happens on the SERP
91
•
Scenario 1:
•
7:12 SERP shown
•
7:13 click R1
<“
back
” to SERP>
•
7:14 click R5
<“
back
” to SERP>
•
7:15 click RS1
<“
back
” to SERP>
•
7:16 go to new search engine
•
Scenario 2
•
7:12 SERP shown
•
7:13 click R1
<“
open in new tab
”>
•
7:14 click R5
<“
open in new tab
”>
•
7:15 click RS1
<“
open in new tab
”>
•
7:16 read R1
•
10:21 read R5
•
13:26 copies links to doc
•
Both look the same, if all you capture is clicks on result links
•
Important to distinguish to interpret user behavior
•
Tabbed browsing accounted for 10.5% of clicks
[Weinreich et al. 2006]
•
81% of observed search sequences are ambiguous
[Viermetz et al. 2006]
Richer Client Instrumentation
Toolbar (or other client code)
Richer logging (e.g., browser events, mouse/keyboard events,
screen capture, eye-tracking, etc.)
Several HCI studies of this type [e.g., Kellar et al., Cutrell et al.]
Importance of robust software, and data agreements
Instrumented panel
A group of people who use client code regularly; may also
involve subsequent follow-up interviews
Nice mix of
in situ
use (the what) and support for further
probing (the why)
E.g., Curious Browser [Fox et al., next slide]
Data typically recorded on the client
Still needs to get logged centrally on a server
92
Example: Curious Browser
[Fox et al. 2005]
Browser plug-in to examine relationship between implicit and explicit behavior
Capture many implicit actions (e.g., click, click position, dwell time, scroll)
Probe for explicit user judgments of relevance of a page to the query
Deployed to ~4k people in US and Japan
Learned models to predict explicit judgments from implicit indicators
45% accuracy w/ just click; 75% accuracy w/ click + dwell + session
Used to identify important features; then apply model in open loop setting
93
A (Not-So-) Simple Example
Logging: Queries, Clicked Results, and Beyond
94
Setting Up Server-side Logging
What to log?
Log as much as possible
But … make reasonable choices
Richly instrumented client experiments can provide some guidance
Pragmatics about amount of data, storage required will also guide
What to do with the data?
The data is a large collection of events, often keyed w/ time
E.g., <time, userID, action, value, context>
Keep as much raw data as possible (and allowable)
Post-process data to put into a more usable form
Integrating across servers to organize the data by time, userID, etc.
Normalizing time, URLs, etc.
Richer data cleaning
[see next section]
95
A Few More Important Practical Issues
Time
Scale
Identifying “Users”
Data Privacy and Security
96
Time (and Time Again)
Time
Client time
is closer to the user, but can be wrong or reset
Server time
includes network latencies, but controllable
In both cases, need to synchronize time across multiple
machines
Data integration
Ensure that joins of data are all using the same basis (e.g., UTC vs. local
time)
Accurate timing data is critical for understanding the sequence of
user activities, daily temporal patterns, etc.
97
Issues of Scale
Data Collection
Storage requirements
E.g., 1k bytes/record x 10 records/query x 100 mil queries/day = 1000 Gb/day
Network bandwidth
Client to server; Data center to data center
Data Analysis
What are MapReduce, Hadoop, Pig all about?
MapReduce
– framework for processing huge datasets on compute clusters
Key idea: partition problem into pieces which can be done in parallel
Map: take input, and divide it into sub-problems which can be distributed
Reduce: collect results, and combine them to get final answer
Hadoop
- open-source implementation of MapReduce
Pig
- execution engine on top of Hadoop
Why would you want to use them?
How can you use them?
98
How is a User Identified?
Http cookies, IP address, temporary ID
Provides broad coverage and easy to use, but …
Multiple people use same machine
Same person uses multiple machines (and browsers)
How many cookies did you use today?
Lots of churn in these IDs
Jupiter Res (39% delete cookies monthly); Comscore (2.5x inflation)
Login, or Download of client code (e.g., browser plug-in)
Better correspondence to people, but …
Requires sign-in or download
Results in a smaller and biased sample of people or data (who
remember to login, decided to download, etc.)
Either way, loss of data
99
Using the Data Responsibly
What data is collected and how it can be used?
User agreements (terms of service)
Emerging industry standards and best practices
Trade-offs
More data:
More intrusive and potential privacy concerns, but also more
useful for understanding interaction and improving systems
Less data:
Less intrusive, but less useful
Risk, benefit, and trust
100
Using the Data Responsibly (cont’d)
Control access to the data
Internally: Access control; data retention policy
Externally: Risky (e.g., AOL, Netflix, Enron, Facebook public)
Protect user privacy
Directly identifiable information
Social security, credit card, driver’s license numbers
Indirectly identifiable information
Names, locations, phone numbers … you’re so vain (e.g., AOL)
Putting together multiple sources indirectly (e.g., Netflix, hospital records)
Linking public and private data
k
-anonymity; Differential privacy; etc.
101
Example: AOL Search Dataset
Indirectly identifiable information
Names, locations, phone numbers … you’re so vain
AOL released data to academic community Aug 4, 2006
Anonymized query-click logs - 3 months; 650k users; 20mil searches
<AnonID, Query, QueryTime, ItemRank, ClickURL>
A few days later … a New York Times story
A Face Is Exposed for AOL Searcher No. 4417749 (Aug 9, 2006)
Aug 21, 2006: Two employees fired; CTO resigns
The road from ID 4417749 to Thelma Arnold, a 62 year old
woman living in GA
Multiple queries for businesses and services in Lilburn, GA. (n ~ 11k people)
Multiple queries for Jarrett Arnold (and other members of the Arnold clan)
NYT contacted all people in Lilburn with the last name Arnold (n=14)
When contacted, Thelma Arnold acknowledged that these were her queries
AnonID
Query
QueryTime
ItemRank
ClickURL
----------
---------
---------------
-------------
------------
1234567
uist 2006
2006-04-04 18:18:18
1
http://www.acm.org/uist/uist2006/
1234567
uist 2006 deadline
2006-04-04 18:18:18
3
http://www.acm.org/uist/uist2006/
1234567
chi
2006-04-24 09:19:32
1234567
chi 2006
2006-04-24 09:20:04
2
http://chi2006.org
1234567
chi program
2006-04-24 09:25:50
2
http://www.chi2006.org/docs/finalprogram2006.pdf
1234567
perlman montreal
2006-04-24 10:15:14
4
http://oldwww.acm.org/perlman/guide.html
1234567
uist 2006 notif
ication
2006-05-20 13:13:13
…
102
Example: Netflix Challenge
Indirectly identifiable information
Putting together multiple sources indirectly
Linking public and private data; and
k
-anonymity
Netflix Challenge
announced Oct 2, 2006, $1million prize
100 million ratings, from 480k people, for 17k movies
<UserID, Rating, DateOfRating, Movie, MovieYear, MovieName>
Sept 21, 2009 – Grand Prize award to BellKor’s Pragmatic Chaos
A few years … later
A. Narayanan, V. Shmatikov. (2008) Robust De-anonymization of Large
Sparse Datasets.
IEEE Symposium on Security and Privacy
2008, 111–125.
Data de-anonymized using background knowledge from IMDB
Robust to perturbations in data
Dec 17, 2009 – Doe v. Netflix
Mar 12, 2010 – Second Netflix competition cancelled
Ratings
----------
1:
[Movie 1 of 17770]
12, 3, 2006-04-18
[CustomerID, Rating, Date]
1234, 5 , 2003-07-08
[CustomerID, Rating, Date]
2468, 1, 2005-11-12
[CustomerID, Rating, Date]
…
Movie_Titles
-----------------
...
10120, 1982, “Bladerunner”
…
17690, 2007, “The Queen”
From Netflix FAQ
“No, all customer identifying information has been
removed; all that remains are ratings and dates. This
follows our privacy policy [. . . ] Even if, for example, you
knew all your own ratings and their dates you probably
couldn’t identify them reliably in the data because
only a
small sample was included
(less than one tenth of our
complete dataset) and that
data was subject to
perturbation
. Of course, since you know all your own
ratings that really isn’t a privacy problem is it?”
103
Using the Data Responsibly (cont’d)
Control access to the data
Internally: Access control; data retention policy
Externally: Risky (e.g., AOL, Netflix, Enron, Facebook public)
Protect user privacy
Directly identifiable information
Social security, credit card, driver’s license numbers
Indirectly identifiable information
Names, locations, phone numbers … you’re so vain (e.g., AOL)
Putting together multiple sources indirectly (e.g., Netflix, hospital records)
Linking public and private data
k
-anonymity; Differential privacy; etc.
Transparency and user control
Publicly available privacy policy
Give users control to delete, opt-out, etc.
104
Summary
Data collection and storage
Logging the data
At the server
On the results page
Richer client-side logging
Storing the data
Challenges of: time, scale, users
Using the data responsibly
Controlling access to data
Protecting privacy
Providing transparency and user control
Data analysis
[Daniel Russell]
Cleaning the data
105
Section 3B:
Data cleaning for large logs
Daniel M. Russell
106
Why Clean Log Data?
The big false assumption:
Isn’t log data intrinsically clean?
A: Nope.
107
Typical Log Format
–
C
l
i
e
n
t
I
P
-
2
1
0
.
1
2
6
.
1
9
.
9
3
–
D
a
t
e
-
2
3
/
J
a
n
/
2
0
0
5
–
A
c
c
e
s
s
e
d
t
i
m
e
-
1
3
:
3
7
:
1
2
–
M
e
t
h
o
d
-
G
E
T
(
t
o
r
e
q
u
e
s
t
p
a
g
e
)
,
P
O
S
T
,
H
E
A
D
(
s
e
n
d
t
o
s
e
r
v
e
r
)
–
P
r
o
t
o
c
o
l
-
H
T
T
P
/
1
.
1
–
S
t
a
t
u
s
c
o
d
e
-
2
0
0
(
S
u
c
c
e
s
s
)
,
4
0
1
,
3
0
1
,
5
0
0
(
e
r
r
o
r
)
–
S
i
z
e
o
f
f
i
l
e
-
2
7
0
5
–
A
g
e
n
t
t
y
p
e
-
M
o
z
i
l
l
a
/
4
.
0
–
O
p
e
r
a
t
i
n
g
s
y
s
t
e
m
-
W
i
n
d
o
w
s
N
T
http://www.olloo.mn/modules.php?name=News&file=article&catid=25&sid=8225
→
→
http://www.olloo.mn/modules.php?name=News&file=friend&op=FriendSend&sid=8225
What this really means…
A visitor (210.126.19.93) viewing the news who sent it to friend.
108
2
1
0
.
1
1
6
.
1
8
.
9
3
-
-
[
2
3
/
J
a
n
/
2
0
0
5
:
1
3
:
3
7
:
1
2
-
0
8
0
0
]
“
G
E
T
/
m
o
d
u
l
e
s
.
p
h
p
?
n
a
m
e
=
N
e
w
s
&
f
i
l
e
=
f
r
i
e
n
d
&
o
p
=
F
r
i
e
n
d
S
e
n
d
&
s
i
d
=
8
2
2
5
H
T
T
P
/
1
.
1
"
2
0
0
2
7
0
5
"
h
t
t
p
:
/
/
w
w
w
.
o
l
l
o
o
.
m
n
/
m
o
d
u
l
e
s
.
p
h
p
?
n
a
m
e
=
N
e
w
s
&
f
i
l
e
=
a
r
t
i
c
l
e
&
c
a
t
i
d
=
2
5
&
s
i
d
=
8
2
2
5
"
"
M
o
z
i
l
l
a
/
4
.
0
(
c
o
m
p
a
t
i
b
l
e
;
M
S
I
E
6
.
0
;
W
i
n
d
o
w
s
N
T
5
.
1
;
S
V
1
)
“
…
Sources of Noise
Non-completion due to caching (back button)
Also… tabs… invisible…
Also – new browser instances.
109
Topological Structure
Path completion
A
.
h
t
m
l
B
.
h
t
m
l
G.html
L.html
C
.
h
t
m
l
F
.
h
t
m
l
N.html
D
.
h
t
m
l
E.html
H.html
I.html
K.html
O.html
M.html
P.html
J.html
Q.html
A,B,C,D,F
A,B,C,D,F
A,B,C,D,C,B,F
A,B,C,D,C,B,F
Clicks
Reality
A Real Example
A previously unknown gap in the data
110
Sum number of
clicks against
time
Time (hours)
What We’ll Skip…
Often data cleaning includes
(a) Input / value validation
(b) Duplicate detection / removal
We’ll assume you know how to do that
(c)
Multiple clocks – syncing time across servers / clients
But… note that valid data definitions often shift out from
under you. (See schema change later)
111
When Might You NOT Need to Clean Data?
Examples:
When the data is going to be presented in ranks.
Example: counting most popular queries. Then outliers
are either really obvious, or don’t matter
When you need to understand overall behavior for system
purposes
Example: traffic modeling for queries—probably don’t want to
remove outliers because the system needs to accommodate them as
well!
112
Before Cleaning Data
Consider the point of cleaning the data
What analyses are you going to run over the data?
Will the data you’re cleaning
damage
or
improve
the analysis?
113
So…what DO
I want to
learn from
this data?
How about
we remove
all the short
click
queries?
Importance of Data Expertise
Data expertise is important for understanding the data,
the problem and interpreting the results
Often.. .background knowledge particular to the data or system:
“That counter resets to 0 if the number of calls exceeds N”.
“The missing values are represented by 0, but the default amount is 0 too.”
Insufficient DE is a common cause of poor data
interpretation
DE should be documented with the data metadata
114
Outliers
Often indicative either of
Measurement error, or that the population has a heavy-tailed
distribution.
Beware of distributions with highly non-normal distributions
Be cautious when using tool or intuitions that assume a normal
distribution (or, when sub-tools or models make that assumption)
A frequent cause of outliers is a mixture of two distributions, which
may be two distinct sub-populations
115
Outliers: Common Types from Search
Quantity:
10K searches from the same cookie in one day
Suspicious whole numbers:
exactly
10,000 searches from
single cookie
116
Outliers: Common Types from Search
Quantity:
10K searches from the same cookie
in one day
Suspicious whole numbers:
exactly
10,000 searches from single
cookie
Repeated:
The same search repeated over-frequently
The same search repeated at the same time (10:01AM)
The same search repeated at a repeating interval (every 1000
seconds)
117
Treatment of Outliers: Many Methods
Remove outliers when you’re looking for
average
user
behaviors
Methods:
Error bounds, tolerance limits – control charts
Model based – regression depth, analysis of residuals
Kernel estimation
Distributional
Time Series outliers
Median and quantiles to measure / identify outliers
118
Sample reference:
Exploratory Data Mining
and Data Quality,
Dasu
& Johnson (2004)
Identifying Bots & Spam
Adversarial environment
How to ID bots:
Queries too fast to be humanoid-plausible
High query volume for a single query
Queries too specialized (and repeated) to be real
Too many ad clicks by cookie
119
Bot Traffic Tends to Have
Pathological Behaviors
Such as abnormally high page-request or DNS lookup
rates
120
Botnet Detection and Response
The Network is the Infection
David Dagon, OARC Workshop 2005,
How to ID Spam
Look for outliers along different kinds of features
Example: click rapidity, interclick time variability,
121
Spam, Damn Spam, and Statistics:
Using statistical analysis to locate
spam web pages. D. Fetterly, M.
Manasse and M. Najork.
7th Int’l
Workshop on the Web and
Databases
, June 2004.
Spammy sites often change many of their features
(page titles, link anchor text, etc.) rapidly week to week
Bots / Spam Clicks Look Like Mixtures
Although bots tend to be tightly packed and far from the
large mass of data
122
Story About Spam…
98.3% of queries for [naomi watts] had no click
Checking the referers of these queries led us to a cluster
of LiveJournal users
img src="http://www.google.ru/search?q=naomi+watts...
What??
Comment spam by
greeed114
. No friends, no entries.
Apparently trying to boost Naomi Watts on IMDB,
Google, and MySpace.
123
Did it Work?
124
Cleaning Heuristics:
Be Sure to Account for Known Errors
Examples:
Known data drops
e.g., when a server went down during data collection period – need
to account for missing data
Known edge cases
e.g., when errors occur at boundaries, such as timing cutoffs for
behaviors (when do you define a behavior such as a search session as
“over”)
125
Simple Ways to Look for Outliers
Simple queries are effective:
Select Field, count(*) as Cnt
from Table
Group by Field
Order by Cnt Desc
Hidden NULL values at the head of the list, typos at the end of the
list
Visualize your data
Often can see data discrepancies that are difficult to note in statistics
LOOK at a subsample…
by hand
. (Be willing to spend the time)
126
But Ultimately…
Nearly all data cleaning operations are special purpose,
one-off kinds of operations
127
But Ultimately…
Big hint: Visual representations of the data ROCK!
Why? Easy to spot all kinds of variations on the data
quality that you might not anticipate
a priori.
128
Careful About
Skew
, not Just Outliers
129
For example, if an NBA-related query is coming from Wisconsin, search queries are biased by
local preferences. Google Trends and Google Insights data shows pretty strong indications of
this (look at the Cities entries in either product):
http://www.google.com/trends?q=Milwaukee+bucks&ctab=0&geo=all&date=all&sort=0
http://www.google.com/trends?q=lakers&ctab=0&geo=all&date=all&sort=0
http://www.google.com/trends?q=celtics&ctab=0&geo=all&date=all&sort=0
http://www.google.com/trends?q=manchester+united&ctab=0&geo=all&date=all
http://www.google.com/trends?q=chelsea&ctab=0&geo=all&date=all&sort=0
http://www.google.com/insights/search/#q=lakers%2C%20celtics%2Cmilwaukee%20bucks&cm
pt=q
http://www.google.com/insights/search/#q=arsenal%2Cmanchester%20united%2Cchelsea&cm
pt=q
Using this data will generate some interesting correlations. For example, Ghana has a higher
interest in Chelsea (because one of the Chelsea players is Ghanaian).
Similarly for temporal variations (see Robin’s query volume variation over the year)
130
Pragmatics
Keep track of what data cleaning you do!
Add lots of metadata to describe what operations you’ve run
(It’s too easy to do the work, then forget which cleaning operations
you’ve already run.)
Example: data cleaning story from ClimateGate –only the cleaned
data was available…
Add even more metadata so you can interpret this (clean) data
in the future.
Sad story:
I’ve lost lots of work because I couldn’t remember what
this dataset was, how it was extracted, or what it meant… as little as 2
weeks in the past!!
131
Pragmatics
BEWARE
of truncated data sets!
All too common: you think you’re pulling data from Jan 1, 20??
– Dec 31, 20??, but you only get Jan 1 – Nov 17
BEWARE
of censored / preprocessed data!
Example: Has this data stream been cleaned-for-safe-search
before you get it?
Story
: Looking at queries that have a particular UI treatment. (Image
univeral triggering) We noticed the porn rate was phenomenally low.
Why? Turns out that this UI treatment has a porn-filter BEFORE the
UI treatment is applied, therefore, the data from the logs behavior
was already implicitly run through a porn filter.
132
Pragmatics
BEWARE
of capped values
Does your measuring instrument go all the way to 11?
Real problem: time on task (for certain experiments) is
measured only out to X seconds. All instances that are > X
seconds are either recorded as X, or dropped. (Both are bad,
but you need to know which data treatment your system
follows.)
This seems especially true for very long user session behaviors, time-
on-task measurements, click duration, etc.
Metadata should capture this
Note:
big spikes in the data often indicate this kind of problem
133
Pragmatics
Do
sanity checks constantly
Don’t underestimate their value.
Right number of files? Roughly the right size? Expected
number of records?
Does this data trend look roughly like previous trends?
Check sampling frequency (Are you using downsampled logs,
or do you have the complete set?)
134
Pragmatics
Metadata – describes your data, and what you’ve done to
it over the course of time
Too many examples of data being extracted, and then
becoming useless over time because you can’t figure out
where it was extracted from, or what manipulations where
done with it.
Example: dataset 1 (full logs from March 1, 2010 – April 1, 2010)
Despammed with Datacleaner.NoClickfarms and Datacleaner.NoBots
All long sessions removed
All non-EN interactions removed
All sessions of length 1 removed
And NOW, three months later, you find the file. It’s labeled “Data.txt”
Good luck.
135
Data Integration
Be sure that joins of data are all using the same basis
E.g., time values that are measured consistently – UTC vs. local
timezone
136
PST
Zulu
Often Can’t Re-run Experiments
Too many basis factors have changed over time…
The underlying web contents (and therefore index and all
associated behaviors) have turned over
The cookies you based the first study on are all gone (or
enough of them have changed/aged-out that within-cookies is
no longer possible
Logging system changes the kinds of behaviors that are logged
Underlying interpretations of key metrics might have changed
(e.g., re-scaling the values—what once was a 5.0 is now a 3.5)
Policy changes may prevent certain kinds of data collection,
retention or interpretation
137
Data Cleaning Summary
C
AUTION
:
Many, many potholes to fall into
Know
what the purpose of your data cleaning is for
Maintain
metadata
Beware
of domain expertise failure
Ensure
that the underlying data schema is what you
think it is
Transition:
This sets us up to consider how we can use logs
analysis more generally in the HCI community…
138
Section 3C: Log Analysis
and the HCI Community
All
139
Kinds of User Data
140
Goal: Build an abstract picture of behavior
Goal: Build an abstract picture of behavior
Goal: Decide if one approach is better than another
Goal: Decide if one approach is better than another
Discussion: Log Analysis and HCI
Is log analysis relevant to HCI?
How to present/review log analysis research
Observational
Experimental
How to generate logs
Sources of log data
141
Is Log Analysis Relevant to HCI?
“Know thy user”
In situ
large-scale log provide unique insights
Real behavior
What kinds of things can we learn?
Patterns of behavior (e.g., info seeking goals)
Use of systems (e.g., how successful are people in using the
currrent vs. new system)
Experimental comparison of alternatives
142
How to Present/Review Log Analysis
Examples of successful log analysis papers
Several published logs analysis of observational type
But fewer published reports of the experimental type
Determining if conclusions are valid
Significance unlikely to be a problem
Data cleanliness important
Only draw supported claims (careful with intent)
143
References
Adar, E. , Teevan, J. and Dumais, S. T. (2008). Large scale analysis of Web revisitation patterns. In
Proceedings CHI '08, 1197-1206.
Akers, D., Simpson, M., Wingorad, T. and Jeffries, R. (2009) Undo and erase events as indicators
of usability problems. In Proceedings of CHI ’09, 659-668.
Beitzel, S. M., Jensen, E. C., Chowdhury, A., Grossman, D. and Frieder, O. (2004). Hourly analysis
of a very large topically categorized Web query log. In Proceeding of SIGIR ’04, 321-328.
Broder, A. (2002). A Taxonomy of Web Search. SIGIR Forum, 36(2), Fall 2002.
Cutrell, E., Robbins, D.C., Dumais, S.T. and Sarin, R. (2006). Fast, Flexible Filtering with Phlat:
Personal search and organization made easy. In Proceedings of CHI ’06, 261-270.
Dagon, D. (2005). Botnet detection and response: The network is the infection. In OARC
Workshop 2005.
Dasu, T. and Johnson, T. (2004), Exploratory Data Mining and Data Cleaning, 2004.
Dumais, S. T., Cutrell, E., Cadiz, J. J., Jancke, G., Sarin, R. and D. C. Robbins (2003). Stuff I've
Seen: A system for personal information retrieval and re-use. In Proceedings of SIGIR ’03, 72-
79.
Fetterly, D., Manasse, M. and Najork, M. (2004). Spam, damn spam, and statistics: Using
statistical analysis to locate spam web pages. 7th Int’l Workshop on the Web and Databases,
June 2004.
144
References
Fox, S. , Karnawat, K. Mydland, M., Dumais, S. T. and White,T. (2005). Evaluating implicit
measures to improve Web search. ACM:TOIS, 23(2), 147-168.
Jansen, B. J., Spink, A., Bateman, J. and Saracevic, T. (1998). Real life information retrieval: A
study of user queries on the web. SIGIR Forum, 32(1), 5 -17.
Joachims, T. (2002). Optimizing search engines using clickthrough data. In Proceedings of
KDD ’02. 133-142.
Kohavi, R., Longbotham, R., Sommerfield, D. and Henne, R. M., (2009). Controlled
experiments on the Web: Survey and practical guide. Data Mining and Knowledge Discovery,
18(1), 140-181.
Kohavi, R., Longbotham, R. and Walker, T. (2010). Online experiments: Practical lessons. IEEE
Computer, 43 (9), 82-85.
Kellar, M., Watters, C. and Shepherd, M. (2006). The impact of task on the usage of Web
browser navigation mechanisms. In Proceedings of GI’06, 235-242.
Lau, T. and E. Horvitz, Patterns of search: Analyzing and modeling Web query refinement. In
Proceedings of User Modeling ‘99, 119-128.
Narayanan, A. and Shmatikov, V. (2008). Robust de-anonymization of large sparse datasets.
In Proceedings of IEEE Symposium on Security and Privacy, 111–125.
145
References
Silverstein, C., Henzinger, M., Marais, H. and Moricz, M. (1999). Analysis of a very large Web
search engine query log. SIGIR Forum, 33 (1), 6-12.
Tang, D., Agarwal, A. and O’Brien, D. (2010). Overlapping experiment Infrastructure: More,
better, faster experimentation. In Proceedings of KDD ’10, 17-26.
Teevan, J., Adar, E., Jones, R. and Potts, M. (2007). Information re-retrieval: Repeat queries in
Yahoo's logs. In Proceedings of SIGIR '07, 151-158.
Teevan, J., Dumais, S. T. and Liebling, D. J. (2008). To personalize or not to personalize:
Modeling queries with variation in user intent. In Proceedings SIGIR '08, 163-170.
Teevan, J., Dumais, S. T. and Liebling, D. J. (2010). A longitudinal study of how highlighting
Web content change affects people's Web interactions. In Proceedings CHI '10, 1353-1356.
Tyler, S. K. and Teevan, J. (2010). Large scale query log analysis of re-finding. In Proceedings
WSDM '10, 191-200.
Viermetz, M., Stolz, C., Gedov, V. and Skubacz, M. (2006). Relevance and impact of tabbed
browsing behavior on web usage mining. In Proceedings of Web Intelligence, 262-269.
Weinreich, H., Obendorf, H., Herder, E. and Mayer, M. (2006). Off the beaten tracks: Exploring
three aspects of web navigation. In Proceedings of WWW ’06, 133-142.
Yates, B., Dupret, G. and Velasco, J. (2007). A study of mobile search queries in Japan. In Query
Log Analysis: Social And Technological Challenges. A workshop at WWW ‘07.
146
This presentation from the CHI 2011 course delves into the design and analysis of large-scale log studies, highlighting the benefits and drawbacks of utilizing logs to understand user behaviors. It explores the insights logs provide, the challenges faced, and strategies to generate relevant logs for research purposes.
Uploaded on Sep 29, 2024 | 0 Views
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript
Design and Analysis of Large Scale Log Studies A CHI 2011 course v11 Susan Dumais, Robin Jeffries, Daniel M. Russell, Diane Tang, Jaime Teevan CHI Tutorial, May, 2011 1
Introduction Daniel M. Russell Google 2
What Can We (HCI) Learn from Log Analysis? Logs are the traces of human behavior seen through the lenses of whatever sensors we have Actual behaviors As opposed to recalled behavior As opposed to subjective impressions of behavior 3
Benefits Portrait of real behavior warts & all and therefore, a more complete, accurate picture of ALL behaviors, including the ones people don t want to talk about Large sample size / liberation from the tyranny of small N Coverage (long tail) & Diversity Simple framework for comparative experiments Can see behaviors at a resolution / precision that was previously impossible Can inform more focused experiment design 4
Drawbacks Not annotated 00:32 now I know 00:35 you get a lot of weird things..hold on 00:38 Are Filipinos ready for gay flicks? 00:40 How does that have to do with what I just .did...? 00:43 Ummm 00:44 So that s where you can get surprised you re like, where is this how does this relate umm Not controlled No demographics Doesn t tell us the why Privacy concerns AOL / Netflix / Enron / Facebook public Medical data / other kinds of personally identifiable data 5
What Are Logs for This Discussion? User behavior events over time User activity primarily on web Edit history Clickstream Queries Annotation / Tagging PageViews all other instrumentable events (mousetracks, menu events .) Web crawls (e.g., content changes) E.g., programmatic changes of content 6
How to Generate Logs Use existing logged data Explore sources in your community (e.g., proxy logs) Work with a company (e.g., intern, visiting researcher) Construct targeted questions Generate your own logs Focuses on questions of unique interest to you Construct community resources Shared software and tools Client side logger (e.g., VIBE logger) Shared data sets Shared experimental platform to deploy experiments (and to attract visitors) Other ideas? 7
Interesting Sources of Log Data Anyone who runs a Web services Proxy (or library) logs at your institution Publically available social resources Wikipedia (content, edit history) Twitter Delicious, Flickr Facebook public data? Others? GPS Virtual worlds Cell call logs 8
Other Kinds of Large Data Sets Mechanical Turk (may / may not be truly log-like) Other rater panels, particularly ones that generate behavioral logs Medical data sets Temporal records of many kinds Example: logs from web servers for your web site Example: an app that generates logs a la the instrumented Sketchup application Akers, et al., 2009 9
Audience Discussion What kind of logs do you need to analyze? What kinds of logs does your work generate? Open Discussion 10
Overview Perspectives on log analysis Understanding User Behavior (Teevan) Design and Analysis of Experiments (Tang & Jeffries) Discussion on appropriate log study design (all) Practical Considerations for log analysis Collection & storage (Dumais) Data Cleaning (Russell) Discussion of log analysis & HCI community (all) 11
Section 1: Understanding User Behavior Jaime Teevan & Susan Dumais Microsoft Research 12
Kinds of User Data User Studies Controlled interpretation of behavior with detailed instrumentation User Panels In the wild, real-world tasks, probe for detail Log Analysis No explicit feedback but lots of implicit feedback 13
Kinds of User Data Observational User Studies Controlled interpretation of behavior with detailed instrumentation In-lab behavior observations User Panels In the wild, real-world tasks, probe for detail Ethnography, field studies, case reports Log Analysis No explicit feedback but lots of implicit feedback Behavioral log analysis Goal: Build an abstract picture of behavior 14
Kinds of User Data Observational Experimental User Studies Controlled interpretation of behavior with detailed instrumentation In-lab behavior observations Controlled tasks, controlled systems, laboratory studies User Panels In the wild, real-world tasks, probe for detail Ethnography, field studies, case reports Diary studies, critical incident surveys Log Analysis No explicit feedback but lots of implicit feedback A/B testing, interleaved results Behavioral log analysis Goal: Build an abstract picture of behavior Goal: Decide if one approach is better than another 15
Web Service Logs Example sources Search engine Commercial site Types of information Recruiting Queries, clicks, edits Academic field Results, ads, products Example analysis Click entropy Teevan, Dumais and Liebling. To Personalize or Not to Personalize: Modeling Queries with Variation in User Intent. SIGIR 2008 Government contractor 16
Web Browser Logs Example sources Proxy Logging tool Types of information URL visits, paths followed Content shown, settings Example analysis Revisitation Adar, Teevan and Dumais. Large Scale Analysis of Web Revisitation Patterns. CHI 2008 17
Web Browser Logs Example sources Proxy Logging tool Types of information URL visits, paths followed Content shown, settings Example analysis DiffIE Teevan, Dumais and Liebling. A Longitudinal Study of How Highlighting Web Content Change Affects .. Interactions. CHI 2010 18
Rich Client-Side Logs Example sources Client application Operating system Types of information Web client interactions Other client interactions Example analysis Stuff I ve Seen Dumais et al. Stuff I've Seen: A system for personal information retrieval and re-use. SIGIR 2003 19
Logs Can Be Rich and Varied Sources of log data Types of information logged Web service Interactions Search engine Queries, clicks Commerce site URL visits System interactions Web Browser Context Proxy Toolbar Results Browser plug-in Ads Web pages shown Client application 20
Using Log Data What can we learn from log analysis? What can t we learn from log analysis? How can we supplement the logs? 21
Using Log Data What can we learn from log analysis? Now: About people s behavior Later: Experiments What can t we learn from log analysis? How can we supplement the logs? 22
Generalizing About Behavior Feature use Buttons clicks Structured answers Information use Information needs chi 2011 What people think Human behavior 23
Generalizing Across Systems Build new features Bing version 2.0 Logs from a particular run Bing use Logs from a Web search engine Build better Web search engine use From many Web search engines systems Search engine use From many search verticals Build new tools Information seeking From browsers, search, email 24
What We Can Learn from Query Logs Summary measures Queries appear 3.97 times [Silverstein et al. 1999] Query frequency 2.35 terms [Jansen et al. 1998] Query length Navigational, Informational, Transactional [Broder 2002] Analysis of query intent Query types and topics Temporal features Sessions 2.20 queries long [Silverstein et al. 1999] Session length Common re-formulations [Lau and Horvitz, 1999] Click behavior Relevant results for query [Joachims 2002] Queries that lead to clicks 25
Query Time User chi 2011 10:41am 2/18/10 142039 pan pacific hotel 10:44am 2/18/10 142039 fairmont waterfront hotel 10:56am 2/18/10 142039 chi 2011 11:21am 2/18/10 659327 restaurants vancouver 11:59am 2/18/10 318222 vancouver bc restaurants 12:01pm 2/18/10 318222 uist conference 12:17pm 2/18/10 318222 chi 2011 12:18pm 2/18/10 142039 daytrips in bc, canada 1:30pm 2/18/10 554320 uist 2011 1:30pm 2/18/10 659327 chi program 1:48pm 2/18/10 142039 chi2011.org 2:32pm 2/18/10 435451 mark ackerman 2:42pm 2/18/10 435451 fairmont waterfront hotel 4:56pm 2/18/10 142039 chi 2011 5:02pm 2/18/10 142039 26
Query Time User chi 2011 10:41am 2/18/10 142039 pan pacific hotel 10:44am 2/18/10 142039 fairmont waterfront hotel 10:56am 2/18/10 Query typology 142039 chi 2011 11:21am 2/18/10 659327 restaurants vancouver 11:59am 2/18/10 318222 vancouver bc restaurants 12:01pm 2/18/10 318222 uist conference 12:17pm 2/18/10 318222 chi 2011 12:18pm 2/18/10 142039 daytrips in bc, canada 1:30pm 2/18/10 554320 uist 2011 1:30pm 2/18/10 659327 chi program 1:48pm 2/18/10 142039 chi2011.org 2:32pm 2/18/10 435451 mark ackerman 2:42pm 2/18/10 435451 fairmont waterfront hotel 4:56pm 2/18/10 142039 chi 2011 5:02pm 2/18/10 142039 27
Query Time User chi 2011 10:41am 2/18/10 142039 pan pacific hotel 10:44am 2/18/10 142039 fairmont waterfront hotel 10:56am 2/18/10 Query typology 142039 chi 2011 11:21am 2/18/10 659327 restaurants vancouver 11:59am 2/18/10 318222 vancouver bc restaurants 12:01pm 2/18/10 318222 uist conference 12:17pm 2/18/10 Query behavior 318222 chi 2011 12:18pm 2/18/10 142039 daytrips in bc, canada 1:30pm 2/18/10 554320 uist 2011 1:30pm 2/18/10 659327 chi program 1:48pm 2/18/10 142039 chi2011.org 2:32pm 2/18/10 435451 mark ackerman 2:42pm 2/18/10 435451 fairmont waterfront hotel 4:56pm 2/18/10 142039 chi 2011 5:02pm 2/18/10 142039 28
Query Time User Uses of Analysis chi 2011 10:41am 2/18/10 142039 Ranking pan pacific hotel 10:44am 2/18/10 142039 fairmont waterfront hotel 10:56am 2/18/10 Query typology 142039 E.g., precision chi 2011 11:21am 2/18/10 659327 System design restaurants vancouver 11:59am 2/18/10 318222 E.g., caching vancouver bc restaurants 12:01pm 2/18/10 318222 User interface uist conference 12:17pm 2/18/10 Query behavior 318222 E.g., history chi 2011 12:18pm 2/18/10 142039 daytrips in bc, canada 1:30pm 2/18/10 554320 Test set development uist 2011 1:30pm 2/18/10 659327 chi program 1:48pm 2/18/10 142039 Long term trends Complementary research chi2011.org 2:32pm 2/18/10 435451 mark ackerman 2:42pm 2/18/10 435451 fairmont waterfront hotel 4:56pm 2/18/10 142039 chi 2011 5:02pm 2/18/10 142039 29
Partitioning the Data Language Location Time User activity Individual Entry point Device System variant [Baeza Yates et al. 2007] 30
Partition by Time Periodicities Spikes Real-time data New behavior Immediate feedback Individual Within session Across sessions [Beitzel et al. 2004] 31
Partition by User [Teevan et al. 2007] Temporary ID (e.g., cookie, IP address) High coverage but high churn Does not necessarily map directly to users User account Only a subset of users 32
What Logs Cannot Tell Us People s intent People s success People s experience People s attention People s beliefs of what s happening Limited to existing interactions Behavior can mean many things 33
Example: Click Entropy Question: How ambiguous is a query? Approach: Look at variation in clicks. Recruiting [Teevan et al. 2008] Click entropy Academic field Low if no variation human computer interaction High if lots of variation hci Government contractor 34
Which Has Lower Variation in Clicks? www.usajobs.gov v. federal government jobs find phone number v. msn live search singapore pools v. singaporepools.com Results change Click entropy = 1.5 Click entropy = 2.0 Result entropy = 5.7 Result entropy = 10.7 35
Which Has Lower Variation in Clicks? www.usajobs.gov v. federal government jobs find phone number v. msn live search singapore pools v. singaporepools.com Results change tiffany v. tiffany s nytimes v. connecticut newspapers Result quality varies Click entropy = 2.5 Click entropy = 1.0 Click position = 2.6 Click position = 1.6 36
Which Has Lower Variation in Clicks? www.usajobs.gov v. federal government jobs find phone number v. msn live search singapore pools v. singaporepools.com Results change tiffany v. tiffany s nytimes v. connecticut newspapers Result quality varies campbells soup recipes v. vegetable soup recipe Task affects # of clicks soccer rules v. hockey equipment Click entropy = 1.7 Click entropy = 2.2 Clicks/user = 1.1 Clicks/user = 2.1 37
Dealing with Log Limitations Look at data Query Query Time Time User User chi 2011 chi 2011 10:41am 2/18/10 10:41am 2/18/10 142039 142039 pan pacific hotel pan pacific hotel 10:44am 2/18/10 10:44am 2/18/10 142039 142039 fairmont waterfront hotel fair 10:56am 2/18/10 10:55am 2/18/10 142039 142039 Clean data chi 2011 fairmont 11:21am 2/18/10 10:55am 2/18/10 659327 142039 restaurants vancouver fairmont water 11:59am 2/18/10 10:56am 2/18/10 318222 142039 vancouver bc restaurants fairmont waterfront 12:01pm 2/18/10 10:56am 2/18/10 318222 142039 uist conference fairmont waterfront hotel 12:17pm 2/18/10 10:56am 2/18/10 318222 142039 Supplement the data Enhance log data Collect associated information (e.g., what s shown) Instrumented panels (critical incident, by individual) Converging methods Usability studies, eye tracking, surveys, field studies, diary studies 38
Example: Re-Finding Intent Large-scale log analysis of re-finding [Tyler and Teevan 2010] Do people know they are re-finding? Do they mean to re-find the result they do? Why are they returning to the result? Small-scale critical incident user study Browser plug-in that logs queries and clicks Pop up survey on repeat clicks and 1/8 new clicks Insight into intent + Rich, real-world picture Re-finding often targeted towards a particular URL Not targeted when query changes or in same session 39
Summary: Understanding User Behavior Log data gives a rich picture of real world behavior There are many potential sources of log data Partition the data to view interesting slices Recognize what the data can and cannot tell you Supplement logs with complementary data 40
Section 2: Design and Analysis of Experiments Robin Jeffries & Diane Tang 41
What Do We Mean by an Experiment? A change to the user experience, directly or indirectly Have a hypothesis Collect metrics to verify / nullify hypothesis Measurability is key! Running on a live (web) app; data coming in from real users, doing their own tasks Multiple arms, each providing different experiences At minimum, the new experience and the original control Can be an entire space of parameters with multiple values for each parameter R 42
Example Changes and Hypotheses Visible changes: Underlines: if I remove underlines, the page will be cleaner and easier to parse and users will find what they need faster Left Nav: by adding links to subpages, users will be able to better navigate the site Adding a new feature: the usage of this feature is better than what was previously shown in its place Less visible changes: Ranking: if I change the order of the (search) results, users will find what they are looking for faster (higher up on the page) 43 R
Why Do Experiments? To test your hypothesis In reality (or ultimately): gather data to make an informed, data-driven decision Little changes can have big impacts. You won't know until you measure it. With big changes, who knows what will happen. Your intuition is not always correct Law of unintended side effects: what you wanted to impact gets better, but something else gets worse. You want to know that. R 44
What Can We Learn from Experiments? How (standard) metrics change Whether/How often users interact with a new feature How users interact with a new feature Whether behavior changes over time. (learning/ habituation) But, remember, you are following a cookie, not a person R 45
What Cant We Learn from Experiments? WHY: figuring out why people do things Need more direct user input Tracking a user over time Without special tracking software: only have a cookie Cookie != user Measuring satisfaction / feelings directly Only indirect measures (e.g., how often users return) Did users even notice the change? Did users tell their friends about feature x? Did users get a bad impression of the product? Did the users find the product enjoyable to use? Is the product lacking an important feature? Would something we didn't test have done better than what we did test? Is the user confused and why? 46 R
Section Outline Background Experiment design: What am I testing & what am I measuring? Experiment sizing: How many observations do I need? Running experiments: What do I need to do? Analyzing experiments: I ve got numbers, what do they mean? D 47
Basic Experiment Definitions Incoming request R has: Cookie C Attributes A: Language, country, browser, etc. Experiment: Diversion: is a request in the experiment? Unit of diversion: cookie vs. request May also depend on attributes Triggering: which subset of diverted requests does an experiment actually change (impact)? E.g., weather onebox vs. page chrome Page chrome: triggering == diversion Weather onebox: triggering << diversion On triggered requests, experiment changes what is served to the user D 48
Experiment Design What decision do you want to make? 3 interlinked questions: What do you want to test? What is the space you will explore/what factors will you vary? What hypotheses do you have about those changes? What metrics will you use to test these hypotheses? How will you make your decision? Every outcome should lead to a decision R 50
