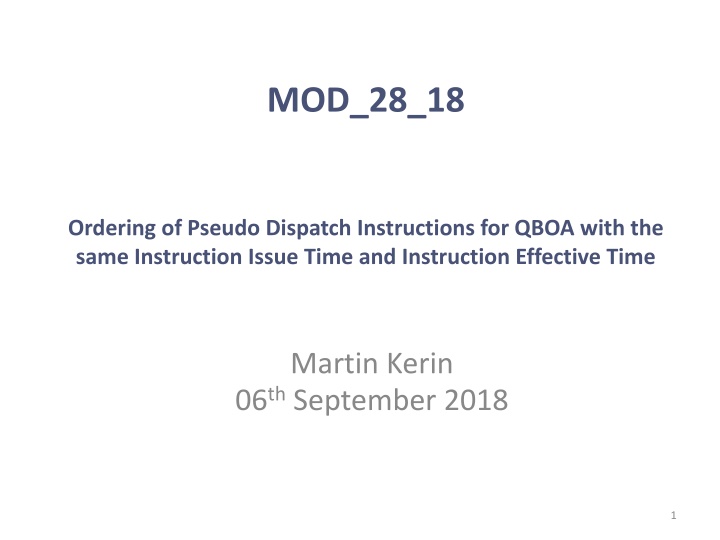

Ordering of Pseudo Dispatch Instructions for QBOA
Martin Kerin
06
th
September 2018
MOD_28_18
Ordering of Pseudo Dispatch Instructions for QBOA with the
same Instruction Issue Time and Instruction Effective Time
1
•
The following order if multiple pseudo DIs at the same time:
–
The Pseudo Dispatch Instruction corresponding to the latest Dispatch
Instruction or Instruction Combination Code ordered in accordance
with paragraph 19;
–
PISP;
–
POFF;
–
PCOD.
•
This does not change the outcome that would be applied through
the rules;
•
This is to align a non-functionally impacting outcome in the rules
with the approach required for how the systems implement the
rules;
•
The following slides illustrate this point.
2
MWOF and PMWO – Rules
3
MWOF and PMWO – Rules
4
MWOF and PMWO – Rules
5
MWOF and PMWO – Systems
6
Pt. 1
Pt. 2
Pt. 3
Pt. 4
Pt. 5
= Pt. 1
→
Pt. 2
→
Pt. 3
→
Pt. 4
→
Pt. 5
MWOF and PMWO – Systems
7
Pt. 1
Pt. 2
Pt. 3
Pt. 6
= Pt. 1
→
Pt. 2
→
Pt. 3
→
Pt. 6
MWOF, PMWO and PISP – Current rules
8
Pt. 1
Pt. 2
Pt. 4
Pt. 5
PISP
MWOF, PMWO and PISP – Systems following current rules
9
Pt. 1
Pt. 2
Pt. 4
Pt. 5
= Pt. 1
→
Pt. 2
→
Pt. 4
→
Pt. 5
PISP
After MWOF, profile looks for PMWO but finds none, therefore point not included
MWOF, PMWO and PISP – Systems following implementation and rules with mod
10
Pt. 1
Pt. 2
Pt. 4
Pt. 5
= Pt. 1
→
Pt. 2
→ Pt. 3 →
Pt. 4
→
Pt. 5
PISP
After MWOF, finds PMWO and therefore point included
•
The following order if multiple pseudo DIs at the same
time:
–
The Pseudo Dispatch Instruction corresponding to the latest
Dispatch Instruction or Instruction Combination Code ordered in
accordance with paragraph 19;
–
PISP;
–
POFF;
–
PCOD.
•
This does not change the outcome that would be applied
through the rules;
•
This is to align a non-functionally impacting outcome in the
rules with the approach required for how the systems
implement the rules.
11
This document outlines the specific order in which Pseudo Dispatch Instructions (DIs) are to be arranged for QBOA in scenarios where multiple instructions are issued simultaneously. The order prioritizes certain instructions to maintain consistency and alignment with system implementation rules.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript

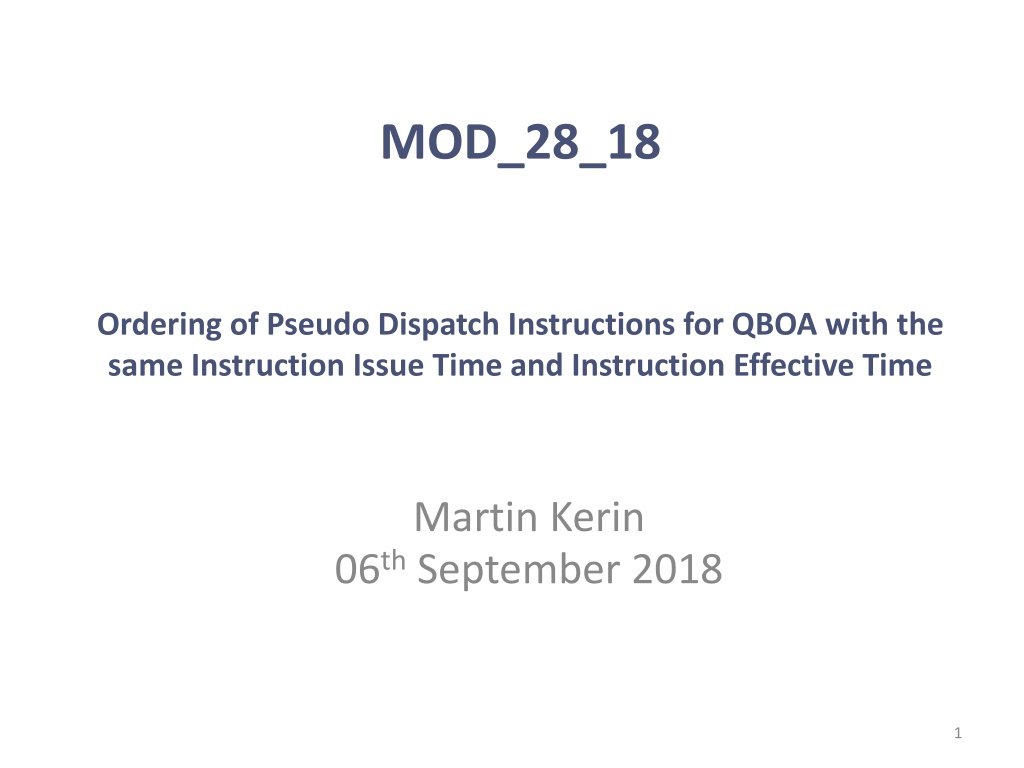

MOD_28_18 Ordering of Pseudo Dispatch Instructions for QBOA with the same Instruction Issue Time and Instruction Effective Time Martin Kerin 06th September 2018 1
