Pseudo Code and Flow Charts for Algorithm Analysis

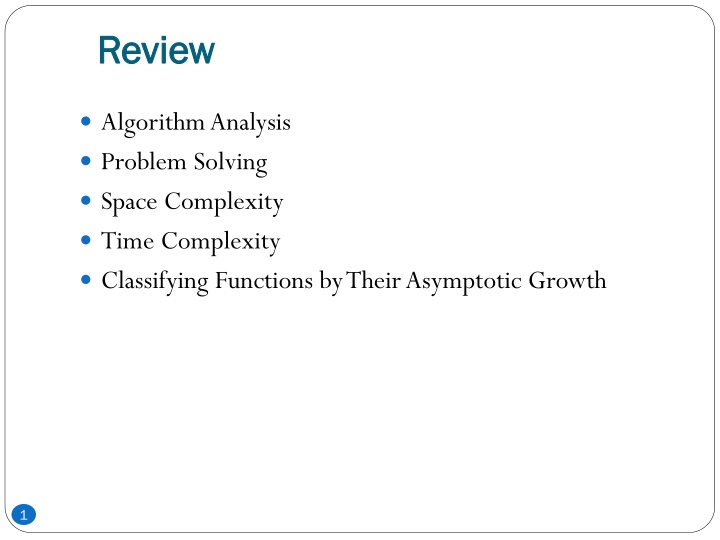

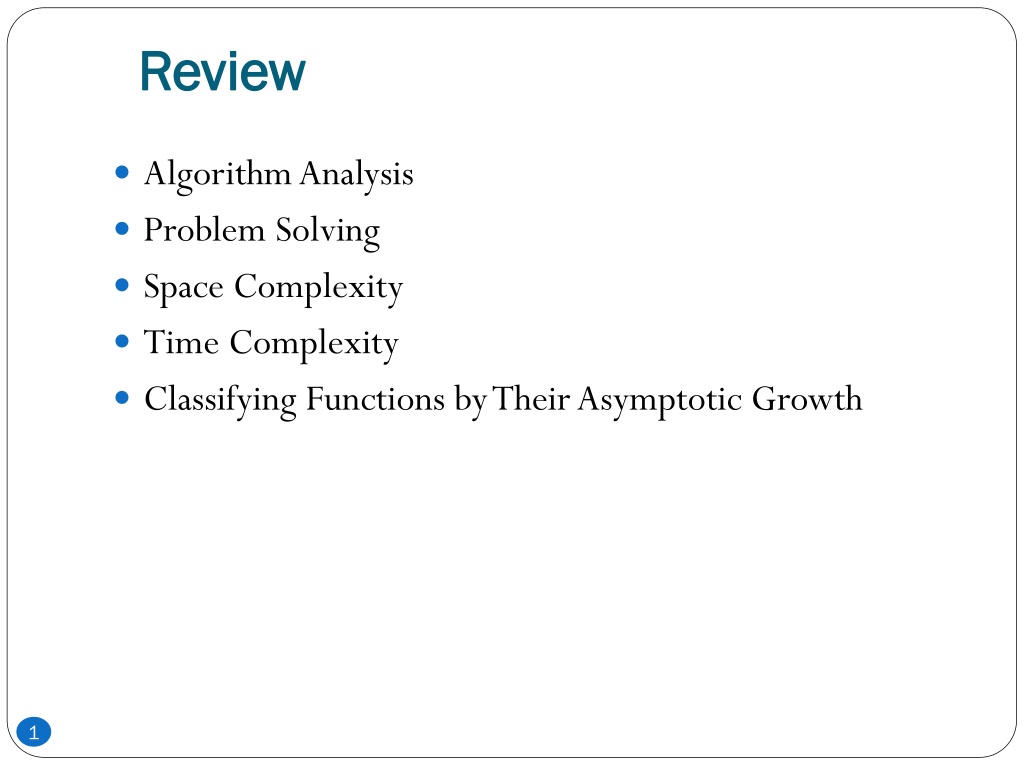

Review
1

Algorithm Analysis
Problem Solving
Space Complexity
Time Complexity
Classifying Functions by Their Asymptotic Growth

Pseudo Code and Flow Charts
2

Pseudo Code
Basic elements of Pseudo code
Basic operations of Pseudo code
Flow Chart
Symbols used in flow charts
Examples

Pseudo Code and Flow Charts

There are two commonly used tools to help to document
program logic (the algorithm).
These are
Flowcharts
Pseudocode
.
Generally, flowcharts work well for small problems but
Pseudocode is used for larger problems.
3
Pseudo-Code

Pseudo-Code
is simply a numbered list of instructions to
perform some task.


4

Writing Pseudo Code

Number each instruction
 This is to enforce the notion of an
ordered
sequence of operations
 Furthermore we introduce a
dot
notation (e.g.
3.1 come
after
3 but
before
4) to number
subordinate operations for conditional and
iterative operations
Each instruction should be
unambiguous
and
effective
.
Completeness. Nothing is left out.
5
Pseudo-code

Statements are written in simple English without regard to the final
programming language.
Each instruction is written on a separate line.
The pseudo-code is the program-like statements written for human
readers, not for computers. Thus, the pseudo-code should be readable
by anyone who has done a little programming.
Implementation is to translate the pseudo-code into
programs/software, such as “C++” language programs.
6
Basic Elements of Pseudo-code

A Variable
Having name and value
There are two operations performed on a variable
 Assignment Operation is the one in which we
associate a value to a variable.
The other operation is the one in which at any
given time we intend to retrieve the value
previously assigned to that variable (Read
Operation)
7
Basic Elements of Pseudo-code

Assignment Operation
This operation associates a value to a variable.
While writing Pseudo-code you may follow your
own syntax.
 Some of the possible syntaxes are:
Assign 3 to x
Set x equal to 3
x=3
8
Basic Operations of Pseudo-code

Read Operation
In this operation we intend to retrieve the value
previously assigned to that variable. For example
Set Value of x equal to y
Read the input from user
This operation causes the algorithm to get the
value of a variable from the user.
Get x Get a, b, c
9
Basic Operations of Pseudo-code

Print the output to the user
Print x (This will print value of variable x)
Print “Your mileage is” x

Cary out basic arithmetical computations
Set x to 10
Set y to x*x/3


10
Example: Pseudo-code of calculating area of circle

1.
1.


 Begin
 Begin
2.
2.


 Input value for radius
 Input value for radius
3.
3.


 Calculate area (pi x radius
 Calculate area (pi x radius
2
2
)
)
4.
4.


 Output radius and area
 Output radius and area
5.
5.


 Quit
 Quit
THEN PROGRAM
THEN PROGRAM
11

Flow Chart

Some of the common
symbols used in flowcharts
are shown.
12


With flowcharting, essential steps of an algorithm are shown
using the shapes above.
 The flow of data between steps is indicated by arrows, or
flowlines. For example, a flowchart (and equivalent
Pseudocode) to compute the interest on a loan is shown
below:
13
14


Note that the Pseudocode also describes the essential steps to be
taken, but without the graphical enhancements.
Another example of a flowchart and the equivalent Pseudocode
is shown next.
15
16
Some Examples

Write pseudo-code of a program that asks the user to enter
two numbers and prints the sum, product, difference, and
division of the two numbers.
Write pseudo-code of a program that solves a quadratic
equation ax
2
+bx+c by taking a, b and c as input from user.
17

Decision Making and Pseudo Code
18

Another
Example
19

Pseudo Code
20

Loops and Pseudo Code
21
22
23

Draw the Flowchart

1.         get hours worked
2.         get pay rate
3.         if hours worked ≤ 40 then

3.1   gross pay = pay rate times hours worked
4.         else
            4.1  gross pay = pay rate times 40 plus 1.5 times
pay rate times (hours worked minus 40)
5.         display gross pay
6.         halt
24

Draw the Flowchart

1.

get number of quizzes
2.         sum = 0
3.         count = 0
4.         while count < number of quizzes
            4.1       get quiz grade
            4.2       sum = sum + quiz grade
            4.3       count = count + 1
5.         average = sum / number of quizzes
6.         display average
7.         halt
25

Summary
26

Pseudo Code
Basic elements of Pseudo code
Basic operations of Pseudo code
Flow Chart
Symbols used in flow charts
Examples
Slide Note
Embed
Share

Explore the concepts of pseudo code and flow charts for analyzing algorithms, problem-solving, and understanding space and time complexity. Learn about basic elements of pseudo code, assigning operations, and writing effective pseudo code statements in a clear and structured manner. Discover the importance of documenting program logic using flow charts and pseudo code to tackle small and large problems efficiently.

  • Algorithm Analysis
  • Pseudo Code
  • Flow Charts
  • Problem Solving
  • Space Complexity

Uploaded on Aug 15, 2024 | 0 Views


Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

E N D

Presentation Transcript


  1. Review Review Algorithm Analysis Problem Solving Space Complexity Time Complexity Classifying Functions by Their Asymptotic Growth 1

  2. Pseudo Code and Flow Charts Pseudo Code Basic elements of Pseudo code Basic operations of Pseudo code Flow Chart Symbols used in flow charts Examples 2

  3. Pseudo Code and Flow Charts There are two commonly used tools to help to document program logic (the algorithm). These are Flowcharts Pseudocode. Generally, flowcharts work well for small problems but Pseudocode is used for larger problems. 3

  4. Pseudo-Code Pseudo-Code is simply a numbered list of instructions to perform some task. 4

  5. Writing Pseudo Code Number each instruction This is to enforce the notion of an ordered sequence of operations Furthermore we introduce a dot notation (e.g. 3.1 come after 3 but before 4) to number subordinate operations for conditional and iterative operations Each instruction should be unambiguous and effective. Completeness. Nothing is left out. 5

  6. Pseudo-code Statements are written in simple English without regard to the final programming language. Each instruction is written on a separate line. The pseudo-code is the program-like statements written for human readers, not for computers. Thus, the pseudo-code should be readable by anyone who has done a little programming. Implementation is to translate programs/software, such as C++ language programs. the pseudo-code into 6

  7. Basic Elements of Pseudo-code A Variable Having name and value There are two operations performed on a variable Assignment Operation is the one in which we associate a value to a variable. The other operation is the one in which at any given time we intend to retrieve the value previously assigned to that variable (Read Operation) 7

  8. Basic Elements of Pseudo-code Assignment Operation This operation associates a value to a variable. While writing Pseudo-code you may follow your own syntax. Some of the possible syntaxes are: Assign 3 to x Set x equal to 3 x=3 8

  9. Basic Operations of Pseudo-code Read Operation In this operation we intend to retrieve the value previously assigned to that variable. For example Set Value of x equal to y Read the input from user This operation causes the algorithm to get the value of a variable from the user. Get x Get a, b, c 9

  10. Basic Operations of Pseudo-code Print the output to the user Print x (This will print value of variable x) Print Your mileage is x Cary out basic arithmetical computations Set x to 10 Set y to x*x/3 10

  11. Example: Pseudo-code of calculating area of circle 1. Begin 2. Input value for radius 3. Calculate area (pi x radius2) 4. Output radius and area 5. Quit THEN PROGRAM 11

  12. Flow Chart Some of the common symbols used in flowcharts are shown. 12

  13. With flowcharting, essential steps of an algorithm are shown using the shapes above. The flow of data between steps is indicated by arrows, or flowlines. For example, a flowchart (and equivalent Pseudocode) to compute the interest on a loan is shown below: 13

  14. 14

  15. Note that the Pseudocode also describes the essential steps to be taken, but without the graphical enhancements. Another example of a flowchart and the equivalent Pseudocode is shown next. 15

  16. 16

  17. Some Examples Write pseudo-code of a program that asks the user to enter two numbers and prints the sum, product, difference, and division of the two numbers. Write pseudo-code of a program that solves a quadratic equation ax2+bx+c by taking a, b and c as input from user. 17

  18. Decision Making and Pseudo Code 18

  19. Another Example 19

  20. Pseudo Code 20

  21. Loops and Pseudo Code 21

  22. 22

  23. 23

  24. Draw the Flowchart 1. 2. 3. 4. get hours worked get pay rate if hours worked 40 then 3.1 gross pay = pay rate times hours worked else 4.1 gross pay = pay rate times 40 plus 1.5 times pay rate times (hours worked minus 40) display gross pay halt 5. 6. 24

  25. Draw the Flowchart 1. get number of quizzes 2. sum = 0 3. count = 0 4. while count < number of quizzes 4.1 get quiz grade 4.2 sum = sum + quiz grade 4.3 count = count + 1 5. average = sum / number of quizzes 6. display average 7. halt 25

  26. Summary Pseudo Code Basic elements of Pseudo code Basic operations of Pseudo code Flow Chart Symbols used in flow charts Examples 26
