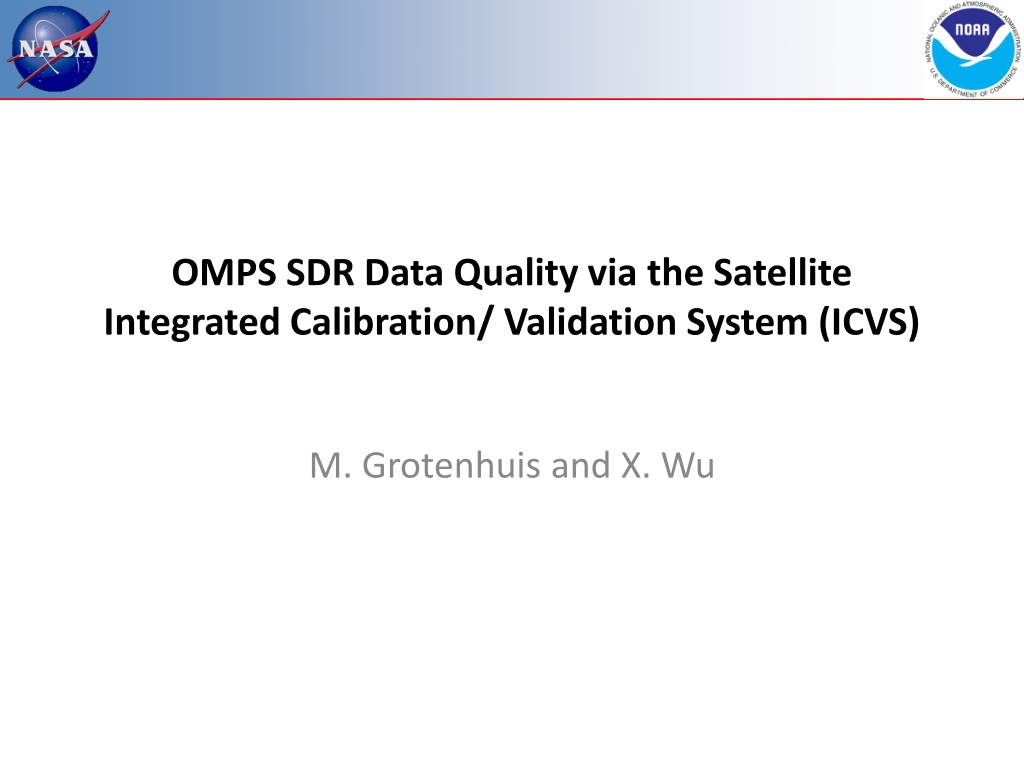

OMPS SDR Data Quality via the Satellite Integrated Calibration/ Validation System (ICVS) M. Grotenhuis and X. Wu
OMPS ICVS Overview STAR Integrated Calibration / Validation System (ICVS) OMPS web site: http://www.star.nesdis.noaa.gov/smcd/spb/icvs/instrument_npp_omps.php Purpose Monitor the status of OMPS and its operation Assist the evaluation of performance of OMPS and its SDR Assist anomaly investigation and resolution ICVS Team Collaboration with ICVS leads for other instruments yields best practices for methods of performance evaluation and instrument status/performance visualization
OMPS ICVS Components Components High-level Instrument Status Instrument Status Operation Status Instrument Performance SDR Performance Trending Comparison with other instruments
High-Level Instrument Status Total Column Radiance Maps at 331 nm
Instrument Status 24 hours Instrument component temperatures/currents/voltages Motor Currents Calibrator voltage/current 10 days Entire dataset
Operation Status 24 hours Correction Table IDs Table Versions Correction Flags Flight Software Information 10 days Entire dataset
Instrument Performance Lamp Image Noise Shot Noise Nonlinear Sensitivity Electronic Bias Other examples shown by C. Pan C. Pan
SDR Performance Trending L. Flynn and Wei Yu
Radiance/Reflectivity Product Comparisons with Other Instruments Sampling in the target area for OMPS (left)and GOME2(right) Pixels mapping (zoom) for GOME2 (40km x 80km) and OMPS(50km x 50km) 9 H. Qian & X. Wu
EDR Performance OMPS on Oct. 16 GOME-2 on Oct. 16 OOTCO upgrade from MX6.2 to MX6.3 on Oct. 15 From EDR team
From EDR team 23 October 2012 NCWCP 12
Plan Continue monitoring of OMPS status and operation Automate monitoring of OMPS performance Begin CAL SDR monitoring Obtain CAL SDR and monitoring tools from PEATE Improve EV SDR monitoring Collaborate with PEATE and EDR Teams and ICVS of other instruments
