Microscopes: Insights into Binocular and Monocular Views
Microscope

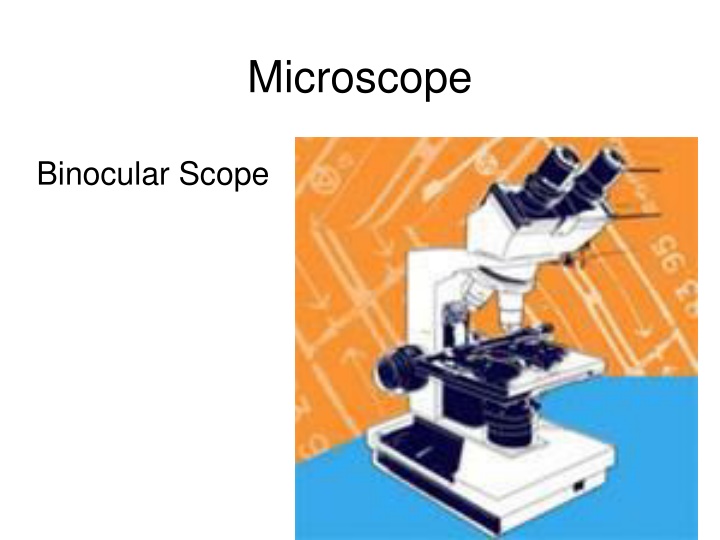

Binocular Scope
* The two ocular
lenses are
adjustable. Lightly
push the lenses
close together, then
look through the
right lens,
eventually there will
be a single image
as each eye looks
through each lens
Binocular
•
Monocular Scope
•
Parts of the
Microscope
Rotating Nose Piece
Objective Lenses
•
Color coded
•
4x-scanning
•
10x –low
•
40x –high
Coarse and Fine Adjustment
•
Coarse used only
on the 4x and 10x
•
Fine can be used
on all three lenses
Mechanical Stage
•
Attached to the stage
Mechanical Stage
•
Unattached
Websites
http://www.southwestschools.org/jsfaculty/Mi
croscopes/types.html
•
http://www.hometrainingtools.com/articles/
how-to-use-a-microscope-teaching-tip.html
•
http://www.wisc-
online.com/objects/index_tj.asp?objID=BI
O905
(quiz)
