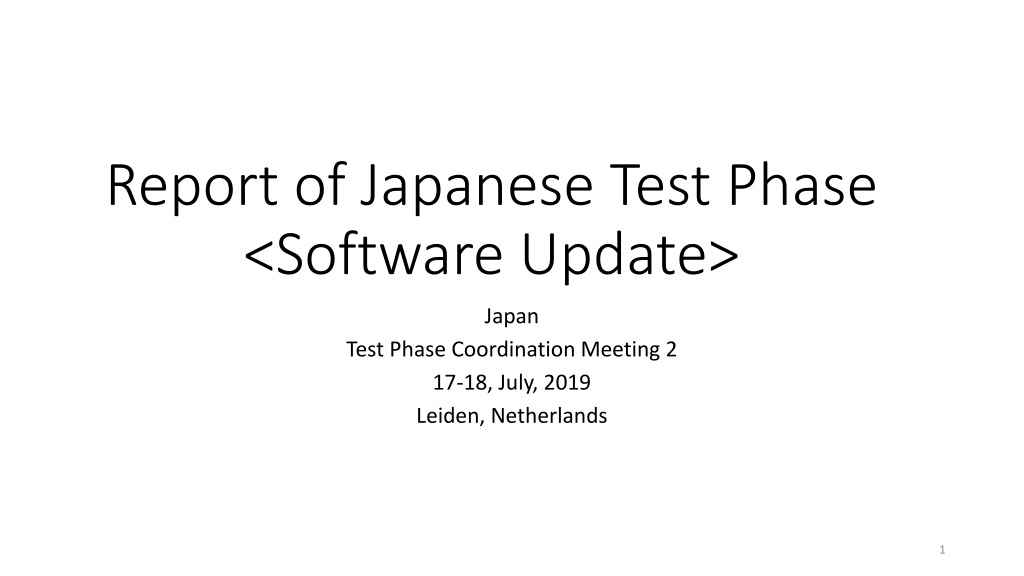

Report of Japanese Test Phase <Software Update> Japan Test Phase Coordination Meeting 2 17-18, July, 2019 Leiden, Netherlands 1
Outline 4 Manufacturers, 1 TS, 1 AA and the Government were actively involved in the Japanese Test Phase. Evidencing documents which have been developed with a format in the same manner with existing regulations were reviewed. Summary of results in the first round of the test phase will be shared in the later pages. 2
Software Update Evidences which are described in the current draft of InterpretationDocument are sufficient in general in comparison with the results of Japanese test phase. 3
Software Update (Continued) Interpretation Document ID will provide what kind of evidences are needed for the certification by TS/AA. ID will not define the criteria on quality of evidencing. ID will not define boundary conditions on OEM s process. 4
Software Update (Continued) Demonstration The demonstration specified in paragraph 7.1.3 & 7.1.4, which will be conducted for the certification of OEM s processes shall include audits on the sites, such as vehicle design department. Such auditing includes e.g. interviews. The demonstration for type approval specified in paragraph 7.2 shall be done from the viewpoint of investigation whether vehicle was actually designed in accordance with content of application form. This demonstration includes investigation of actual vehicle. 5
Additional Input: RxSWIN In order to understand how RxSWIN is used for certifications, Japan is working to integrate the idea into the existing regulation(R79) as a trial bases. Japanese case study which involves multiple ECUs and functions will be described in the following page. 6
Software Update Operation and Management Requirements (1) Instead of identifying particular ECU component software, a software identification RXSWIN is set to identify the ECU software program relevant to each type approval (RXSWIN: Software identification No. for Regulation No. x). (2) RXSWIN consists of a maximum of 50 alphabetic/numeric characters. (Each manufacturer can define its own numbering rules.) (3) RXSWIN must be capable of being read out via an electronic interface or the standard interface (OBD port). (4) It must have a mechanism whereby information on specific software versions of relevant components as well as information to link them to RXSWIN is recorded. (5) Vehicle information and RXSWIN-linked information must be informed to the authority. (6) Data used to determine whether or not the software update will affect the approval must be maintained. (7) Management is also required after vehicle registration. Diagram of management by linking the vehicle, approval information, EUC and RXSWIN Approval info VIN RXSWIN Basic vehicle spec. ECU-A1 software version ECU-B1 software version Option list 7
Relation Between RXSWIN/SysID and ECU RXSWIN is an identifier that is assigned for each vehicle type on one UNR and intended to identify software (function) on an ECU which is a component of a type-approved system. SysIDs are unique management identifiers managed by the design side and are uniquely assigned even to those OEM systems that are not subject to type approval. ECU Software ID Ver7 Ver7 Ver5 Ver3 ABS IVI MET EPS RXSWIN SysID (Approved types only) R13H Brake R39 Speedometer BR- Sys04 WMI-VDS- R13H-Sys04 SysID RXSWIN Subject to approval SPMT- Sys06 WMI-VDS- R39-Sys06 SysID RXSWIN R79 ST- Sys02 WMI-VDS- R79-Sys02 SysID RXSWIN Steering equipment Not subject to approval Luxury equipment MM- Sys09 SysID 8
Determination of Whether Any Approved Type Will Be Affected by the ECU Software Update If changes are made to software on an ECU, the OEM needs to be able to identify types that are possibly related to that ECU. In addition, the OEM needs to be able to determine, based on the software configuration on that ECU as well as the changes made, whether any of such types will be affected, whether any other types will be affected, and whether it will be necessary to newly obtain approval. Confirm that other related systems (R13H) will not be affected. It does not increment SysIDs of those systems that will not be affected. Confirm that other functions within the same ECU will not be affected. Ver8 ECU Software ID Ver7 Ver7 Ver7 Ver5 Ver3 No need to newly obtain approval for the other relevant type (R13H) ABS IVI MET EPS RXSWIN SysID (Approved types only) R13H Brake R39 Speedometer BR- Sys04 WMI-VDS- R13H-Sys04 SysID RXSWIN Subject to approval SPMT- Sys06 WMI-VDS- R39-Sys06 SysID RXSWIN Need to newly obtain approval for the type (R79) ST- Sys03 R79 WMI-VDS- R79-Sys03 SysID RXSWIN Steering equipment Not subject to approval Luxury equipment MM- Sys09 SysID Steering-related functional change; the type (R79) will be affected 9
ECU Software ID (Example) Need to identify all the relations to the level of functions within an ECU by linking them to ECU Software IDs, which are linked to RXSWIN through SysID * It is not intended to require the Part No. management at the function level (installation). RXSWIN ECU Hardware Bracket Microcontroller SysID Ver8 Software Information Identifier (ECU Software ID) Software Ver7 User data Calibration data Change made Software Information Identifier (ECU Software ID) Software Information Identifier (ECU Software ID) Change made Function Function B Application data Function A R79 Function C R13H ECU ECU Function A Function B Function A Function B BSW/OS Function 0 Boot 10
ECU Software Update and RXSWIN Update Processes The Design Department has a process to determine whether any approved type will be affected. As a result of such process, if it is determined that there is an affected type, the applicable SysID will be updated and reported to the Certification Department. Authority (Japan) OEM Design Dept. (System) ECU Dept. 1 Certification Dept. WMI-VDS- R79-Sys02 WMI-VDS- R79-Sys02 ST- Sys02 Apply RXSWIN IVI-07 ECU SW ID RXSWIN SysID No change WMI-VDS- R79-Sys03 WMI-VDS- R79-Sys03 ST- Sys03 Apply RXSWIN RXSWIN SysID Certification Dept. newly assigns an RXSWIN in response to the request from the Design Dept. and notifies it to the authority. The authority receives from the OEM an application for modifying the existing type approval and re- approves the type. As a result of the process to determine whether any approved type will be affected, the Design Dept. determines that there is an affected type and thus newly assigns a System Configuration Management No. (SysID). SysID is assumed to be numbered using the management process/system within the Design Dept. ECU Dept. 2 EPS-07 ECU SW ID EPS-08 ECU SW ID (1) A functional change that will affect an approved type is made RXSWIN is assumed to be numbered using the process/system within the Certification Dept. 11
Modification of Annex B x.y.2.2. The vehicle manufacturer shall provide the following information in the communication form of this Regulation: - the RXSWIN - the regulation binding to the RXSWIN - the information to bind the RXSWIN and relevant software packages which form the type approved according to this regulation - how to read the RXSWIN 12
